MAKELSAN 1K Manuel utilisateur

-1-

MAKELSANUPS

1 BRIEF INTRODUCTION

1.1Prolegomenon

The product is designed specially aiming at the requirement of MINI and MICRO

level computer with exquisite quality and excellent function, easy to operate. With the

development of customer office automatism and computerism, considering the bulk and

the position of positing space, the noise disturbance to personnel in office, the light,

thin, short and small product is our design direction, and we stress low noise. So this

product is optimum supply power partner for office and makes you can attain optimal

clean power quality.

1.2 Five design points

1. Small bulk and no occupation space

2. Light weight and convenience to transit

3. Beauty and nature, easy to install

4. Convenient to maintain and easy to operate

5. Package material with environment protection and no pollution to environment

1.3 Note

The manual makes you can operate and maintain the system easily. To normally exert

all functions of the system, please note the following:

1. Read the manual carefully before use

2. Perform the operation strictly according to operating process

3. Place the equipment carefully and lightly when moving the equipment

4. Install the power according to illumination in the manual

5. Please do not open the cover to avoid injury caused by electrical shock

6. Please charge batteries once every a period if no used for long time

7. Do not use UPS on the condition of overload to avoid UPS fault

8. Please carefully keep the manual for the future reference

9. Please handle the system according to "ABNORMITY HANDLING PROCESS" if

there presents any abnormal phenomenon in machine.

10. Please keep UPS neatness and cleanness

BRIEFINTRODUCTION

-2-

MAKELSANUPS

2 CONFIGURATION AND FUNCTION

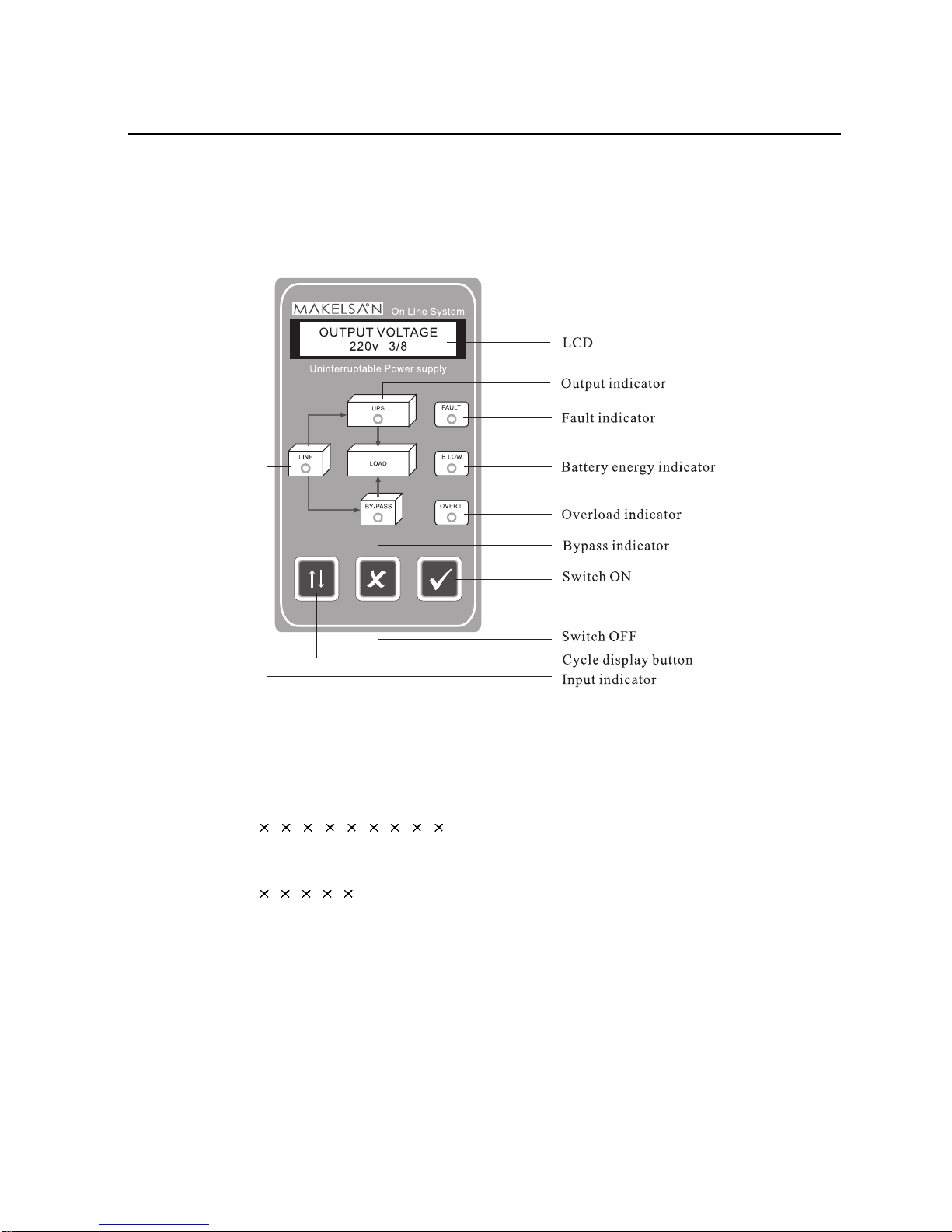

2.1 Frontpanel

CONFIGURATIONANDFUNCTION

1) Welcome screen

WELCOME TO

2) Display of system status

_Pro

AC: IN BAT: OK

Note: AC indicates utility; BAT indicates battery;

AC: IN indicates utility power is normal;

AC: LOSS indicates utility power is abnormal;

BAT: OK indicates battery is normal;

BAT: LOW indicates battery capacity isn't enough.

-3-

MAKELSANUPS

3) Display of input voltage value

INPUT VOLTAGE

220V 2/8

4) Display of output voltage value

OUTPUT VOLTAGE

220V 3/8

5) Display of input frequency value

INPUT FREQUENCY

50HZ 4/8

6) Display of output frequency value

OUTPUT FREQUENCY

50HZ 5/8

7) Display of battery voltage value

BATTERY VOLTAGE

220V 6/8

8) Display of output power percent

CURRENT LOAD

100% 7/8

9) Temperature display in machine

TEMPERATURE

33 8/8

*These parameters vary with machine model.

CONFIGURATIONANDFUNCTION

-4-

MAKELSANUPS

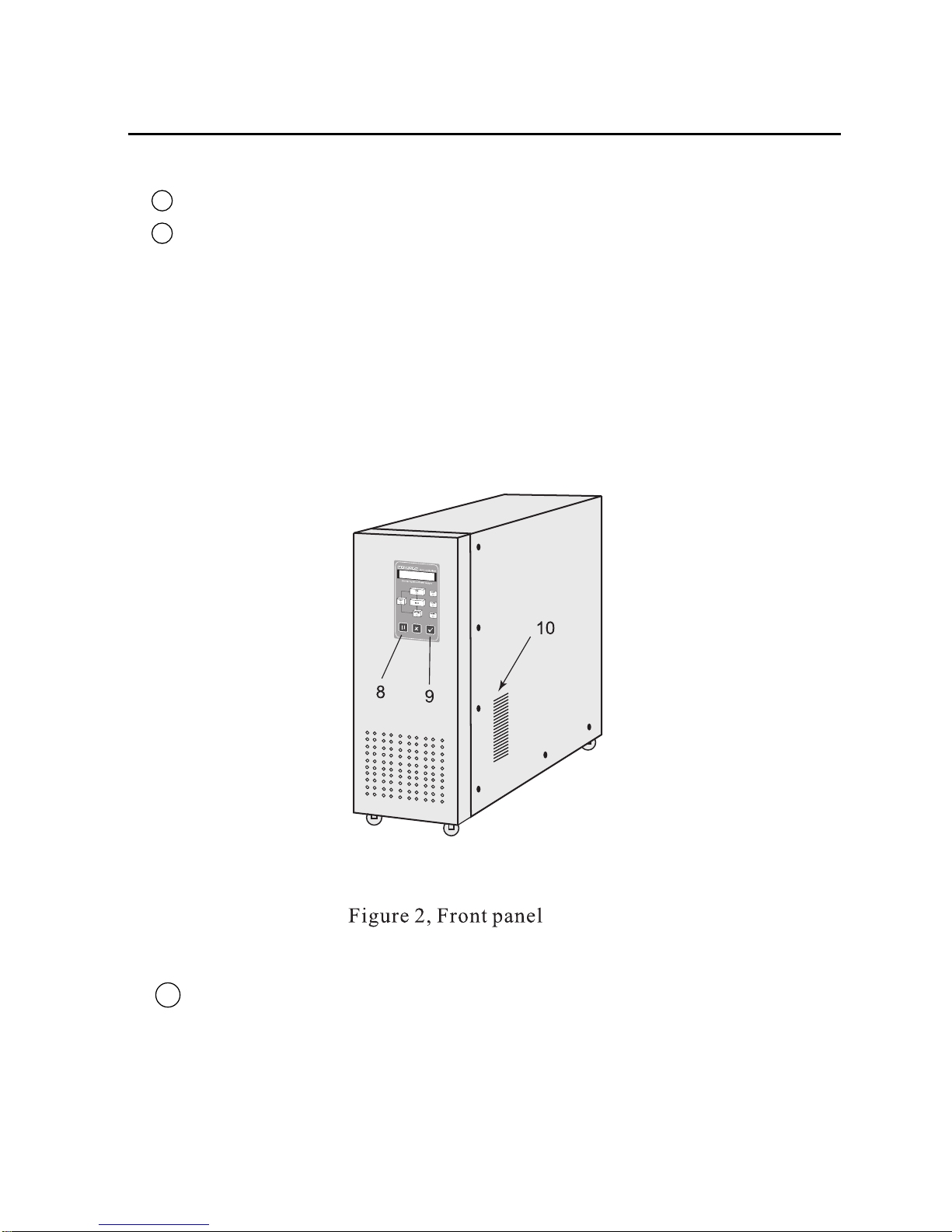

2.2 Appearance

8 LCD cycle display switch button: digital signal display items switch button.

9 UPS switch button: UPS general switch button.

(1) Turn on UPS inverter by pressing the "ON" key. UPS convert to UPS inverter

power output 20s later, UPS pure AC output power is supplied by UPS internal

power supply equipment.

(2) Turn off UPS inverter by pressing the "OFF" button. UPS convert to utility

bypass.

The button acts as general switch mainly.

10 Emission heat ventilation hole:

The ventilation hole and other small long elliptic ventilation holes should be kept

good ventilation.

CONFIGURATIONANDFUNCTION

-5-

MAKELSANUPS

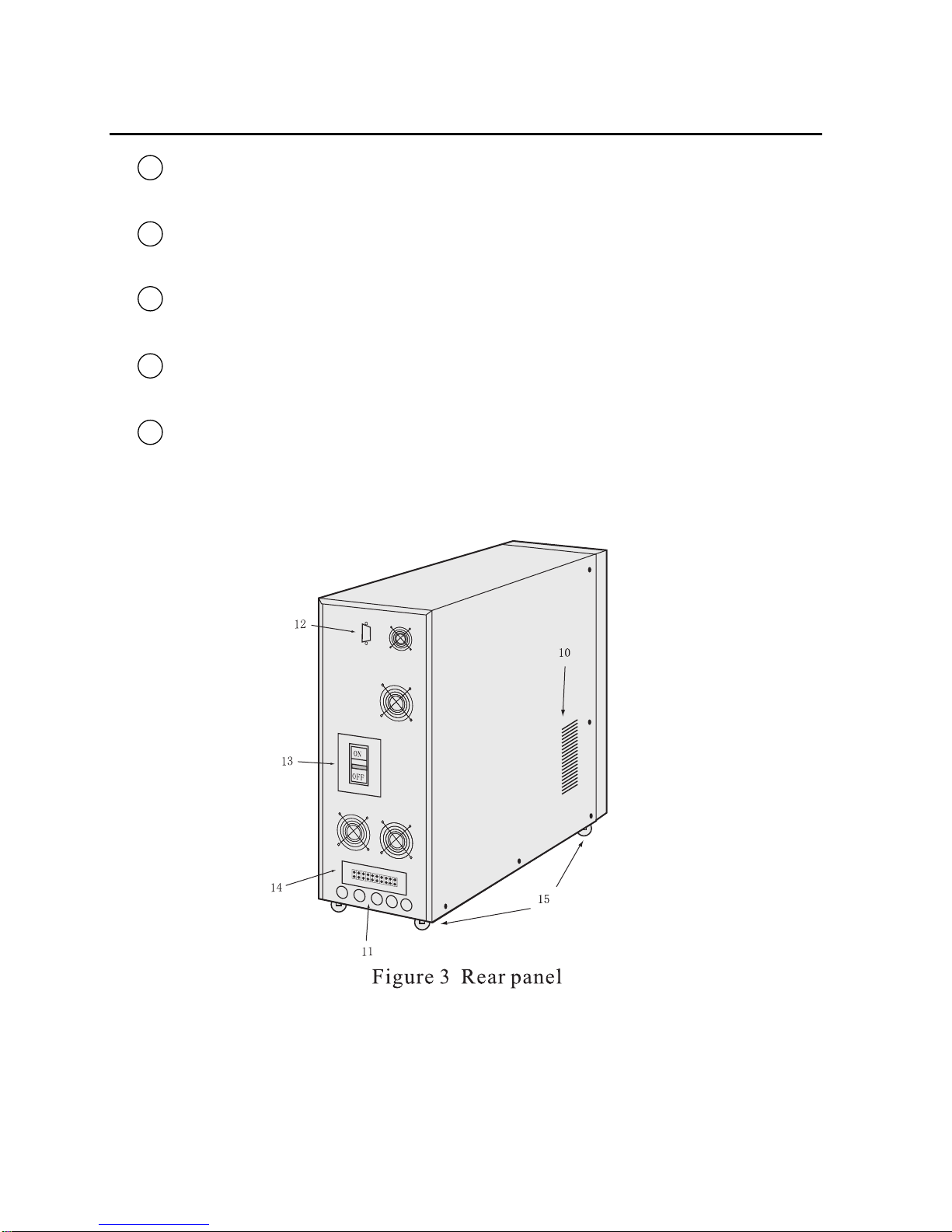

11 Wiring inlet/outlet hole:

Wiring inlet/outlet hole of input, output and battery pack.

12 DB-9 communication interface receptacle

Standard communication interface between UPS and computer.

13 Power switch:

Power switch controls input, output and battery power switch at the same time.

14 Wiring terminal support

Power wiring terminal support of input, output and battery.

15 Active wheel:

There are four hidden movement wheel, in favor to move.

-6-

MAKELSANUPS

MOVEMENTHANDLING

3 PLACEMENT NOTES

3.1Transit or move

1. Please dismantle all barge connection firstly. (First turn off before performing)

2. Place lightly and carefully, forbid to hit.

3. Please do not move UPS inverted.

3.2 Placement

1. Do not place the UPS on the slope or scraggy land. (Figure 4)

2. Please place the UPS in the place where keeps good ventilation, rear panel of UPS

and two side faces should keep more than 10cm away from the wall. (Figure 5)

-7-

MAKELSANUPS

3. Do not install UPS under sunlight, drain and damp place. (Figure 6, 7)

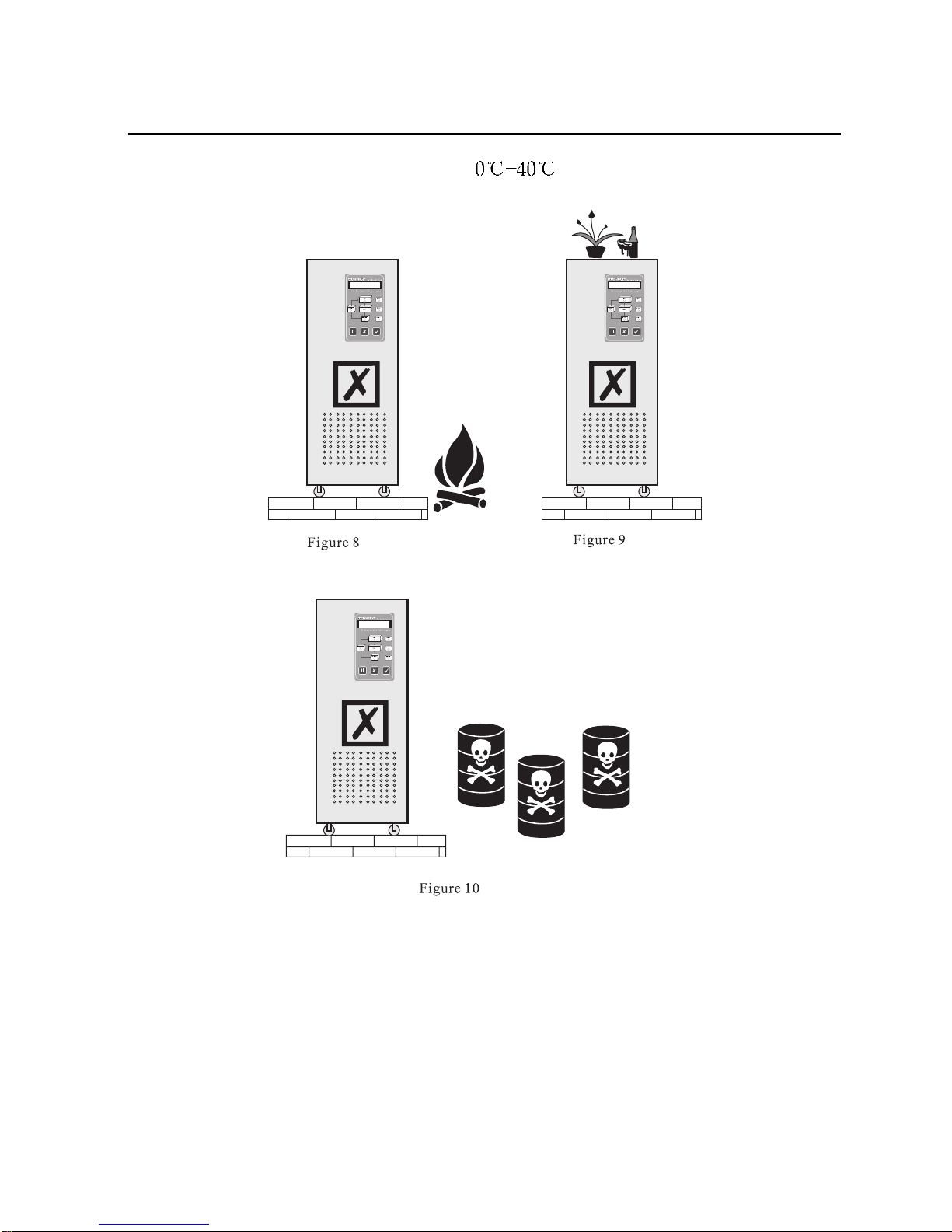

4. Please keep away from fire source and high temperature to avoid over-high

temperature. (Figure 8)

5. Do not lay goods on the UPS. (Figure 9)

6. Do not install UPS in the place where contains caustic gas. (Figure 10)

PLACEMENTNOTES

-8-

MAKELSANUPS

7. Running environment temperature:

INSTALLATION

4 INSTALLATION

4.1 Input

1. Prohibit using general household socket, because the Max. current of general

socket is 15A, the socket may be burned down because of overload.

-9-

MAKELSANUPS

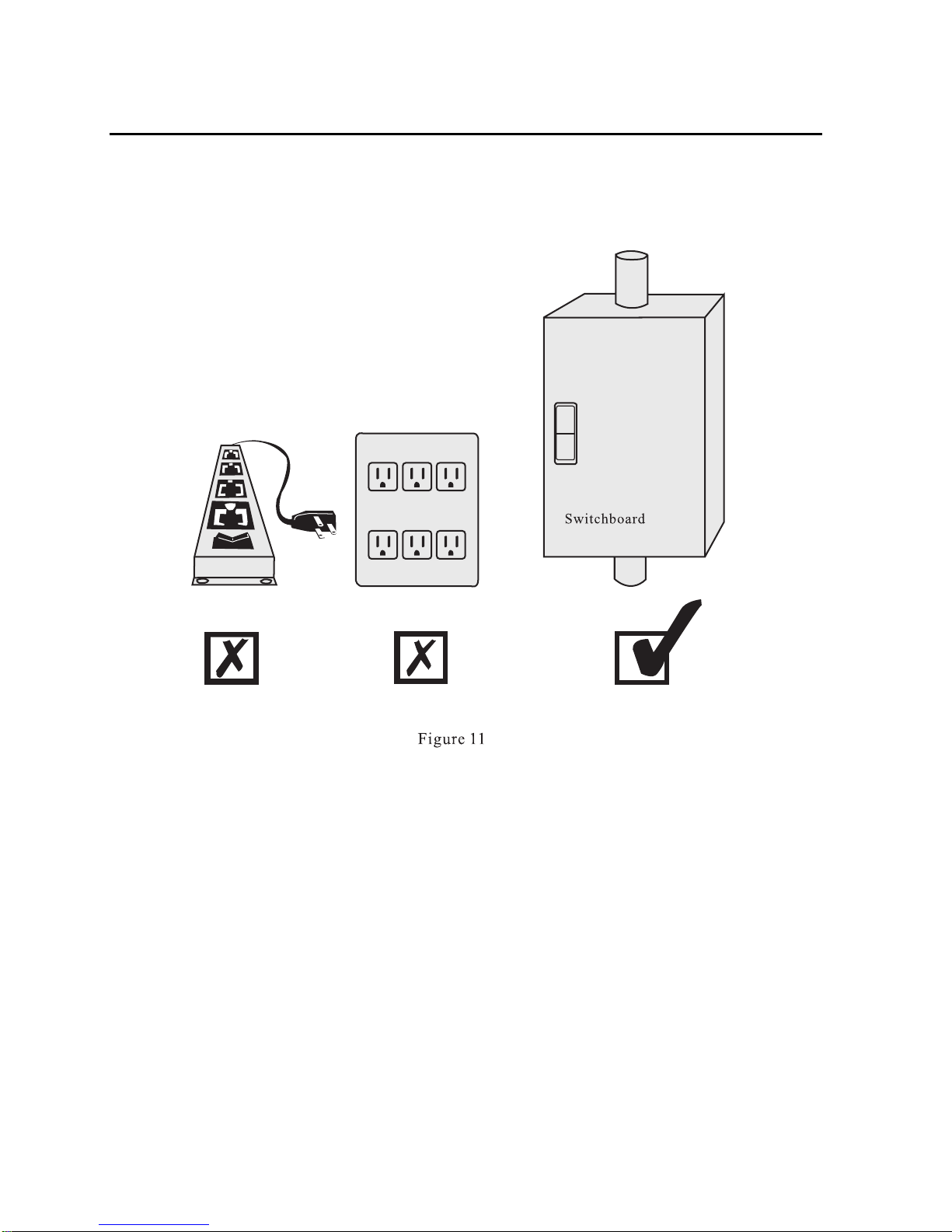

2. Please connect UPS input terminal to utility power in nearby switchboard. Figure

11.

3. Position and way of connect

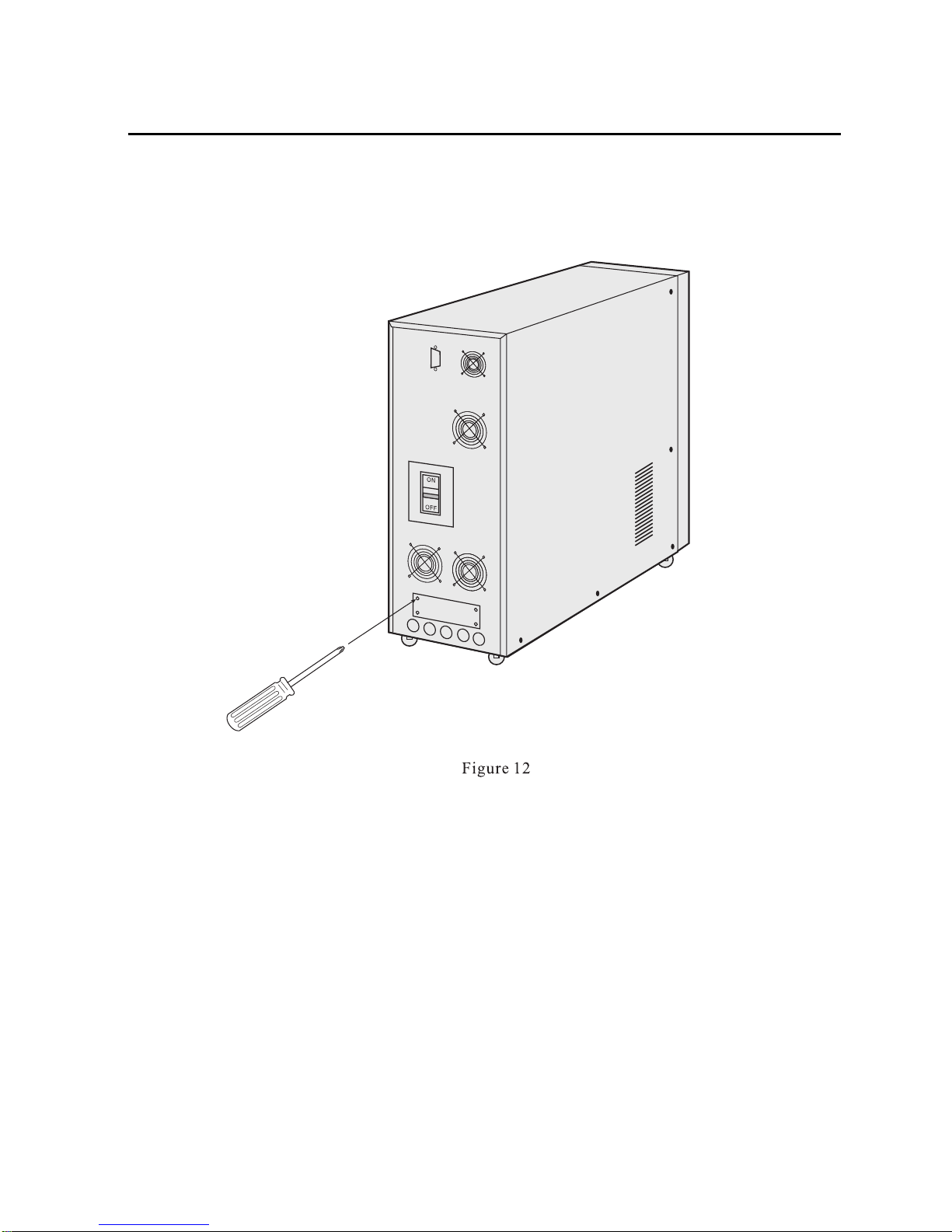

(1) Remove two screws with "+" screw-driver (Figure 12)

(2) Open the back panel and inspect the wiring terminal below the power switch.

(Figure13)

4. Relock the special cover after completing connection.

5. Please first fetch in the power cables of input, output and batteries pack through

inlet/outlet hole of distribution electricity and then barge connect to terminal

plate.

INSTALLATION

-10-

MAKELSANUPS

INSTALLATION
