MAJORITY CB4A-DAB-WHT Manuel utilisateur
Majority Arbury
DAB / DAB+ / FM Radio
CB4A-DAB-WHT/BLK
User Guide
Contents
Controls and Functions.............................. 1
What’s in the Box? .................................. 3
Instruction Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Basic Operation...........................................4
DAB Radio and Set up Preset for DAB Radio................5
FM Radio and Set up Preset for FM Radio ..................8
Station Information for DAB and FM Radio ................10
Clock and Date Setting...................................12
Dual Alarm Setting ......................................14
Alarm Sound and Snooze ................................15
Other Functions ...................................16
Technical Specification .............................18
Warranty ..........................................18
Troubleshooting Guide ............................19
Important Safety Information ......................20
Watch video tutorials and register
your product for a FREE 3-year
warranty atwww.majorityradios.co.uk
3
Y
E
A
R
F
R
E
E
E
X
T
E
N
D
E
D
W
A
R
R
A
N
T
Y
Instructions GuideControls and Functions
1
1. Info/Menu
2. Preset
3. Power/Mode
4. Scan
5. Previous
6. Next
7. Enter/Snooze
8. Volume -
9. Volume +
10. LCD display
11. Antenna
123
456
789
10
11
Rear View
Front View
12 13
14
15
Instructions Guide
Controls and Functions
2
123
456
789
10
11
Rear View
Front View
12 13
14
15
12. Off/On Switch
13. DC 5V,1A Power Connector
14. Charging Light Indicator
15. 3.5mm Headphone Socket
Instructions Guide

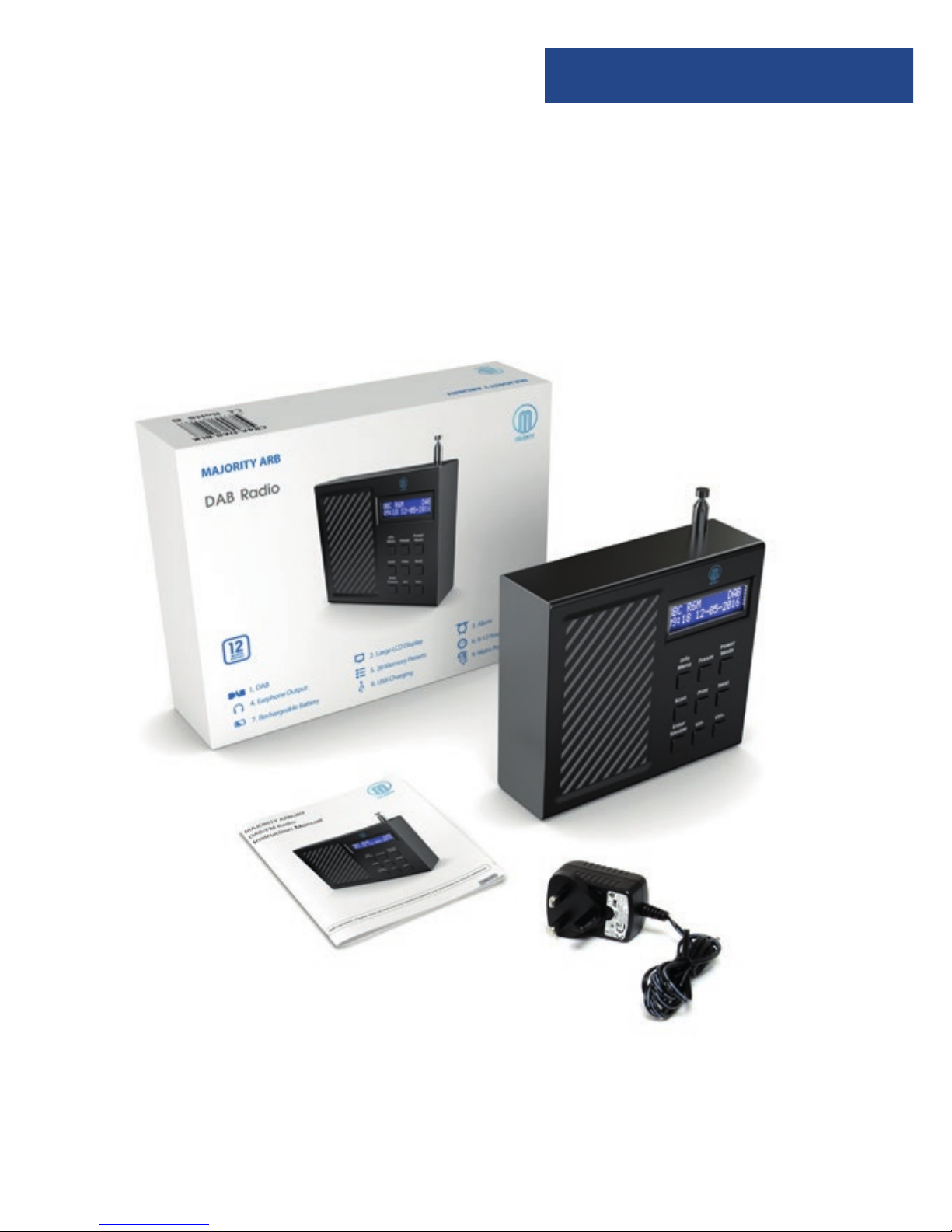

What’s in the Box?
3
●Majority Arbury DAB / DAB+ Radio Clock
●UK Standard Plug DC 5V,1A Power Supply
●User Guide
Instructions Guide
4
Please note all (Ref.) refer to the Controls and Functions
mapping guide on Pages 1-2.
Basic Operation
Plug the connector into the back of the system labelled DC 5V
(Ref.13) and the power supply into the mains if not already
charged.
Position the Power Supply switch on the back of the system to
‘ON’ (Ref.12).
Ensure the Antenna (Ref.11) is extended as far as possible so that
you can rotate it, enabling you to get the best possible signal.
The Radio will be in Standby mode showing the time and date.
This will automatically update after the first time you use the
DAB radio.
Press the ‘Power/Mode’ button (Ref.3) to turn on the unit.
It will automatically take you to DAB radio mode or the
previous mode you were using.
To change the mode, press the ‘Power/Mode’ button (Ref.3) to
switch between DAB Radio and FM Radio.
When DAB Radio is activated for the first time it will automatically
start scanning and storing all stations that have a good signal.
To scroll through the stations, use the‘Prev’button (Ref.5) or‘Next’
button (Ref.6). Press‘Enter’(Ref.7) to select a station.
Instructions Guide
Instructions Guide
5
Standby
To place the music system in standby mode, press and hold the
‘Power/Mode’ button (Ref.3). To turn off fully, switch the button
on the rear of the unit (Ref.12) to off and turn the power off at
the mains. The cord must be out of reach of children.
DAB / DAB+ Radio
Press the ‘Power/Mode’ button (Ref.3) to switch to DAB Radio.
On first use it will automatically scan all stations and save them.
Fully extend the antenna (Ref.11).
To auto-scan (if the unit hasn’t automatically done so, or shows
no signal) press the ‘Scan’ button (Ref.4) and then release. This
will start scanning up the frequency band and store all stations
that have a good signal. Please note, if you aren’t in a good DAB
signal area then the signal received may be limited.
The radio will automatically save all the stations that have a
strong signal. After searching has finished it will automatically
play the first station stored.
To listen to all stations that have been stored use the ‘Next’
(Ref.6) and ‘Prev’ (Ref.5) buttons to scroll through the stations.
Press ‘Enter’ (Ref.7) to confirm your choice.
6
Instructions Guide
The radio will display station information when you press the
‘Info/Menu’ button (Ref.1). Press it multiple times to view all
information available (See page 10).
When you power up the radio again after switching off, it will
automatically tune to the same station (DAB or FM) that was
last selected.
IMPORTANT: Please make sure you have
extended the antenna to its full length
(Ref.11). This will then enable you to rotate
it to get the best signal.
7
Instructions Guide
How to store a preset radio station
Up to 10 preset stations can be set. To store a station that you
are currently playing:
Press and hold the ‘Preset’ button (Ref.2). “<1: (Empty)” will
show on the display.
Press ‘Prev’ (Ref.5) or ‘Next’ (Ref.6) button to change the “<1”
to the number you want to store the station as. Then press
‘Enter’ button (Ref.7) to save. The display will then show “Preset
(1) stored”.
How to play a preset radio station
Press the ‘Preset’ button (Ref.2).
Press ‘Prev’ (Ref.5) or ‘Next’ (Ref.6) button to scroll through your
preset stations, up to 10.
Press ‘Enter’ button (Ref.7) to select your choice.
Watch video tutorials and register
your product for a FREE 3-year
warranty atwww.majorityradios.co.uk
3
Y
E
A
R
F
R
E
E
E
X
T
E
N
D
E
D
W
A
R
R
A
N
T
Y
8
Instructions Guide
FM Radio
Press the ‘Power/Mode’ button (Ref.3) multiple times to switch
to FM. The first time you do this, FM frequency “87.5 MHz” will
be displayed on the screen.
Fully extend the antenna (Ref.11).
To auto-scan press and release the ‘Scan’ button (Ref.4).
This will then start scanning up the frequency band and play
the first station it finds with a good signal.
To scan down the frequency band press and hold the ‘Scan’
button (Ref.4) for a few seconds.
The radio will display station information when you press the
‘Info/Menu’ button (Ref.1). Press multiple times to view all
information available (See page 11).
IMPORTANT: Please make sure you have
extended the antenna to its full length
(Ref.11). This will then enable you to rotate
it to get the best signal.
