MAJORITY CB3-DAB-WHT Manuel utilisateur

Majority Newnham

DAB / DAB+ / FM Radio

CB3-DAB-WHT/BLK

User Guide

Contents

Controls and Functions.............................. 1

What’s in the Box? .................................. 2

Instruction Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Basic Operation...........................................3

DAB Radio and Set up Preset for DAB Radio................4

FM Radio and Set up Preset for FM Radio ..................6

Station Information for DAB and FM Radio.................8

Clock and Date Setting...................................10

Dual Alarm Setting ......................................12

Alarm Sound and Snooze ................................13

Other Functions ...................................14

Technical Speciﬁcation .............................17

Warranty ..........................................17

Troubleshooting Guide ............................18

Important Safety Information ......................19

Watch video tutorials and register

your product for a FREE 3-year

warranty atwww.majorityradios.co.uk

Instructions GuideControls and Functions

1411

1. Power/Source

2. Alarm/Sleep

3. Info/Menu

4. Preset

5. Select/Snooze

6. Scan

7. Previous

8. Next

9. Volume +/-

10. Display Screen

11. On/Oﬀ Switch

12. DC 5V,1A

Power

Connector

13. Charging Light

Indicator

14. 3.5mm

Headphone

Socket

15. Antenna

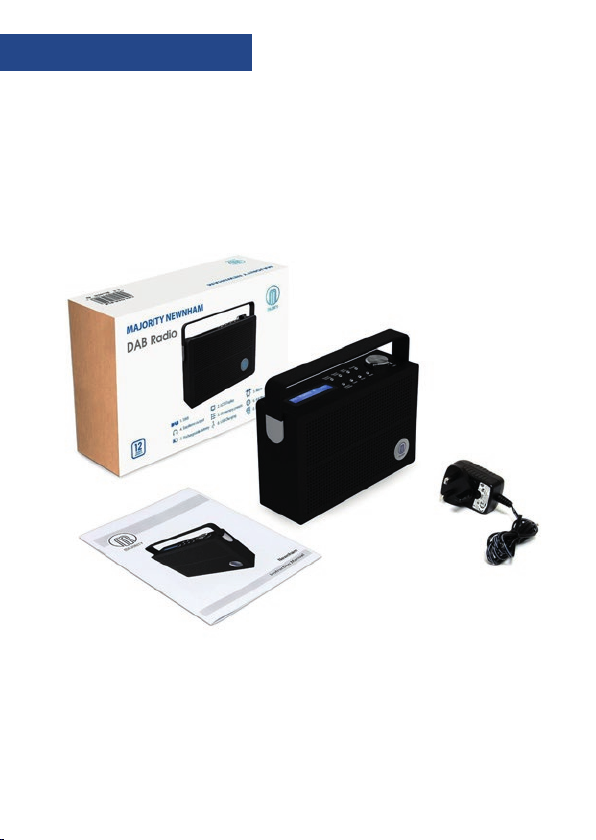

Instructions GuideWhat’s in the Box?

●Majority Newnham DAB / DAB+ Radio Clock

●UK Standard Plug DC 5V,1A Power Supply

●User Guide

Instructions Guide

Please note all (Ref.) refer to the Controls and Functions

mapping guide on Page 1.

Basic Operation

Plug the connector into the back of the system labelled DC 5V

(Ref.12) and the power supply into the mains, if the station

needs charging.

Position the Power Supply switch on the back of the system to

‘ON’ (Ref.11).

Ensure the antenna (Ref.15) is extended as far as possible so that

you can rotate it, enabling you to get the best possible signal.

The radio will be in standby mode showing the time and date.

This will automatically update after the ﬁrst time you use the

DAB radio.

Press the ‘Power/Source’button to turn on the unit (Ref.1).

It will automatically take you to DAB radio mode or the

previous mode you were using.

To change the mode press the ‘Power/Source’button (Ref.1) to

switch between DAB Radio and FM Radio.

When DAB Radio is activated for the ﬁrst time it will

automatically start scanning and storing all stations that have a

good signal. If the display shows “No Signal”, press the scan

button. It will take a few minutes for all the stations to be

scanned and saved. Use the ‘Prev’and ‘Next’ buttons (Ref.7/8)

to scroll through the stations.

Instructions Guide

Standby

To place the system in standby mode, press and hold the

‘Power/Source’ button (Ref.1). To turn oﬀ fully, press the button

on rear of the unit (Ref.11) and switch oﬀ at the mains. The cord

must be out of reach of children.

DAB / DAB+ Radio

Press the ‘Power/Source’ button (Ref.1) to switch to DAB Radio.

On ﬁrst use it will automatically scan all stations and save them.

Fully extend the antenna (Ref.15).

To auto scan, press the ‘Scan’button (Ref.6) and then release.

This will start scanning up the frequency band and store all

stations that have a good signal.

The radio will automatically save all the stations with a strong

signal up to 240 MHz.

After searching has ﬁnished it will automatically play the ﬁrst

station stored.

IMPORTANT: Please make sure you have

extended the antenna (Ref.15) to its full

length. This will then enable you to rotate it

to get the best signal.



Instructions GuideInstructions Guide

To listen to all stations that have been stored use the ‘Next’ and

‘Prev’ buttons (Ref.7/8) to scroll through them. Once you have

chosen, press ‘Select/Snooze’ button (Ref.5).

The radio will display station information when you press the

‘Info/Menu’ button (Ref.3). Press multiple times for diﬀerent

information types.

When you power up the radio again after switching oﬀ, it will

automatically tune to the same station (DAB or FM) that was

last selected.

How to store a preset radio station

Up to 10 preset stations can be set. To store a station that you

are currently playing:

Press and hold ‘Preset’ button (Ref.4).

“Preset Store <1: (Empty)” will show on the display.

Press ‘Prev’ (Ref.7) or ‘Next’ (Ref.8) button to change the “<1” to

the number you want to store the station as. Then press ‘Select/

Snooze’ button (Ref.5) to save. The display will then show

“Preset (1) stored”.

How to play a preset radio station

Press the ‘Preset’ button (Ref.4).

Press ‘Prev’ (Ref.7) or ‘Next’ (Ref.8) button to scroll through your

preset stations. You can store up to 10 presets.

Press ‘Select/Snooze’ button (Ref.5) to select your choice.

Instructions Guide

FM Radio

Press the ‘Power/Source’ button (Ref.1) multiple times to switch

to FM. The ﬁrst time you do this FM frequency “87.5 MHz” will

be displayed on the screen.

Fully extend the antenna (Ref.15).

To auto scan, press and release the ‘Scan’button (Ref.6).

This will then start scanning up the frequency band and play

the ﬁrst station it ﬁnds with a good signal.

To scan down the frequency band, press and hold the ‘Scan’

button (Ref.6) for a few seconds.

How to tune a speciﬁc frequency manually

To listen to a speciﬁc frequency press and hold the ‘Next’

button (Ref.8) to search forward quickly and ‘Prev’ button

(Ref.7) to search back quickly. It will stop searching when the

button is released. To search slowly press the ‘Next’ and ‘Prev’

button (Ref.7/8) multiple times rather than holding.

IMPORTANT: Please make sure you have

extended the antenna (Ref.15) to its full

length. This will then enable you to rotate it

to get the best signal.



Instructions Guide

How to set Mono or Stereo

Press the ‘Select/Snooze’ button (Ref.5) multiple times to

change between Mono and Stereo. The receiver will

automatically switch between Stereo and Mono You can,

however, override this using the above instructions.

How to store a preset radio station

Up to 10 preset stations can be set. To store a station that you

are currently playing:

Press and hold ‘Preset’ button (Ref.4).

“Preset Store <1: (Empty)” will show on the display.

Press ‘Prev’ (Ref.7) or ‘Next’ (Ref.8) button to change the “<1” to

the number you want to store the station as. Then press ‘Select/

Snooze’ button (Ref.5) to save. The display will then show

“Preset (1) stored”.

How to play a preset radio station

Press the ‘Preset’ button (Ref.4).

Press the ‘Prev’ (Ref.7) or ‘Next’ (Ref.8) button to scroll through

your preset stations. You can store up to 10 presets.

Press ‘Select/Snooze’ button (Ref.5) to select your choice.

Instructions Guide

Station Information for DAB and FM Radio

DAB / DAB+ Radio

Press the ‘Info/Menu’ button (Ref.3) repeatedly to show the

diﬀerent programme information.

Bit Rate: Shows the data rate at which the signal is being

transmitted.

Bit Error Rate (BER): Provides details of the signal error rate.

Channel and Frequency: Displays the station’s transmission

channel number and frequency.

PTY (Programme Type): Shows the type and description of the

programme provided by the DAB station.

Time and Date: Displays the time and date information

provided by the broadcaster.

DAB Indication: Indicates DAB mode.

Dynamic Label Segment (DLS): Displays scrolling text

information supplied by the broadcaster.
