Maestro 100 3G Manuel utilisateur

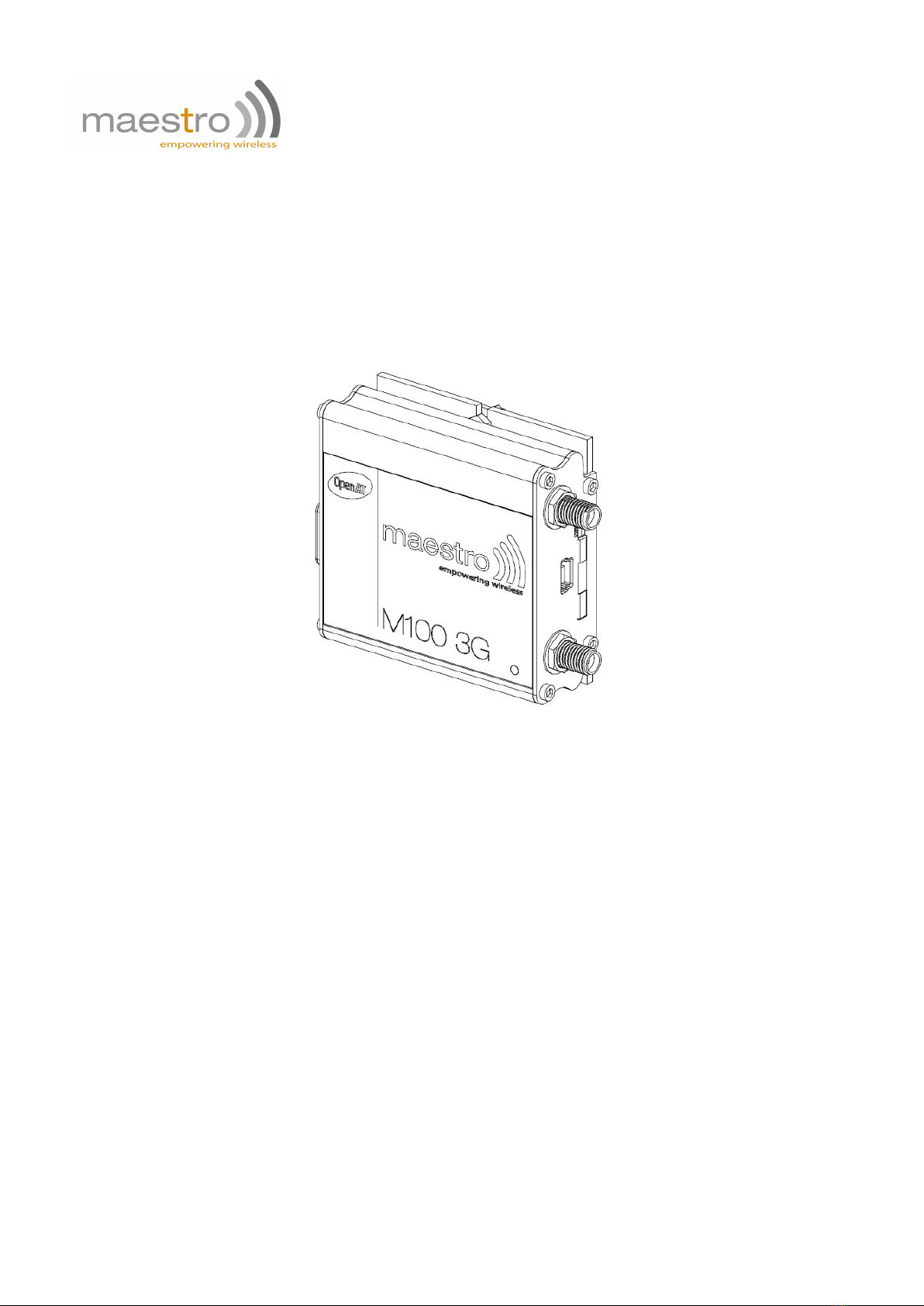

MAESTRO 100 3G

QUICK START GUIDE & USER MANUAL

VERSION 2

WWW.MAESTRO-WIRELESS.COM

EMAIL:CONTACT@MAESTRO-WIRELESS.COM

TEL: (+852) 2869 0688

FAX: (+852) 2525 4701

ADDRESS: ROOM 3603-3609, 36/F, 118 CONNAUGHT ROAD WEST, SHEUNG WAN, HONG KONG

2Conﬁdential, the whole document is the sole property of Maestro Wireless Solutions ltd.

suppor[email protected]

Revision history

Version Date Details Originated by

129 April 2013 First issue Samuel Chéreau

28 July 2013

Add power consumptions details

Corrected typo in Chapter 5 Introduction and

known issues

Samuel Chéreau

This manual is written without any warranty.

Maestro Wireless Solutions Ltd. reserves the right to modify or improve the product and its accessories which can

also be withdrawn without prior notice.

Besides, our company stresses the fact that the performance of the product as well as accessories depends not only

on the proper conditions of use, but also on the environment around the places of use.

Maestro Wireless Solutions Ltd. assumes no liability for damage incurred directly or indirectly from errors, omis-

sions or discrepancies between the modem and the manual.

This software, solution or application is provided on an "as is" basis. No warranty whether expressed or implied is

given by Maestro Wireless Solutions Ltd. in relation to this software, solution or application. User shall assume

the entire risk of using or relying on this software, solution or application.

In no event will Maestro Wireless Solutions Ltd. be liable for any loss or damage including without limitation,

indirect or consequential loss, damage, or any loss, damage whatsoever arising from loss of data or proﬁt arising out

of, or in connection with, the use of this software, application or solution.

Every effort is made to keep the software, application or solution up and running smoothly. However, Maestro

Wireless Solutions Ltd. takes no responsibility for, and will not be liable for, the software, application or solution

being temporarily unavailable due to technical issues beyond our control.

The above terms and conditions are subject to change without prior notice. The present use of this software, appli-

cation or solution implies the user approves and understands all the above terms and conditions.

Conﬁdential, the whole document is the sole property of Maestro Wireless Solutions ltd.

suppor[email protected]

4Conﬁdential, the whole document is the sole property of Maestro Wireless Solutions ltd.

suppor[email protected]

Contents

1 Engineering Sample known issues 9

2 Speciﬁcations 11

3 Related documents 13

4 Hardware installation 15

4.1 Mountingthemodem.............................................. 15

4.2 InstallingtheSIMcard............................................. 15

4.3 Connecting the external antenna (SMA type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.4 Connecting the modem to external device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.5 ConnectingtheDCpowersupply....................................... 16

5 Maestro 100 3G easy setup guideline 17

5.1 Downloading the Maestro Conﬁguration Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.2 Using the Maestro Conﬁguration Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6 Equipments description 21

6.1 Package..................................................... 21

6.2 Interfaces .................................................... 21

6.2.1 Statusindicator............................................. 21

6.2.2 SMAfemaleantennaconnector ................................... 21

6.2.3 MiniUSBBFemaleconnector .................................... 22

6.2.4 15-Pin D-Sub Female connector (RS232/Audio) . . . . . . . . . . . . . . . . . . . . . . . . . . 22

6.2.5 4-Pin Micro-ﬁt Molex connector (Power and input/output) . . . . . . . . . . . . . . . . . . . . . 23

6.3 Optionalaccessories.............................................. 23

7 Default ﬁrmware settings 25

7.1 Factorysettings................................................. 25

7.2 General Purpose Input/Output port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

7.3 RS232 auto-online mode (power saving) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

8 Troubleshooting 27

8.1 Themodem’sLEDdoesnotlight....................................... 27

8.2 The modem’s LED lights but does not blink long time after power up . . . . . . . . . . . . . . . . . . . 27

Conﬁdential, the whole document is the sole property of Maestro Wireless Solutions ltd.

suppor[email protected]

8.3 The modem does not respond to the terminal program . . . . . . . . . . . . . . . . . . . . . . . . . . 27

8.4 No voice could be heard for the modem’s speaker output when a call is answered . . . . . . . . . . . 27

8.5 Debug, or further command using Smart Terminal as example . . . . . . . . . . . . . . . . . . . . . . 28

8.6 Basicoperations ................................................ 28

6Conﬁdential, the whole document is the sole property of Maestro Wireless Solutions ltd.

suppor[email protected]

Safety precautions

General precautions

–The modem generates radio frequency (RF) power. When using the modem care must be taken on safety

issues related to RF interference as well as regulations of RF equipment.

–Do not use the modem in aircraft, hospitals, petrol stations or in places where using GSM products is prohibited.

–Be sure that the modem will not be interfering with nearby equipment. For example: pacemakers or medical

equipment. The antenna of the modem should be away from computers, ofﬁce equipment, home appliances,

etc...

–An external antenna must be connected to the modem for proper operation. Only used approved antennas with

the modem. Please contact authorized dealer on ﬁnding an approved antenna.

–Always keep the antenna with minimum safety distance of 26.6cm or more from human body.

–Do not put the antenna inside metallic box, containers, etc.

Using the modem in vehicle

–Check for any regulation or law authorizing the use of GSM in vehicle in your country before installing the

modem.

–Install the modem by qualiﬁed personnel. Consult your vehicle dealer for any possible interference of electronic

parts by the modem.

–The modem should be connected to the vehicle’s supply system by using a fuse-protected terminal in the

vehicle’s fuse box

–Be careful when the modem is powered by the vehicle’s main battery. The battery may be drained after

extended period.

Protecting your modem

To ensure error-free usage, please install and operate your modem with care. Remember the following:

–Do not expose the modem to extreme conditions such as high humidity/temperatures, rain, direct sunlight,

caustic/harsh chemicals, dust, or water.

–Do not try to disassemble or modify the modem. There is no user serviceable part inside and the warranty

would be void.

–Do not drop, hit or shake the modem. Do not use the modem under extreme vibrating condition.

–Do not pull the antenna or power supply cable. Please attach or detach by holding the connector.

–Connect the modem only according to the instruction manual. Failure to do it will void the warranty.

Conﬁdential, the whole document is the sole property of Maestro Wireless Solutions ltd.

suppor[email protected]

8Conﬁdential, the whole document is the sole property of Maestro Wireless Solutions ltd.

suppor[email protected]

Chapter 1

Engineering Sample known issues

Below are the know issues of the M100 3G Engineering Samples:

1. For audio, when a call is initiated, you can hear the other party but the other party cannot hear you.

2. Operating temperature range tests are still pending.

3. GPIO is available on 4-pin Molex connector but there is no analog input as on the M100evo/M100-2G.

4. Engineering Sample supports only passive GPS antenna, ﬁnal product will support both passive and active

GPS antenna.

5. Engineering Sample doesn’t support CSD call, updated ﬁrmware will be provided by Sierra Wireless end of

June.

6. DCD, DSR, DTR signals are not currently available on the serial port.

Conﬁdential, the whole document is the sole property of Maestro Wireless Solutions ltd.

suppor[email protected]

10 Conﬁdential, the whole document is the sole property of Maestro Wireless Solutions ltd.

suppor[email protected]
