Chapter 1 Safety Precautions

■Before using the product

To use the product safely and effectively, please read the contents of this manual thoroughly before use. Please

keep to the safety precaution, for it is to prevent accidents and potential danger from occurring. Safety

precaution is classified into ‘Warning’ and ‘Caution’ and their meanings are as follows. Also the indicated

illustrations on the product and in the manual have the following meanings.

Violating the instruction may result in serious personal injury or death.

Violating the instruction may result in slight personal injury or product damage.

Be cautious, for danger may be present.

Be cautious, for there is a possibility of an electric shock.

■General Precautions

Do not press the screen with a hard or sharp object (awl, screwdriver, pen) with too strong a force.

It may cause malfunction of touch due to damage of the front sheet.

Do not use or store in an environment with high vibration.

Do not allow foreign objects such as water, liquids, or metal powders to enter the product. This may cause

breakage or electric shock.

Use the radio or mobile phone at least 30cm away from the main unit.

Two or fewer bright spots may appear on the LCD screen, and certain areas may appear brighter, but this

is not a defect in LCD characteristics.

Do not store or operate in direct sunlight. Direct sunlight can change the properties of the LCD.

■Design Precautions

Do not install the location which exceeds allowed temperature. Product can be damaged or shorten the life.

Especially Install environment as below should be avoided.

As the malfunction & incorrect result of Products could damage the stability of the entire systems and

human body, you must install damage preventing interlock circuit such as emergency stop, Protective

circuits, positioning upper and lower limit switch and interlock for forward/reverse operation.

When computer or other controllers communicate and exchange data with products or change operation mode of

products, set up protective sequence program in PC or Controller for protecting system from communication error.

The output signal or communication lines should be separated from the power line or high tensioned wire.

They should be installed 100mm (3.94 inch) or more from each other.

■Environmental conditions

Indoor use only.

Altitude up to 2000m.

The length of Power Cable should be 3m (10 ft) or less.

■Wiring Precautions

Be sure the wiring is done correctly by checking the product’s rated voltage and the terminal layout.

Incorrect wiring could result in fire, damage or malfunctions.

Tighten the terminal screw with the specified torque. If the screws of terminal are loose, it could result in

TOP-PCVIEW Hardware Manual

M2I Corporation 5/ 34

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

short circuit, fire, malfunctions. FG Terminal must be used a dedicated ground. Not doing so could result in

malfunctions.

a. Grounding should be the Class 3 grounding. The cable for grounding should be more than 4㎟.

b. grounding point be closed to the products and make short the distance to the ground cable if possible. Please see

below.

■Installation Precaution

Do not install the location which exceeds allowed temperature. Product can be damaged or shorten the life.

Especially Install environment as below should be avoided.

Do not Install product to the place which the ambient temperature is out of limits, from 0℃to 60℃or on the surface

of control board which high pressure equipment is installed.

Do not install to the place where strong shock or vibration continuously have impacted on product.

The space between back of product and back of control board must be more than 100mm for maintenance and

ventilation.

Do not storage and operate in the place in direct sunlight. By the strong ultraviolet rays can degrade the quality of LCD

Displays.

■Disposal Precaution

When you dispose of product, please treat it as industrial waste. It can create poisonous substances or

explosion.

■Cell Type Battery Specifications

If a "CMOS CHECKSUM ERROR" occurs during booting, the BIOS setup cannot be saved due to the

exhaustion of the CMOS battery, so users should replace the button battery that is fixed in the product.

Item

Content

Battery Voltage

DC 3V

Battery Model

CR2032(lithium Battery)

Battery lifetime

About 3 years (In case of ambient temperature 25℃)


*Specifications are subject to change depending on the model.

■All field-wiring connections to this unit shall be from Limited Voltage. Limited below 24Vdc isolated

secondary source with an output fuse, or Class 2.

TOP-PCVIEW Hardware Manual

M2I Corporation 6/ 34

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

Chapter 2 Overview

2.1 Product Introduction

The industrial PC-HMI touch panel with industrial PC is required in industry, Windows applications, and RS-

232C/422/485, Ethernet-based Control of the other devices that are connected to this unit (PLC) is a device

used to communicate with the primary objective.

2.2 Package Contents

please make sure that all of components are in the package.

Pictures shown may vary as a guide for understanding the real components.

Item

Figure

Quantity

Main Body

User Manual

Power Connector

Terminal block

5P connector

Mounting Clamp

Accessories

(Sold separate)

USB Memory

User Options

2.3 Explanation of Model Name

(1) Basic Model Name

TOP-PCVIEW

□□

□

Series

Display Size

Option

Resolution

Power Type

10 : 10.4"

00 : Celeron

X : XGA (1024 x 768)

*A: AC

12 : 12.1"

10 : 4th Core-i3

S : SXGA (1280 x 1024)

D: DC

15 : 15.0”

20 : 8th Core-i3

H : HD (1366 x 768)

17 : 17.0"

30 : 8th Core-i5

19 : 18.5"

TOP-PCVIEW Hardware Manual

M2I Corporation 7/ 34

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

(2) Option

□□

□BAY

Built-in program

RAM Capacity

O/S install location

DISK Capacity

HDD RACK

*WF : Windows OS+TOPVIEW License

R4 : 4GB

H : mSATA(On borad)

64 : 64GB

*1 : 1 Slot

WN : Windows OS

*R8 : 8GB

*HE : 2.5" SSD(External)

128 : 128GB

2 : 2 Slot

NF : TOPVIEW License

*256 : 256GB

NN : No Option

- “*” is a default option.

Chapter 3 Product Specifications

3.1 Power Specifications

Input Voltage

AC Power

AC100~240V, 50/60Hz

DC Power

DC 24V

Voltage Endurance

AC Power

AC85/170V, Less than 10ms

DC Power

DC 24V, Less than 10ms

Power Consumption

60W or less

Insulation resistance

500V DC, 10 ㏁

3.2 System Specifications

Item

Model

Description

CPU

Intel® Celeron® Processor J1900

Intel® Core-i3™Processor 4010U

Intel® Core-i3™Processor 8145UE

Intel® Core-i5™Processor 8365UE

Base/Burst Frequency / TDP

[email protected] GHz / 10W

1.7GHz / 15W

[email protected] GHz / 15W

System Memory

00, 10

DDR3L SO-DIMM 8GB. (Max. Capacity 8GB)

20, 30

DDR4 SO-DIMM 8GB. (Max. Capacity 32GB)

Main Disk

2.5" SSD 256GB (*Default)

3.3 LCD Specifications

Item

Model

Description

Resolution and Luminance

TOP-PCVIEW10****

1024 X 768, 400cd/m2

TOP-PCVIEW12****

1024 x 768, 700 cd/m2

TOP-PCVIEW15****

1024 x 768, 500 cd/m2

TOP-PCVIEW17****

1280 x 1024, 250 cd/m2

TOP-PCVIEW19****

1366 x 768, 250 cd/m2

Number of Colors

16.7M

3.4 Touch Specifications

Touch Type

Analog resistive touch

TOP-PCVIEW Hardware Manual

M2I Corporation 8/ 34

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

3.5 Ethernet Specifications

Speed

10/100/1000Mbps

Connector

RJ-45 x 2

3.6 Audio Specifications

Audio Codec

Realtek ALC888S

I/O Connector

SPK, Line-in, MIC

3.7 External Display Output Specifications

Item

Model

Description

Graphic Controller

Intel Gen7 Graphic Engine

Intel HD Graphics 4400

20, 30

Intel UHD GFx 620

VGA

최대 2560 x 1600 at 60Hz

최대 1920 x 1200 at 60 Hz

20, 30

Not support

HDMI

HDMI 1.4a for HD video playback, 1080P at 60Hz

HDMI 1.4 for HD video playback, 4096 x 2304 at 24Hz

20, 30

HDMI 1.4 up to 4096 x 2160@30/24Hz

Not support

20, 30

DP 1.2 up to 4096 x 2306@60Hz

Mulit-Display

VGA + HDMI, VGA + LVDS, HDMI + LVDS

VGA + HDMI, VGA + LVDS, HDMI + LVDS, VGA + HDMI + LVDS

20, 30

DP + HDMI, DP + LVDS, HDMI + LVDS, DP + HDMI + LVDS

3.8 USB Specifications

Item

Model

Description

Front

Common

USB 2.0 x 1

Side

USB 2.0 x 3, USB 3.0 x 1

USB 2.0 x 2, USB 3.0 x 2

20, 30

USB 3.1 x 4

3.9 Others

HDD RACK

1-Bay 2.5" HDD RACK

Default

2-Bay 2.5" HDD RACK

(*Option)

* TOP-PCVIEW10 does not support HDD RACK. (*SSD on board)

* If you need 2-bay HDD RACK, please contact M2I Corporation.

3.10 Optional Specifications

Item

Windows O/S Option

Adoptable Model

Optional O/S

- Windows Embedded Standard 7 (WES7) 32/64bit KOR/ENG

- Windows 7 Professional for Embedded System 64bit KOR

00, 10

- Windows 10 IoT 1809 LTSC 64bit 한글/영문

Common

TOPVIEW License USB

USB Dongle Inserted

Common

* A basic O/S of Celeron and 4th Core-i3 product is WES7.

TOP-PCVIEW Hardware Manual

M2I Corporation 9/ 34

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

** Intel 8th product is only for Windows 10, WES7 or Win 7 Pro is not supported to install.

3.11 Environment Specifications

Operation Temperature(℃)

No humidity

0 ~+60°C

humidity 95%

0~+40°C(Non-Condensing)

Storage Temperature(℃)

-20°C ~ +60°C

Atmosphere

No corrosive gas

Vibration Endurance

Amplitude: 10≤F＜25 ㎐(2G) X,Y,Z each direction (for 30 minutes)

Noise Immunity

1000Vp-p (Pulse width 1 ㎲)

Electrostatic Discharge

Electrostatic Discharge from EN61000-4-2: ±4㎸

Shock Endurance

10G X,Y,Z each direction(for 3 times)

withstand voltage

500V (Line-Line)

Ground connection

Class 3(Under 100Ω)

Protection Classification

Front Side: IP65, Rear Side: IP2X

3.12 Structure Specifications

Item

Model

Model Name

Dimension

Dimension(㎜)

00, 10

TOP-PCVIEW10

276 x 219.5 x 87.9

TOP-PCVIEW12

320 x 261 x 93.5

TOP-PCVIEW15

370 x 301 x 87

TOP-PCVIEW17

414 x 348 x 86.6

TOP-PCVIEW19

497 x 316 x 86.6

20, 30

TOP-PCVIEW19

497 x 316 x 94.8

Cooling System

Natural air circulation

Case Material

AL(Aluminium)

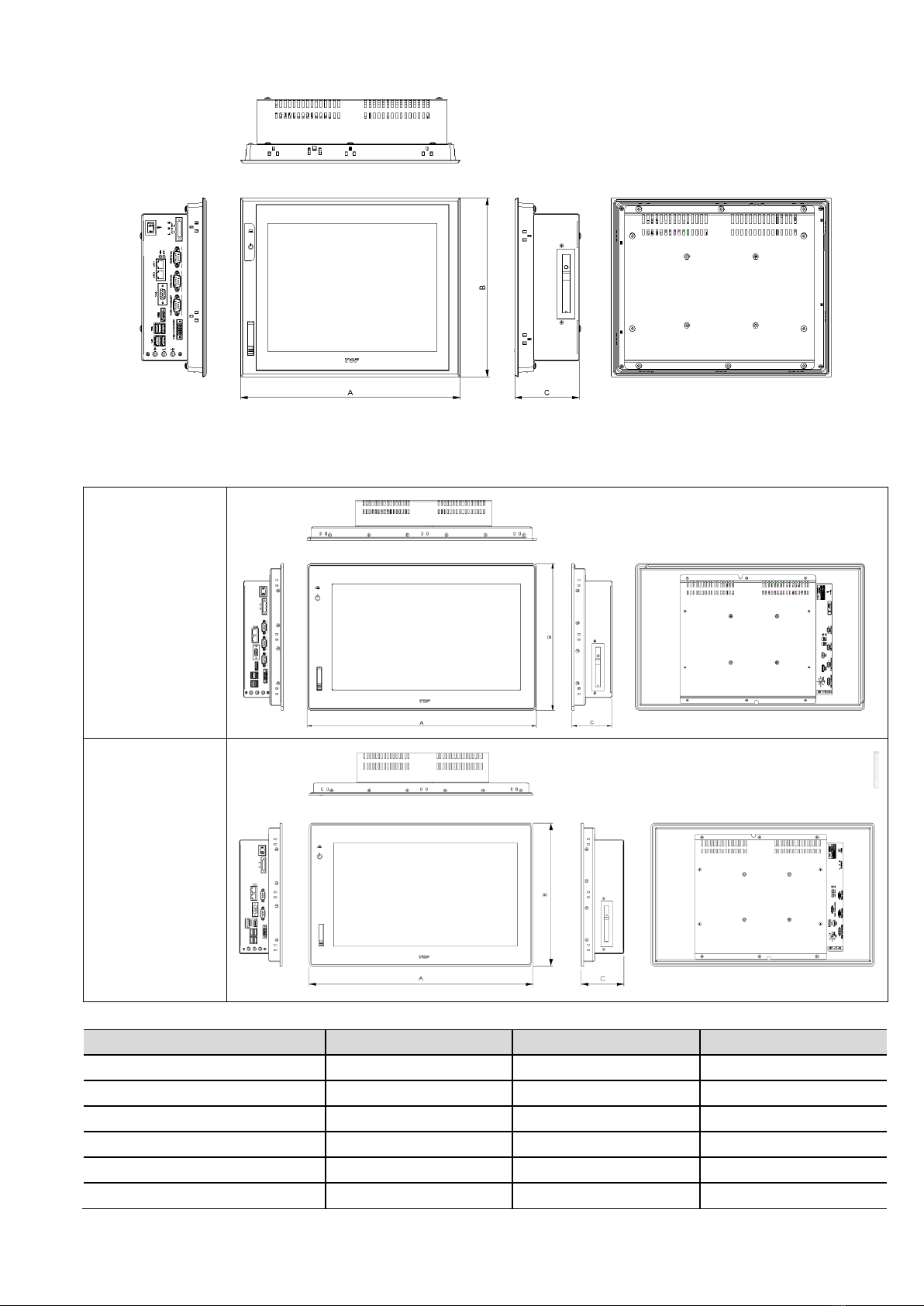

Chapter 4 Parts Names and Functions

4.1 TOP-PCVIEW10****

TOP-PCVIEW Hardware Manual

M2I Corporation 10 / 34

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

4.2 TOP-PCVIEW 12 / 15 / 17 ****

4.3 TOP-PCVIEW19****

TOP-PCVIEW

1900**

1910**

TOP-PCVIEW

1920**

1930**

Model Name

A (mm)

B (mm)

C (mm)

TOP-PCVIEW10****

276

219.5

87.9

TOP-PCVIEW12****

320

261

93.5

TOP-PCVIEW15****

370

301

TOP-PCVIEW17****

414

348

86.6

TOP-PCVIEW19 [00], [10] **

497

316

86.6

TOP-PCVIEW19 [20], [30] **

497

316

94.8

Autres manuels pour TOP-PCVIEW Series

Table des matières

Autres manuels M2I Terminal tactile

M2I

M2I TOPR Series Manuel utilisateur

Manuels Terminal tactile populaires d'autres marques

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Manuel utilisateur

Ingenico

Ingenico AXIUM EX4000 Manuel utilisateur

Heisei Electronics

Heisei Electronics Q-POS 815 Manuel utilisateur

Amano

Amano MTX-15 Manuel utilisateur

FLOWBIRD

FLOWBIRD CWT Compact Touch Manuel utilisateur

Demco

Demco SP7 Manuel utilisateur

Lathem

Lathem PC600 Series Manuel utilisateur

Partner

Partner MF-2352 Manuel utilisateur

NCR

NCR RealPOS 7460-2 Manuel

Simrad

Simrad MS50 Instructions de montage

Unitech

Unitech MR350 MKII Guide de démarrage rapide

Jungheinrich

Jungheinrich WMT 210 Manuel utilisateur

Motorola

Motorola MTP850 Manuel utilisateur

YASKAWA

YASKAWA 62H-MDC0 Manuel utilisateur

MVG industries

MVG industries NeptuLink Manuel utilisateur

Price Industries Limited

Price Industries Limited FDC Manuel d'instructions

Honeywell

Honeywell TemaKey Manuel utilisateur

EBN

EBN BPC65-B-A16G Manuel utilisateur
