LuxaFlex Duette UltraGlide Mode d’emploi
LUXAFLEX®DUETTE® SHADES
UltraGlide®Lifting System
Installation •Operation
CONTENTS
Getting Started:
Product View ................................................................ 1
How to Operate the Shade............................................. 2
Tools and Fasteners Needed .......................................... 3
Installation:
Installation Overview .................................................... 4
Mount the Installation Brackets — Reveal Mount............ 5
Mount the Installation Brackets — Face Mount............... 6
Mount the Installation Brackets — EndMount ................ 8
Install the Shade ........................................................... 9
Level the Rail(s), If Necessary....................................... 10
Install the Wand .......................................................... 11
Operation:
Operate the Shade ...................................................... 12
Troubleshooting .......................................................... 13
Care:
Removing the Shade, If Necessary ............................... 14
Cleaning Procedures ................................................... 14
© Copyright 2018 Hunter Douglas Limited [ABN 98 009 675 709]
® Registered Trade Marks of Hunter Douglas Limited •18.017.159 •04/2019
GETTING STARTED
1
Product View
Installation
Brackets
Wand
Top-Down/Bottom-Up
UltraGlide®
Standard
Day/Night
OPERATION
2
How to Operate the Shade
For smooth operation, keep the wand close to the fabric when raising and lowering the shade.
To Lower the Shade
■Pull the wand toward the center of the shade at about a
45° angle. The locking mechanism at the top of the wand
releases with a “click.” The shade lowers as you allow the
wand to return to the vertical position.
IMPORTANT: The wand must be pulled in close to the front
of the shade. Do not pull the wand out away from the shade.
■To stop the shade while lowering, move the wand back
toward the vertical position 15° out and give a slight
downward pull to engage the locking mechanism.
■If the shade hits an obstruction as it is lowered it will stop, which may cause the cords in
each cord rout to become misaligned. This may cause the shade to be angled or tilted when
fully raised. If this occurs, do the following:
➤Raise the shade slightly.
➤Lower the shade completely to the sill. In some cases, pull gently on the bottom rail to
get it to drop completely.
IMPORTANT: If the shade is tilted when fully raised, do not pull harder on the wand. It does
not correct the tilt and may make it worse.
To Raise the Shade
■Pull the wand straight down or slightly toward the outside.
➤With each stroke the shade partially raises.
➤Allow the wand to retract after each downward stroke.
➤Use multiple strokes until the shade reaches the
desiredposition.
Day/Night and Top-Down/Bottom-Up Shades
■To operate Day/Night and Top-Down/
Bottom-Up shades, the right wand
operates the middle rail and the left
wand operates the bottomrail (unless
reverse controls were specified on the
order).
IMPORTANT: You must first lower the
bottom rail before lowering the middle
rail. Likewise, you must first raise the
middle rail before raising the bottom rail.
To Raise: Pull the wand straight
down with short strokes.
To Lower: Pull the wand toward
the center of the shade
and release.
To Raise: Pull the wand straight
down with short strokes.
To Lower: Pull the wand toward
the center of the shade
and release.
This wand
operates the
bottom rail.
This wand
operates the
middle rail.
Middle
Rail
Bottom Rail
GETTING STARTED
3
Thank you for purchasing Luxaflex®Duette®UltraGlide®Shades. With proper installation,
operation, and care, your new shades will provide years of beauty andperformance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning
the installation.
Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers
■Level (laser level is recommended)
■Measuring tape and pencil
■Power drill, 3mm drill bit, and 6mm hex driver
■Open end wrench (8mm)
■OPTIONAL: pliers
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 38mm screws are provided per installation bracket.
■Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment.
■#6 Flat Head Screws (Provided). If end mounting the shade, use two 38mm screws per
installation bracket.
■Speed Nuts and Screws (Provided). Extension brackets come with speed nuts and screws.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Provided with Each
Extension Bracket)
#6 x 38mm
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)
#6 Flat Head Screw
for Use with End Mounts
(Provided)
INSTALLATION
4
Installation Overview
■Your order will include the correct number of installation
brackets for your shade width, as shown in the table.
➤For end mounts, only two brackets are used up to the
maximum width of 1820mm.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■Refer to the appropriate page below based on your order:
➤Reveal Mount — Page5
➤Face Mount — Page6
➤End Mount — Page8
Installation
Bracket
End Mount
Brackets
Face Mount
Shade mounts outside
window opening.
Reveal Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
Shade
Width
Brackets
Required
300mm – 914mm 2
915mm – 1828mm 3
1829mm – 2743mm 4
2744mm – 3659mm 5
3660mm – 4420mm 6
INSTALLATION
5
Mount the Installation Brackets — Inside Mount
■Measure 50mm from each jamb for bracket location.
➤If more than two installation brackets came with your order, space additional bracket(s) evenly
between the two end brackets and mark their location. Mount into wood whenever possible.
■Centre the brackets on yourmarks, then mark the screw holes.
➤The minimum casement depth for mounting the installation brackets is 6mm. Mark both of the
winged screwholes with shallow mounting depths.
➤The minimum casement depth for a fully recessed mount 20mmcell sizes. Mark the center
screw hole when depth permits.
IMPORTANT: The front edges of the brackets must be level and aligned to each other.
■Drill the screw holes using a 3mm drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■Use a level to check that the mounting surface is level. Shim the brackets if necessary.
■Attach the installation brackets using the screws provided.
Proceed to “Install the Shade” on page 9.
50mm Space Evenly
Jamb Jamb
Space Evenly 50mm
Minimum
6mm Use Center Hole
When Depth Permits
INSTALLATION
6
Mount the Installation Brackets — Face Mount
■Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark each end of the headrail on the mounting surface.
➤Alternatively, measure the width of the headrail and use that width to mark the headrail
end points over the window opening.
■Mark 50mm from each end of the headrail.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark theirlocation. Mount into wood
whenever possible.
■Center the installation brackets on your marks and mark where to drill the screw holes.
➤A minimum flat vertical surface of 30mm for installation brackets or extension brackets
isrequired.
➤The top of the installation brackets or extension brackets should be at the desired height.
The brackets should be level andaligned.
➤When using extension brackets, mark two screw holes per bracket.
CAUTION: The rear of the brackets must be flush against a flat mounting surface. Do not
mount brackets oncurved molding.
■Drill the screw holes using a 3mm drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
Headrail End Marks
Window Opening
50mm Space Evenly Space Evenly 50mm
INSTALLATION
7
■Attach the installation or extension brackets using the screws provided.
IMPORTANT: The front edges of the brackets
must be level and aligned to each other.
■If using spacer blocks, first attach the installation bracket to the
13mm spacer block before stacking additional spacer blockstogether.
➤Insert the legs of the installation bracket into the tabs on the
spacer block.
➤Then rotate the installation bracket back.
■Attach the spacer block and installation bracket to
a flat vertical mounting surface with a #6mounting
screw long enough for asecure installation.
➤A maximum of 38mm of spacer blocks per
installation bracket is recommended.
➤The top of the spacer blocks should be at the
desired shade height.
IMPORTANT: The front edges of the installation
brackets must be level and aligned to each other.
CAUTION: Use drywall anchors when mounting
into drywall.
■If using extension brackets, attach an installation
bracket to the underside of each extension bracket
using theprovided screws and speed nuts.
Proceed to “Install the Shade” on page 9.
Tab
Longer Screw
(Not Provided)
Maximum
38mm
INSTALLATION
8

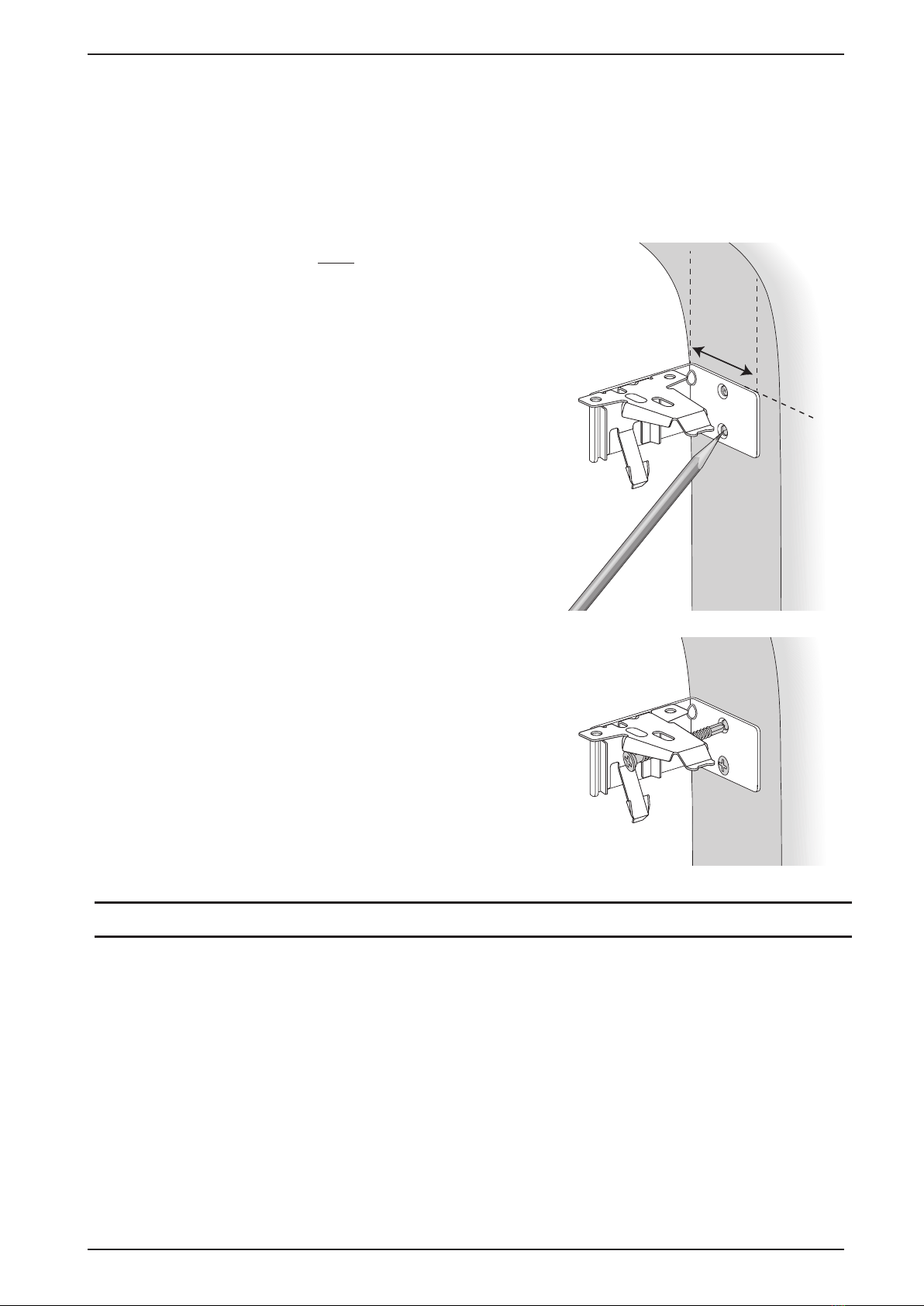

Mount the Installation Brackets — EndMount
End mount the headrail when conventional mounting techniques will not work — for example, in an
arched window opening.
■Position the end mount brackets so that the top of the attached installation brackets are at the
ordered height of the shade.
CAUTION: Both brackets must be installed at the same
depth and height.
■Mark both screw holes.
➤The mounting surface must be vertical and flat, not
part of an archedcurve.
➤Minimum mounting depth is 30mm for 20mm.
Minimum mounting depth for a fullyrecessed end
mount is 60mm for 20mm.
■Drill the screw holes using a 3mm drill bit.
■Attach the end mount installation brackets usingthe flat
head
screwsprovided.
CAUTION: Drywall mounting is not recommended.
IMPORTANT: For instructions on installing an
arch over a rectangular shade, see the Installation,
Operation, and Care instructions that came with
your arch shade.
Proceed to “Install the Shade” on page 9.
30mm
Minimum
Ordered
Shade
Height
30mm
Minimum
Ordered
Shade
Height
Table des matières
Autres manuels LuxaFlex Store vénitien
LuxaFlex
LuxaFlex Timber Manuel utilisateur
LuxaFlex
LuxaFlex Nano Series Manuel utilisateur
LuxaFlex
LuxaFlex Wood Essence Blinds Manuel utilisateur
LuxaFlex
LuxaFlex Duette Honeycomb Shades Manuel de la liste des pièces
LuxaFlex
LuxaFlex Silhouette Shadings Manuel utilisateur
LuxaFlex
LuxaFlex EasyRise Duette Manuel de la liste des pièces
LuxaFlex
LuxaFlex Lumishade Manuel utilisateur
LuxaFlex
LuxaFlex Timber Venetians Manuel utilisateur
LuxaFlex
LuxaFlex Aluminium Venetians Manuel utilisateur
LuxaFlex
LuxaFlex Super Nova Guide de l'utilisateur
LuxaFlex
LuxaFlex 2106/56 Manuel utilisateur
LuxaFlex
LuxaFlex RecessFix Manuel utilisateur
LuxaFlex
LuxaFlex Roman Blinds Guide de l'utilisateur
LuxaFlex
LuxaFlex Country Woods Venetians Manuel utilisateur
LuxaFlex
LuxaFlex EVO MagnaTrack Manuel utilisateur
LuxaFlex
LuxaFlex Twist Series Manuel utilisateur
LuxaFlex
LuxaFlex Silhouette Shades Manuel utilisateur
LuxaFlex
LuxaFlex LiteRise Manuel utilisateur
LuxaFlex
LuxaFlex Venetian Series Manuel utilisateur
LuxaFlex
LuxaFlex M25T Manuel utilisateur
Manuels Store vénitien populaires d'autres marques
Domondo
Domondo PureNight Manuel d'instructions d'installation
rollease acmeda
rollease acmeda Easy Spring Air Guide de configuration
IKEA
IKEA KADRILJ Manuel utilisateur
Hallis Hudson
Hallis Hudson Rolls Super glide Manuel utilisateur
Benthin
Benthin P1614 Manuel utilisateur
MV LINE
MV LINE CLARA 015 Mode d’emploi
