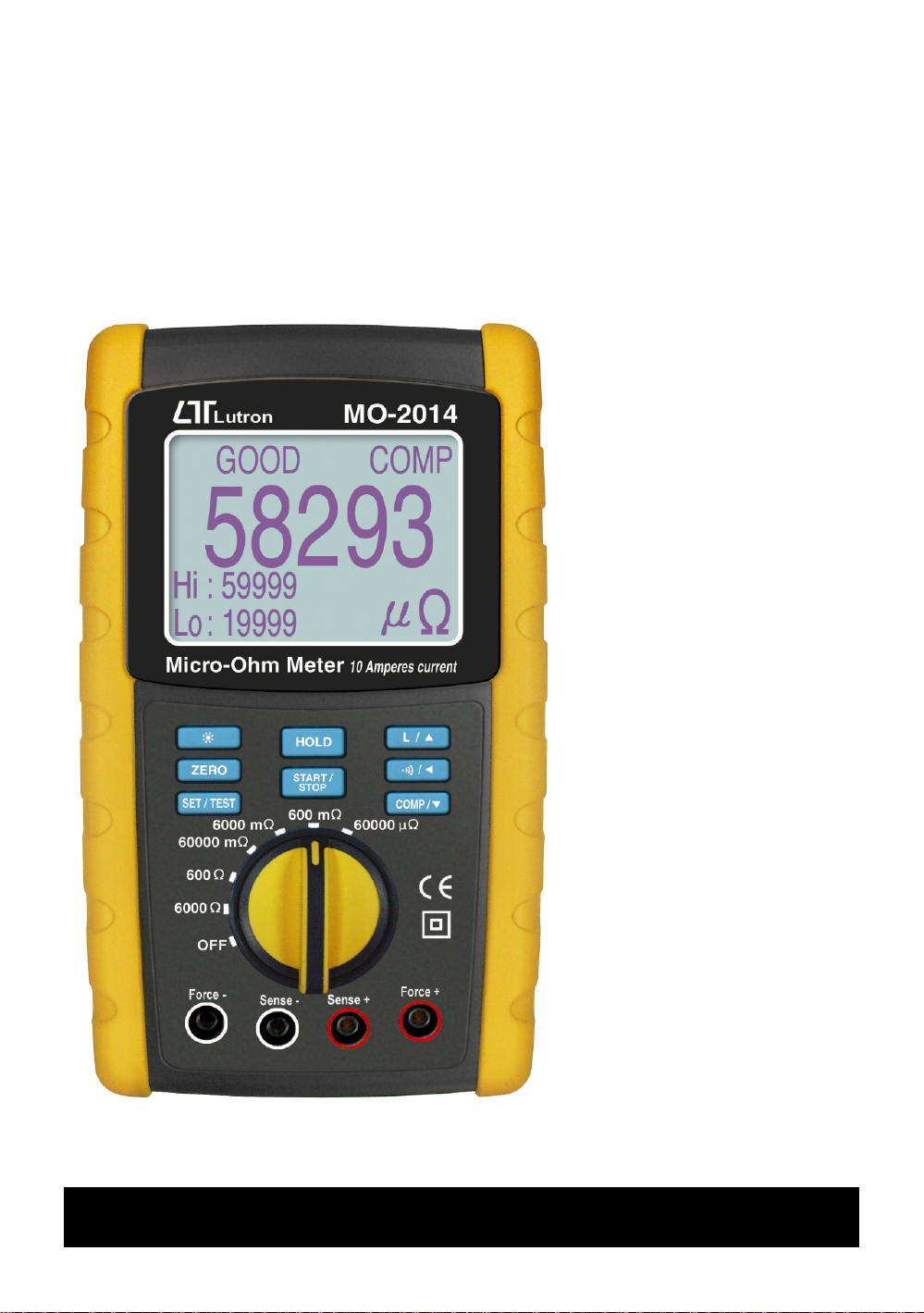

Lutron Electronics MO-2014 Manuel utilisateur
10 Amperes max. test current
Micro-Ohm Mete
r
Model : MO-2014
Y
our purchase o
f
this Micro-Ohm
METER marks a
step forward for
you into the field o
f
precision
measurement.
A
lthough this
Micro-Ohm METER
is a complex and
delicate instrument,
its durable structure
will allow many
years of use i
f
proper operating
techniques are
developed. Please
read the following
instructions
carefully and always
keep this manual
within easy reach.
OPERATION MANUAL
TABLE OF CONTENTS
1. FEATURES..............................................................
.
1
2. SPECIFICATIONS.....................................................1
2-1 General Specifications........................................
.
1
2-2 Electrical Specifications.......................................2
3. FRONT / REAR PANEL DESCRIPTION........................ 3
4. BASIC 4 WIRES MEASURING PRINCIPLE................... 4
5. PRECAUTION & PREPARATIONS FOR
MEASUREMENT.......................................................5
6. MEASURING PROCEDURES......................................
.
5
6-1 Buttons instructions ....................................... 5
6-2 Symbols & units of display.................................. 6
6-3 Resistance Measurement.................................... 6
7. HI / LO WARNING SETUP........................................
.
7
8. CALCULATE CABLE / WIRE LENGTH.........................
.
9
9. RS232 PC SERIAL INTERFACE.................................. 10
10. BATTERY REPLACEMENT........................................11
1. FEATURES
*4 terminal devices for accurate measurement of very
low resistance.
*Ideal for measuring the resistance of components
precisely.
*Ideal for testing protective conductors, lightning
conductors and welded points.
*Maximum test current is 10A ( 60000 uΩrange only ).
*Have two working mode , Resistive and Inductive mode,
Normal is resistive mode.
*Good / Fail set-function for input quality control.
*Built-in in buzzer sound (GOOD STATUS) to assist the Q.C.
j
udgment.
*Especial "CALCULATE" function to measure cable /
wire length.
*Wide measuring range, 5 u Ω- 6K Ω, 6 ranges.
*Large size and back-light LCM display, easy read-out.
*LSI circuit provides high accuracy, reliability and
durability.
*Built-in over input protection.
*Durable bench type housing plastic case stand.
2. SPECIFICATIONS
2-1 General Specification
s
Test Range 60000 uΩ( 10 A DC )
(Test Current) 600 m Ω( 1 A DC )
6000 mΩ( 100 mA DC )
60000 mΩ( 10 mA DC )
600 Ω( 1 mA DC )
6000 Ω( 100 uA DC )
Warning Setup * Warning LCD Indicator
* Buzzer
Operating Temp. 0 to 50 ( 32 to 122 ).℃℉
Operating Humidit
y
Less than 80 % R.H..
Power Supply DC 1.5 V , AA (UM-3)Battery X 8 PCs .
AC to DC 9V Power adapter .
1
Fuse protect * 10 A / 250 V
* Size : 6.3 X 32 mm dia..
Dimension 225 x 125 x 64 mm
( 8.86 x 4.92 x 2.52 inch)
Weight Approx. 790 g ( 1.74 LB ).
Standard 4 wire with 2 Kelvin clips........1 pair
Accessories Instruction Manual.................1 PC
AC/DC 9V power adapter........... 1 set
Optional * USB cable, USB-01.
Accessories * RS232 cable, UPCB-02.
* Data Acquisition software,
SW-U801-WIN., SW-E802.
* SD card data recorder, DL-9602SD
2-2 Electrical Specifications ( 23± 5 )℃
Range Resolution Test current Accuracy
60000 u Ω1 u Ω10 A
600 m Ω10 u Ω1 A
6000 mΩ100 u Ω100 mA ± ( 0.25 % + 25 d )
60000 mΩ1000 u Ω10 mA
600 Ω10 mΩ1 mA
6000 Ω100 mΩ100 uA ± ( 0.75 % + 3 d )
@ The above accuracy is based on the reading value.
@ Spec. tested under the environment RF Field Strength less
than 3 V/M & frequency less than the 30 MHz only.
Range Open Circuit Voltage
60000 u ΩApprox. DC 4.33 V
600 m ΩApprox. DC 4.33 V
6000 mΩApprox. DC 4.33 V
60000 mΩApprox. DC 4.33 V
600 ΩApprox. DC 4.33 V
6000 ΩApprox. DC 4.33 V
2
3. FRONT/REAR PANEL DESCRIPTION
Fig. 1
3-1 Display 3-11 Force Terminal "+"
3-2 Backlight key button 3-12 Sense Terminal "+"
3-3 Zero key button 3-13 Sense Terminal "-"
3-4 SET / TEST key button 3-14 Force Terminal "-"
3-5 HOLD key button 3-15 RS232 socket
3-6 START / STOP key button 3-16 Reset button
3-7 L / key button▲3-17 DC 9V power adapter socket
3-8 Beep / key button 3-18 Battery Cover / Battery
3-9 COMP / key button▼
compartment
3-10 Power / Range rotary 3-19 Stand
switch 3-20 AC/DC 9V power adapter
3-21 Battery cover screws
3
4. BASIC 4 WIRES MEASURING
PRINCIPLE
The DIGITAL MICRO-OHM METER is a precise,
wide range, small resistance and high resolution
measuring instrument. As for preventing any measuring
errors, especially to avoid the influence of "LEAD STRAY
RESISTANCE" or "TEST WIRE'S RESISTANCE", the
meter is designed according to the following "4 WIRES
MEASURING PRINCIPAL" to maintain the meter in
high accuracy.
Fig. 2
*Please refer to 2-2 Electrical Specification ( page 2 ),
each range exists fixed test current ( from 6000 Ωto
60000 uΩ.
*
T
he fixed current flow through the unknown resistor Rx.
*From the terminal " Sense + " and " Sense - " can measure
a voltage Vx = Is x Rx.
*According the Vx value, then meter can get the unknown
resistance (Rx) values from following formula :
Rx = Vx / Is
*
T
he measured resistance value between "Sense +" and
"Sense -"is not affected by any stray resistance of test wire.
4
5. PRECAUTION & PREPARATIONS FOR
MEASUREMENT
*Please check carefully the meter's power supply is DC
9V power adapter before operating at 60000 uΩrange .
*It's prohibited to input voltage to the 4 wire input
terminal ( Force +, Sense +, Sense -, Force - ) to
prevent any internal circuit damage.
6. MEASURING PROCEDURES
6 -1 Buttons instructions
Buttons Functio
n
Backlight Press this key to turn backlight on and
Button off.
ZERO Button When the display indicate few reading
before measure .
SET/TEST Press this key to do HI / LO limit
Button setup.
Press this key return to TEST status.
HOLD Button Press this key to do data hold .
START/STOP Press this key to starting measurement
Button or stop.
L/ Button▲Press this key to setting work mode
(Resistive or Inductive).
Press this key to adjust up value.
BEEP/ Press this key to open / close buzzer
Button function.
Press this key to select digit unit.
COMP / ▼Press this key to start "GOOD , FAIL "
Button status judgment.
Press this key to adjust down value.
5
6 -2 Symbols & units of display
Symbol & Functio
n
Unit
uΩ,mΩ,ΩOhm unit
.))) Appears on the "BEEP" function have
started.
HOLD Appears on the"HOLD" function have
started.
GOOD It is pass Q.C. Appears on finished
compare operate.
FAIL It is higher or lower than maximum or
minimum acceptance value . Appears
on finished compare operate.
COMP Appears on the"COMPARE" function.
LAppears on the"INDUCTIVE" mode.
H I Appears to showing H I limit.
LO Appears to showing LO limit.
6 -3 Resistance Measurement
1) Power on the instrument by rotate the "Power /
Range rotary switch" ( 3-10, Fig. 1 ) to exit the " OFF "
position and then select measuring range from 60000 uΩ
to 6000 Ωaccording to your requirement.
Note
:
*Always select the highest range ( 6000 Ω
) if you don't know the resistance value o
f
the resistor and then select lower rang
e
in sequence.
*At 60000 uΩ( 10A )must use DC 9V
adapter from socket ( 3-17, Fig. 1 ).
*Over range LCD shows " ----- ".
*Can't measure the resistance value, LC
D
will show 0.0000, 0.000 or 0.00.
6
2)Connect the
* Red cable ( with white O ring marker ) to " Force + "
terminal ( 3-11, Fig. 1 )
* Red cable ( no white O ring marker ) to " Sense + "
terminal ( 3-12, Fig. 1 )
* Black cable ( with white O ring marker ) to " Force - "
terminal ( 3-13, Fig. 1 )
* Black cable ( no white O ring marker ) to " Sense - "
terminal ( 3-14, Fig. 1 )
3)Connect the 2 Kelvin clips as following Fig. 3 to measure
the unknown resistance.
4)Press the "START / STOP" key ( 3-6, Fig. 1 ) will start
measure the unknown device.
Press once again will stop measure function and
froze the result at LCM.
5)When your tested material has inductive, you can press
" L/ " key ( 3-7, Fig. 1 ) for change to inductor mode▲
( at 600 mΩand 60000 uΩrange) , Display will showing
" L " mark. normal is resistor mode.
7. HI/LO WARNING SETUP
This instrument has Hi, Lo warning value setup function
and a buzzer which are specially designed for quality
control.
Primary to press the " SET / TEST " ( 3-4, FIG. 1 )
button enter setting mode.
1) Hi warning value setup
T
he last digit should flash at " H i warning value " on
the display . Then press " L / " buttons ( 3-7, Fig.▲
1 ) to increase or " COMP / " buttons ( 3-9, Fig. 1 )▼
to decrease digit that you want to alter large value,
7
press the " BEEP / " buttons (3-8 , Fig. 1) set
warning value , When user to move 1st digit unit to
next digit unit (10th, 100th. 1000th).
* Hypothesize display be set at 180.00 .
2) LO warning value setup
Finished (1) procedure then press the " SET / TEST "
button ( 3-4, Fig. 1 ) again, The last digit should flash
at " LO warning value " on the display . Other
operate way same above explain.
* Hypothesize display be set at 179.00 .
3)Finished (1)(2) procedure then press the " SET /
T
EST " button ( 3-4, Fig. 1 ) once . The function
should return to TEST MODE and indicate measure
value when clipping the resistor.
4)When measuring period press " COMP / " ( 3-9 ,▼
Fig. 1) button once, The display will show " GOOD "
or " FAIL " symbol to inform be measure results.
For example
a.
T
he value was readout 179.50 , The display
should show " GOOD " symbol and buzzer sounds.(
If buzzer function have been press on status, The
buzzer sounds can to assist Q.C judgment ) The
resistance value within the accuracy Pass the Q.C.
*
Press " BEEP / " ( 3-8, Fig 1) button once
will start buzzer, press once again to disable
" BEEP " function.
b.
T
he value was readout 180.10 or 178.60, The
display should show " FAIL " symbol, The
resistance value out of the accuracy.
8
Table des matières
Autres manuels Lutron Electronics Instrument de mesure
Lutron Electronics
Lutron Electronics SL-4033SD Manuel utilisateur
Lutron Electronics
Lutron Electronics YK-37UVSD Manuel utilisateur
Lutron Electronics
Lutron Electronics LCR-9063 Manuel utilisateur
Lutron Electronics
Lutron Electronics SP-82AC Manuel utilisateur
Lutron Electronics
Lutron Electronics EMF-831SD Manuel utilisateur
Lutron Electronics
Lutron Electronics AM-4234SD Manuel utilisateur
Lutron Electronics
Lutron Electronics SL-4013 Manuel utilisateur
Lutron Electronics
Lutron Electronics SL-4112 Manuel utilisateur
Lutron Electronics
Lutron Electronics DT-2234BL Manuel utilisateur
Lutron Electronics
Lutron Electronics SL-4023SD Manuel utilisateur
Lutron Electronics
Lutron Electronics SP-82AM Manuel utilisateur
Lutron Electronics
Lutron Electronics AQ-9901SD Manuel d'installation
Lutron Electronics
Lutron Electronics SP-8001 Manuel utilisateur
Lutron Electronics
Lutron Electronics CL-2006 Manuel utilisateur
Lutron Electronics
Lutron Electronics SL-4011 Manuel d'installation
Lutron Electronics
Lutron Electronics PCO-350 Manuel utilisateur
Lutron Electronics
Lutron Electronics FORCE GAUGE FG-6005SD Manuel utilisateur
Lutron Electronics
Lutron Electronics Radio Powr Sav LRF2-DCRB Instructions d'installation et d'utilisation
Lutron Electronics
Lutron Electronics FR-5105 Manuel utilisateur
Lutron Electronics
Lutron Electronics MMA-386SD Manuel utilisateur
Manuels Instrument de mesure populaires d'autres marques
Endress+Hauser
Endress+Hauser Proline Promag 50 Caractéristiques techniques
Siemens
Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces
KLINGER
KLINGER CMF V Series Manuel utilisateur
EXFO
EXFO FTB-2 Manuel d'exploitation et d'entretien
Keysight
Keysight M8290A Manuel utilisateur
ADTEK
ADTEK MW-5 Manuel utilisateur
