Lorex SG6352 Manuel utilisateur
MODEL: SG6352
2.4 GHz WIRELESS COLOR
SECURITY SYSTEM WITH
WEATHER RESISTANT* CAMERA
Instruction Manual
www.lorexcctv.com
Copyright © 2005 Strategic Vista International Inc
English Version 1.0
Before operating the system, please read this manual
thoroughly and retain it for future reference.
This product broadcasts over public airwaves and its video and audio signals may be
intercepted without your consent.
* IP44 rated for Indoor and Outdoor use. Not recommended for direct exposure to water, rain or snow.
Explanation of two Symbols
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage“ within the
product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in
the literature accompanying the appliance.
THE GRAPHIC SYMBOLS WITH SUPPLEMENTAL MARKING ARE ON
THE BOTTOM OF THE SYSTEM.
!
WARNING: To prevent fire or shock hazard, do not expose this unit to
rain, water, or wet locations. Do not insert any metallic object
through the ventilation grills.
FCC CLASS B NOTICE
Note:
This equipment has been tested and found to comply with the limits For a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, (which can be determined by turning the equipment off and on), the
user is encouraged to try to correct the interference by one or more of the following
measures:
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
!
• Reorient or relocate the receiving antenna
• Connect the equipment into an outlet on a circuit different from that to which
other devices may be connected.
• Consult the dealer or an experienced radio or television technician for help.
i
SAFETY INSTRUCTIONS
IMPORTANT SAFEGUARDS
All the safety and operating instructions should be read before the
system is operated, and retained for future reference.
1. HEED WARNINGS - All warnings on the appliance and in the operating
instructions should be adhered to.
2. FOLLOW INSTRUCTIONS - All operating instructions should be
followed.
3. WATER AND MOISTURE - Do not use this video product near water –
for example, a bath tub, wash bowl, kitchen sink, laundry tub or
swimming pool, or in a wet basement.
4. POWER SOURCES - This product should be operated only from the type
of power source indicated on the marking label.
5. OVERLOADING - Do not overload outlets and extension cords, which
can result in a risk of fire or electric shock.
6. SERVICING - Do not attempt to service this product yourself. Opening or
removing covers may expose you to dangerous voltage or other hazards.
Refer all servicing or repairs to qualified service personnel.
7. DAMAGE REQUIRING SERVICE - Unplug this product from the wall
outlet and refer servicing or repairs to qualified service personnel under
the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions.
e. If the product has been dropped or the cabinet has been damaged.
f. When the product exhibits a distinct change in performance.
8. REPLACEMENT PARTS - When replacement parts are required, be
sure the service technician has used replacement parts that are
specified by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
9. SAFETY CHECK - Upon completion of any service or repairs to this
video product, ask the service technician to perform safety checks to
determine if the video product is in proper operating condition.
10. An appliance and cart combination should be moved with care.
Do not place this equipment on an unstable cart, stand, or table.The
equipment may fall, causing serious injury to a child or adult, and
serious damage to the equipment. Wall or shelf mounting should
follow the manufacturer's instructions and should be done with
a mounting kit approved by the manufacturer.
ii
TABLE OF CONTENTS PAGE
iii
INTRODUCTION & FEATURES………………………………………
SYSTEM INCLUDES…………………………………………………..
CONTROLS AND FUNCTIONS
Wireless Camera….......…….......….……………………..……...
Wireless Receiver...……..............................……….……...……
INSTALLATION OF WIRELESS CAMERA………………………….
INSTALLATION OF WIRELESS RECEIVER
Operation with TV (Using RCA Cables)......……………….…....
Operation with TV (Using Coaxial Cable) ..............…..……......
SYSTEM OPERATION
Multiple Cameras / Auto Scanning…………………………………
Auto/Manual Options / Selectable Settings………………………
TROUBLE SHOOTING ..............................................………..…...
TECHNICAL SPECIFICATIONS ....................................................
CARE & MAINTENANCE……………………………..……………….
1
2
3
4
5
6
7
8
9
10
11
12
INTRODUCTION:
Thank you for purchasing the 2.4 GHz Wireless Color Camera & Receiver System.
This system turns your TV into a Video Security System, providing instant
protection in your home or office. Avoid the hassle of running wires. This system is
easy to install and operate for immediate applications.
The system is capable of connecting up to 4 cameras (additional cameras sold
separately) with the option to automatically scan between locations.
To learn more about this 2.4GHz Wireless Camera & Receiver System and our
complete range of CCTV products, please visit our website at:
www.lorexcctv.com
FEATURES:
• Turns your TV into a Video Security System
• Camera rated IP44* for Indoor and Outdoor use
• Listen-in audio
• 300 ft Wireless Transmission (open space)
• 2.4 GHz Wireless Transmission
• Crystal clear Video and Stereo audio
• 4 Channel Wireless System
• Record picture to any standard VCR
• Automatic IR illumination provides B&W video images in low light conditions**
• Bonus clip-on stand included for quick mounting application
1
* IP44 rated for Indoor and Outdoor use. Not recommended for direct exposure to water, rain or snow.
** IR illumination range of 6ft. under ideal conditions. Objects at or beyond this range may be partially
or completely obscured, depending on the camera application.
SYSTEM INCLUDES:
1 - 2.4 GHz Color Wireless Camera
Owner’s Manual
Also includes:
2 – 9V DC Adapters
1 – RCA Audio/Video Cable
1 – Coaxial Cable
2
1 - 2.4 GHz Wireless Receiver
1 - Clip-on Stand1 - Wall Mounting
Bracket
CONTROLS & FUNCTIONS
1. Microphone – Built-in condenser microphone provides listen-in audio
capability from camera to monitor
2. Lens – B&W CMOS Image Sensor
3. 6 Infrared LED’s – Enhances the picture quality in low light conditions*
4. Channel Selector/Power Button – Selects channels 1-4. Holding this button for 3
seconds turns the power ON/OFF (by default the camera is ON).
5. Bracket – Plastic bracket connects to camera for mounting to walls,
ceilings or table
6. DC IN Jack – Connects to the 9V DC adapter.
7. Sunshade Visor – Protects camera from the elements and blocks the camera
from the direct glare of the sun.
8. LED Channel Indicator – Shows the channel (1-4) that the camera is set to.
Front/Side View
3
* IR illumination range of 6ft. under ideal conditions. Objects at or beyond this range may be
partially or completely obscured, depending on the camera application.
23
4
5
7
6
1
6
8
WIRELESS CAMERA
WIRELESS RECEIVER
REAR VIEW
BOTTOM VIEW
910
56 78
1. Auto/Manual Button – Used to activate/deactivate auto sequencing
2. Channel Selector Button – Used to manually switch channels from 1-4
3. LED Channel Indicators – Indicator light shows selected channel
4. 2.4 GHz Antenna – High gain dipole antenna receives audio and video
signal from the wireless camera
5. Video Output Jack (Yellow) – RCA jack for video output connector
(when using RCA connector)
6. Audio Output Jacks L (White) & R (Red) – RCA jacks for audio
output connector (when using RCA connector)
7. RF Out Jack (To TV) – Connects the receiver to a TV using the supplied
coaxial cable (alternative to RCA cable connection).
8. DC IN Jack – Connects to the power supply of the receiver
9. ON/OFF Power Switch – Ensure this switch is set to OFF before
plugging the system into an electrical outlet
10.Channel 3/4 Selector Switch – Used to view picture on television when
using coaxial cable (preset to channel 3)
CONTROLS & FUNCTIONS
TOP VIEW
3
2
4
1
4

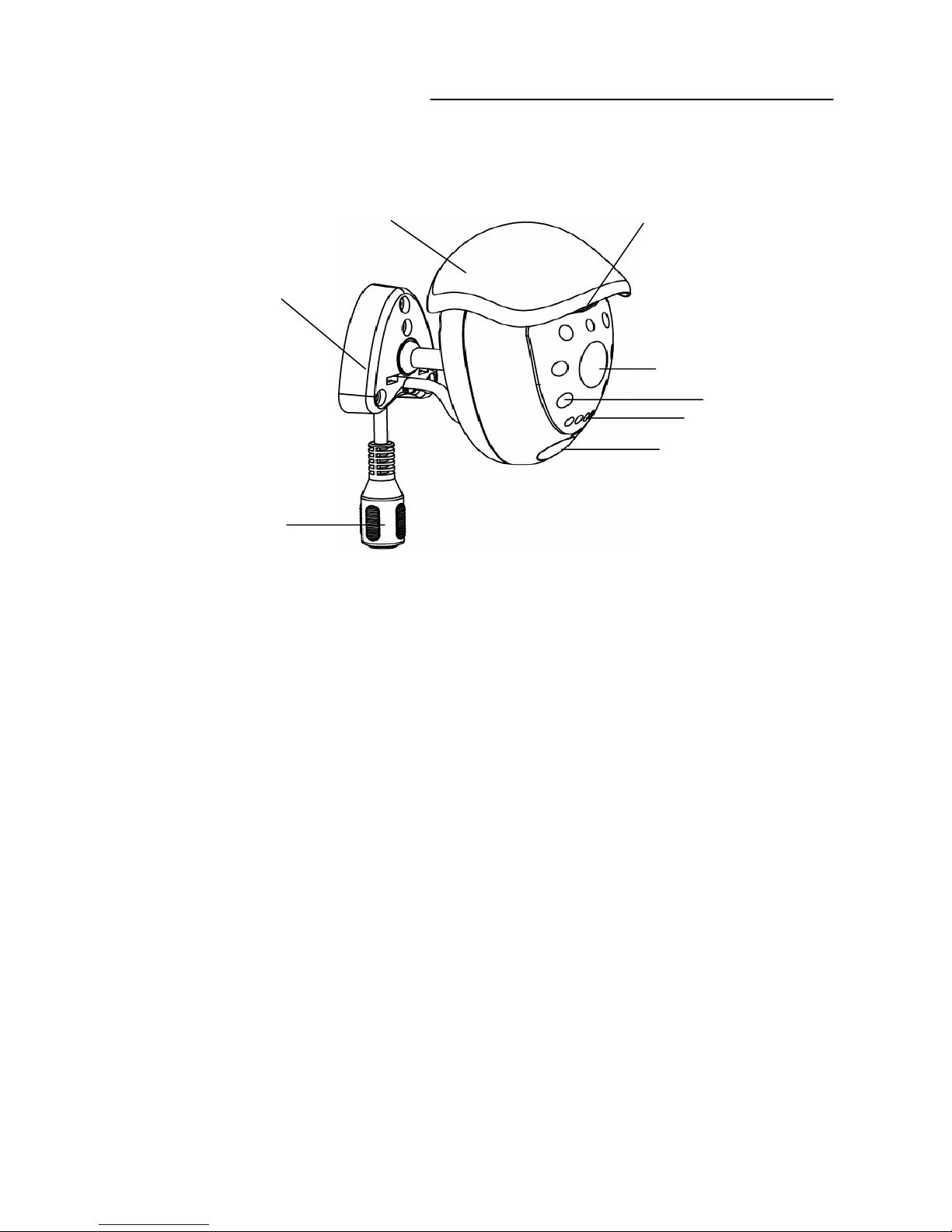

1. Attach the stand base to the wall or ceiling where you want to install the
camera. Locate a wall stud or ceiling, and secure the bracket using the
three supplied screws.
2. Secure the camera to the bracket by sliding the camera socket over the stand, and
fasten it in place with the supplied screw.
3. Connect the supplied 9V DC adapter to the DC IN jack at the rear
of the camera, and plug it into an electrical outlet. Make sure the adapter connected
to the camera is labeled camera. You can turn the camera ON/OFF by holding the
Channel for 3 seconds.
5
To 9V Power
Adapter
Camera mounted
Wall
OPTION #1 – Permanent Wall Mount
OPTION #2 – Temporary Mounting
1. Connect the clip-on stand
onto any object.
STEP 1:
INSTALLATION OF CAMERA
CONNECTING THE RECEIVER TO A TV
INSTALLATION OF RECEIVER
STEP 2:
Ensure the Power Switch on the Receiver is turned OFF before
proceeding with the following steps.
NOTE
1. Place the wireless receiver near your television (or monitor).
2. Connect one end of the RCA cables to the Audio/Video output jacks at the
back of the receiver. Plug the other end of RCA cables into the
Audio/Video In jacks on your television. Be sure the yellow, red and white
plugs match the yellow, red and white jacks on both the receiver and TV.
3. Connect one end of the supplied 9V AC adapter into the DC IN
jack at the back of the receiver; the other end into an electrical outlet. Turn the
receiver ON. The system is defaulted to channel 1.
4. Turn your TV to AX (Aux. Mode or TV/Video) to view the camera picture on your
TV.
5. Adjust the antenna on the receiver if necessary for optimum viewing.
For optimum viewing reception you may need to change the
channels of both your camera and receiver to the same
channels between CH 1 – CH 4
NOTE
You have two options to connect the Receiver: A) Using RCA Cables (see below),
or B) Coaxial Cables, please refer to page 7 of this manual.
Back of Receiver Television
Electrical Outlet
A)
6
Table des matières
Autres manuels Lorex Système de sécurité
Lorex
Lorex L224V161C4 Manuel utilisateur
Lorex
Lorex SG6331 Manuel utilisateur
Lorex
Lorex L15LD424-251 Manuel utilisateur
Lorex
Lorex SY14S1044C-A Manuel utilisateur
Lorex
Lorex SG15F6584 Manuel utilisateur
Lorex
Lorex L19LD800 Series Manuel utilisateur
Lorex
Lorex L15LD400 series Manuel utilisateur
Lorex
Lorex L15LD400 series Manuel utilisateur
Lorex
Lorex SHS-2SA Manuel utilisateur
Lorex
Lorex SHS-4QM2 Manuel utilisateur
Lorex
Lorex LW1012 Series Manuel utilisateur
Lorex
Lorex 12 B&W 4 Channel Observation system Manuel utilisateur
Lorex
Lorex LW1200 Series Manuel utilisateur
Lorex
Lorex Vantage Manuel utilisateur
Lorex
Lorex VANTAGE LH110 ECO SERIES Manuel utilisateur
Lorex
Lorex L14Q684 Guide d'installation
Lorex
Lorex SG17LD800 Manuel utilisateur
Lorex
Lorex SHS-2S7LD Series Manuel utilisateur
Lorex
Lorex SG21FD3044-161 Instructions de montage
Lorex
Lorex L19LD1600 Series Manuel utilisateur
Manuels Système de sécurité populaires d'autres marques
EDM
EDM Solution 6+6 Wireless-AE Manuel utilisateur
Highway Safety Group
Highway Safety Group EA401 Manuel utilisateur
Siren
Siren LED GSM Manuel utilisateur
Detection Systems
Detection Systems 7090i Instructions de montage
Se-Kure Controls
Se-Kure Controls MicroMini SK-4841 Manuel utilisateur
Siemens
Siemens FDM273 Manuel utilisateur
