Lorex L19LD1600 Series Manuel utilisateur

HOME & BUSINESS SECURITY

WWW.LOREXCCTV.COM

INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. AS OUR PRODUCTS ARE

SUBJECT TO CONTINUOUS IMPROVEMENT, LOREX TECHNOLOGY AND OUR SUBSIDIARIES RESERVE THE

RIGHT TO MODIFY PRODUCT DESIGN, SPECIFICATIONS AND PRICES, WITHOUT NOTICE AND WITHOUT

L19LD1600Series

Quick Start Guide

L19LD1600 Series Quick Set-Up Guide R1

PACKAGE CONTENTS, INSTALLATION GUIDE, NAVIGATION & CONTROLS

PACKAGE CONTENTS:

1 - 19” 16 Channel LCD DVR with

pre-installed HDD

1 - Power Adaptor

1 - 10 ft Ethernet Cable

1 - PS2 Mouse

1 - Remote Control

INSTALLATION GUIDE

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Time Tools Skills - Easy

Under 10 Minutes* Hand Tools Plug & Play connectors, On

screen set up

* Installation time may vary based on

application and camera cabling

STEP 1

STEP 2

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Plug & Play connectors,

On screen set up

Time Skills - Intermediate

Under 30 Minutes*

* Installation time may

vary based on application

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Hardware

Computer &

Router*

* Minimum System Requirement: Windows XP, Pentium

IV, 256MB Ram (512MB Recommended), 200MB Storage,

Internet, DSL or Cable Modem

STEP 3

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Time Hardware Skills - Advanced

60 Minutes Computer &

Router*

Basic Computer Skills,

Router Port Forwarding

* Installation time may vary based

on application

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

* Minimum System Requirement: Windows XP, Pentium IV,

256MB Ram (512MB Recommended), 200MB Storage, Internet,

DSL or Cable Modem

ATTENTION:

Broadband Router

and Computers are

required for local and

remote monitoring

(not included).

INSTRUCTIONS:

For detailed setup

information, please

refer to your User’s

manual.

SOFTWARE

REQUIREMENTS:

For Lorex Client Software

requirements, please refer

to Lorex Client Manual.

Check Pages

9-10

ATTENTION:

*Number of channels,

cameras and hard drive

capacity may vary by

model. Check your

package for speciﬁc

content information.

*Number of cameras and hard drive capacity may vary by model.

Check your package for speciﬁc content information.

2 - AAA Batteries

1 - Software CD

1 - User’s Manual

1 - Software Manual

1 - Quick Start Guide

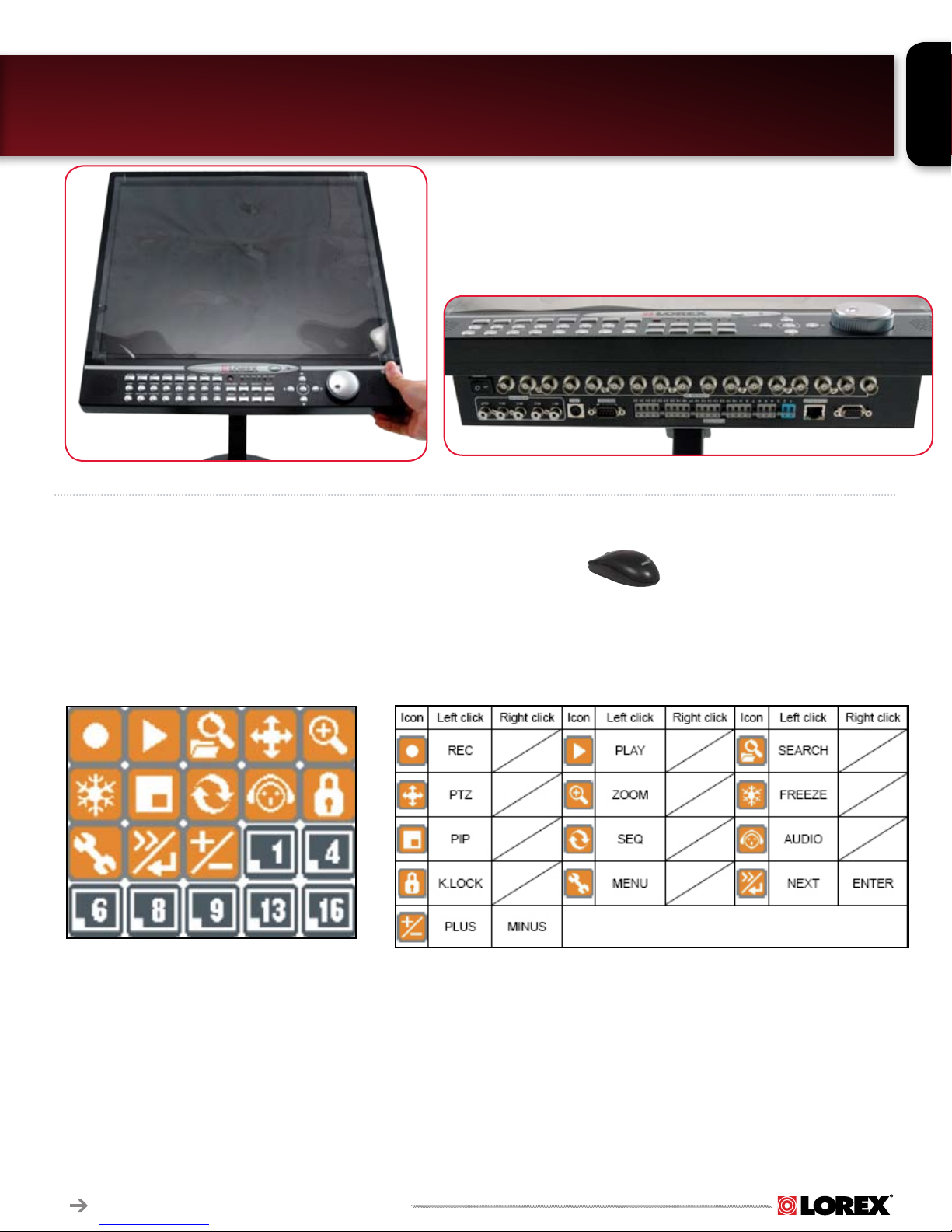

MOUSE:

LEFT BUTTON

• Double click in

viewing mode to

display camera in

full screen.

RIGHT BUTTON

• Click to open/exit

the Mouse MENU

in Viewing Mode.

SCROLL WHEEL

• Used to increase

values in the

MENU mode.

RECOMMENDED

FOR EASY USE AND

NAVIGATION

REMOTE CONTROL: RECOMMENDED

FOR USE FROM A

DISTANCE

1. MENU

2. NUMBER KEYPAD

3. SEQUENCE MODE

4. FREEZE

5. 4S BUTTON

6. 9S BUTTON

7. NAVIGATION CONTROLS / ENTER

8. REC BUTTON

9. NAVIGATION CONTROLS

10. SEARCH BUTTON

11. DISPLAY MODE

12. P/T MODE

13. AUDIO CHANNEL SELECT

14. PIP MODE

15. 16S

16. STOP

17. NEXT

18. VOL +/-

L19LD1600 Series Quick Set-up Guide R1

STEP 1 - SET UP YOUR MONITOR FIRST

Congratulations! You have completed Step 1 successfully. You can now view, record

and playback images on your monitor.

Connect the ﬁrst camera to the CH1 input. Follow the same steps to connect the

additional cameras.

CONNECT CAMERAS TO THE SYSTEM:

Connect one end of the ethernet cable to one of the router’s (not included) LAN

PORTS and the other end to Monitor’s Network Port located at the bottom of the

monitor. See picture below showing a generic LAN/WAN connection.

CONNECT ETHERNET CABLE:

Connect the the Mouse included with your system to the PS2 port of the monitor.

CONNECT THE MOUSE:

WAN (WIDE

AREA NETWORK)

LAN (LOCAL AREA NETWORK)

TO YOUR COMPUTER

TO YOUR MONITOR

BACK OF THE ROUTER SHOWN



MOUSE CONTROL

AVAILABLE

1. Connect the Female BNC end of the supplied 60’ extension cable to the camera.

Connect the male Power end of the extension cable to the camera.

2. Connect the Female end of the supplied 60’ extension cable to an open BNC

camera input on the back of the System. Connect the female Power end of the

extension cable to one of end of the power adaptor.

Connect one end of

the Power adaptor

to the monitor, the

other end to an

electrical outlet.

Note: Turn ON

the Master Power

Switch at the back

of the system.

CONNECT POWER CABLE:

1. Press the MENU button from the Front Panel of the Monitor (or Remote Control), or use the

Mouse and Click the Menu Icon .

2. DVR LOG IN screen appears. Press ENTER.

Note: USER ID BY DEFAULT IS ADMIN. Password is numeric and not necessarily needed for

initial MENU setup. Press ENTER to enter the MAIN MENU.

3. On the MENU screen select CONFIGURATION and click ENTER.

4. Select TIME AND DATE SETUP to set your local time

5. Press MENU button repeatedly to exit this screen.

SET THE TIME AND DATE:

Make sure that

the Date and Time

are set prior to

recording.

IMPORTANT NOTE: The ends of the extension cable are NOT

the same - one end has a Male power port, and the other has

a Female power port. Before permanently running the Camera

Extension Cable, make sure that the cable has been oriented

between the Camera and the unit correctly.

After you see

camera images

on your monitor

screen, remove

the protective ﬁlm

from camera(s)

and monitor

screen.

MASTER POWER BUTTON

Your system will

perform a System

Check once the

MASTER power

button at the back

of the system is

turned ON.

L19LD1600 Series Quick Set-Up Guide R1

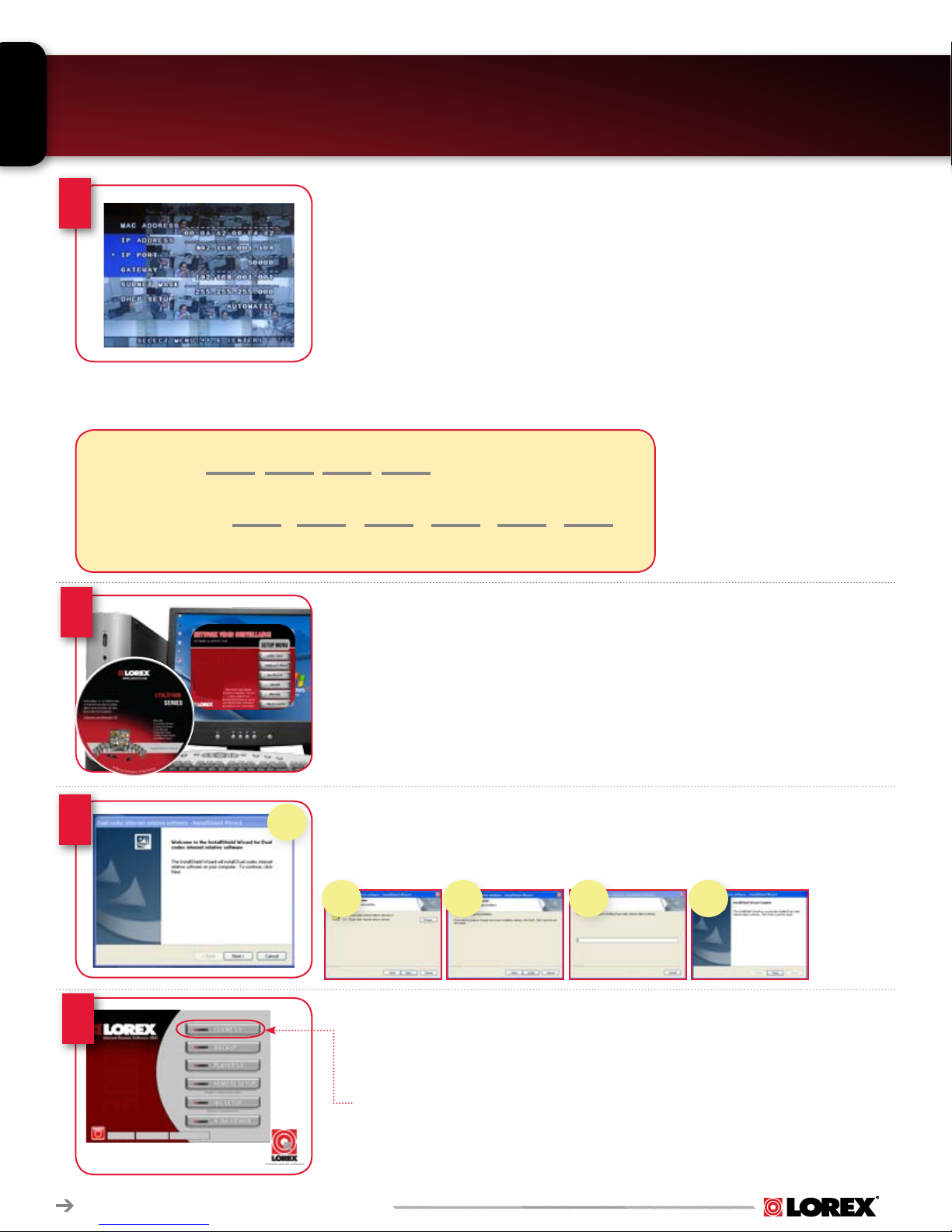

1. Access the Main Menu Setup screens, and navigate to the SYSTEM

MENU - EXTERNAL DEVICE - TCP/IP SETUP - IP CONFIG SETUP option.

2. Record the MAC Address of your system. This information is NECESSARY

for the DDNS Setup process.

3. Conﬁrm that the DHCP MODE is set to AUTOMATIC. This will allow your

system to lease an IP ADDRESS from your router. If the system is not set to

AUTOMATIC, change the setting in the DHCP SETUP menu and click

DETECT IP.

4. The IP PORT is 50000 by default.

STEP 2 - SET UP LOCAL VIEWING ON YOUR PC

RETRIEVE SYSTEM INFORMATION:

RECORD THE IP AND MAC ADDRESSES IN THE SECTION BELOW:

Insert the Lorex Software CD into your local computer’s CD ROM

drive and proceed with the installation.

INSTALL SOFTWARE:

(on your local computer)

Follow the installation screens to complete Lorex Internet Remote

(ISA) Software installation.

LOREX INTERNET REMOTE SOFTWARE (IRS):

(on your local computer)

Close the CD Menu Screen. A Lorex Internet Remote Software (IRS) icon

will appear on your desktop.

LOREX INTERNET REMOTE SOFTWARE (IRS):

(on your local computer)

*YOUR SYSTEM MUST BE CONNECTED TO

A ROUTER PRIOR TO POWERING IT ON.

IP ADDRESS: . . .

MAC ADDRESS:

(Required for DDNS registration)

2 3 4 5

Double-click the Lorex Internet Remote Software (IRS) icon on your desktop to

run the program. From the main screen, click LOREX CLIENT 5.0

RUN THE LOREX CLIENT 5.0 SOFTWARE:

(on your local computer)

NOTE: The system will lease networking

information from your Router. If you wish

to set your information manually, then

set the DHCP MODE to MANUAL. Please

consult your Hardware Manual for further

Menu options.

L19LD1600 Series Quick Set-up Guide R1

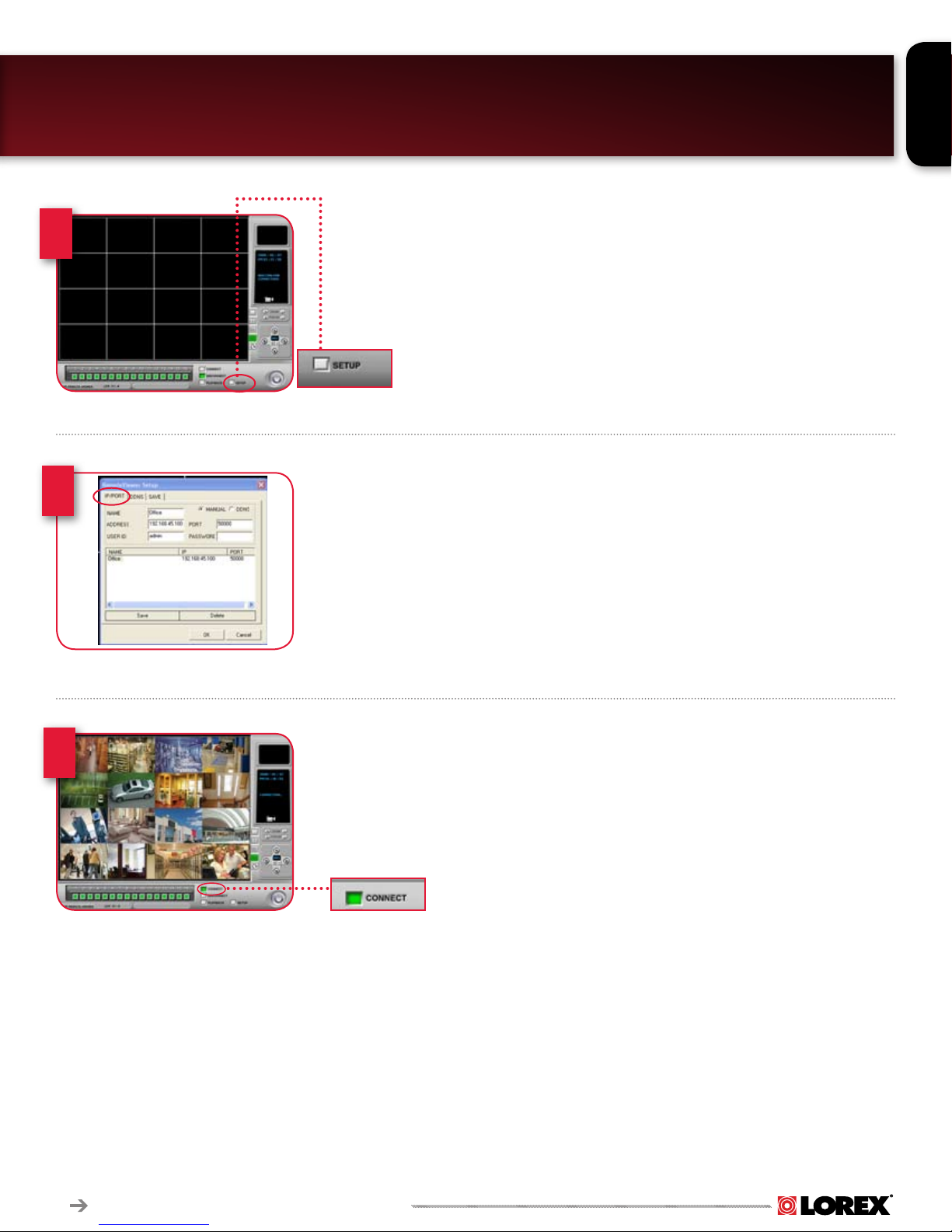

STEP 2 - SET UP LOCAL VIEWING ON YOUR PC (CONTINUED)

Click the SETUP button from the Lorex Client 5.0 Software Screen.

SET-UP:

(on your local computer for local viewing)

1. Select the IP/PORT Tab.

2. Click MANUAL (for local viewing).

3. NAME: Enter a name for the system. E.g. Ofﬁce

4. ADDRESS: Add the IP address recorded earlier at Step 2 - 1

5. PORT: By default is set to 50000

6. USER ID: By default is admin

7. PASSWORD: Leave it blank

8. Press SAVE to add the system name you have created.

LOREX CLIENT 5.0 REMOTE ACCESS SETUP

(on your local computer for local viewing):

From the Lorex Client 5.0 software - local conﬁguration screen (as shown in the pic-

ture), press the Connect button to connect to Local Live site to view your cameras.

VIEW CAMERAS LOCALLY:

(on your local computer for local viewing):

Congratulations! You have completed Step 2 successfully.

You can now view and playback images on your local

computer over the Local Area Network (LAN).

L19LD1600 Series Quick Set-Up Guide R1

STEP 3 - SET UP INTERNET REMOTE SECURITY MONITORING

PORT FORWARD YOUR ROUTER:

Open your web browser (Internet Explorer by default) and enter

http://www.lorexddns.com in the address bar.

DDNS SET-UP:

Port forward your router ﬁrst before proceeding with the set-up (port

50000).

All routers are different. To port forward your router, please refer to

your router’s user manual.

A router conﬁguration guide is available on your Lorex Client Software

CD and also on www.lorexcctv.com/support in the Consumer’s Guide

Section.

DDNS REGISTRATION:

Select the REGISTER option from the list on the left side of the

screen.

Complete the NEW USER ﬁelds with your personal information:

• USER NAME - Enter the desired User Name for connection.

• USER PASSWORD / CONFIRM PASSWORD - Enter and conﬁrm a

password for the connection.

NOTE: The username and password provided are NOT the same as the ADMIN/

PASSWORD on the System. These credentials are used for your

speciﬁc connection to your unit.

• EMAIL - Enter your Email Address.

Press the OK button to save the settings.

A Successful Registration window will appear.

CREATE NEW USER INFORMATION:

L19LD1600 Series Quick Set-up Guide R1

STEP 3 - SET UP INTERNET REMOTE SECURITY MONITORING (CONTINUED)

Once the account has been created, you will need to login using your

credentials (as set in step 4).

Once the Username and Password have been entered, press the LOG IN button to

access the Conﬁguration Menu.

Select the ADD DVR link from the top of the page.

ADD DVR:

The DVR Setup screen will appear:

• DVR NAME - Enter the desired name for your System (e.g.

MyBusiness) to a maximum of 20 numbers and letters.

• MAC ADDRESS - Enter the MAC Address from the system (as retrieved

from the System Information in the IP & MAC Address section on page 4). The

MAC ADDRESS IS 12 CHARACTERS WITH NO SPACES OR DASHES.

•Select the Dual Codec (19” 16CH LCD Combo) option

• IP ADDRESS & PORT - This information can be left blank - the DDNS Service

will access your unit based on the MAC Address.

Press OK to save the settings. Once the settings are saved, the conﬁguration will

appear in your DDNS List. This conﬁguration can now be added to the System.

Access the Main Menu Setup screens, and navigate to the SYSTEM MENU

- EXTERNAL DEVICE - TCP/IP SETUP - DDNS SETUP option.

ENTER DDNS SET-UP ON YOUR MONITOR:

L19LD1600 Series Quick Set-Up Guide R1

1. Load the Lorex Client Software. Click on SETUP to add the conﬁguration.

2. The Remote Viewer Setup window will load to the IP/PORT Tab. Click on the DDNS button (all

settings will be greyed out) and click the DDNS tab.

3. On the DDNS tab, enter your DDNS Information as follows:

• USER NAME - Enter the user name you conﬁgured on the DDNS Website (default is set to

GROUP as an example, and can be deleted).

• DVR NAME - Enter the DVR name you conﬁgured on the DDNS Website.

• USER ID - Enter the DVR user ID (admin by default)

• PASSWORD - By default is blank

4. Click the SAVE Button to accept the settings.

5. Click on the GET IP button to retrieve the IP Address and Port Number from the DDNS Server.

7. Press OK to save the settings, and close the conﬁguration window.

STEP 3 - SET UP INTERNET REMOTE SECURITY MONITORING (CONTINUED)

• Set the DDNS ENABLE to ON

• Click on REGISTER to connect to the DDNS server and register the system information

The following will automatically complete after clicking the Register option:

• DNS SERVER - Conﬁrm that the IP address is set to 202.133.244.128

• INTERVAL - Set an interval for the DVR to auto-update its IP address to DDNS server (D-

days / H- hours / M- minutes). Default : D-00 H-00 M-20, update every 20 minutes.

• REGISTER - Connect to the DDNS server and register the DVR information to DDNS database

• DNS STATUS - Indicates the current status of DDNS connection.

• IP ADDRESS - Indicates the local IP address assigned by the router (the internal IP address of

your system).

• IP PORT - Indicates the current port number in the system (50000 by default).

• REMAIN TIME - Indicates the remaining time until the System next updates the IP address with

the DDNS Service.

• LAST REGISTRATION DATE - Indicates the last successful date and time that an update

occurred. To save the changes and exit , click on the MENU button.

ENABLE DDNS SETTINGS:

The remote connection information needs to be added to the Lorex Client software to allow

for a remote connection (using DDNS).

LOREX CLIENT REMOTE ACCESS SETUP:

Remote Viewing with Internet Explorer: Video from the System can be viewed using the Internet Explorer

interface (for remote viewing and backup). All Remote functionality through the Internet Explorer

interface is provided at http://www.lorexddns.com. For more information, please refer to Lorex Client

Software Manual.

Congratulations! You have completed Step 3 successfully. You can now view and

playback images on your remote computer over the Internet.

Click the CONNECT button to remotely access your System.

MyBusiness

VIEW CAMERAS REMOTELY:

L19LD1600 Series Quick Set-up Guide R1

RECOMMENDED TIPS

Tilt the monitor UP to loacte your

monitor’s connections.

LOCATE MONITOR CONNECTIONS:

FUNCTION ICONS - AVAILABE FOR USE ONLY THROUGH A MOUSE

Right click to open mouse

control interface.

The corresponding functions

for mouse buttons please

refer to the following chart.

L19LD1600 Series Quick Set-Up Guide R1

Please refer to the system’s user manual for HDD formatting and installation.

HDD INSTALLATION:

The System comes with a pre-installed Hard Drive in the

removable hard drive bay. The system can support up to 2 hard

drives ( max 750GB each ), one in the removable bay and one

internally.

NOTE: Make sure that the System is OFF and the power cable has

been disconnected before changing the Hard Drive. For detailed

instructions, check your user’s manual included with the system.

TIP ON CAMERA MOUNTING:

Note: Test the cameras prior to selecting a permanent mounting

location by temporarily connecting the Cameras and Cables to

your System.

RECOMMENDED TIPS (CONTINUED)

NOTE: You must have an active high speed internet connection

to the System to be able to perform Remote viewing or playback.

Remote access is dependant on your connection speed, internet

trafﬁc and other network factors - the speed is normally 1~2 FPS

(frames per second).

For faster remote viewing over the internet we recommend using

the H.264 Viewer (see page 11). H.264 compression provides

smaller ﬁle sizes resulting in a higher speed over the internet.

For faster playback, it is recommended to download previously

recorded video using the backup function and play it back using

Backup Player Software - refer to the user manual for details.

Regardless of the network playback speed, video is being

recorded on your system in real time, and can be viewed when

you are at the system or through the backup player.

TIP ON REMOTE VIEWING AND PLAYBACK:

Autres manuels pour L19LD1600 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Lorex Système de sécurité

Lorex

Lorex VANTAGE LH110 ECO SERIES Manuel utilisateur

Lorex

Lorex LW2700 SERIES Manuel utilisateur

Lorex

Lorex L14Q684 Guide d'installation

Lorex

Lorex SHS-2S7LDP series Manuel utilisateur

Lorex

Lorex SG4230 Manuel utilisateur

Lorex

Lorex VANTAGE LH110 ECO SERIES Manuel utilisateur

Lorex

Lorex VANTAGE LH110 ECO SERIES Manuel utilisateur

Lorex

Lorex mCAM DMC2030 Manuel utilisateur

Lorex

Lorex LW292 SERIES Manuel utilisateur

Lorex

Lorex SG17LD800 Guide d'installation

Lorex

Lorex L204 Manuel utilisateur

Lorex

Lorex WIRELESS HOME MONITORING SYSTEM Manuel utilisateur

Lorex

Lorex LWB4800 Manuel utilisateur

Lorex

Lorex IPSC2260P Manuel utilisateur

Lorex

Lorex L19WD Series Manuel utilisateur

Lorex

Lorex LW2960 SERIES Manuel utilisateur

Lorex

Lorex LH314321 Mode d’emploi

Lorex

Lorex SG6331 Manuel utilisateur

Lorex

Lorex SHS-4QM Series Manuel utilisateur

Lorex

Lorex SG21CD7444UQ-A80 Manuel utilisateur

Lorex

Lorex mCAM DMC2030 Manuel utilisateur

Lorex

Lorex L154-81C4 Manuel utilisateur

Lorex

Lorex SHS-2S6183W Manuel utilisateur

Lorex

Lorex L19LD800 Series Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
