Logitech Keyboard Folio Manuel utilisateur

Getting started with

Première utilisation

Logitech® Solar Keyboard Folio

Logitech Solar Keyboard Folio

Contents

English. . . . . . . . . . . . . . . . . . 3

Français . . . . . . . . . . . . . . . . 12

Español . . . . . . . . . . . . . . . . 21

Português . . . . . . . . . . . . . . . 30

www.logitech.com/support . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Logitech Solar Keyboard Folio

English 3

Know your product

1. Solar cells

2. Protective case

3. iPad tray

4. Keyboard

5. Function keys

6. Status light

7. Battery check button

8. Bluetooth® connect button

9. Media keys

Logitech Solar Keyboard Folio

4 English

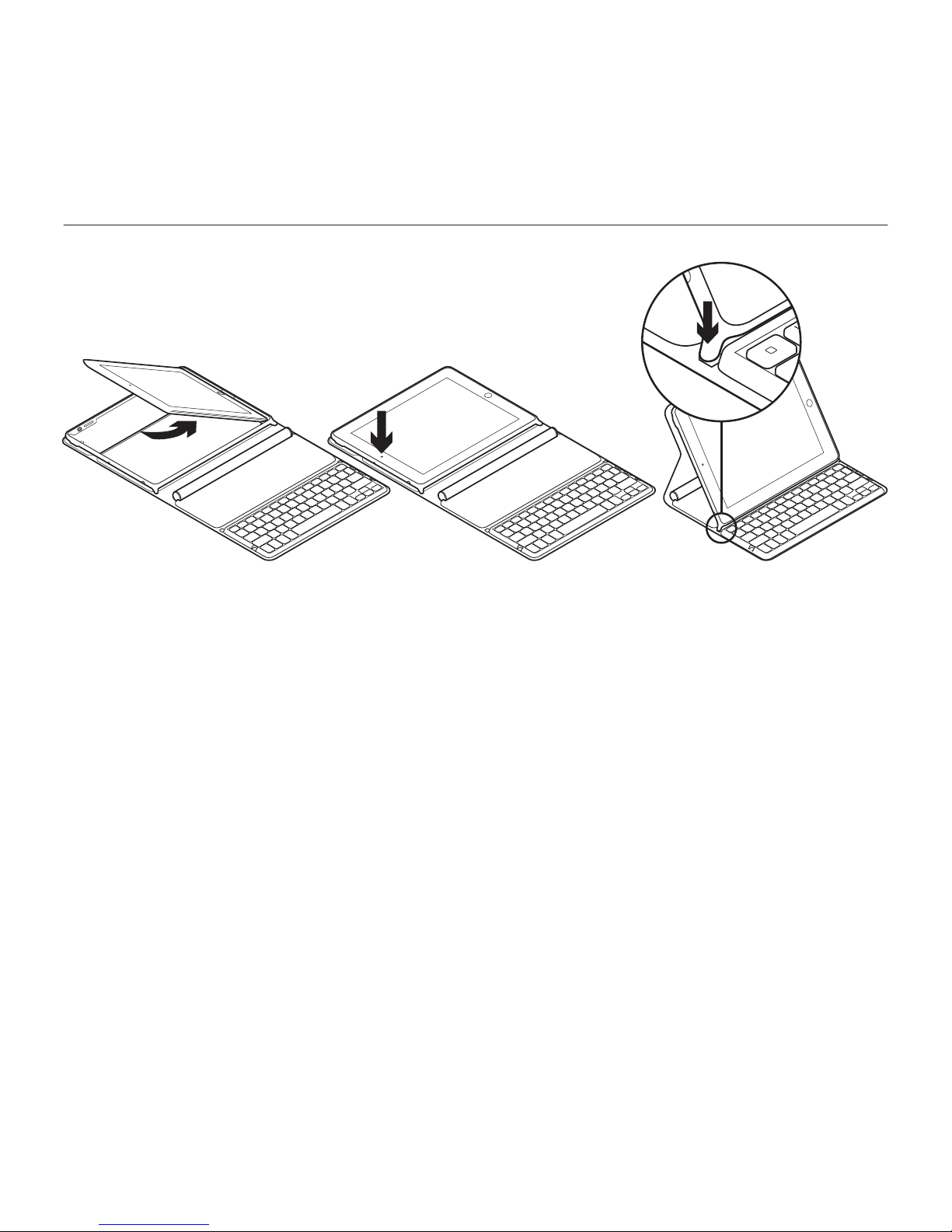

Set up your product

1. Open the Keyboard Folio.

2. Place your iPad in the iPad tray.

3. Move the iPad tray to the typing

position:

• The Keyboard Folio turns on.

• The Status light blinks green.

• The Keyboard Folio is discoverable

for 15 minutes.

• If the Status light shows no color,

check the iPad tray for correct

positioning. Also, the internal

batteries may need charging.

Go to “Charge the batteries.”

4. Turn on Bluetooth on your iPad:

Select Settings > General >

Bluetooth > On.

5. Choose “Logitech Solar KB folio”

on your iPad’s Devices menu.

6. If your iPad requests a PIN, enter the

code using the Keyboard Folio and

not your iPad’s virtual keyboard.

After the Bluetooth connection is made,

the Status light brieﬂy turns green.

Logitech Solar Keyboard Folio

English 5

Charge the batteries

The Keyboard Folio needs light to recharge. Six hours of typical room light a day

is recommended.

To check battery power and recharge

1. Place the iPad tray in the typing

position.

2. Press the Battery Check button.

If there is a red Status light or no light,

recharge the Keyboard Folio.

3. Close the Keyboard Folio with the solar

cells facing up. The Keyboard Folio

turns o.

4. Place the Keyboard Folio in a well-lit

room.

Status light indications

Light Description

Green The tray is in place, the Bluetooth connection is established,

and the battery is charged.

Red The tray is in place, the Bluetooth connection is established,

and battery power is low (10 - 20% charge). Recharge the Keyboard

Folio following the instructions above.

Blinking green The tray is in place, the Keyboard Folio is attempting an iPad

connection, and the battery is charged.

One red blink,

then blinking green

The tray is in place, the Keyboard Folio is attempting an iPad

connection, and the battery charge is low.

No light The tray is not in place, the Bluetooth connection is lost,

or the battery is dead. See “Troubleshooting.”

Logitech Solar Keyboard Folio

6 English

Visit Product Central

There’s more information and support

online for your product. Take a moment

to visit Product Central to learn more about

your new Keyboard Folio.

Browse online articles for setup help,

usage tips, or information about additional

features.

Connect with other users in our Community

Forums to get advice, ask questions,

and share solutions.

At Product Central, you’ll ﬁnd a wide

selection of content:

• Tutorials

• Troubleshooting

• Support community

• Software downloads

• Online documentation

• Warranty information

• Spare parts (when available)

Go to www.logitech.com/support/

solarkeyboardfolio

Use your product

Opening the Keyboard Folio turns on

your iPad. Closing it turns o your iPad.

The Keyboard Folio does not charge

while in use.

iPad tray positions

There are two iPad tray positions—typing

and media. Both turn on the Keyboard

Folio when the iPad tray supports

are placed as shown in the drawings

that follow.

1. Typing position

2. Media position

1 2

Logitech Solar Keyboard Folio

English 7

Typing position Use for entering text.

In the typing position, the Keyboard Folio provides a Home key and 13 function keys:

1. Home Displays the iPad Home screen.

Function keys To use, press and hold the

Fn key, and then press a key listed below.

2. Fn + 1 = Search Launches the iPad

search function.

3. Fn + 2 = Switch language

Switches keyboard language.

4. Fn + 3 = Virtual keyboard

Shows/hides the virtual keyboard.

5. Fn + 4 = Select left Selects text

on the left, word by word.

6. Fn + 5 = Select right Selects text

on the right, word by word.

7. Fn + 6 = Cut

8. Fn + 7 = Copy

9. Fn + 8 = Paste

10. Fn + 9 = Play/Pause

11. Fn + 0 = Mute

12. Fn + dash = Volume down

13. Fn + plus = Volume up

14. Fn + delete = Lock screen

Locks or unlocks the iPad screen.

1 2 3 4 5 6 7 8 9 10 11 12 13 14

Logitech Solar Keyboard Folio

8 English

Media position Use when watching videos, listening to music, or playing games.

In the media position, the Keyboard Folio provides 8 function keys:

1. Slideshow Plays a slide show

of saved pictures.

2. Virtual keyboard Shows/hides

the virtual keyboard.

3. Previous

4. Play/Pause

5. Next

6. Mute

7. Volume down

8. Volume up

Note: These 8 function keys only work when the

iPad tray is in the media position. Pressing the Fn

key is not required for these keys to work.

1 2 3 4 5 6 7 8

Logitech Solar Keyboard Folio

English 9

Connecting to a dierent iPad

1. Make sure the Keyboard Folio is in

the typing position.

2. Check that your iPad’s Bluetooth

feature is on. Select Settings > General >

Bluetooth > On.

3. Press the Bluetooth Connect Button.

The Keyboard Folio is discoverable

for 3 min.

4. Select “Logitech Solar KB folio”

on the iPad’s Devices menu.

5. If your iPad requests a PIN, enter the

code using the Keyboard Folio and

not your iPad’s virtual keyboard.

After the Bluetooth connection is made,

the Status light brieﬂy turns green.

6. Place the new iPad in the iPad tray.

Logitech Solar Keyboard Folio

10 English

Troubleshooting

The Keyboard Folio does not work

• Position the iPad tray for typing

or media use. The Keyboard Folio

does not work if the tray supports

are incorrectly placed.

• Press the Battery Check button.

A red Status light or no light indicates

battery charging is needed. No light also

signiﬁes that the tray supports are not

correctly placed.

• Re-establish the Bluetooth connection

between the Keyboard Folio and iPad:

• Verify that iPad Bluetooth is

turned on.

• Choose “Logitech Solar KB folio”

on the Devices menu on your iPad.

The Status light brieﬂy turns green

after the Bluetooth connection

is made.

What do you think?

Please take a minute to tell us.

Thank you for purchasing our product.

www.logitech.com/ithink
