Logitech Zone Wired Manuel utilisateur

UNIFIED

COMMUNICATIONS

UC VERSION

VERSION

COMMUNICATIONS

UNIFIÉES UC

MICROSOFT

TEAMS VERSION

VERSION

MICROSOFT

TEAMS

LOGITECH ZONE WIRED

Setup Guide

Guide d’installation

CONTENTS

English ............................3

Français ..........................10

Español .......................... 17

Português.........................24

KNOW YOUR PRODUCT

Adjustable

headband

Media controls

UC VERSION TEAMS VERSION

Call controls &

Voice assistant

Padded leatherette

ear cups

Microphone mute

Adjustable

noise-canceling

microphone boom

Volume up

Volume down

Call controls &

Microso Teams

INLINE CONTROLLER

USB-C input

USB-A adapter

3 English

USB-A

USB-C

WHAT’S IN THE BOX

1. Headset with In-line controller and USB-C connector

2. USB-A adapter

3. Travel bag

4. User documentation

CONNECTING THE HEADSET

Connect via USB-C

1. Plug the USB-C connector into your computer

USB-C port.

Connect via USB-A

1. Plug the USB-C connector into the USB-A adapter.

2. Plug the USB-A connector into your computer

USB-A port.

Note: Only use the USB-A adapter with the provided

headset.

HEADSET FIT

Adjust headset by sliding headband open or closed on

both sides.

ADJUSTING THE MICROPHONE BOOM

1. Microphone boom rotates 270 degrees. Wear it on

either le or right side. For the best music experience,

we recommend wearing the headset with the

microphone on the le. Le/Right indicators can be

found on the side of the headset.

2. Adjust exible microphone boom location to capture

voice better.

1 2

4 English

TEAMS version

Button Usage Indicator Light Action

Mute

Mute on Solid RED

Short press to Mute / Unmute

Mute o No light

Call Controls Incoming calls Flashing WHITE Short press to Answer calls

2 second press to Reject calls

Ongoing calls Solid WHITE Short press to End calls

Teams Activities

Connecting to Teams Pulsing PURPLE

Short press to check connection to Teams

Failed connection to

Teams

Flashing PURPLE for 10

secs then o

Not connected to Teams Flashing PURPLE 3 times

then o

Connected to Teams Solid PURPLE Short / 2 second press for Teams activities

Teams Missed call / Voice

mail / Join meeting

notications

Pulsing PURPLE Short press to Respond to Teams

notications

Media Controls No light

Short press to Play / Pause

Double press to Track forward

Triple press to Track backward

+Volume No light Short press to Volume up

-Short press to Volume down

Note: Teams activities are only functional when Teams is running on unlocked PC or Mac.

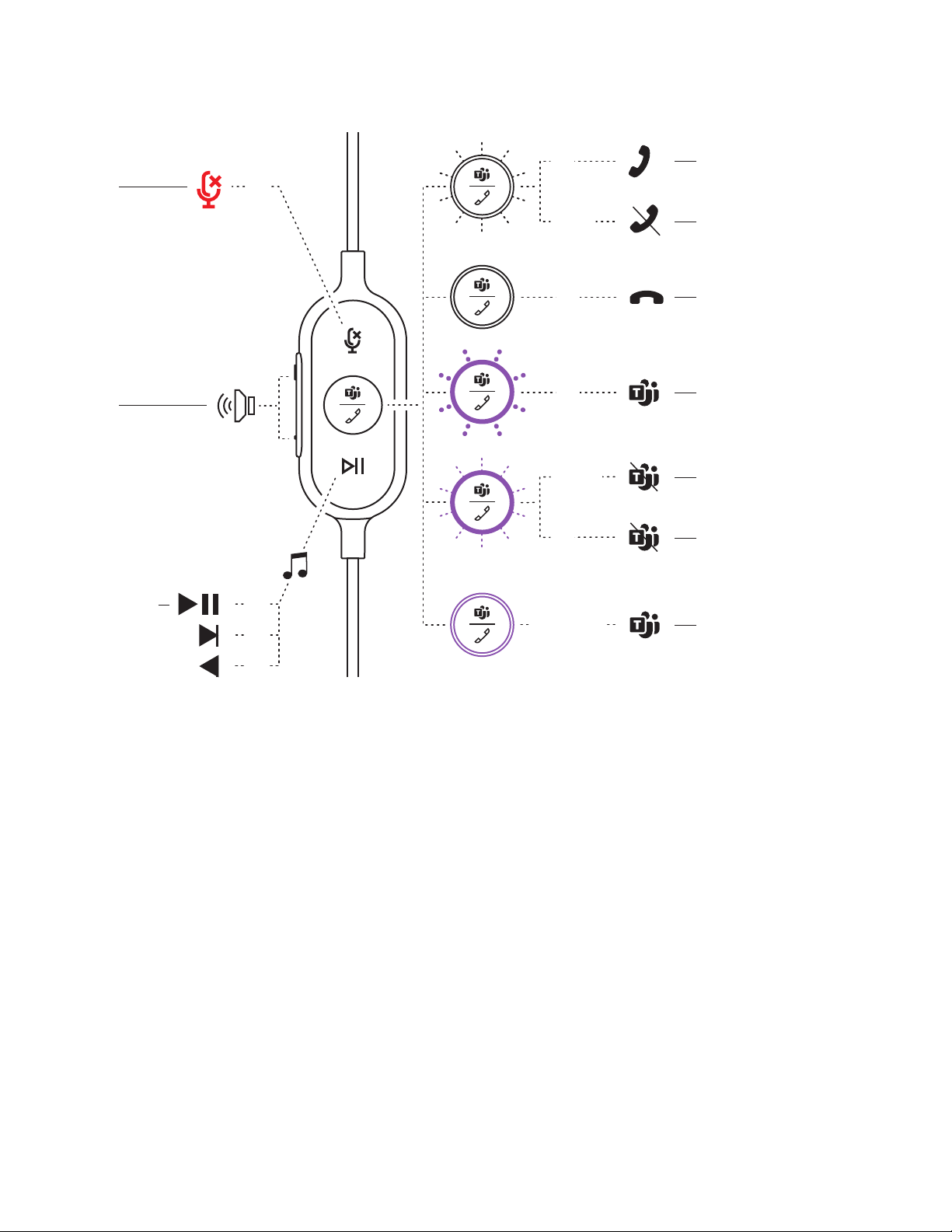

HEADSET INLINE CONTROLS AND INDICATOR LIGHT

5 English

2 sec.

1x / 2 sec.

10 sec.

MUTE

+ / 

MEDIA

CONTROLS

ANSWER CALLS

REJECT CALLS

END CALLS

CONNECTING TO TEAMS

/ TEAMS MISSED CALL /

VOICE MAIL / JOIN MEETING

NOTIFICATIONS

FAILED CONNECTION TO

TEAMS

NOT CONNECTED TO TEAMS

CONNECTED TO TEAMS

6 English

ANSWER CALLS

TRIGGER VOICE

ASSISTANT

REJECT CALLS

END CALLS

MUTE

+ / 

MEDIA

CONTROLS

2 sec.

* Voice assistant functionality may depend on device models.

UC version

Button Usage Indicator Light Action

Mute

Mute on Solid RED

Short press to Mute / Unmute

Mute o No light

Call Controls Incoming calls Flashing WHITE Short press to Answer calls

2 second press to Reject calls

Ongoing calls Solid WHITE Short press to End calls

Voice Assistant No light 2 second press to Trigger voice assistant*

Media Controls No light

Short press to Play / Pause

Double press to Track forward

Triple press to Track backward

+Volume No light Short press to Volume up

-Short press to Volume down

7 English

LOGI TUNE DESKTOP PC COMPANION APP

Logi Tune Desktop helps boost your headset performance with periodic

soware and rmware updates, helps you adjust what you hear with 5 band

EQ customization, and helps you control how you are heard with mic gain,

sidetone controls, and more. The distraction-free mini-app allows you to

make audio adjustments while in an active video call.

Learn more & download Logi Tune Desktop at:

www.logitech.com/tune

ADJUSTING SIDETONE

Sidetone lets you hear your own voice during conversations so you are aware

of how loud you are talking. In Logi Tune, select the sidetone feature, and

adjust the dial accordingly.

— A higher number means you hear more external sound.

— A lower number means you hear less external sound.

UPDATE YOUR HEADSET

It is recommended to update your headset. To do so, download Logi Tune

from www.logitech.com/tune

8 English

Europe S.A. and/or its aliates in the U.S. and other countries. Chrome, Mac, Microso Teams, USB-C, Windows and

all other 3rd party trademarks are the properties of their respective owners. Logitech assumes no responsibility for any

errors that may appear in this publication. Information contained herein is subject to change without notice.

DIMENSION

Headset:

Height x Width x Depth: 165.93mm x 179.73mm x 66.77mm

Weight: 0.211 Kg

Ear pad dimensions:

Height x Width x Depth: 65.84mm x 65.84mm x 18.75mm

Adapter:

Height x Width x Depth: 21.5mm x 15.4mm x 7.9mm

SYSTEM REQUIREMENTS

Windows, Mac or Chrome based computer with available USB-C or USB-A port. USB-C compatibility with mobile

devices depends on device models.

TECHNICAL SPECIFICATIONS

Input Impedance: 32 Ohms

Sensitivity (headphone): 99dB±3dB at 1000Hz @30mW,1cm

Sensitivity (microphone): Main mic: -48 dBV/Pa, Secondary mic: - 40 dBV/Pa

Frequency response (Headset): 20~16 kHz

Frequency response (Microphone): 100~16 kHz

Cable length: 1.9 m
