Logitech Jabra BH970 Manuel utilisateur

Getting started with

Première utilisation

BH970 Wireless Mono DECT Headset

Logitech for Business

BH970 Wireless Mono DECT Headset

Contents

English. . . . . . . . . . . . . . . . . . . . . . . . . . 4 Français. . . . . . . . . . . . . . . . . . . . . . . . . 14

www.logitech.com/support/BH970 .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . 25

BH970 Wireless Mono DECT Headset

Getting started with

Première utilisation

BH970 Wireless Mono DECT Headset

Logitech for Business

BH970 Wireless Mono DECT Headset

44 English

Figure 1: BH970 Wireless Mono DECT Headset diagrams

4 7 8 9 10

1265

1 3

Figure 2: BH970 Wireless Mono DECT base diagrams

BH970 Wireless Mono DECT Headset

5English 5

Headset.diagrams

1. Multifunction button

2. Touch panel

3. LED indicator

4. Microphone boom arm

5. Speaker

6. Mount for wearing-style attachments

7. Recharge contact

8. Noise-cancelling microphone

Base.diagrams

1. Headset recharge contact

2. Headset cradle

3. Keypad

4. Microphone volume control

5. Cear dial tone switch

6. Front panel

7. Telephone port

8. Handset port

9. AUX port

10. USB port

11. Power adapter port

12. Busy-light indicator port

13. Speaker

14. Security slot

BH970 Wireless Mono DECT Headset

66 English

Setup

Step 1: Select your setup method

Step 2: Select and prepare the

Headset

The easiest way to connect and conﬁgure

the BH970 is to use the Interactive Setup

Wizard available online here: www.logitech.

com/support/BH970. The setup section of

this quick start guide is only needed if the

Interactive Setup Wizard is not used.

Attaching the headband

1. Align the headset and the headband

wearing-style attachment, as illustrated,

and press ﬁrmly together until they click

into place (snap-to-click).

2. Rotate the microphone boom arm for

left or right ear use.

3. Adjust the length of the headband to ﬁt

snug against the head.

Attaching the earhook

1. Assemble the earhook wearing-style

attachment for left or right ear use.

If necessary, remove the earbud and

replace with another size for best ﬁt.

2. Align the headset and the earhook

wearing-style attachment, as illustrated,

and press ﬁrmly together until they click

into place (snap-to-click).

3. Shape the earhook to ﬁt snug around

the ear.

www.logitech.com/support/BH970

BH970 Wireless Mono DECT Headset

7English 7

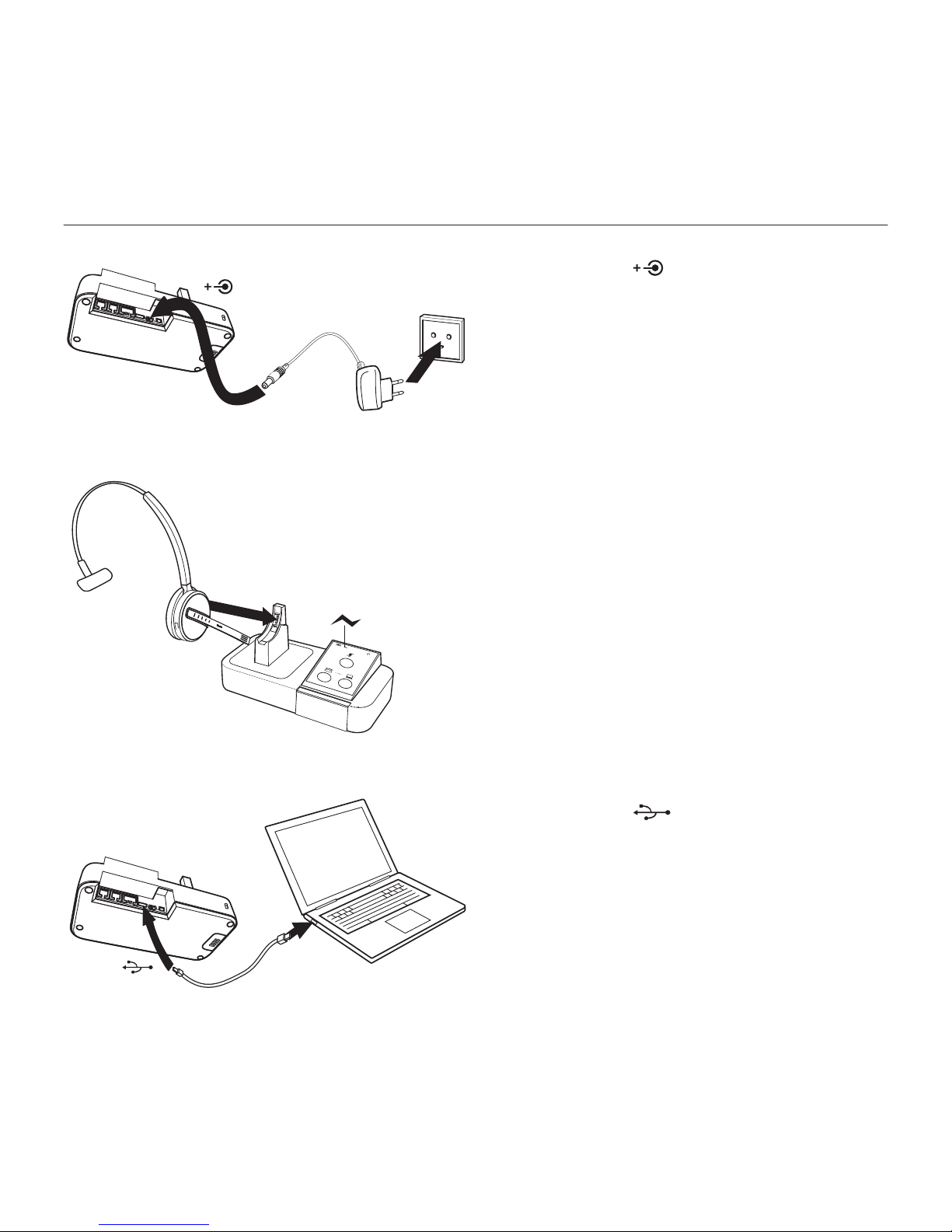

Step 3: Connect to power

Step 4: Dock the Headset

Step 5: Connect to PC

1. Plug the supplied power adapter into the

port marked on the base.

2. Connect the power adapter to the mains

power socket.

Dock the headset. When docked correctly

the headset battery will begin charging,

if needed.

Charge for 20 minutes or until battery

indicator is steady green. Keep the headset

docked during setup.

1. Plug the supplied USB cable into the

port marked on the base.

2. Connect the USB cable to any free USB

slot on the PC.

BH970 Wireless Mono DECT Headset

88 English

Step 6: Select and connect to a desk

phone

Connecting to a desk phone will vary

depending on the type of desk phone used.

Connect to a desk phone with

headset port

This type of desk phone has a dedicated

headset port (usually at the back of the

phone). These phones typically have a

button on the front panel for switching

between handset and headset.

1. Plug the supplied telephone cable into

the port marked on the base.

2. Connect the telephone cable to the

headset port on the desk phone.

Connect to a desk phone without

headset port

This desk phone does not have a dedicated

headset port.

1. On the desk phone, unplug the handset

cable from the phone body.

2. Connect the handset cable to the port

marked on the base.

3. Plug the supplied telephone cable into

the port marked on the base.

4. Connect the telephone cable into the

handset port on the desk phone.

BH970 Wireless Mono DECT Headset

9English 9

Connect to a desk phone with electronic

hookswitch

An electronic hookswitch enables an

incoming call to be answered or ended by

the headset´s multi-function button.

Contact your local Logitech dealer to

purchase an electronic hookswitch adapter.

1. Plug the supplied telephone cable into

the port marked on the base.

2. Connect the telephone cable to the

headset port on the desk phone.

3. Plug the electronic hookswitch adapter

into the port marked AUX on the base.

4. Connect the electronic hookswitch

adapter to the desk phone.

Connect to desk phone with GN1000

remote handset lifter

The GN1000 remote handset lifter manually

lifts the desk phone handset to make or

answer a call. Refer to documentation

supplied with the GN1000 remote handset

lifter for connection instructions.

BH970 Wireless Mono DECT Headset

1010 English

Step 7: Make a test phone call

Test call from desk phone

1. Ensure the headset is docked, and then

press and hold the desk phone button

on the base keypad until the desk phone

icon changes to .

2. Remove the front panel of the BH970, as

illustrated.

3. Put on the headset. The desk phone icon

will change to . If the icon does not

change, tap the desk phone button on

the base keypad.

4. Press the headset button on the desk

phone, or lift the desk phone handset, to

get a dial tone.

5. Make a test call. Dial a friend or

colleagues phone number using the desk

phone.

6. Check your speaking volume. If the

listener says your speaking volume

is too quiet or too loud, adjust the

microphone volume control on the base,

as illustrated. Ensure the listener does

not adjust their own volume.

7. When ﬁnished, end the call and return

the front panel of the BH970.
