Lochinvar Power-Fin PF 1500 Guide d'application

PFR-07

Replacement Parts List

Power-Fin® 2:1

Boilers/Water Heaters

PB/PF 1500, 1700, 2000

Up to serial #F05H0176841

PARTS AND SERVICE DEPARTMENT

Nashville, Tennessee

615-889-8900 • Fax: 615-547-1000

www.Lochinvar.com

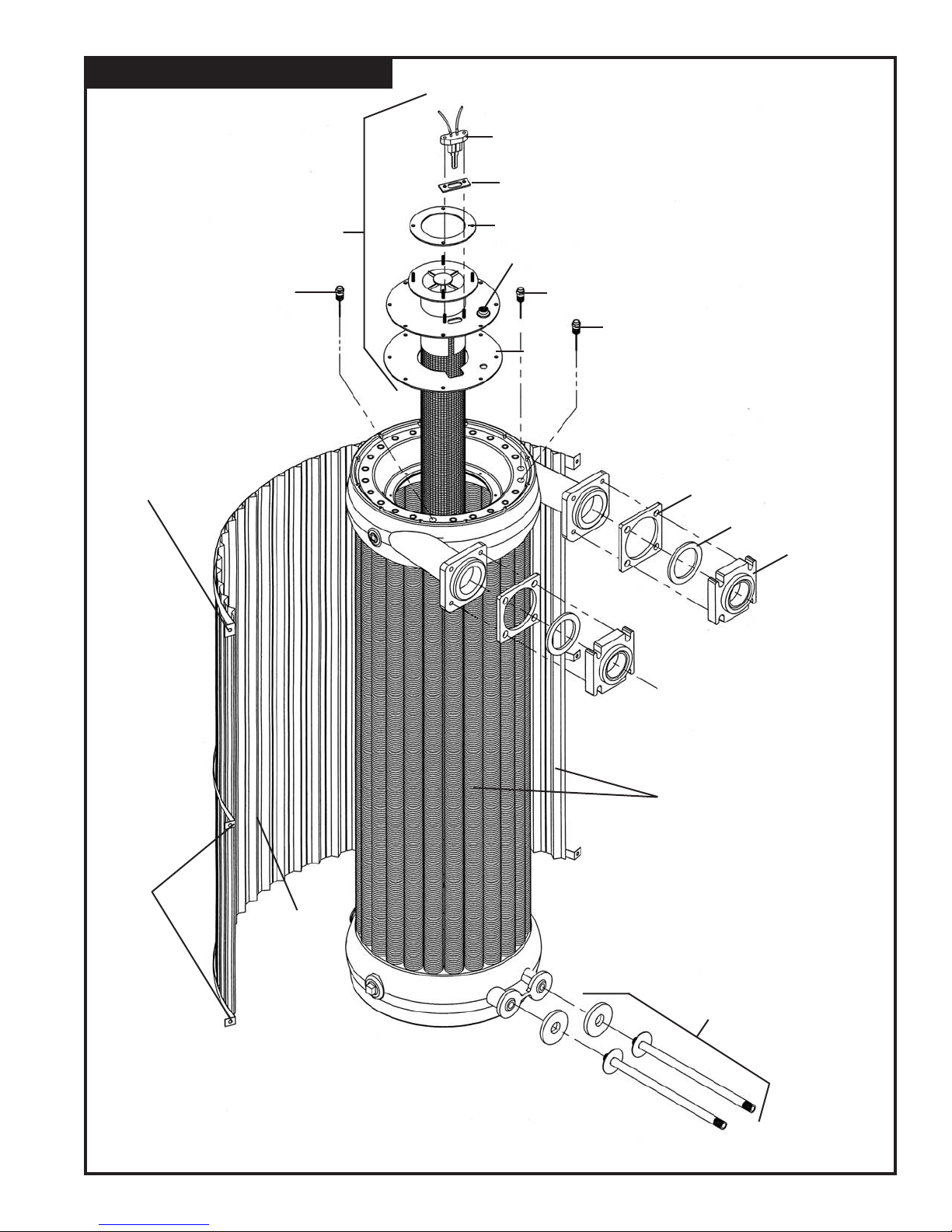

HEAT EXCHANGER ASSEMBLY

2 of 4PFR-07

CONTROL PANEL

GAS TRAIN ASSEMBLY

3 of 4PFR-07

ITEM

NO.

PART

NO.

DESCRIPTION MODEL

NO.

CONTROLS

1 FAN3009 FAN REPLACEMENT ASSEMBLY 1500

1 FAN3010 FAN REPLACEMENT ASSEMBLY 1700

1 FAN3011 FAN REPLACEMENT ASSEMBLY 2000

2 KIT3002 SWITCH, PRESSURE ALL

3 RLY3021 MOTOR DRIVE, VARIABLE FREQUENCY (VFD) ALL

4 RLY2724 BOARD, DISPLAY ALL

5 RLY2402 MODULE, IGNITION ALL

6 RLY3723 BOARD, CONTROL PB

6 RLY3724 BOARD, CONTROL PF

6 RLY3028 BOARD, CONTROL, I/O RESET PB

7 RLY2706 RELAY, PUMP ALL

8 TRF2005 TRANSFORMER–75VA (ORDER BY DESCRIPTION) ALL

8 TRF2010 TRANSFORMER–100VA (ORDER BY DESCRIPTION) ALL

9 SWT2004 SWITCH, MANUAL RESET ALL

10 HLC2702 LIMIT, HIGH ALL

11 SWT2001 SWITCH, POWER, ON / OFF ALL

12 WTR2040 SWITCH, FLOW ALL

5/09 - Printed in U.S.A.

4 of 4PFR-07

ITEM

NO.

PART

NO.

DESCRIPTION MODEL

NO.

GAS TRAIN ASSEMBLIES

13 BNR3419 MAIN BURNER ASSEMBLY PF/PB1500

13 BNR3420 MAIN BURNER ASSEMBLY PF/PB1700

13 BNR3421 MAIN BURNER ASSEMBLY PF/PB2000

14 MSC2731 SIGHT GLASS, 1/2" ALL

15 PLT3400 IGNITOR, HOT SURFACE ALL

16 GKT2012 GASKET, IGNITOR ALL

17 GKT2103 GASKET, BLOWER ALL

18 VAL3004 ACTUATOR KIT ALL

19 VAL2710 VALVE, GAS 1-1/2" PF/PB1500

19 VAL2711 VALVE, GAS 2" PF/PB1700-2000

20 VAL2044 VALVE, GAS 1-1/2" ALL

21 GKT2102 GASKET, BURNER ALL

HEAT EXCHANGERS

22 WTR4708 FLANGE ALL

23 GKT2006 GASKET, TOP HEADER FLANGE ALL

24 GKT2006 GASKET, FLANGE ALL

25 HEX3060 HEAT EXCHANGER (HLW) PF1500

25 HEX3061 HEAT EXCHANGER (HLW) PF1700

25 HEX3062 HEAT EXCHANGER (HLW) PF2000

25 HEX3068 HEAT EXCHANGER (H) PB1500

25 HEX3069 HEAT EXCHANGER (H) PB1700

25 HEX3070 HEAT EXCHANGER (H) PB2000

26 DRV3800 DRAIN VALVE KIT ALL

MISCELLANEOUS

27 TST2300 BULBWELL, EMMEN CONTROL ALL

28 TST2306 BULBWELL, HIGH LIMIT ALL

29 JKH2012 V-BAFFLE, HEAT EXCHANGER (24 REQ.) PF/PB1500

29 JKH2013 V-BAFFLE, HEAT EXCHANGER (24 REQ.) PF/PB1700

29 JKH2013 V-BAFFLE, HEAT EXCHANGER (24 REQ.) PF/PB2000

30 GTP2900 GAUGE, TRI-O-METER 0-75 PSI, 70-250°F ALL

31 RLV2016 VALVE, RELIEF T&P 1" 150# PF

31 RLV2003 VALVE, PRESSURE 1" 50# PB1500-1700

31 RLV2001 VALVE, PRESSURE 3/4" 50# (2 REQ.) PB2000

32 CPR4139 OUTLET PIPE ALL

33 JKH6431 V-BAFFLE RETAINER (3 REQ.) ALL

- WRE2145 SENSOR ALL

- MSC2933 ALUMINUM TUBING (ORDER BY THE FOOT) ALL

- TUB8000 TUBING, EPDM 3/8" (ORDER BY THE FOOT) ALL

- KIT4000 CONSTRUCTION FILTER ALL

- GKT3705 GASKET KIT ALL

PUMPS

- ARM3077PAB PUMP PF1500-2000

INSULATION

- FIB2119 INSULATION, SIDES PF/PB1500

- FIB2120 INSULATION, SIDES PF/PB1700

- FIB2121 INSULATION, SIDES PF/PB2000

- FIB2122 INSULATION, BACK PF/PB1500

- FIB2123 INSULATION, BACK PF/PB1700

- FIB2124 INSULATION, BACK PF/PB2000

- FIB2106 INSULATION, FRONT PF/PB1500

- FIB2107 INSULATION, FRONT PF/PB1700

- FIB2108 INSULATION, FRONT PF/PB2000

- FIB2109 INSULATION, FRONT DOOR PF/PB1500

- FIB2110 INSULATION, FRONT DOOR PF/PB1700

- FIB2111 INSULATION, FRONT DOOR PF/PB2000

PLEASE HAVE MODEL NUMBER & SERIAL NUMBER AVAILABLE WHEN ORDERING PARTS.
