PRODUCT DATA

BUSINESS SERIES

5-Port

10/100/1000 Gigabit Switch

Model: SD2005

Wire-speed switching and Linksys

reliability in a 5-port Gigabit switch

The 5-Port 10/100/1000 Gigabit Switch provides non-blocking, wire speed switching

for your 10, 100, and 1000 megabit network clients. Drop this switch in place of

your current workgroup hub or switch, and you can upgrade your high-requirement

workstations to full Gigabit speeds as necessary, while continuing to service other

clients at their current speeds. Or build your network from the ground up, with

appropriate link speeds for each user’s requirements. Either way, it’s perfect for

graphics, multimedia, and other applications that have to move large files across the

network quickly.

With the 5-Port 10/100/1000 Gigabit Switch, you can connect your existing 10/100

Ethernet network to a Gigabit server backbone without any additional equipment.

All ports have automatic MDI/MDI-X crossover detection, so you don’t have to worry

about the cable type. Each port independently and automatically negotiates for best

speed and whether to run in half- or full-duplex mode. Address learning and aging is

supported, as well as 802.3x flow control with head-of-line blocking prevention to keep

your high-speed clients from bogging down in lower-speed traffic. Fast store-and-forward

switching prevents damaged packets from being passed on into the network.

World famous Linksys reliability and the limited lifetime warranty give you peace of mind

and the new ultra-compact case design is sure to fit into your workgroup environment. Let

the Linksys 5-Port 10/100/1000 Gigabit Switch kick your network into high gear.

Five 10/100/1000Mbps,

half/full duplex, switched

ports

Forwards and filters

packets at non-blocking,

full wire speed

All ports have auto speed

negotiation and auto

MDI/MDI-X crossover

detection

Linksys reliability and

limited lifetime warranty

SD2005

PRODUCT DATA

BUSINESS SERIES

Linksys

A Division of Cisco Systems, Inc.

121 Theory

Irvine, CA 92617 USA

E-mail: [email protected]

[email protected]

Web: http://www.linksys.com

Linksys products are available in more

than 50 countries, supported by

12 Linksys Regional Offices throughout

the world. For a complete list of local

Linksys Sales and Technical Support

contacts, visit our Worldwide Web Site

at www.linksys.com.

Features

5 RJ-45 10/100/1000Mbps

auto-sensing half/full duplex

switched ports

All ports support auto

MDI/MDI-X cable detection

Fully compliant with IEEE

802.3, 802.3u, 802.3x,

802.3ab

Non head-of-line blocking

architecture

Full-duplex IEEE 802.3x

flow control and half-

duplex backpressure with

intelligent port-based

congestion detection and

broadcast rate control

•

Check the product package and contents for specific features supported. Specifications are subject to change without notice. Linksys is a registered trademark or

and product names are trademarks or registered trademarks of their respective holders.

Model: SD2005

5-Port

10/100/1000 Gigabit Switch

Specifications

Model SD2005

Standards IEEE 802.3, 802.3u, 802.3x, 802.3ab

Ports 5 RJ-45 10/100/1000 Mbps ports

Cabling Type Cat5e

LEDs System, 1 through 5

Security Feature Security Slot

Environmental

Dimensions 5.12" x 1.18" x 5.00"

W x H x D (130 x 30 x 127 mm)

Unit Weight 0.94 lbs (0.425 kg)

Power DC12V/0.5A

Certification FCC Class B, CE

Operating Temperature 32 to 104ºF (0 to 40ºC)

Storage Temperature -40 to 158ºF (-40 to 70ºC)

Operating Humidity 20 to 95%, noncondensing

Storage Humidity 5 to 90%, noncondensing

Package Contents

5-Port 10/100/1000 Gigabit Switch

AC Power Adapter

User Guide

•

692021NC JL

Autres manuels pour SD2005

Table des matières

Autres manuels Linksys Changer

Linksys

Linksys EZXS55W - EtherFast 10/100 Workgroup Switch Manuel d'utilisation

Linksys

Linksys Instant EtherFas DSSX12 Manuel utilisateur

Linksys

Linksys EG005W - Instant Gigabit Workgroup Switch Manuel utilisateur

Linksys

Linksys SRW2024P Manuel utilisateur

Linksys

Linksys USB2HUB4 - ProConnect USB Hub Manuel utilisateur

Linksys

Linksys SFE2000 Manuel d'utilisation

Linksys

Linksys SLM248P - Cisco - 10/100 Manuel d'utilisation

Linksys

Linksys SGE2000P Manuel d'utilisation

Linksys

Linksys EG008W - Instant Gigabit Workgroup Switch Manuel utilisateur

Linksys

Linksys EG0008 - EtherFast Switch Manuel utilisateur

Linksys

Linksys SR216 Manuel utilisateur

Linksys

Linksys SRW2008MP Manuel d'utilisation

Linksys

Linksys SRW224P - 10/100 - Gigabit Switch Manuel utilisateur

Linksys

Linksys EZXS55W - EtherFast 10/100 Workgroup Switch Instructions d'utilisation d'origine

Linksys

Linksys EtherFast EZXS55W v2 Manuel utilisateur

Linksys

Linksys EtherFast EG0801W Manuel utilisateur

Linksys

Linksys MGBLH1 - Gigabit LH Mini-GBIC SFP... Manuel utilisateur

Linksys

Linksys SFE2000 Manuel utilisateur

Linksys

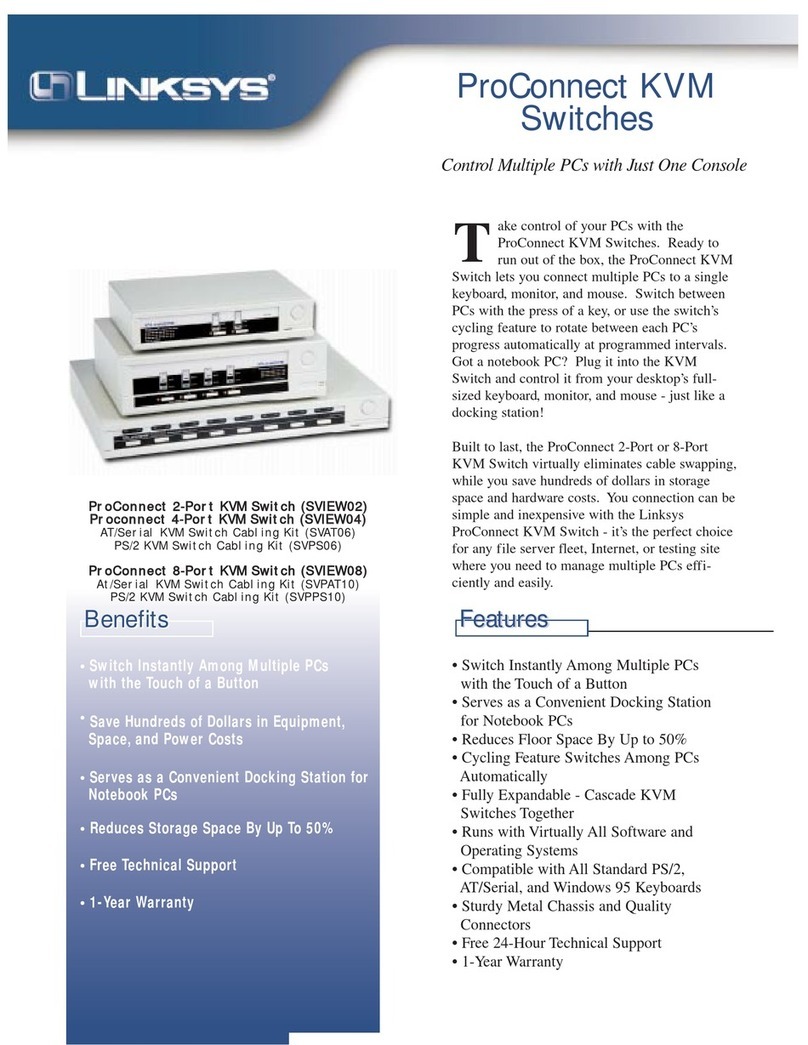

Linksys SVIEW04 - ProConnect CPU Switch KVM Manuel utilisateur
