Linksys BEFSR41 - EtherFast Cable/DSL Router Manuel utilisateur

QUICK INSTALLATION GUIDE

Cable/DSL Router

Model: BEFSR41, BEFSR81, BEFSX41, BEFVP41 (EU/LA)

Package Contents

Cable/DSL Router•

Documentation CD-ROM•

Power Adapter•

Network Cable•

Quick Installation Guide•

Connection1

Before you begin, make sure that all of your devices is powered off,

including the Router, computers, switches, and cable or DSL modem.

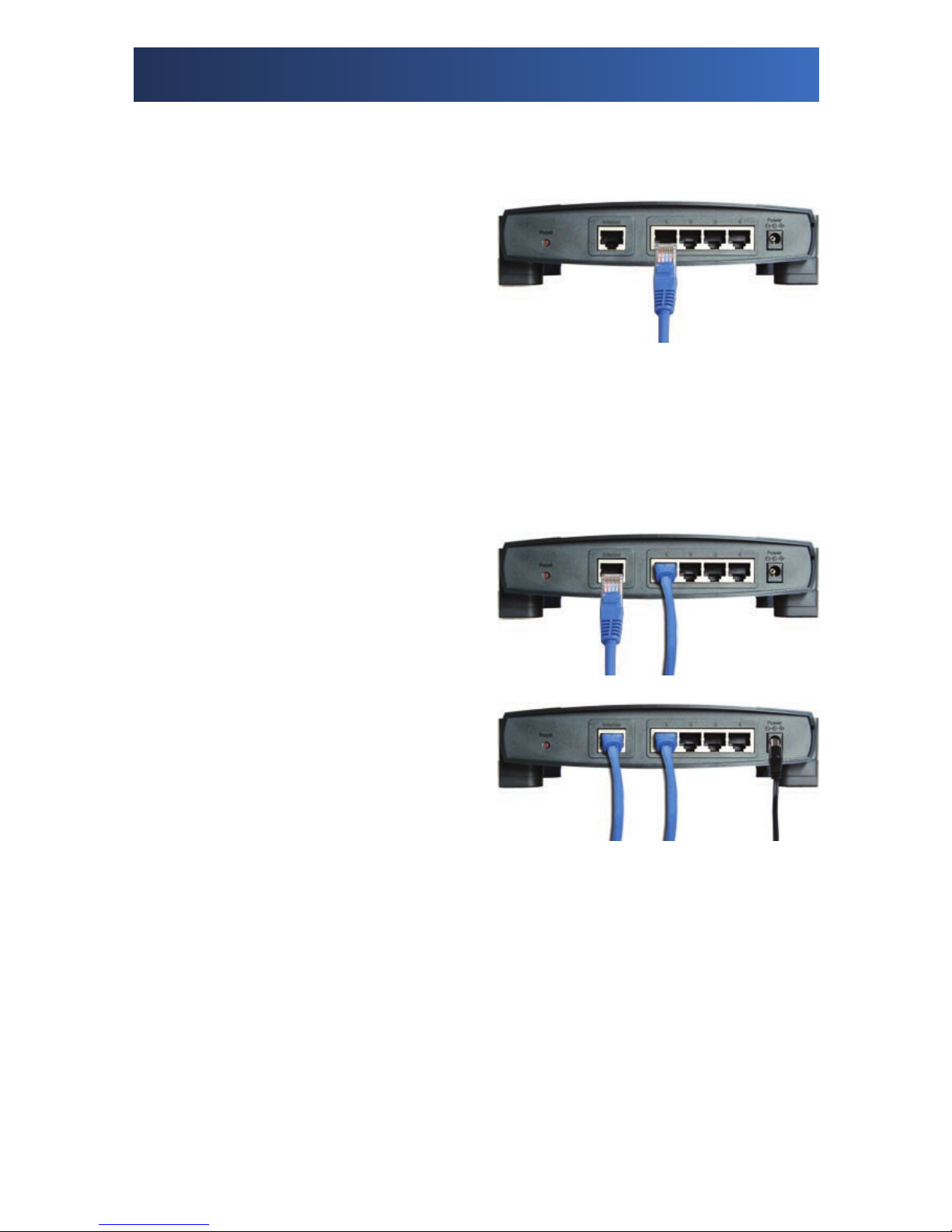

A. Connect one end of an Ethernet

network cable to one of the

numbered ports on the back

of the Router. Then connect

the other end to an Ethernet

port on a network device, such

as a computer, print server, or

switch.

Repeat this step to connect

more computers or other

network devices to the Router.

B. Connect your cable or DSL

modem’s Ethernet cable to the

Router’s Internet port.

Power on the cable or DSLC.

modem.

D. Connect the included power

adapter to the Router’s Power

port, and then plug the power

adapter into an electrical outlet.

The Power LED on the front

panel will light up as soon as

the power adapter is connected

properly.

Power on the Router,

computers, and switches.

Configuration2

In Step 2, you will need the setup instructions provided by your Internet

Service Provider (ISP). If you do not have this information, then contact your

ISP before proceeding.

The instructions from your ISP tell you how to set up your computer for

Internet access. Because you are now using the Router to share Internet

access among several computers, you will use the setup information to

configure the Router instead of your computer.

NOTE: Make sure your computer’s Ethernet adapter is set to

obtain an IP address automatically. For more information, refer

to Windows Help.

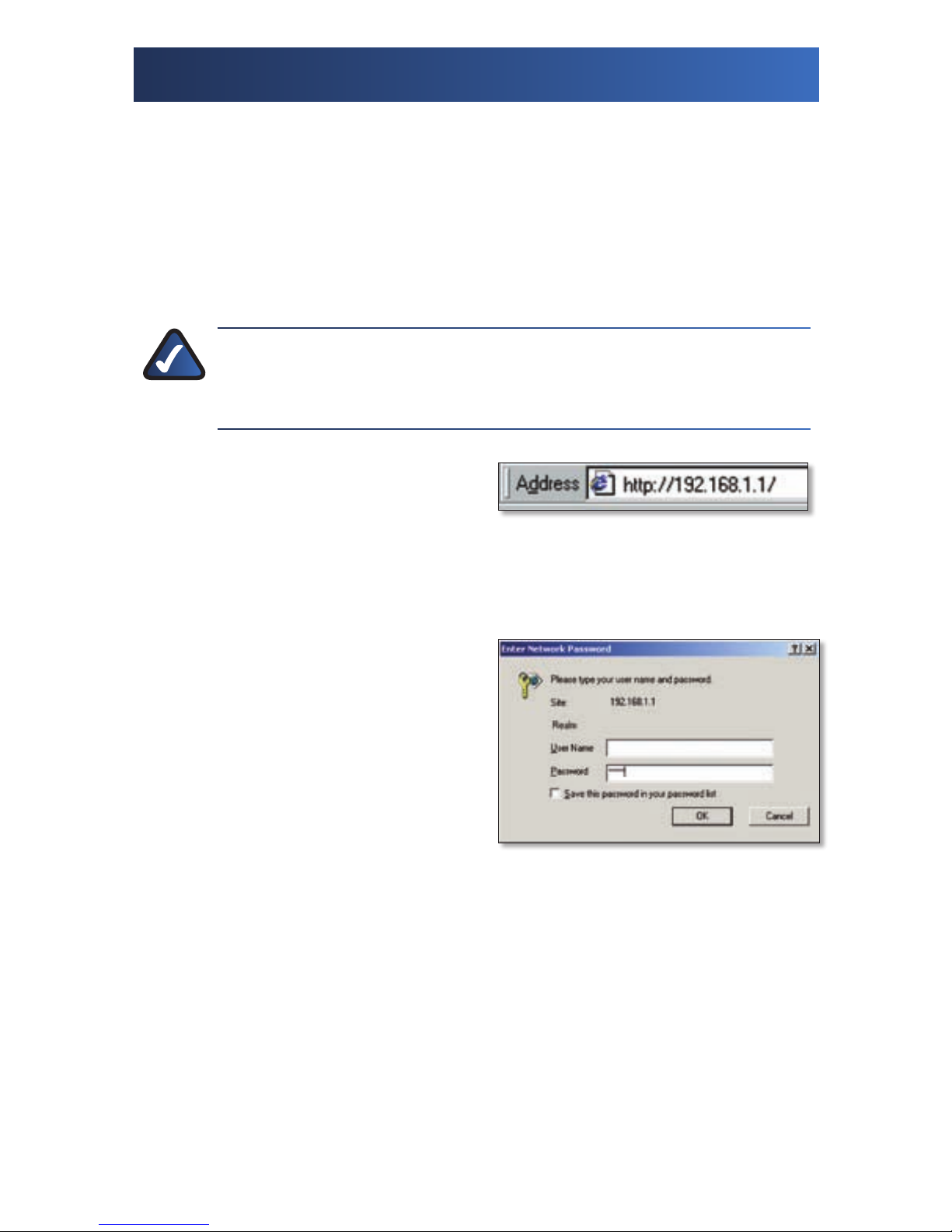

A. Open your computer’s

web browser. Enter

http://192.168.1.1 (the Router’s

default local IP address) in the

web browser’s Address field.

Then press Enter.

B. A screen will appear and ask you

for a User Name and Password.

Leave the User Name field

empty, and enter admin (the

default) in the Password field.

Then click OK.

The Router’s web-based utilityC.

will appear with the Basic Setup

screen showing.

In its drop-down menu, the Internet Connection Type setting featuresD.

seven Internet connection types: Obtain an IP automatically (DHCP),

Static IP, PPPoE, RAS (for SingTel), PPTP, Heart Beat Signal, and L2TP.

Depending on which connection type you select, the features available

on the Basic Setup screen will differ. Proceed to the instructions for the

connection type you are using.

Obtain an IP Automatically

(DHCP)

If your ISP says that you are1.

connecting through DHCP or a

dynamic IP address from your

ISP, then select Obtain an IP

automatically as the Internet

Connection Type.

Click2. Save Settings, and go to

Step E.

Static IP

If your ISP says that you are1.

connecting through a static

or xed IP address from your

ISP, then select Static IP as the

Internet Connection Type.

Enter the IP Address, Subnet2.

Mask, and Default Gateway

address provided by your ISP.

In the3. DNS elds, enter the DNS

address(es) provided by your

ISP. You need to enter at least

one DNS address.

Click4. Save Settings, and go to

Step E.

PPPoE

If your ISP says that you are1.

connecting through PPPoE or if

you normally enter a user name

and password to access the

Internet, then select PPPoE as

the Internet Connection Type.

Enter the User Name and2.

Password provided by your ISP.

(Also enter the Service Name, if

required.)

Select3. Keep Alive if you always want to be connected to your ISP, or

select Connect on Demand if you are charged for the time that you

are connected to your ISP.

Click4. Save Settings.

Click the5. Status tab, and then click Connect to start the connection.

Go to Step E.6.

RAS (for SingTel)

RAS is a service used in Singapore

only. If you are using a RAS

connection, check with your ISP for

the necessary setup information.

When you are finished, go to Step E.

PPTP

PPTP is a service used in Europe1.

and Israel only. If you are

using a PPTP connection, then

select PPTP as the Internet

Connection Type.

Enter the IP Address, Subnet2.

Mask, and Default Gateway

address provided by your ISP.

Then enter the User Name and Password provided by your ISP.3.

Select4. Keep Alive if you always want to be connected to your ISP, or

select Connect on Demand if you are charged for the time that you

are connected to your ISP.

Click5. Save Settings.

Click the6. Status tab, and then click Connect to start the connection.

Go to Step E.7.

Heart Beat Signal

Heart Beat Signal is a service used

in Australia only. If you are using a

Heart Beat Signal connection, check

with your ISP for the necessary setup

information. When you are finished,

go to Step E.

81106NC-JL

For additional information or troubleshooting help, refer to the User Guide on the CD-ROM.

Additional support is also available online.

Website

http://www.linksys.com/eu or

http://www.linksys.com/latam

Product Registration

http://www.linksys.com/registration

Support

http://www.linksys.com/support

Linksys, Cisco and the Cisco Logo are registered trademarks or trademarks of Cisco Systems,Inc. and/or its affiliates in the U.S. and certain other

their respective holders.

3240-00121

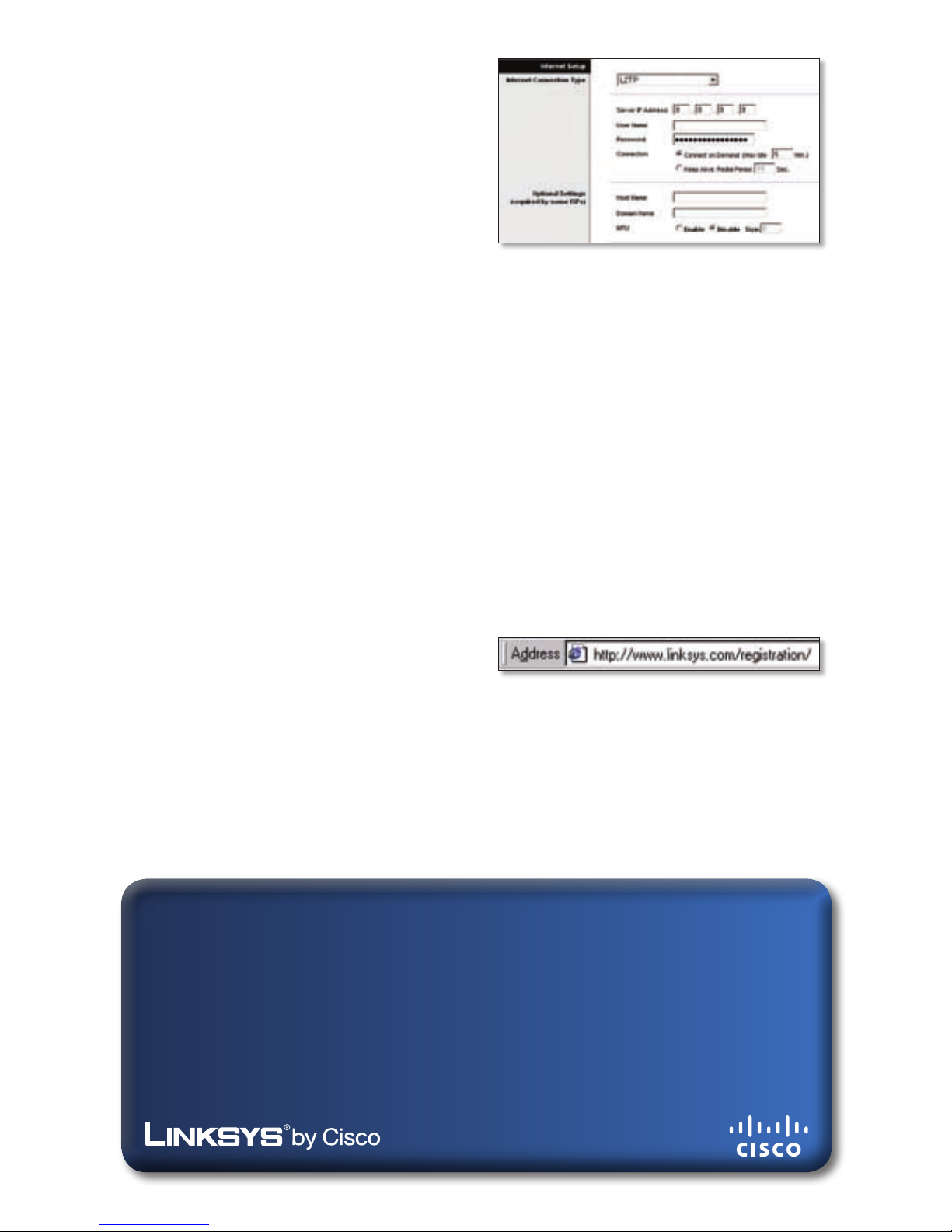

L2TP

Use L2TP as a service only if

requested by your ISP. Check with

your ISP for the necessary setup

information. If your ISP charges you

by the hour, then select Connect on

Demand.

When you are finished, go to Step E.

Depending on the setup information from your ISP, you may need toE.

provide a host name and domain name for the Router. The Host Name

and Domain Name fields are usually left blank. If requested by your ISP

(usually cable ISPs), complete these two fields.

If you haven’t already done so, clickF. Save Settings. Then close the web

browser.

Power your cable or DSL modem off and back on again.G.

Restart or power on your computers so they can obtain the Router’sH.

new settings.

I. To test the Router’s settings,

open your web browser from

any computer. In the browser’s

Address field, enter

www.linksys.com/registration

and press Enter.

Congratulations! The installation of the Router is complete.
