Linksys USBDSL1 Manuel utilisateur
Instant Broadband
TM
Series
ADSLUSB Modem
Use this guide to install the following:
Model No.: USBDSL1
User Guide
ADSL USB Modem
3
Getting to Know
the ADSLUSB Modem
Overview
Asymmetric Digital Subscriber Line (ADSL), the most popular residential
DSL technology, provides high-speed Internet access over regular, copper
phone lines by maximizing bandwidth use. In this way, ADSL Internet service
can coexist on the same line as your phone service, without disrupting calls.
ADSL is “asymmetric” because it downloads, or receives data, faster than
uploads it is transmitted. Asymmetric operation is ideal for home and small
office use where files and information are downloaded more frequently than
uploaded.
There are several standard types of ADSL modulation techniques, including
Discrete Multitone (DMT). Your ADSL USB Modem supports the following
DSL standards: ANSI T1.413 Issue 2, ITU G.992.1 (G.DMT) and ITU
G.992.2 (G.lite).
The USB Icon
The USB icon shown below marks a USB port on a PC or device.
To use this USB device, you must have Windows 98, 2000, or Millennium
installed on your PC. If you do not have Windows 98, 2000, or Millennium,
this device will not work.
Also, this device requires that a USB port is installed and enabled on your PC.
Some PCs have a disabled USB port. If your port doesn’t seem to be working,
there may be motherboard jumpers or a BIOS menu option that will enable the
USB port. See your PC’s user guide for details.
Some motherboards have USB interfaces, but no ports. You should be able to
install your own USB port and attach it to your PC’s motherboard using hard-
ware purchased at most computer stores.
Instant BroadbandTM Series
Package Contents
• Instant Broadband
TM
ADSL USB Modem
• One USB Cable
• One Setup CD-ROM
• One User Guide and Registration Card
• One RJ-11 Telephone Wire (not shown)
System Requirements
• Windows 98, 2000, or Millennium
• 300+ mHz Pentium II CPU or compatible system
• ADSL Internet service
• CD-ROM drive
2
Note: The ADSL USB Modem will not run under
Windows 95 or Windows NT.
ADSL USB Modem
5
Connecting the ADSLUSB
Modem to Your PC
Installing the ADSL USB Modem
1. Plug the rectangular end of the USB cable into your PC’s USB port.
Connect the square end of the USB cable into the Modem’s USB port. A
green Power LED will light up, indicating that the modem has been succes-
fully connected to your PC and that its power is on.
2. Connect a standard phone cable from the DSL outlet to the DSL port on
the ADSL USB Modem.
Installing the Modem Driver for Windows 98
Windows 98 will automatically detect the ADSL USB Modem once it is con-
nected to the PC. Before the hardware can function properly with your PC, a
Windows 98 driver for the ADSL USB modem must be installed.
1. Insert the Setup CD into your CD-ROM drive.
2. When the “Add New Hardware Wizard” window appears, make sure that the
Setup CD is in the CD-ROM drive and click Next.
Your hardware installation is now complete.
Instant BroadbandTM Series
The ADSL USB Modem’s Rear Panel Ports
USB Port Use this port to connect the USB cable from your PC to your
modem.
ADSL Port This port connects your modem to your ADSL line.
The ADSL USB Modem’s Front Panel LEDs
ADSL This LED will
light up when an
ADSL connection
is made. It will
also flicker when
an ADSL connec-
tion is being
made.
Power The Power LED
will light up green
the modem has
successfully con-
nected to your PC
and the modem’s
power is on.
4
ADSL USB Modem
76
5. Windows will notify you that it is ready to install the driver. Click Next.
6. After Windows has completed installing this driver, click Finish.
Your Windows 98 driver installation for the
ADSL USB Modem is now complete.
Instant BroadbandTM Series
3. Select “Search for the best driver for your device” and click Next.
4. Select CD-ROM drive as the location where Windows will search for the
driver software and click Next.
Instant BroadbandTM Series
8
Installing the Modem Driver for Windows Millennium
1. Start up your PC in Windows Millennium. Windows will detect new hard-
ware connected to your PC.
2. When Windows asks you for the location of the best driver, select
“Automatic search for a better driver (Recommended)” and click Next.
ADSL USB Modem
9
3. Windows will notify you that it has found the driver to install for your
modem. Click Next to install the driver.
4. When Windows finishes installing the driver, click Finish.
ADSL USB Modem
11
Installing the Modem Driver for Windows 2000
Windows 2000 will automatically detect theADSL USB Modem once it is con-
nected to the PC. Before the modem can function properly with your PC, you
must first install a Windows 2000 driver for the modem.
1.Insert the Setup CD into the CD-ROM drive. Windows will notify you that
it has detected new hardware.
2. When the “Found New Hardware Wizard” screen appears to confirm that
the ADSL USB Modem has been connected to your PC, make sure the
Setup CD is in the CD-ROM drive and click Next.
Instant BroadbandTM Series
5. If Windows asks you for the location of Windows Millennium files, direct
your PC to the location of the files and click OK.
Your driver installation for Windows
Millennium is now complete.
10
ADSL USB Modem
5. Windows will notify you that it is ready to install the driver. Click Next.
6. When Windows has completed installing the first driver, click Finish.
1312
ADSL USB Modem
3. Select “Search for a suitable driver for my device” and click Next.
4. Windows will now search for the driver software. Select CD-ROM drives
and click Next.
14
ADSL USB Modem
15
Configuring Your ADSL USB Modem
Now that your installation is complete, you are ready to use your ADSL USB
Modem’s Configuration program. The configuration is modified through the
Linksys ADSL USB Adapter Properties screen. You may access this screen
one of two ways:
1. Right click on the Modem Icon in the system tray (the area next to the
clock) as pictured here.
After right clicking, choose the Properties option. The following screen will
appear.
When this screen appears, enter <Alt>+A. The following screen will appear.
Click on the Advanced Monitoring button and the Linksys ADSL USB
Adapter Properties screen will appear.
7. When Windows will ask you to search for a digital signature, click OK to
finish your installation.
Your Windows 2000 driver installation for
the ADSL USB Modem is now complete.
ADSL USB Modem
ADSL USB Modem
4. Press <Alt>+A to display the Properties window below. The “General” tab
on this screen displays information about your modem connection.
5. Click on the ATM Link Statistics tab to display the status of your ATM
connection.
17
Instant BroadbandTM Series
16
2. Or, the same screen may be accessed through the Control Panel by going
to Start, Settings, Control Panel, and click on the Linksys
ADSL USB Modem icon, shown below.
3. The Linksys ADSL USB Adapter Properties window will appear, displaying
your current data packet information and whether your DSL connection is up
or down. You
can click on
Clear to clear
the number of
bytes received
and transmit-
ted.
Click Help
for more
detailed help.
ADSL USB Modem
19
Instant BroadbandTM Series
18
6.Click on the AAL Link Statistics tab to display information about your
AAL Adaption Layer.
7. Click on the AutoLog tab to display logging activity. Click on Enable
AutoLog Tool to activate this feature.
8. Click on the Connection tab to display information about what features are
enabled when connecting to your provider.
9. Click on the ATM OAM Loopback tab to manage the OAM Loopback
functions of your modem.
Autres manuels pour USBDSL1
2
Table des matières
Autres manuels Linksys Modem
Linksys
Linksys USB2128M Instructions d'utilisation d'origine
Linksys
Linksys CG7500 Manuel utilisateur
Linksys
Linksys USB2128M Manuel d'utilisation
Linksys
Linksys BEFCMU10 - Cable Modem With USB Instructions d'utilisation d'origine
Linksys
Linksys AM300 Manuel utilisateur
Linksys
Linksys BEFCMU10 - Cable Modem With USB Instructions d'utilisation d'origine
Linksys
Linksys HA1000 Manuel utilisateur
Linksys
Linksys ADSLME1 Manuel utilisateur
Linksys
Linksys BEFCMU10 ver.2 Manuel utilisateur
Linksys
Linksys BEFCMU10 - Cable Modem With USB Manuel utilisateur
Linksys
Linksys ADSL2MUE Manuel utilisateur
Linksys
Linksys ADSL2MUE Manuel d'utilisation
Linksys
Linksys WCG200 - Wireless-G Cable Gateway Wireless... Manuel utilisateur
Linksys
Linksys ADSL2MUE Manuel utilisateur
Linksys
Linksys BEFCMU10 - Cable Modem With USB Manuel utilisateur
Linksys
Linksys WCGP200 Manuel utilisateur
Linksys
Linksys CM100 - Cable Modem With USB Manuel utilisateur
Linksys

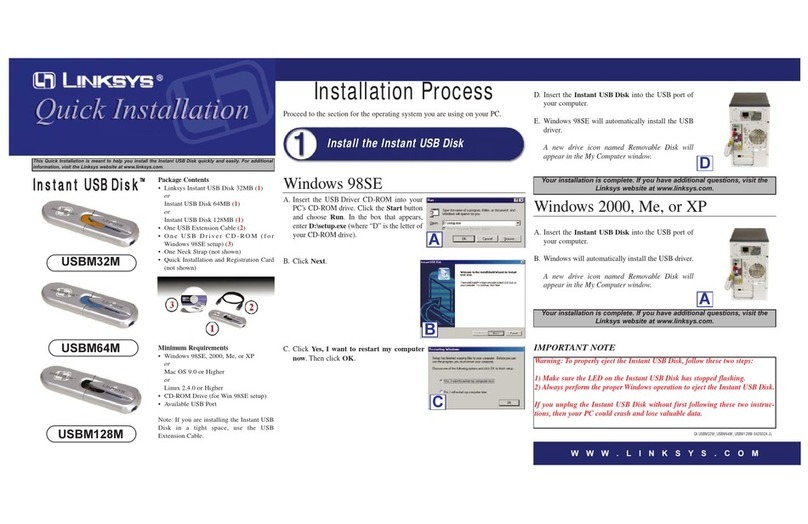

Linksys USBM128M Instructions d'utilisation d'origine
