Chapter 1: Introduction
Welcome
SPA IP Phone
Chapter 1: Introduction
Welcome
Linksys SPA921, SPA922, SPA941, SPA942 and SPA 962 are full-featured VoIP (Voice over Internet Protocol)
phones that provide voice communication over an IP network. The phones have traditional features, such as call
forwarding, redialing, speed dialing, transferring calls, conference calling and accessing voice mail. Calls can be
made or received with a handset, headset or over a speaker.
The differences between the models are shown below.
* The SPA941and SPA942 ships with two lines enabled. A two line upgrade is available via a
software license key installed locally using the SPA941 web interface, or installed remotely via a
secure profile update.
Table 1: Linksys IP Telephone Comparison Chart
SPA Model Voice Lines Ethernet Ports Power over
Ethernet Support Works with
SPA932
SPA921 1 1 N No
SPA922 1 2 Y No
SPA941* 2-4 1 N No
SPA942* 2-4 2 Y No
SPA962 6 2 Y Yes
2
Chapter 1: Introduction
IP Telephony System Overview
SPA IP Phone
IP Telephony System Overview
While your phone has traditional features, it uses the Voice over Internet Protocol (VoIP) for communications with
other phones. Your phone is based upon industry standard VoIP and will work with Session Initiation Protocol

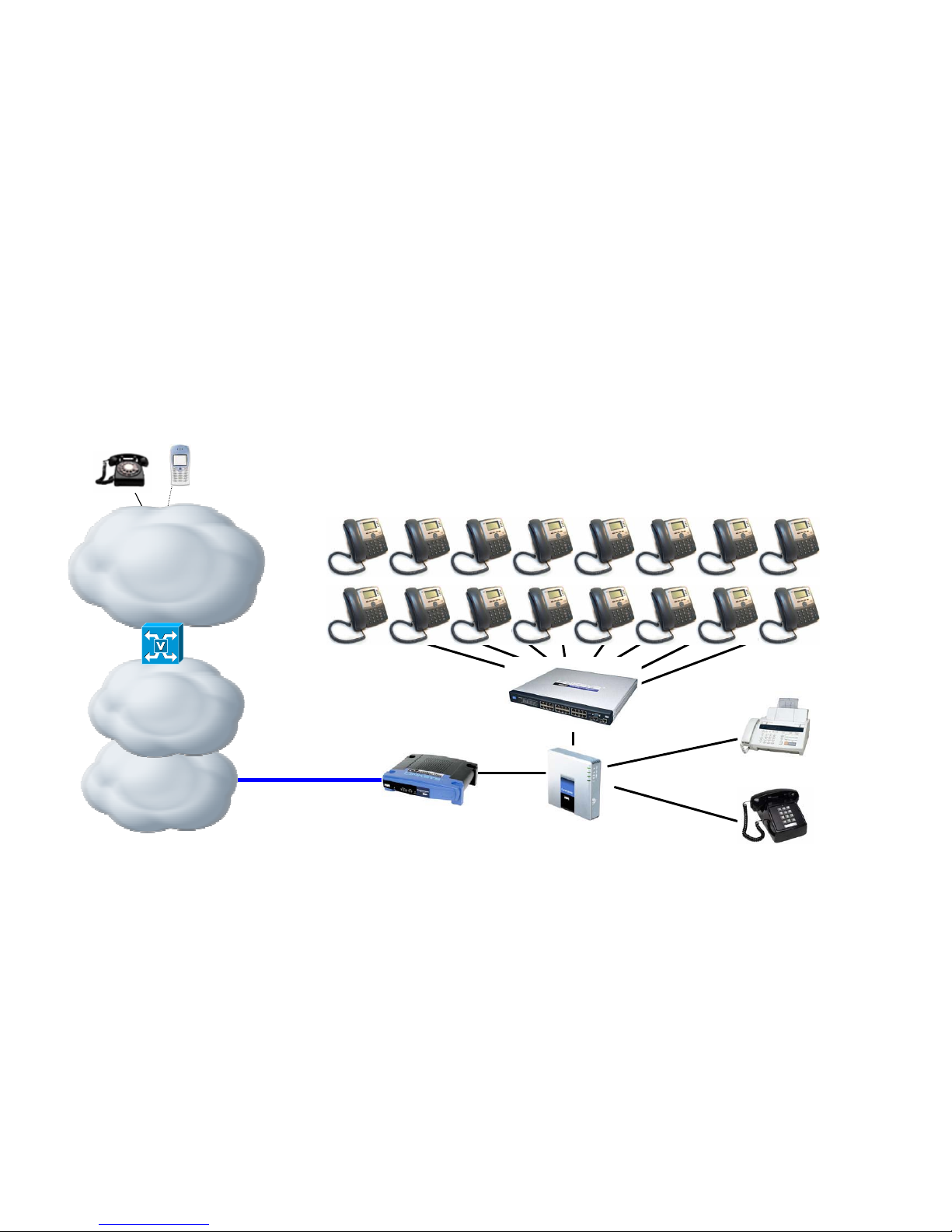

(SIP) compliant VoIP networks. The diagram below provides an example of a VoIP network design with 16 IP
phones.
$36
Q$RODJ VHFLYH'
RU%DEGGQD
HWXR
5
PHGR0U
PRFHOH7 PRFHOH7
NURZWH1 NURZWH1
176
31763
Q,QUHWHW
Q,QUHWHW
,R93
,R93
NURZWH1 NURZWH1
,37HOHSKRQ\
6\VWHP
3
2: Installing
Assembling the Phone and Connecting to the Network
SPA IP Phone
Chapter 2: Installing
NOTE: Before you can install the phone, your system administrator must prepare the network. If a technician is
not installing your phone, verify with your System Administrator that the network is ready for the phone, read the
safety notice, and install the phone.
Assembling the Phone and Connecting to the Network
1 Find the end of the coiled phone cord that has the longer straightened end. Plug that end
into the back of the phone base (phone symbol).
2 Plug in short straightened end of the handset cord into the jack at the bottom of the handset
(not shown).
3 If you are using an external power source, push the power cord into the power supply, and
plug the power supply into the phone base unit. Use only the power supply that came with
the phone. SPA922, SPA942 and SPA962 can be configured without external power, if
connecting to an IEEE powered ethernet switch. See Linksys.com for details.
4 Plug the ethernet cable into the back of the base station. Plug the other end of the ethernet
cable into your already prepared network connection. If the phone is configured using an
optional POE (Power over Ethernet) adapter, see that device’s instructions to properly set up.
5 For SPA922, SPA942 and SPA962 a second ethernet port can be used to connect a PC.
6 The AUX RJ-11 port is reserved for connection to the SPA932, designed for use with the
SPA962. It is not for use as a telephone line port. If you are installing the SPA932 expansion
module, refer to the
SPA932 Quick Installation
for more information.
DO NOT PLUG IN A TELEPHONE LINE CORD INTO THE AUX PORT.
1.
3.
4.
Figure 2-1: attaching the phone cords and network cables
(steps 1 through 6)
5.
6.
4
2: Installing
Attaching the Desk Stand
SPA IP Phone
Attaching the Desk Stand
1 Complete the assembly instructions (page 2).
2 Line up the tabs on the desk stand with the slots on the back of the phone.
3 Slide the bottom tabs into the slots
4 Lightly press down on the top of the desk stand. It should easily slide into the top slots. Do not force.
Mounting the Phone to the Wall
NOTE: To mount the phone to a wall, do not attach thed desk stand as mentioned above.
1 Complete the assembly instructions (page 2).
2 Attach two appropriate screws to the wall. leave 1/4” distance from the wall. This allows you to slide the
mounting brackets on to the screws. Push down slightly to lock the phone in place.
You can also purchase an optional wall mount kit from your retailer or Linksys.com
Figure 2-3: attaching the phone to the wall
Figure 2-2: desk stand attached to phone (step 5)
5
2: Installing
Turning on the Phone
SPA IP Phone
IP Phone SPA942
Turning on the Phone
This section assumes that the correct connections have been made.
Plug in the AC power adapter to an electrical outlet. Use only the adapter that came with the phone.
• The phone will execute a boot-up sequence when the power source is connected.
• During this sequence, the display will first show LINKSYS® and then “Initializing Network”.
• All of the lights on the phone will flash.
• After the sequence, which should take about five seconds, the phone will display the standard menu for
the phone.
• The date, name and number of the phone will display on the top line of the LCD screen.
At the bottom of the LCD screen redial, dir, cfwd and dnd are displayed over their associated soft buttons. A small
arrow appears next to dnd indicating that more menus can be accessed by pushing the right side of the
navigation button.
If the phone does not provide this screen, re-confirm installation and connections. If these are correct, try
unplugging the phone and plugging it back in again. If you still don’t see the display, then contact your Phone
Administrator or service provider.

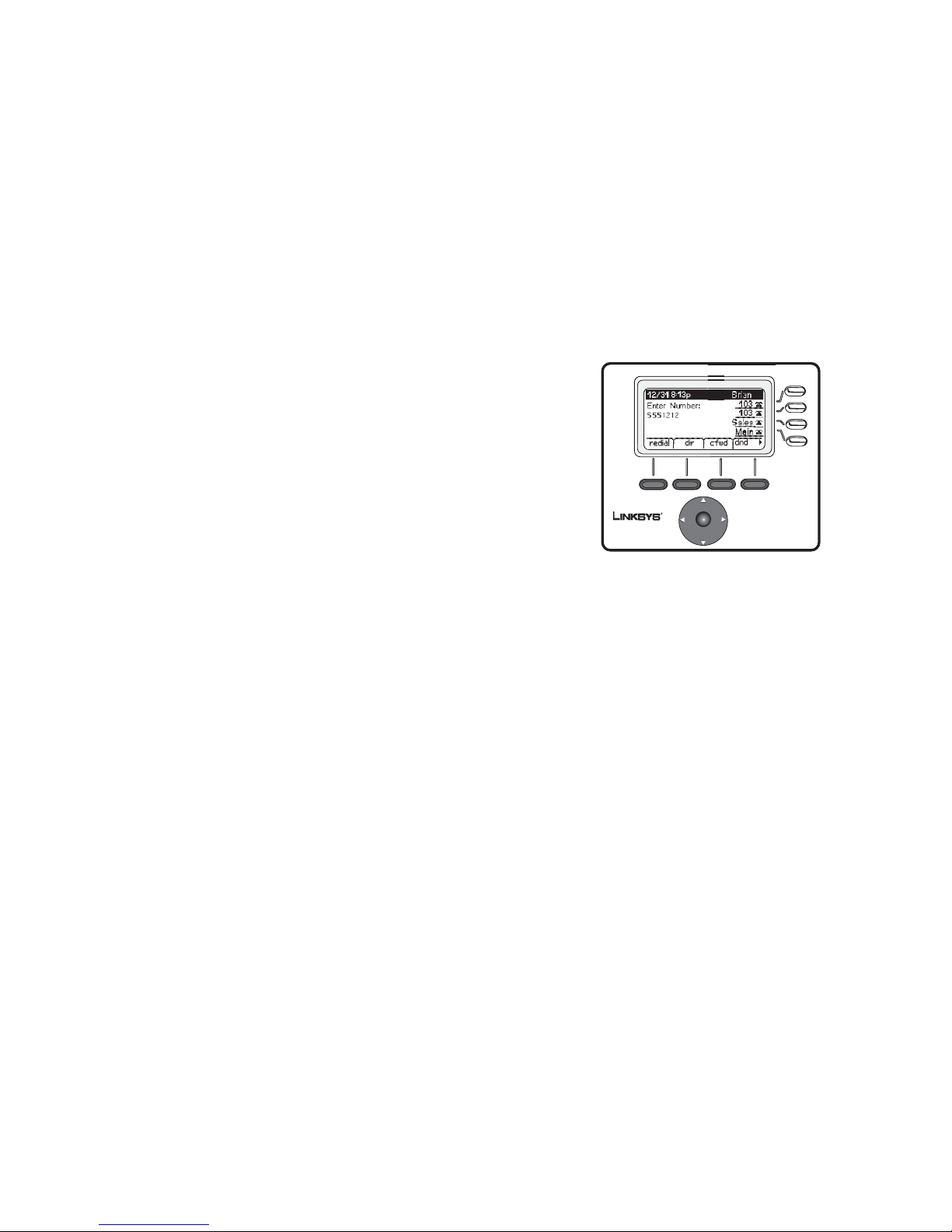

Figure 2-4: SPA941/942 LCD screen display
6
Chapter 3: Using Your Phone
Using the Handset, Speakerphone or Headset
SPA IP Phone
Chapter 3: Using Your Phone
The phone can be used as soon as it is operational (see Chapter 2, Installing). To customize the phone options,
see Setup later in this chapter.
Using the Handset, Speakerphone or Headset
Calls can be made or received using the handset, speakerphone or headset and you can switch audio devices
during a call. Adjust the volume for the device you are using with the volume adjustment bar.
Using the Handset
To place and answer calls using the handset, simply lift the handset.
Using the Speaker
To place and answer calls using the speaker, press the speaker button. The green light behind the button will
illuminate.
Using the Headset
Plug an approved headset with a 2.5mm connector into the headset port on the right side of the phone.
Press the headset button and the green light behind the button will illuminate.
For information on the exact models of headsets that are supported, see the IP phone information on http://
www.linksys.com
Switching Between the Handset/Headset/Speakerphone During a Call
Any of the audio devices can be used during a call. Only one device at a time can be used.
The handset can be on the hook when using the speakerphone or headset function. If switching from the
handset, make sure the speakerphone or headset light is illuminated before placing the handset back on the
hook.
Figure 3-2: Speaker button
Figure 3-1: Volume adjustment bar
