Instant WirelessTM Series

Network PC Card

User Guide

Use this Guide to install the following:

WPC11 V2.5

mark of Linksys. Microsoft, Windows, and the Windows logo are registered trademarks

of Microsoft Corporation. All other trademarks and brand names are the property of their

respective proprietors.

LIMITED WARRANTY

Linksys guarantees that every Instant Wireless™ Network PC Card V2.5 is free from phys-

ical defects in material and workmanship under normal use for one year from the date of

purchase. If these products prove defective during this warranty period, call Linksys

Customer Support in order to obtain a Return Authorization Number. BE SURE TO HAVE

YOUR PROOF OF PURCHASE AND A BARCODE FROM THE PRODUCT’S PACKAGING

ON HAND WHEN CALLING. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT

PROOF OF PURCHASE. When returning a product, mark the Return Authorization

Number clearly on the outside of the package and include your original proof of pur-

chase. All customers located outside of the United States of America and Canada shall

be held responsible for shipping and handling charges.

IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID FOR THE PROD-

UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-

AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-

WARE, OR ITS DOCUMENTATION. LINKSYS DOES NOT OFFER REFUNDS FOR ANY

PRODUCT. Linksys makes no warranty or representation, expressed, implied, or statuto-

ry, with respect to its products or the contents or use of this documentation and all

accompanying software, and specifically disclaims its quality, performance, mer-

chantability, or fitness for any particular purpose. Linksys reserves the right to revise or

update its products, software, or documentation without obligation to notify any individ-

ual or entity. Please direct all inquiries to:

Linksys P.O. Box 18558, Irvine, CA 92623.

FCC STATEMENT

This products have been tested and comply with the specifications for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses, and can radiate radio frequency energy and, if not installed and

used according to the instructions, may cause harmful interference to radio communi-

cations. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which is found by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or devices

• Connect the equipment to an outlet other than the receiver’s

• Consult a dealer or an experienced radio/TV technician for assistance

UG-WPC11 V2.5-010927A JL

Introduction

Put the “mobile” back into mobile computing! Whether you’re at your desk or

in the boardroom, the Linksys Instant Wireless Network PC Card allows you to

share printers, files, and other resources anywhere within your LAN infra-

structure, increasing your productivity and keeping you “in touch.”

The Instant Wireless Network PC Card now has a new higher-powered anten-

na that provides greater ranges than ever. The increased sensitivity helps filter

out interference and “noise” to keep your signal clear. Improved error correc-

tion in the chipset keeps you operating at higher transmission rates for longer

distances. And, since you only need one Type II or III PCMCIA slot, you’re

free to use your other slots for additional accessories.

Ready to run in Type II or III PCMCIA-equipped notebook PCs running

Windows 95, 98, Millennium, NT, and 2000, the Instant Wireless Network PC

Card V2.5 from Linksys is truly a “must-have” for all notebook PC users.

• 11 Mbps High-Speed Data Transfer Rate

• Compatible with Virtually All Major Network Operating Systems

• Plug-and-Play Operation Provides Easy Setup

• Integrated Equalizer Recovers Weak Signals and Enhances Sensitivity

• Sturdy Metal Design with Integrated Antenna

• Works with All Standard Internet Applications

• Utilizes Intersil ISL3873 Chipset

• Interoperable with IEEE 802.11b (DSSS) 2.4GHz-Compliant Equipment

• Clear Channel Assessment Increases Network Throughput

• Hardware Buffer Chaining Provides High Performance While Reading and

Writing Buffers

• Capable of up to 128-Bit WEP

• FreeTechnical Support—24 Hours a Day, 7 Days aWeek for North America

Only

• 1-Year Limited Warranty

Features

The Instant WirelessTM Network PC Card V2.5

Table of Contents

Introduction 1

The Instant WirelessTM Network PC Card V2.5 1

Features 1

Package Contents 2

System Requirements 2

PlanningYourWireless Network 3

Network Topology 3

Roaming 3

Installing the Drivers and Configuration Utility for

Windows 95, 98, ME and 2000 4

BeforeYou Start 4

Running the Auto Driver Installation 4

Ad-Hoc Versus Infrastructure Mode 8

Infrastructure Mode 9

Ad-Hoc Mode 11

Installing the Network PC Card 14

Installing the Network PC Card inYour Notebook PC 14

Installing the Drivers and Configuration Utility forWindows NT 15

Overview 15

Installing the Drivers for Windows NT 16

Installing the Configuration Utility for Windows NT 29

Configuration Utility 30

Using the Configuration Utility 30

Installing Network Protocols 37

Advanced Properties 39

Advanced Properties for Windows 95, 98, ME, and 2000 39

Advanced Properties for Windows NT 47

Troubleshooting 54

Common Problems and Solutions 54

Frequently Asked Questions 55

Glossary 59

Specifications 64

Environmental 64

Warranty Information 65

Contact Information 66

Network PC Card

Instant WirelessTM Series

Network PC Card

Planning Your Wireless Network

Network Topology

A wireless LAN is exactly like a regular LAN, except that each computer in the

LAN uses an Instant Wireless™ Network PC Card V2.5 to connect to the net-

work using no wires. Computers in a wireless LAN must be configured to

share the same radio channel.

The Instant Wireless™ Network PC Card V2.5 provides LAN access for wire-

less workstations. An integrated wireless and wired LAN is called an

Infrastructure configuration. A group of Instant Wireless™ Network PC Card

V2.5 users and an Access Point compose a Basic Service Set (BSS). Each PC

equipped with an Instant Wireless™ Network PC Card V2.5 in a BSS can talk

to any computer in a wired LAN infrastructure via the Access Point.

An infrastructure configuration extends the accessibility of an Instant

Wireless™ Network PC Card V2.5 PC to a wired LAN, and doubles the effec-

tive wireless transmission range for two Instant Wireless™ Network PC Card

V2.5 PCs. Since the Access Point is able to forward data within its BSS, the

effective transmission range in an infrastructure LAN is doubled.

The use of a unique ID in a BSS is essential. All computers that have Instant

Wireless™ Network PC Cards V2.5 configured without roaming options in an

independent BSS must be configured with a BSS ID (that is used in the BSS).

The Wireless LAN Infrastructure configuration is appropriate for enterprise-

scale wireless access to a central database, or as a wireless application for

mobile users.

Infrastructure mode also supports roaming capabilities for mobile users. More

than one BSS can be configured as an Extended Service Set (ESS). This con-

tinuous network allows users to roam freely within an ESS. All Instant

Wireless™ Network PC Card V2.5 PCs within one ESS must be configured

with the same ESS ID.

Before enabling an ESS with roaming capability, selecting a feasible radio

channel and optimum Access Point position is recommended. Proper Access

Point positioning combined with a clear radio signal will greatly enhance per-

formance.

Roaming

• One Instant WirelessTM Network PC Card V2.5

• One Setup CD-ROM (Manual on CD)

• Quick Installation Guide and Registration Card (not shown)

• A 16-bit PCMCIA Type II or Type III slot

• PCMCIA revisions 2.10 compliant card and socket services

• Windows 95, 98, Millennium, NT, or 2000

• 600 Kbytes of free disk space for utility and driver installation

Package Contents

System Requirements

Instant WirelessTM Series

2.The first tab across the top of the screen, labeled Install, should now be high-

lighted. Click on the Install button. The following screen should appear,

indicating that Windows is preparing the installation.

If, for whatever reason, you need to abort or terminate the installation, press

the Cancel button at any time during the installation. Otherwise the instal-

lation will continue automatically.

3. This screen will appear next, indicating that Windows is ready to continue

the installation. Click the Next button.

Note: If you stop the installation before it has finished, you will have to

run the installation completely again before installing your hardware.

Installing the Drivers and

Configuration Utility for Windows

95, 98, ME, and 2000

Your new Linksys Instant Wireless™ Network PC Card V2.5 comes with an

automated software installation procedure for Windows 95, 98, Millennium,

and 2000. Windows NT users should refer to the next section. This new pro-

cedure automatically installs the drivers and Configuration Utility before you

install your hardware, so there’s no searching for the location of drivers. Again,

this step is taken before installing your hardware.

1. Before installing your adapter, insert the Setup CD into your CD-ROM drive.

Unless you have deactivated the auto-run feature of Windows, the following

screen should appear automatically.

If this screen does not appear automatically, you can access the installation

by pressing the Start button and choosing Run. In the drop-down box pro-

vided, type D:\setup.exe (where D: is the letter of your CD-ROM drive).

Alternately, double-click My Computer, and then double-click the CD-

ROM drive where the Setup CD is located. Double-click the Setup.exe icon

that appears.

Before You Start

Running the Auto Driver Installation

Network PC Card

Instant WirelessTM Series

6. When the following screen appears, choose either Infrastructure mode or

Ad-Hoc mode, depending on your needs. If you are unsure whether to

choose Infrastructure or Ad-Hoc, refer to the next section for more informa-

tion. Once you have made your choice, click the Next button.

Network PC CardInstant WirelessTM Series

4. The next screen that appears will be the Warranty Policy. Read the entire

policy by pressing the Page Down button on your keyboard. Click on the

Yes button if you agree, or No if you disagree. Clicking No will terminate

the installation. If you click Yes, the installation will continue.

5. The following window will appear next. To install the Configuration Utility

in the default directory (recommended), click the Next button. If you pre-

fer to install the Utility in another directory, click the Browse button, and

locate the preferred directory. Then click the Next button.

1. If you have chosen Infrastructure mode, the following screen will appear.

If you have chosen Ad-Hoc mode, skip to the next section.

You will be prompted to enter an SSID value in the box provided. The

SSID may be up to 32 characters in length and may include any character

on the keyboard. All SSID values on your wireless network must match. If

you are unsure, use the default value of “linksys.” Then, click the Next but-

ton. Note: All characters are case-sensitive.

2. The next screen to appear will be the Review Settings screen. Verify that

all the settings are correct and click the Next button to continue.

Unlike wired networks, wireless networks have two different modes in which

they may be set up: Infrastructure and Ad-Hoc. Choosing between these two

modes depends on whether or not the wireless network needs to share data or

peripherals with a wired network or not.

If the computers on the wireless network need to be accessible by a wired net-

work or need to share a peripheral, such as a printer, with the wired network

computers, the wireless network should be set up in the Infrastructure mode.

The basis of Infrastructure mode centers around an access point, which serves

as the main point of communications in a wireless network. Access points

transmit data to PCs equipped with wireless network adapters, which can roam

within a certain

radial range of

the access point.

Multiple access

points can be

arranged to work

in succession to

extend the roam-

ing range, and

can be set up to

communicate

with your Ethernet

hardware as well.

If the wireless network is relatively small and needs to share resources only

with the other computers on the wireless network, then the Ad-Hoc mode can

be used. Ad-Hoc mode allows computers equipped with wireless transmitters

and receivers to communicate directly with each other, eliminating the need for

an access point. The drawback of this mode is in the fact that, inAd-Hoc mode,

wireless-equipped computers are not able to communicate with computers on

a wired network.

And, of course, com-

munication between

the wireless-equipped

computers is limited

by the distance and

interference directly

between them.

Infrastructure Mode

Network PC CardInstant WirelessTM Series

Ad-Hoc versus Infrastructure Mode

3. The following screen will appear, indicating that all of the appropriate files

are being copied onto your drive. Click the Cancel button if you need to

stop the installation for any reason.

4. Once Windows has finished copying the necessary files, the following

screen will appear. In order for the drivers to be installed properly, you

must restart your computer. If you choose to do it now, select Yes, I want

to restart my computer now. If you do not want to do it now, choose No,

I will restart my computer later. Once you have made your choice, click

the Finish button to continue.

Network PC Card

1. If you have chosen Ad-Hoc mode, the following screen will appear. If you

have chosen Infrastructure mode, refer to the previous section.

You will be prompted to choose a Channel from the list provided. All

computers on your wireless network must be using the same channel in

order to communicate with each other. If you are unsure about which chan-

nel to use, select the default channel (Channel 6). Once you have chosen

your channel, click the Next button.

Ad-Hoc Mode

Instant WirelessTM Series

Note: Restart the computer and go to the section called

Installing the Network PC Card for further instructions.

4. The following screen will appear, indicating that all of the appropriate files

are being copied onto your drive. Click the Cancel button if you need to

stop the installation for any reason.

5. Once Windows has finished copying the necessary files, the following

screen will appear. In order for the drivers to be installed properly, you

must restart your computer. If you choose to do it now, select Yes, I want

to restart my computer now. If you do not want to do it now, choose No,

I will restart my computer later. Once you have made your choice, click

the Finish button to continue.

2. The following screen should appear. You will be prompted to enter an SSID

value in the box provided. All SSID values on your wireless network must

match. If you are unsure, use the default value of “linksys.” Then, click the

Next button.

3. The next screen to appear will be the Review Settings screen. Verify that

all the settings are correct and click the Next button to continue.

1312

Network PC Card

Instant WirelessTM Series

Note: Restart the computer and go to the section called

Installing the Network PC Card for further instructions.

Installing the Drivers and

Configuration Utility for Windows

The installation of the Network PC Card is different for users of Windows NT

because it is not a Plug-and-Play (PnP) system. This means it will not auto-

matically detect the presence of the Card when it is inserted. Consequently, the

order of the installation is different. The steps involved in the installation are

different, as well. If you are using any other operating system than Windows

NT, stop here and refer to the section called Installing the Drivers and

Configuration Utility forWindows 95, 98, ME, and 2000.

1. While the computer is restarting and before theWindows desktop appears,

locate an available Type II or Type III PCMCIA slot on your notebook com-

puter.

2. With the PCMCIA adapter’s 68-pin connector facing the PCMCIA slot

and the “Network PC Card” label facing up, slide the PCMCIA adapter com-

pletely into the PCMCIA slot.

The Hardware Installation is complete.

Overview

Installing the Network PC Card In Your Notebook PC

Installing the Network PC Card

1. While the computer is restarting and before theWindows desktop appears,

locate an available Type II or Type III PCMCIA slot on your notebook com-

puter.

2. With the PCMCIA adapter’s 68-pin connector facing the PCMCIA slot

and the “Network PC Card” label facing up, slide the PCMCIA adapter com-

pletely into the PCMCIA slot.

3. You may see several screens appear as the driver installation is finalized,

but this is normal. No input should be necessary, and the screens should dis-

appear when the card is ready for use.

The Hardware Installation is complete. Your Wireless Network PC Card

is set up and ready for use. You may continue reading to learn about the

card’s Configuration Utility in the Configuration Utility section.

Installing the Network PC Card In Your Notebook PC

Instant WirelessTM Series

Network PC Card

Autres manuels pour WPC11

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Linksys Matériel informatique

Linksys

Linksys WPC11 Instructions d'utilisation d'origine

Linksys

Linksys WPC54A - Wireless 802.11a PC Card Manuel utilisateur

Linksys

Linksys PCM200HA Manuel utilisateur

Linksys

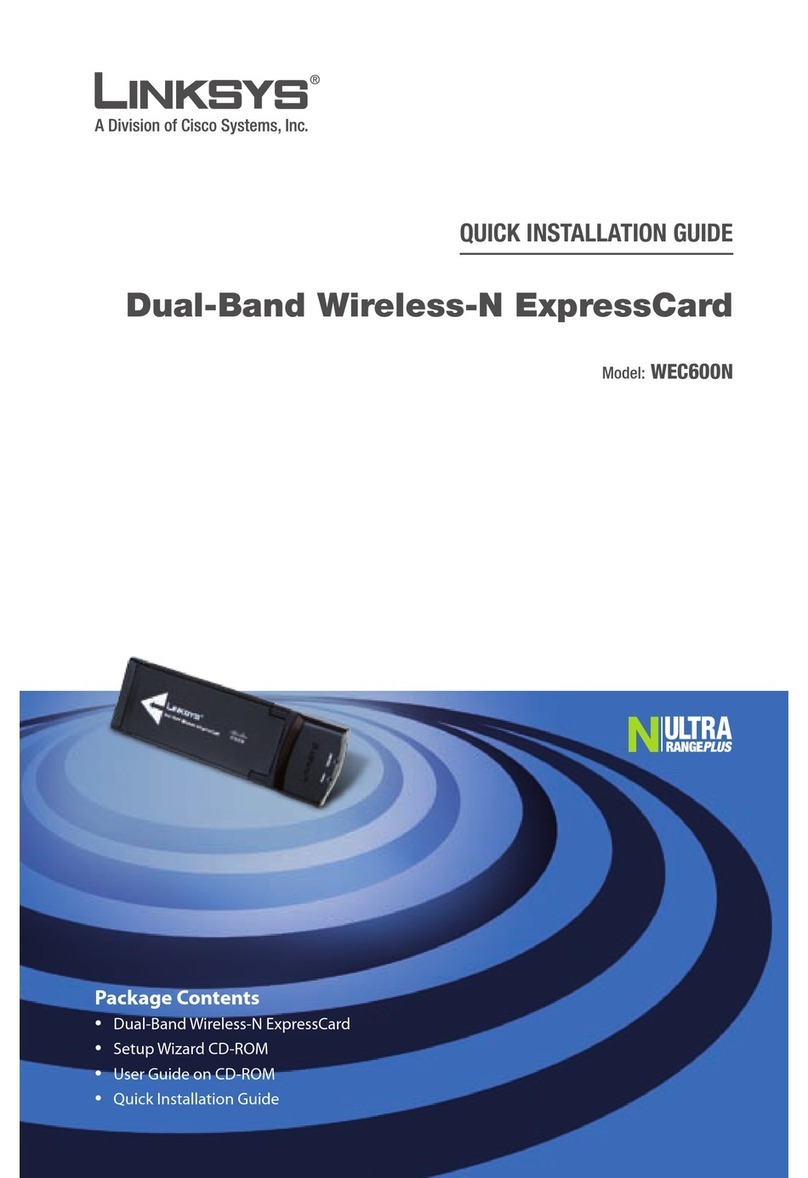

Linksys WEC600N - Dual Band Wireless-N Ultra RangePlus... Manuel utilisateur

Linksys

Linksys PCMPC200 - EtherFast 10/100 CardBus PC Card Instructions d'utilisation d'origine

Linksys

Linksys PCM200HA Manuel utilisateur

Linksys

Linksys WPC54A - Wireless 802.11a PC Card Instructions d'utilisation d'origine

Linksys

Linksys EtherFast PCM200 v2 Manuel utilisateur

Linksys

Linksys HomeLink Series Manuel utilisateur

Linksys

Linksys WPC54A - Wireless 802.11a PC Card Instructions d'utilisation d'origine

Linksys

Linksys WEC600N - Dual Band Wireless-N Ultra RangePlus... Manuel utilisateur

Linksys

Linksys WPC11 Manuel utilisateur

Linksys

Linksys PCM200 - EtherFast 10/100 32-Bit Integrated CardBus PC... Manuel utilisateur

Linksys

Linksys PCM200 - EtherFast 10/100 32-Bit Integrated CardBus PC... Instructions d'utilisation d'origine

Linksys

Linksys PCM100H1 Manuel utilisateur

Linksys

Linksys WEC600N - Dual Band Wireless-N Ultra RangePlus... Manuel utilisateur

Linksys

Linksys EtherFast PCM100 v2 Manuel utilisateur

Linksys

Linksys WPC11 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
