Linkplay Wireless Smart Audio
Module (A98)
User Manual
Revision 0.6
July 31, 2019
Doc Title Wireless Smart Audio Module-A98 Datasheet Number WMB20180504
Version
0.6
Document No.: WMB20180504 Page 2 of 23
HISTORY
Version Date Description
0.1 05/04/2018 Initial Version Release
0.2 09/13/2018 Hardware Parameter Update
0.3 03/27/2019 Hardware Interface and Mechanical Dimension Update
0.4 05/11/2019 Update Dimension
0.5 06/11/2019 Update Dimension and Package
0.6 07/30/2019 Add I/O Power Domain Information
Doc Title Wireless Smart Audio Module-A98 Datasheet Number WMB20180504
Version
0.6
Document No.: WMB20180504 Page 3 of 23
INDEX
1. Overview ............................................................................................................................................................. 4
1.1. Parameter ................................................................................................................................................. 5
2. Hardware Description .......................................................................................................................................... 9
2.1. Description of Hardware Interface .......................................................................................................... 9
2.2. Mechanical Dimension .......................................................................................................................... 12
2.3. External Antenna ................................................................................................................................... 14
2.4. Typical Application ................................................................................................................................ 15
2.5. Power on Sequence ................................................................................................................................ 17
2.6 USB OTG Port ....................................................................................................................................... 17
3. Software Introduction ........................................................................................................................................ 18
3.1. Feature List ............................................................................................................................................ 18
3.2. APP Support .......................................................................................................................................... 18
3.3. Certifications.......................................................................................................................................... 19
4. Module Environmental and Package ................................................................................................................. 19
4.1. Environmental Ratings .......................................................................................................................... 19
4.2. Electrostatic Discharge Specifications ................................................................................................... 19
4.3. A98 Module Picture ............................................................................................................................... 20
4.4. Sticker Specification .............................................................................................................................. 20
Doc Title Wireless Smart Audio Module-A98 Datasheet Number WMB20180504
Version
0.6
Document No.: WMB20180504 Page 4 of 23
1. Overview
Linkplay Wireless Smart Audio module–A98, is our 3rd generation smart audio modules developed to be used
in the connected speaker, sound bar and other connected audio devices. It integrates the low power Broadcom
BCM43455 Wi-Fi/BT chip and Amlogic A113X application processor. A113X is an advanced application
processor designed for connected audio applications. It integrates a powerful CPU subsystem, advanced
multi-format audio processing unit, a secured running environment and all major peripherals to form the low power
audio AP.
The main system CPU is a quad-core ARM Cortex-A53 CPU with L1 instruction/data cache for each core and
a large unified L2 cache to improve system performance. Each Cortex-A53 CPU can run up to 1.5GHz (DVFS +
hot plug) and has a wide bus connecting to the memory sub-system. When the system is suspended, the main CPU
can be powered off and the cortex-M3 in the always-on power domain can resume the system from multiple
interrupt sources.
The audio processing engine (APE) is based on ARM® NEONTM general-purpose SIMD architecture which
works seamlessly with main CPU to accelerate the multimedia processing algorithms, enhancing the user
experience. It is able to decode all major high resolution audio formats including MP3, AAC, WMA, RM, FLAC,
Ogg, etc and with the flexibility to support future audio standards.
A113X integrates all standard audio input/output interfaces including multiple TDM, PCM, I2S and SPDIF
digital audio input/output interfaces, and 8 channel far-field PDM digital microphone (DMIC) inputs. Audio input
has power detector to wake up from low activity states and hardware assisted synchronization blocks for multiple
room audio applications. Audio input data can be restricted to trusted memory space to protect always-on audio
privacy.
A98 module supports IEEE 802.11 a/b/g/n/ac 2.4GHz and 5GHz. It also supports BT4.2 with EDR and BLE.
A98 module also provides USB, I2S, I2C, PDM, SPI, UART etc. interfaces.
The firmware is fully compatible with Apple AirPlay and digital living network alliance (DLNA) streaming
standards. It supports Hi-Fi audio up to 192KHz, 24-bit with most popular audio formats. It supports multi-room
and multi-channel audio streaming with perfect synchronization.
With this module, you can play the music on your speaker wirelessly from iPhone, iPad , iPod touch, Android
devices or PC. More important, it enables the traditional speaker system to become the Internet enabled device
through the wired or wireless connection provided by the module. Thus, you could freely playback any Internet
audio contents such as music, podcast, radio or either the accompany audio in the movie directly from the Internet.
Features
Amlogic A113X application processor
128MB DRAM
128MB NAND FLASH
Support IEEE 802.11 a/b/g/n/ac 1x1 antenna diversity Wi-Fi dual band
Support BT4.2 with EDR and BLE
Application
Connected speaker, Sound Bar
Connected audio devices
Doc Title Wireless Smart Audio Module-A98 Datasheet Number WMB20180504
Version
0.6
Document No.: WMB20180504 Page 5 of 23
1.1. Parameter
Type Items Performance
Wi-Fi Certification Wi-Fi Alliance
WLAN Standard IEEE 802.11 a/b/g/n/ac Wi-Fi compliant
Wi-Fi (2.4G)
Frequency Range 2.400 GHz ~ 2.483 GHz (2.4 GHz ISM Band)
Number of Channels Ch1 ~ Ch13
Modulation 802.11b : DQPSK, DBPSK, CCK
802.11g/n : OFDM /64-QAM,16-QAM, QPSK, BPSK
Output Power
802.11b /11Mbps : 16 dBm ± 1.5 dB @ EVM≤-9dB
802.11g /54Mbps : 15 dBm ± 1.5 dB @ EVM≤-25dB
802.11n /MCS7@HT20 : 14 dBm ± 1.5 dB @
EVM≤-27dB
SISO Receive Sensitivity
(11b,20MHz) @8% PER
- 1Mbps PER @ -96 dBm, ± 2 dB
- 2Mbps PER @ -90 dBm, ± 2 dB
- 5.5Mbps PER @ -88 dBm, ± 2 dB
- 11Mbps PER @ -86 dBm, ± 2 dB
SISO Receive Sensitivity
(11g,20MHz) @10% PER
- 6Mbps PER @ -90 dBm, ± 2 dB
- 9Mbps PER @ -88 dBm, ± 2 dB
- 12Mbps PER @ -87 dBm, ± 2 dB
- 18Mbps PER @ -85 dBm, ± 2 dB
- 24Mbps PER @ -83 dBm, ± 2 dB
- 36Mbps PER @ -80 dBm, ± 2 dB
- 48Mbps PER @ -76 dBm, ± 2 dB
- 54Mbps PER @ -73 dBm, ± 2 dB
Receive Sensitivity
(11n,20MHz) @10% PER
- MCS=0 PER @ -89 dBm, ± 2 dB
- MCS=1 PER @ -85 dBm, ± 2 dB
- MCS=2 PER @ -84 dBm, ± 2 dB
- MCS=3 PER @ -80 dBm, ± 2 dB
- MCS=4 PER @ -77 dBm, ± 2 dB
- MCS=5 PER @ -75 dBm, ± 2 dB
- MCS=6 PER @ -72 dBm, ± 2 dB
- MCS=7 PER @ -70 dBm, ± 2 dB
Maximum Input Level 802.11b : -10 dBm
802.11g/n : -20 dBm
Antenna Reference External: I-PEX, Small antennas with 0~2 dBi peak gain
Wi-Fi (5G)
WLAN Standard IEEE 802.11a/n 2x2, Wi-Fi compliant
Frequency Range 4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band)
Number of Channels Please see the following table
Modulation 802.11a : OFDM /64-QAM,16-QAM, QPSK, BPSK
Doc Title Wireless Smart Audio Module-A98 Datasheet Number WMB20180504
Version
0.6
Document No.: WMB20180504 Page 6 of 23
802.11n : OFDM /64-QAM,16-QAM, QPSK, BPSK
802.11ac : OFDM /256-QAM
Output Power
802.11a /64-QAM(R=3/4) : 14 dBm ± 2 dB @
EVM≤-25dB
802.11n /64-QAM(R=5/6) : 13 dBm ± 2 dB @
EVM≤-27dB
802.11ac/256-QAM(R=3/4) : 12 dBm ± 2 dB @
EVM≤-30dB
802.11ac/256-QAM(R=5/6) : 10 dBm ± 2 dB @
EVM≤-32dB
SISO Receive Sensitivity
(11a,20MHz) @10% PER
- 6Mbps PER @ -90 dBm, ± 2 dB
- 9Mbps PER @ -88 dBm, ± 2 dB
- 12Mbps PER @ -87 dBm, ± 2 dB
- 18Mbps PER @ -85 dBm, ± 2 dB
- 24Mbps PER @ -81 dBm, ± 2 dB
- 36Mbps PER @ -78 dBm, ± 2 dB
- 48Mbps PER @ -73 dBm, ± 2 dB
- 54Mbps PER @ -72 dBm, ± 2 dB
SISO Receive Sensitivity
(11n,20MHz) @10% PER
- MCS=0 PER @ -89 dBm, ± 2 dB
- MCS=1 PER @ -87 dBm, ± 2 dB
- MCS=2 PER @ -84 dBm, ± 2 dB
- MCS=3 PER @ -81 dBm, ± 2 dB
- MCS=4 PER @ -77 dBm, ± 2 dB
- MCS=5 PER @ -73 dBm, ± 2 dB
- MCS=6 PER @ -71 dBm, ± 2 dB
- MCS=7 PER @ -70 dBm, ± 2 dB
Receive Sensitivity
(11n,40MHz) @10% PER
- MCS=0 PER @ -87 dBm, ± 2 dB
- MCS=1 PER @ -84 dBm, ± 2 dB
- MCS=2 PER @ -82 dBm, ± 2 dB
- MCS=3 PER @ -78 dBm, ± 2 dB
- MCS=4 PER @ -75 dBm, ± 2 dB
- MCS=5 PER @ -70 dBm, ± 2 dB
- MCS=6 PER @ -69 dBm, ± 2 dB
- MCS=7 PER @ -67 dBm, ± 2 dB
Receive Sensitivity
(11ac,20MHz) @10% PER
- MCS=0 PER @ -88 dBm, ± 2 dB
- MCS=1 PER @ -86 dBm, ± 2 dB
- MCS=2 PER @ -83 dBm, ± 2 dB
- MCS=3 PER @ -80 dBm, ± 2 dB
- MCS=4 PER @ -76dBm, ± 2 dB
- MCS=5 PER @ -72 dBm, ± 2 dB
- MCS=6 PER @ -70 dBm, ± 2 dB
Doc Title Wireless Smart Audio Module-A98 Datasheet Number WMB20180504
Version
0.6
Document No.: WMB20180504 Page 7 of 23
- MCS=7 PER @ -69 dBm, ± 2 dB
- MCS=8 PER @ -65 dBm, ± 2 dB
Receive Sensitivity
(11ac,40MHz) @10% PER
- MCS=0 PER @ -86 dBm, ± 2 dB
- MCS=1 PER @ -82 dBm, ± 2 dB
- MCS=2 PER @ -80 dBm, ± 2 dB
- MCS=3 PER @ -77 dBm, ± 2 dB
- MCS=4 PER @ -74 dBm, ± 2 dB
- MCS=5 PER @ -69 dBm, ± 2 dB
- MCS=6 PER @ -67 dBm, ± 2 dB
- MCS=7 PER @ -65 dBm, ± 2 dB
- MCS=8 PER @ -63 dBm, ± 2 dB
- MCS=9 PER @ -62 dBm, ± 2 dB
Receive Sensitivity
(11ac,80MHz) @10% PER
- MCS=0 PER @ -82 dBm, ± 2 dB
- MCS=1 PER @ -79 dBm, ± 2 dB
- MCS=2 PER @ -77 dBm, ± 2 dB
- MCS=3 PER @ -73 dBm, ± 2 dB
- MCS=4 PER @ -70 dBm, ± 2 dB
- MCS=5 PER @ -68 dBm, ± 2 dB
- MCS=6 PER @ -64 dBm, ± 2 dB
- MCS=7 PER @ -62 dBm, ± 2 dB
- MCS=8 PER @ -59 dBm, ± 2 dB
- MCS=9 PER @ -58 dBm, ± 2 dB
Maximum Input Level 802.11a/n : -30 dBm
Antenna Reference External: I-PEX, Small antennas with 0~2 dBi peak gain
Bluetooth
Certification BQB
Bluetooth Standard Bluetooth V4.2 of 1, 2 and 3 Mbps
Antenna Reference External: I-PEX, Small antennas with 0~2 dBi peak gain
Frequency Band 2402 MHz ~ 2480 MHz
Number of Channels 79 channels
Modulation FHSS, GFSK, DPSK, DQPSK
Output Power
(Output power can be
configured by HCD
firmware)
10 dBm (Max.)
Sensitivity @ BER=0.1%
for GFSK (1Mbps) -86 dBm, typical
Sensitivity @ BER=0.01%
for π/4-DQPSK (2Mbps) -86 dBm, typical
Sensitivity @ BER=0.01%
for 8DPSK (3Mbps) -80 dBm, typical
Maximum Input Level GFSK (1Mbps): -20dBm
π/4-DQPSK (2Mbps) : -20dBm
Doc Title Wireless Smart Audio Module-A98 Datasheet Number WMB20180504
Version
0.6
Document No.: WMB20180504 Page 8 of 23
8DPSK (3Mbps) : -20dBm
Hardware
Working Voltage 3.5-5.5V
Working Current 200 ~ 240mA (STA mode)
Standby Current 5mA
Operating Ambient
Temperature 0℃ ~ 40℃
Storage Temperature -5℃ ~ 45℃
Wi-Fi Working Distance 2.4G 80 meters/5G 150meters
IO Extension USB, I2S, I2C, PWM, SPI, UART
Dimension NGFF golden finger 67PIN
Table1-1 Linkplay A98 module parameters
5GHz(20MHz) Channel table
Band (GHz) Operating Channel Numbers Channel Center Frequencies(MHz)
5.15GHz~5.25GHz
36 5180
40 5200
44 5220
48 5240
5.25GHz~5.35GHz
52 5260
56 5280
60 5300
64 5320
5.5GHz~5.7GHz
100 5500
104 5520
108 5540
112 5560
116 5580
120 5600
124 5620
128 5640
132 5660
136 5680
140 5700
5.725GHz~5.845GHz
149 5745
153 5765
157 5785
161 5805
165 5825
Doc Title Wireless Smart Audio Module-A98 Datasheet Number WMB20180504
Version
0.6
Document No.: WMB20180504 Page 9 of 23
2. Hardware Description
2.1. Description of Hardware Interface
A98 provides the option to connect with customer board through its 67-pins NGFF golden finger. The detail is as
follows.
Doc Title Wireless Smart Audio Module-A98 Datasheet Number WMB20180504
Version
0.6
Document No.: WMB20180504 Page 10 of 23

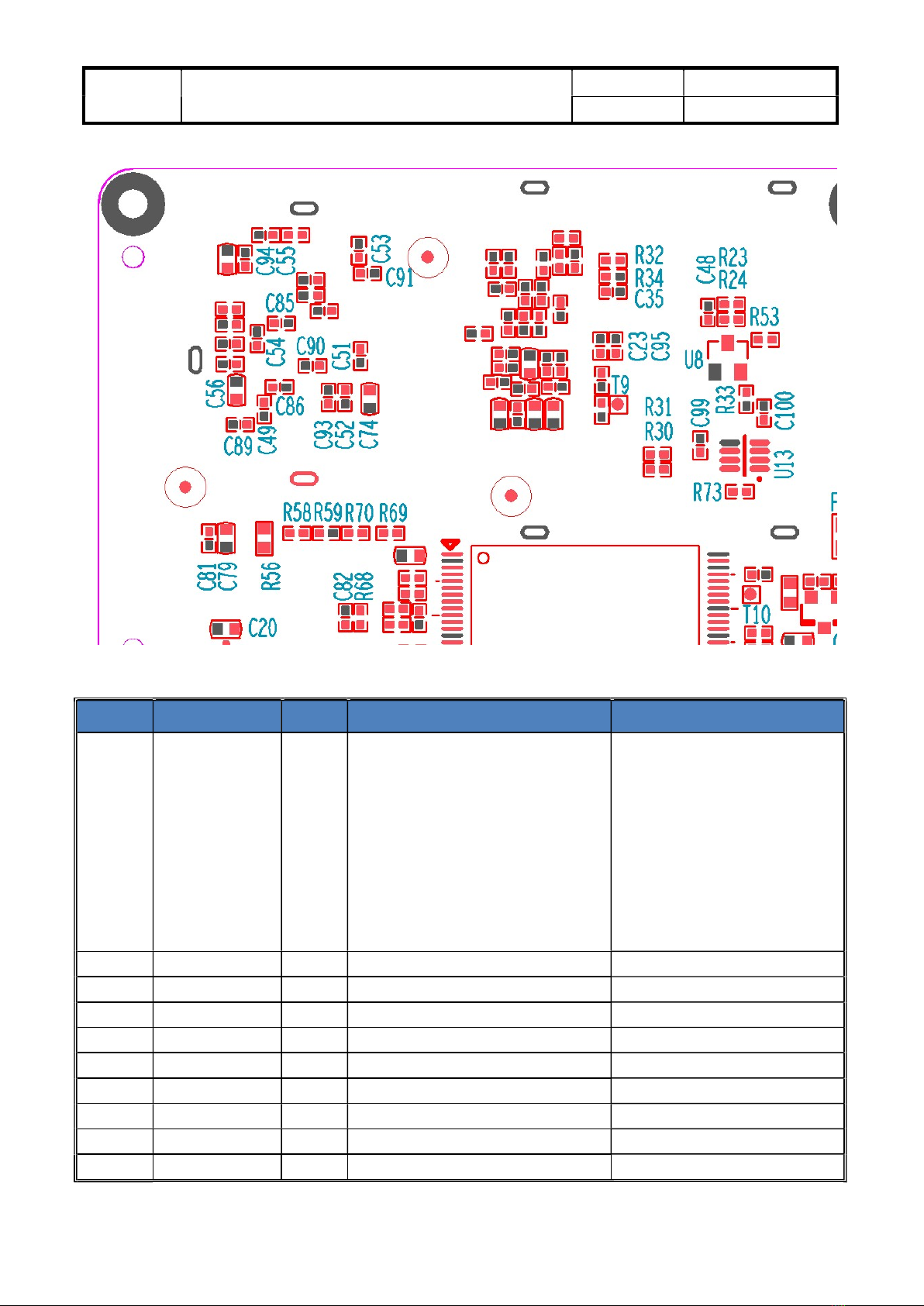

Figure 2-1 A98 Interface Pins
Pin Description:
Pin No.
Pin Name Type
Description Power Domain
1, 3, 5,
16, 23,
25, 27,
28, 34,
46, 50,
53, 54,
58, 63,
64, 74,
75
GND Supply
Digital ground GND
2，4，6
VDD_5V Power Power supply input > 800mA 3.5 - 5.5V
7 GPIOZ_7 I/O General purpose input output 3.3V
17 I2C1_SCL I/O I2C bus1 clock 3.3V
19 I2C1_SDA I/O I2C bus1 data 3.3V
21 GPIOZ_3 I/O General purpose input output 3.3V
29 GPIOZ_6 I/O General purpose input output 3.3V
31 PWM_B O Pulse Width Modulation B 3.3V
33 PWM_D O Pulse Width Modulation C 3.3V
35 PWMAO_C O Pulse Width Modulation AO_C 3.3V
Table des matières
Autres manuels Link Play Unité de contrôle
Manuels Unité de contrôle populaires d'autres marques
Festo
Festo Compact Performance CP-FB6-E Manuel de la liste des pièces
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur
JS Automation
JS Automation MPC3034A Manuel utilisateur
JAUDT
JAUDT SW GII 6406 Series Guide rapide
Spektrum
Spektrum Air Module System Manuel utilisateur
BOC Edwards
BOC Edwards Q Series Manuel utilisateur
