LINK-MI LM-TV16 Manuel utilisateur

Video Wall Controller

LM-TV16

User Manual

Catalog

1st . Installation instructions ………………………………………… 2

2nd . Product overview ……………………………………………… 4

3rd . Remote control ………………………………………………… 6

4th . Button panel …………………………………………………… 6

5th. Equipment installation ………………………………………… 7

6th. Parameter setting ……………………………………………… 8

7th . USB function ………………………………………………… 11

8th. RS-232 control ………………………………………………… 12

1st. Installation instructions

For the safety of your equipment, please read the safety

instructions carefully before using this device. If you are in

doubt, please read this manual first. In this manual list has

detailed description of the equipment operation. If you are

still have a question, please contact us, we will give you a

satisfactory answer as soon as possible.

If there is any change in the specification, Please forgive us

for not informing you.

When equipment is installing, please note the following:

1. Power:

This equipment supports 100-240V AC voltage input, please check

your power is safely and suitable.

2. Power off:

Please make sure power off when you connect cables or carry the

equipment, and others.

3. Cables:

Don't squeeze the wire, Separate the power cables and signal

cables, Prevent interference.

4. Cooling hole:

There are some cooling hole of the Equipment outside surface ,

do not plug these holes, so as to avoid heat accumulation,

damage to equipment or cause fire and other hazards.

5.Equipment placement:

Should be reasonable placement equipment, such as the load

standard rack, chassis, cabinets, or placed in a solid flat on

the table, to prevent the device from falling.

6.Environment:

Equipment working environment should pay attention to dust,

moisture, in particular, to prevent the liquid immersion and

splash into the device.

7. Repairs:

All maintenance work should be done by professional maintenance

personnel, and not to try to repair the equipment without

training. To prevent electric shock, do not open the shell.

Safety precautions:

1. The equipment has a high voltage power, non professional

maintenance personnel shall not open the case, so as to avoid

dangerous;

2, No water or water splashing, It is strictly prohibited on

the device to put any containers of liquid containers;

3. In order to prevent the fire, the prohibition of equipment

near the fire source;

4.In order to fully ventilation, the front and rear panels

should be kept at least 20cm of the gap;

5. The equipment such as strange noise, smoke or smell,

immediately unplug the power plug, by professional repair

personnel;

6.In the case of thunder and lightning, or not, please unplug

the power plug;

7. Do not plug into any object from the ventilation holes of

the device, so as not to cause damage to equipment or electric

shock;

8. Do not put the equipment on the water or other wet places;

9.Not to be placed in the vicinity of the heat sink or other

high temperature;

10. Please be careful put the power line, to prevent damage;

The following circumstances, should unplug the power

plug, by professional maintenance personnel:

1) plug power cord is damaged or worn out;

2) liquid is spilled into the device;

3) when the equipment is dropped or the case is damaged;

4) the device has a distinct function or performance change.

5) check whether the normal operation of the fan, if the fan

does not work should immediately unplug the power supply, by

professional personnel;

This device is not suitable for non professional operation and

commissioning, users must receive professional training and

guidance.

Please read the instruction carefully before use, and the

instruction should be kept for use.

2nd . Product overview

1. overview:

This video wall controller is for LCD TV, ultra narrow side

LCD screen, projector and so on, high-definition picture mosaic

processor can be customized according to user needs 1 to 25 HDMI

output splicing. Products with high definition processing chip,

support 1080P signal input and output, supports 1 composite

video, 1 VGA, 1 USB model, 1 HDMI input, all input signals can

be switched to the large screen display, and audio and video

synchronization output.

Product design infrared remote control, users operate the

mosaic processor is more simple, intuitive, it can also be

controlled through RS-232. The user through the remote fast

control and full function control, the operation is more humane,

more simple.

2.System topology diagram

3.Machine pictures and dimensions

Size: 482mm(L)*283mm(w)*88mm(D) (with Tripod)

440mm(L)*283mm(w)*88mm(D) (without Tripod)

3rd . Remote control

1. Remote control function:

User operate the remote control the mosaic screen, it

can setting full function by remote, like user operate remote

for TV, very easy and simple.

2. remote control buttons function diagram:

4th . Button panel

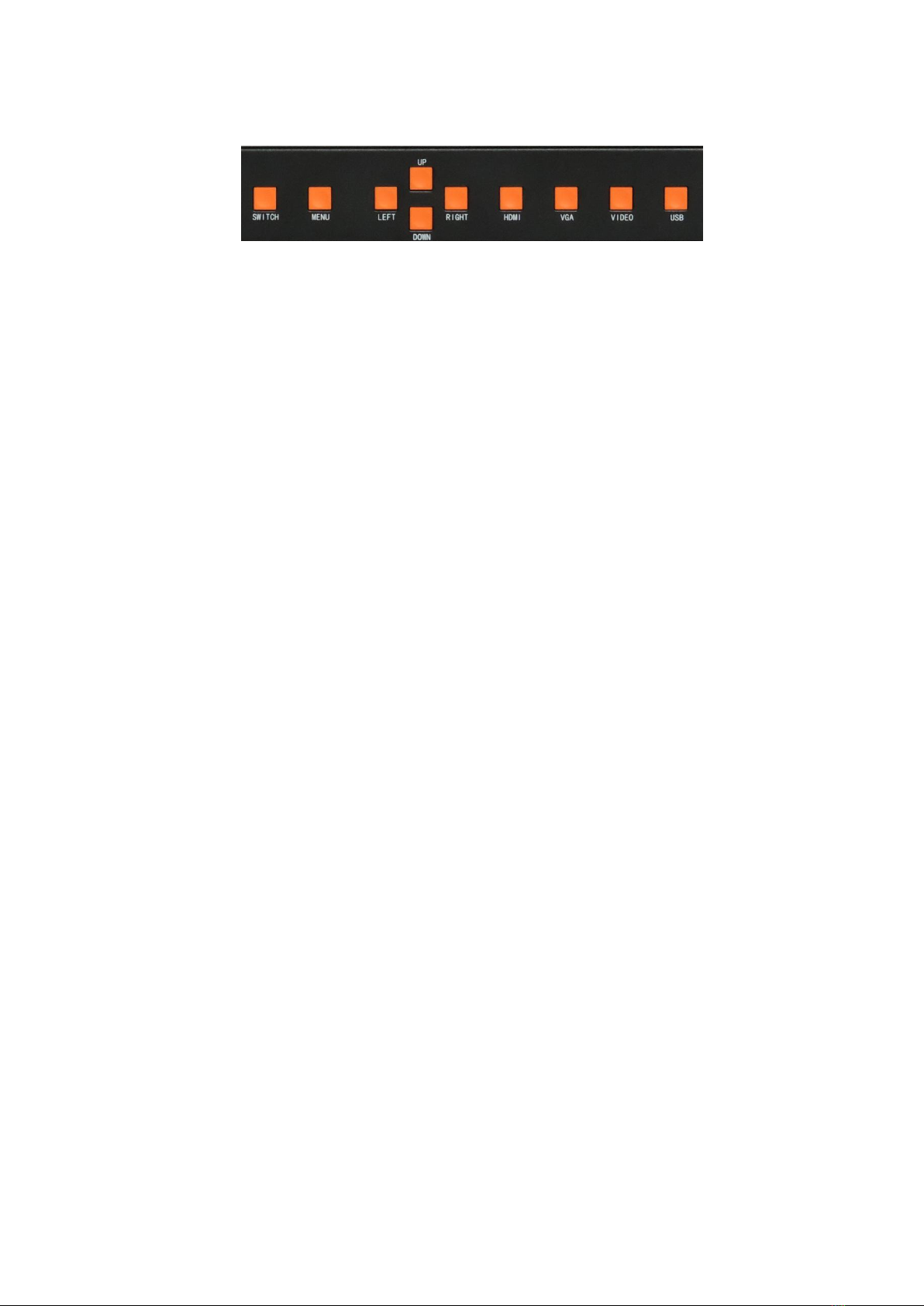

SWITCH: mosaic on/off MENU

LEFT：Volume reduce RIGHT:Volume increase

UP DOWN

HDMI:HMDI input VGA:VGA input

VIDEO:AV input USB:USB channel

5th . Equipment installation

1. Open the package

Check host and accessories. Including mainframe, power, remote

control, warranty card, certificate, manual.

2. Installation machine

2.1. TV set: the LCD TV or other display device input signal

is set into the corresponding HDMI channel;

2.2. HDMI Output and TV connection

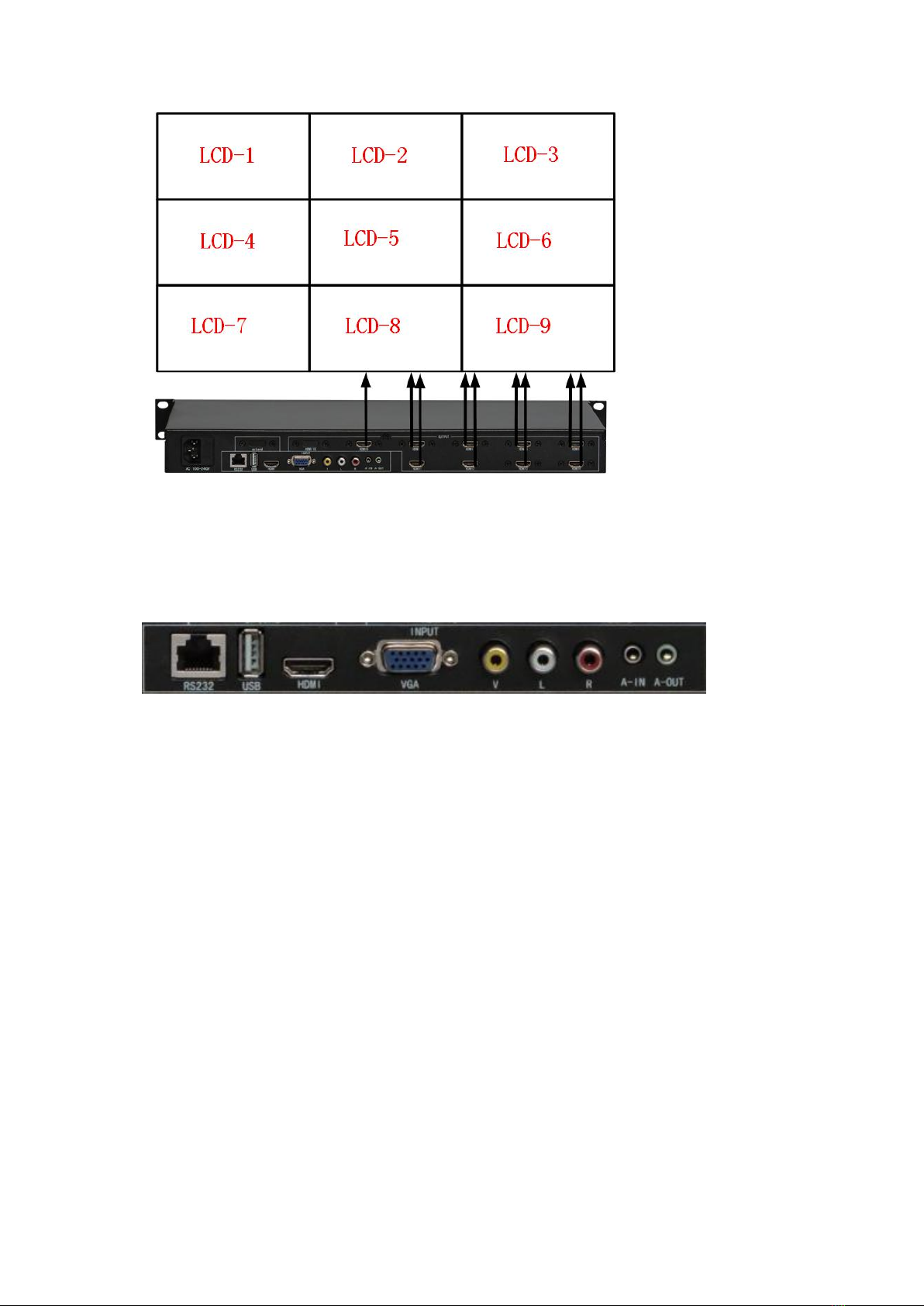

HDMI1 connect to LCD1(Display 1);

HDMI2 connect to LCD2(Display 2);

HDMI3 connect to LCD3(Display 3);

HDMI4 connect to LCD4(Display 4);

HDMI5 connect to LCD5(Display 5);

HDMI6 connect to LCD6(Display 6);

HDMI7 connect to LCD7(Display 7);

HDMI8 connect to LCD8(Display 8);

HDMI9 connect to LCD9(Display 9).

as shown In the following diagram

2.3. Input signal interface

This machine support 1 USB, 1 HDMI, 1 VGA, 1 AV input, all

inputs are embedded or bound to audio input, user can access

all the signals or access to some of the signal, the input

interface such as:

USB interface: can be directly inserted into the USB disk,

embedded audio, you can play video, pictures, TXT documents,

MP3 inside of the USB disk ;

HDMI interface: can be connected to the computer, players and

other HDMI output device, embedded audio;

VGA interface: a device that can be connected to a computer or

other device with a VGA A-IN is an audio interface with a VGA

binding;

Video interface: V-video signal, R and L are respectively

connected with the left and right channel audio signal of video

binding;

2.4. Audio connection

A-OUT for the audio output of the machine, it can connect

with speaker or others.

2.5. Power on

After all cable is connected, insert the AC power supply,

turn on the power switch, the power indicator light is green,

that the device is working.

6th . Parameter setting

Complete splicing device installation and connection,

open the switch will appear or display a black screen image

signal. If black signal, need by remote control or button to

switch to the corresponding signal source, such as: then the

HDMI signal and ua1 switch directly to the HDMI signal source.

After the image is out, it is possible that some of the LCD

screen image is inverted, or when the film because of the LCD

screen frame caused by image distortion and other issues, this

time we also need to set up the parameters of the mosaic through

the menu keys (MENU), so we need to be familiar with the

operation of the menu.

Press the MENU key, then press the left button to press

the left button to come out a few different

Menu 1, 3, 4 categories of the factory has been set as the best

recognized state, do not need to change, we need only to set

menu 2:

1. OSD Language

Move the cursor to OSD Language,press left or right,then user

can choose OSD language.
