LINK-MI LM-MSW1 Manuel utilisateur

- 0 -

HD Video 180°

Rotation controller

LM-MSW1

User Manual

For the safety of you and equipment, please read the safety

instructions carefully before using this equipment. If you have any

queries in use, please read the instructions first. A detailed

description of device operation is provided in the main body. If

there is still doubt, please contact us. W e w il l gi v e yo u a

satisfactory reply as soon as possible.

If there is any change in the instruction manual, without prior

notice, please understand.

- 1 -

Catalog

1、Installation instructions ………………………………………… 2

2、Product overview …………………………………………………… 4

3、Front and back panel introduction ………………………………… 6

4、Introduction of remote control operation ………………………… 7

5、Menu introduction ………………………………………………… 8

6、Introduction to USB operation …………………………………… 10

7、control protocol ………………………………………………… 13

- 2 -

Chapter 1. Installation instructions

Power adapter

This equipment supports 12V DC input. In order to make the

equipment work properly, please do not replace our standard

power adapter easily.

Power

off

Turn off all the power supply, unplug the power plug, etc.

to ensure the safety of you and the equipment.

Cables

It is not possible to place objects on power lines, signal

lines, communication lines and other cables. Cables should

be avoided from being trampled or squeezed to prevent

leakage or short circuit.

Signal cables

When the sig nal line is i nsert ed or pulled from the

equipment, the equipment needs to be cut off so as not to

damage the equipment. If not,The damage is not in warranty

Heat dissipating

hole

Th ere may be op eni ngs on the o utsi de su rfac e of the

equipment for heat dissipation. Do not block these openings

to avoid heat accumulation, damage to the equipment or

cause fire hazards.

Equipment

placement

Equipment should be reasonably placed, such as standard

rack, chassis, cabinet, or placed on a stable and flat work

table to prevent equipment from falling.

Environment

The environment of equipment should pay attention to dust

proof and moisture proof, especially prevent liquid from

soaking and splashing into the equipment.

Repair

All m ain tena nce work s hou ld be done by prof essio nal

maintenance personnel. Do not attempt to repair equipment

without training. To avoid the danger of electric shock, do

not unlock the case.

Safety

precautions

1 . t h e r e i s e l e c t r i c i t y i n s i d e t h e e q u i p m e n t , n o n

professional maintenance personnel shall not open the

chassis, in order to avoid any danger.

2.strictly prohibit water droplet or water splashing,

strictly prohibit putting any liquid container container

on the equipment.

3.in order to prevent fire, the equipment should not be

near the fire source.

4.in order to fully ventilate, the front and back panels of

the equipment should maintain at least 20CM gap.

5.If the equipment makes strange noise, smoke or odor, the

- 3 -

power plug should be unplugged immediately and handled by

professional maintenance personnel.

6.in case of thunder or long absence, please unplug the

power supply.

7.do not plug any object from the ventilation hole of the

equipment, so as to avoid damage to the equipment or

electric shock.

8.it is not suitable to place this equipment in near water

or other damp places.

9.it is not suitable to place this equipment near heat sink

or other high temperature places.

10. please properly arrange the power cord to prevent

breakage.

11.under the following circumstances, the power plug of

th i s eq u ip me n t sh ou l d b e r em ov ed a n d h an d le d by

professional maintenance personnel.

1) when the plug power cord is damaged or worn;

2) when liquid splashes into the equipment.

3) when the equipment falls or the chassis is damaged.

4) when the equipment has obvious functional abnormalities

or performance changes;

5) Regularly check whether the fan is working properly, if

the fan is not working, it should be immediately unplugged

and switched off the power supply of the equipment, handled

by professionals.

This equipment is not suitable for non professionals to operate and debug. Users

must receive professional training and guidance.

- 4 -

Chapter 2. Product overview

The device is a multi-functional image processor, a single

device can complete multiple signal switching and format conversion,

video 180 degree rotation, USB decode audio and video functions. The

product supports 1 channel AV, 1 channel VGA, 1 channel HDMI, 1

channel USB input, 1 channel HDMI and 1 channel independent audio

output. The input and output signals can support full HD 1920 * 1080

@60HZ. At the same time, all input signals of the product can support

synchronous switching between images and audio.

2.1 Feauter

1. Maximum support for full HD 1080P input and output;

2. Support HDMI\VGA\AV\USB input and build in scaler inside.

3, support all signal source to turn 180 degrees;

4. Output resolution is 1080P, 720P and 768P optional.

5, the output type has HDMI and DVI optional, compatible with HDMI

and DVI interface display device;

6, output with long line drive function, the farthest can transmitm

more then 10 meters.

- 5 -

2.2 Technical parameter

Name

Specifications

Input signal

VGA signal

DB15 interface,Binding 1 channel 3.5 audio interface;

Support 640x480@85Hz to 1920x1200@60Hz.

HDMI signal

HDMI1.3(HDCP1.2) compatible DVI1.0

AV signal

Automatic recognition of NTSC, PAL and SECAM systems

USB

Standard USB2.0 interface, which can decode audio and

video.

Support video, picture, MP3, TXT;

Streaming media format support: Mpeg1, 2, 4 (1920 *

1080 @30P and below) / Divx, Xvid (1920 * 1080 @30P and

below) / RM, RMVB (1920 * 1080 @25P and below) / H.264

(1920 * 1080 @30P and below) / VC-1 (1920 * 1080 @30P

and below) / MJPEG (640 * 480 @30P).

Output signal

HDMI output

1cahannel HDMI output，support HDMI1.3 and DVI1.0(option)

HDMI resolution

1920x1080@60Hz、1280x720@60Hz、1024x768@60Hz

Audio output

3.5 audio interface, left and right channel stereo

audio

Other

Control

Remote control, RS-232 serial port

Power Supply

DC12V

Power waste

10W

Size

Dimension

238mm(L)x130mm(D)x27mm（H）

Weight

0.65Kg

- 6 -

2.3 Product topological graph

- 7 -

③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

① ②

⑪

⑫ ⑬

Chapter 3. Front and back panel introduction

①

DC 12V input

②

RS232 port

③

USB interface

④

HDMI input

⑤

VGA input

⑥

CVBS input

⑦

Left audio input

⑧

Right audio input

⑨

VGA audio input

⑩

Stereo audio

⑪

HDMI output

⑫

Power light（green light is

work,red light is standby）

⑬

Remote control receiver

- 8 -

Chapter 4. Introduction of remote control operation

- 9 -

Picture Mode

Color Temperature

Aspect Ratio

Noise Reduction

Screen

Clock

Off Time

On Time

Sleep Timer

Auto Sleep

PICTURE OPTION TIME SOUND

OSD Language English

Restore Factory Default

MIRROR

Out Mode 1080P60

Out Type HDMI

Sound Mode

Balance

Auto Volume

Surround Sound

SPDIF MODE PCM

Chapter 5. Menu introduction

1. Picture mode

1.1 picture mode ：standard,mild,user,dynamic.Users can set their

favorite mode according to their own preferences. The factory is set

as a standard, and User changes are not recommended;

1.2 color temperature：medium,warm,user,cool.The factory is set as a

medium, and User changes are not recommended;

1.3 aspect ratio: 0-20 optional.Users can zoom in the size of the

video screen.

1.4 noise reduction middle: off,low,middle,high,default optional,The

factory is set as a middle, and User changes are not recommended;

1.5 Screen: no use;

1.6 Color Range: 0~255 and 16~235 optional,Professional users can

choose settings.

Table des matières

Autres manuels LINK-MI Contrôleurs

LINK-MI

LINK-MI LM-TV04-4K 2K Manuel utilisateur

LINK-MI

LINK-MI LM-TV12 Manuel utilisateur

LINK-MI

LINK-MI LM-TV06-4K2K Manuel utilisateur

LINK-MI

LINK-MI LM-TV08-4K2K Manuel utilisateur

LINK-MI

LINK-MI LM-TV20 Manuel utilisateur

LINK-MI

LINK-MI LM-TV15 Manuel utilisateur

LINK-MI

LINK-MI LM-TV04S Manuel utilisateur

LINK-MI

LINK-MI LM-TV12-4K2K Manuel utilisateur

LINK-MI

LINK-MI LM-TV03-4K2K Manuel utilisateur

LINK-MI

LINK-MI LM-TV18 Manuel utilisateur

LINK-MI

LINK-MI LM-TV12P Manuel utilisateur

LINK-MI

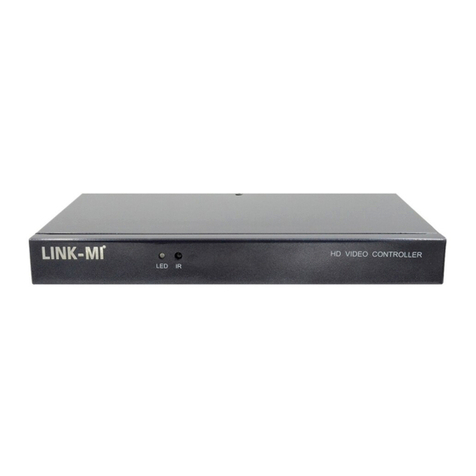

LINK-MI LM-WPS41 Manuel utilisateur
