DEMO CIRCUIT 1446 QUICK START GUIDE - LTC6909

3 TO 8 OUTPUT MULTIPHASE OSCILLATOR WITH SSFM

DESCRIPTION

DEMO CIRCUIT 144

QUICK START GUIDE

LTC690

3 TO 8 OUTPUT MULTIPHASE OSCILLATOR with SSFM

Demonstration circuit 1446 features the LTC6909 multi-

ple output oscillator with spread spectrum frequency

modulation (SSFM). The LTC®6909 is an easy to use

precision oscillator that can provide 1-, 2-, 3-, 4-, 5-, 6-,

7- or 8-phase synchronized outputs. The LTC6909

spread spectrum frequency modulation (SSFM), can be

enabled to improve electromagnetic compatibility (EMC)

performance. Eight separate outputs provide up to eight

rail-to-rail, 50% duty cycle clock signals. Using three

logic inputs, the outputs are configured for phase separa-

tion, ranging from 45° to 120° (three to eight phases).

The clock outputs can also be held low or configured for

Hi-Z. A single resistor (RSET) combined with the phase

configuration, sets the output frequency, based on the

following formula:

OUT

= (20MHz x 10k)/(RSET x PH)

where PH = 3, 4, 5, 6, 7 or 8

the f

OUT

range is 12.5kHz to 6.67MHz.

The PH0, PH1 and PH2 logic inputs define the LTC6909

multi-phase mode of operation and control its outputs as

follows:

PH2 PH1 PH0 MODE

0 0 0 All Outputs Are Floating (Hi-Z)

0 0 1 All Outputs Are Held Low

0 1 0 3-Phase Mode (PH = 3)

0 1 1 4-Phase Mode (PH = 4)

1 0 0 5-Phase Mode (PH = 5)

1 0 1 6-Phase Mode (PH = 6)

1 1 0 7-Phase Mode (PH = 7)

1 1 1 8-Phase Mode (PH = 8)

A DC1446 contains an LTC6909 and test terminals for

the eight outputs. On board jumpers are provided to set

the LTC6909 phase inputs (PH0, PH1 and PH2) and the

SSFM modulation. The on board frequency setting resis-

tor (RSET) is pre-loaded with a 100k surface mount re-

sistor (in addition, two pin receptacles are provided for

using a leaded RSET resistor).

Design files for this circuit board are available.

Call the LTC factory.

LTC, LT are registered trademarks of Linear Technology Corporation.

QUICK START PROCEDURE

Demonstration circuit 1446 is easy to set up and test.

Refer to Figure 1 for the quick test setup and follow the

procedure below:

1. Place jumpers in the following positions:

JP3 (PH0) to V+, JP4 (PH1) to V+, JP1 (PH2) to V+ and

JP1 (MOD) to SSFM OFF.

2. Set the power supply to 5V.

3. Turn on the power supply.

4. With a 10x probe connected to OUT1 the oscilloscope

should show a 5V, 250kHz, squarewave (±4.5%).

DEMO CIRCUIT 1446 QUICK START GUIDE - LTC6909

3 TO 8 OUTPUT MULTIPHASE OSCILLATOR WITH SSFM

QUICK START SET-UP

Figure 1.

Quick Test Setup

Single Power Supply

Oscilloscope

NOTE: The 6909 outputs (OUT1-OUT8) can drive 1k and 50pF loads. If a spectrum analyzer is used to measure the

spread spectrum bandwidth then use a high impedance probe to monitor the outputs (typically the input impedance

of a spectrum analyzer is 50 ohms).

DEMO CIRCUIT 1446 QUICK START GUIDE - LTC6909

3 TO 8 OUTPUT MULTIPHASE OSCILLATOR WITH SSFM

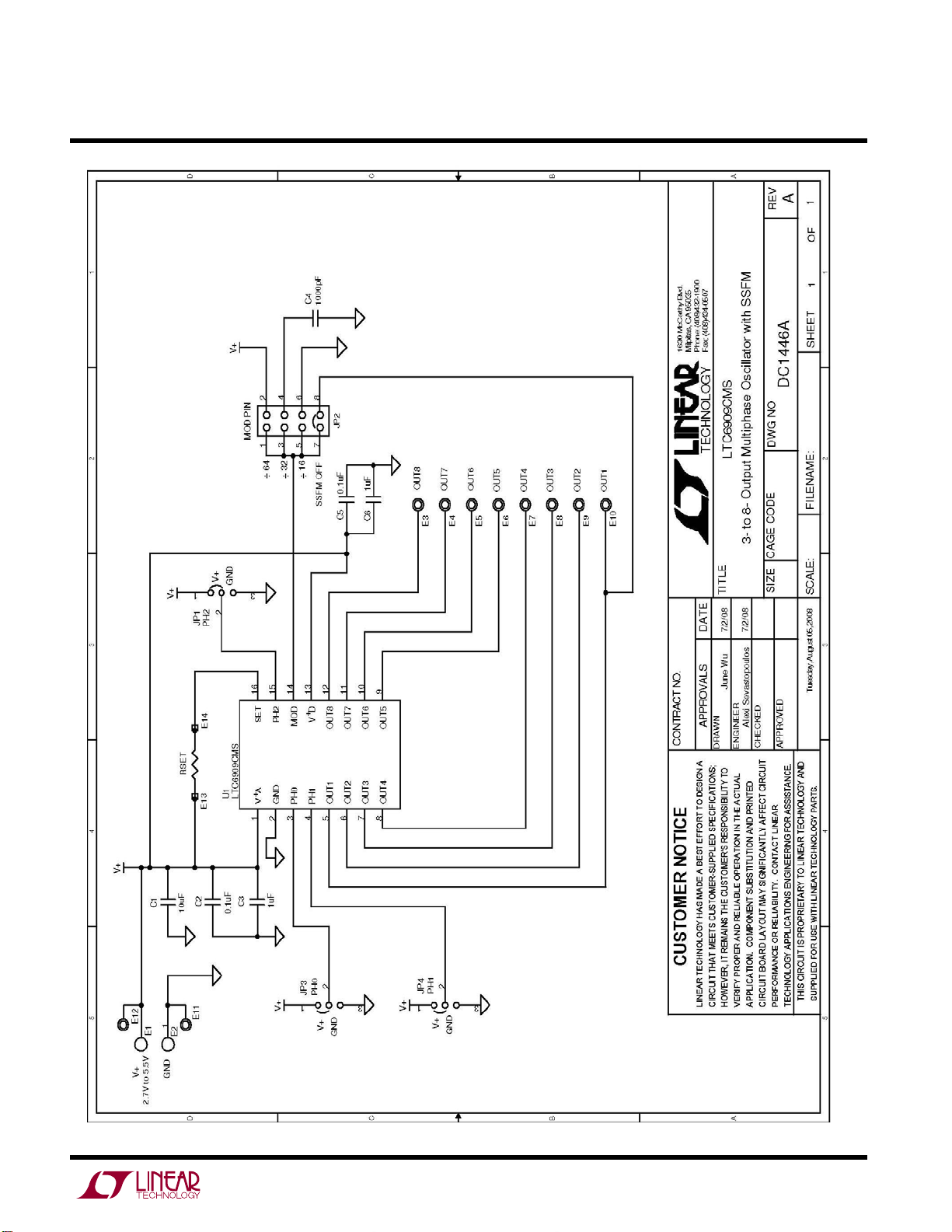

DEMO CIRCUIT 1446 QUICK START GUIDE - LTC6909

3 TO 8 OUTPUT MULTIPHASE OSCILLATOR WITH SSFM

DC1446 PARTS LIST

Item Qty Reference Part Description Manufacturer / Part #

1 1 C1 CAP., X7R, 10uF, 10V, 20% 1206 AVX, 1206ZC106MAT2A

2 2 C5,C2 CAP., X7R, 0.1uF, 16V, 10% 0402 TDK, C1005X7R1C104K

3 2 C3,C6 CAP., X5R, 1uF, 6.3V, 10% 0402 TDK, C1005X5R0J105K

4 1 C4 CAP., C0G, 1000pF, 25V, 5% 0402 TDK, C1005C0G1E102J

5 2 E1,E2 JACK, BANANA KEYSTONE, 575-4

6 10 E3-E12 TESTPOINT, TURRET, .094" pbf MILL-MAX, 2501-2-00-80-00-00-07-0

7 3 JP1,JP3,JP4 3 PIN 0.079 SINGLE ROW HEADER SAMTEC, TMM103-02-L-S

8 1 JP2 2X4, 0.079 DOUBLE ROW HEADER SAMTEC, TMM104-02-L-D

9 4 xJP1-xJP4 SHUNT, .079" CENTER SAMTEC, 2SN-BK-G

10 0 RSET(open) Res., 0805

11 2 E13,E14 Pin, 0.057 hole Mill-Max, 8427-0-15-15-30-84-04-0

12 1 U1 IC., LTC6909CMS, MSOP-16 Linear Tech., LTC6909CMS

13 4 (STAND-OFF) STAND-OFF, NYLON 0.375" KEYSTONE, 8832(SNAP ON)

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Analog Devices Inc.:

DC1446A
