Lincoln 2016 MKT Manuel utilisateur

Road Service Quick Reference Guide

2016 Lincoln MKT

Quality and Education Services

AAA Automotive

1000 AAA Drive

Heathrow, FL 32746

December 12, 2015

Index

Towing, Loading and Transporting 2

Curb Weight 2

Car Carrier Loading 3

Neutral Mode 4

Shift Lock Override Procedure 4

Jacking and Tire Service 5

Fuel Service 7

Jump-Start Procedures 8

Electronic Key 9

Hood Release 11

Important Notice:

This publication should not be used while driving. The procedures in this

publication should only be used by qualified and trained personnel.

This Road Service Quick Reference Guide was developed to highlight some common

procedures when servicing or towing a Lincoln vehicle. It is not all inclusive. For

complete information: the applicable vehicles owner’s manual, Ford Wrecker Towing

Manual and the AAA Towing and Service Manual should be used in conjunction with

this guide.

The procedures recommended and described in this guide are effective methods of

performing light service and towing operations. Some of these procedures require the use

of auxiliary equipment specially designed for the purpose. The auxiliary equipment

should be used when and as recommended and whenever the trained operator deems it

appropriate. It is important to read the various WARNINGS, CAUTIONS and NOTES in

this manual in order to minimize the risk of personal injury to service personnel and or

customers and to avoid procedures which may damage the vehicle or render it unsafe. It

is also important to understand that these warnings, cautions and notes are not exhaustive.

Neither AAA nor the auto and towing equipment manufacturers could possibly know,

evaluate and advise the reader of all conceivable methods of towing or evaluate

individual situations. Accordingly, anyone who uses a towing procedure must be

thoroughly convinced that neither personal safety nor vehicle safety will be jeopardized

by the selected procedure.

AAA is not responsible for changes made by the manufacturers to the vehicles or their

recommendations. Important changes in procedures will be furnished to all manual users

on the internet at AAA.biz/auto.

TOWING, LOADING AND TRANSPORTING:

Base Curb Weight

MKT -FWD: 4702 lbs.

MKT –AWD: 4,942 lbs.

Correct towing equipment for specific models:

The use of car carrier equipment is the preferred method of towing all Lincoln vehicles.

A secondary, alternative wheel lift with dollies procedure may be used when a car carrier

is inaccessible.

Secondary, Alternative Procedure: Wheel lift with

Dollies: AWD, FWD, Front Wheel Lift and Rear

Wheel Lift

Car Carrier is the Recommended Towing

Procedure for: All Lincoln vehicles

Ford Motor Company has not approved a

slingbelt towing procedure. Vehicle damage may

occur if towed incorrectly, or by any other means.

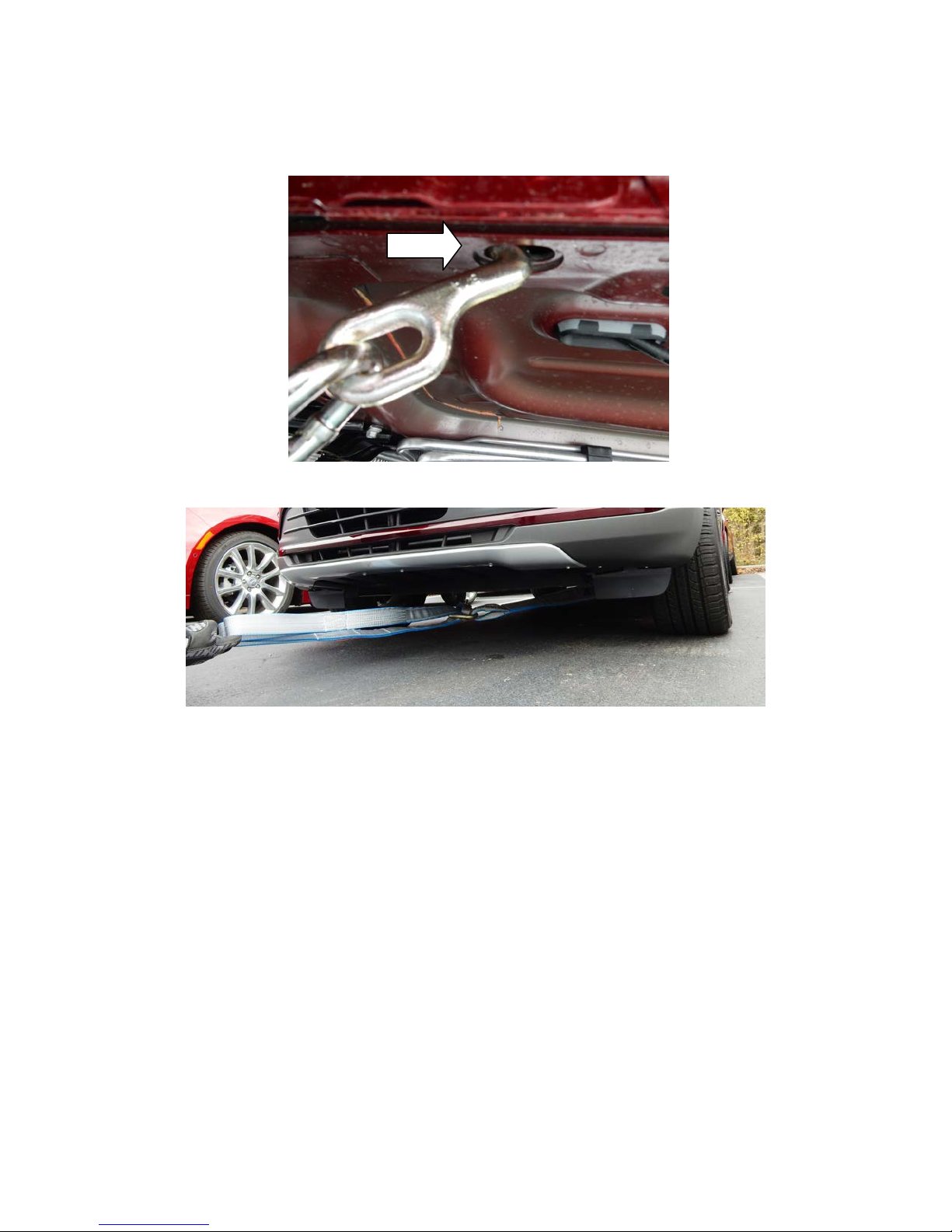

CAR CARRIER LOADING:

Front T-Slot

Nylon Bridal with Short Nylon Strap Extension

Use the front two reinforced T-slots to load the vehicle onto a car carrier. The use of a

nylon bridle with a secondary nylon strap will assist in avoiding damage to the under

panel splash shields. Before loading, ensure that the transmission is in “Neutral”.

Securing the Vehicle for Transport

Note: Wheel Straps should be used to secure the vehicle for transport. A secondary

method is securing by using the reinforced T-hook slots.

When the vehicle is in its loaded position on the flatbed with the bed still in the deployed

position, secure the vehicle to prevent it from rolling by chocking the wheels and

attaching one wheel strap or tie down to the wheel closest to you, then set the parking

brake.

Caution: Do not overly tighten the tie downs or the vehicle may be damaged.

After securing, return the bed to the transporting position, then slacken the winch wire

rope slightly to prevent downward pull as bumps are encountered during transport.

Note: Make sure that the ignition switch is in the OFF position, the vehicle is in Park and

parking brake is set.

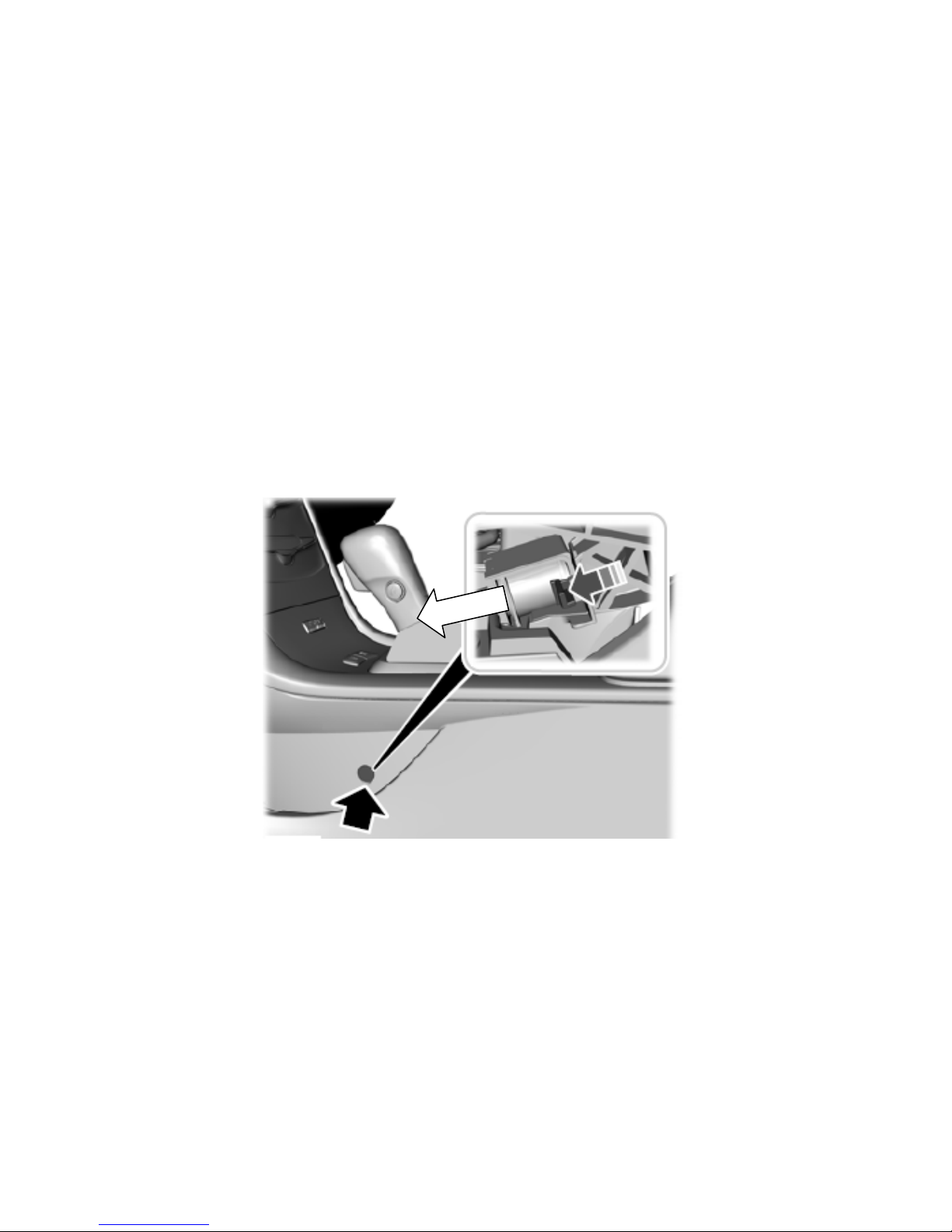

BRAKE-SHIFT INTERLOCK OVERRIDE:

Use the brake-shift interlock override to move the transmission from the Park position in

the event of a malfunction.

Caution: Prior to performing this procedure secure the vehicle and ensure it will not roll.

Deploy wheel chocks if needed.

1. Apply the parking brake and turn the ignition off before performing this procedure.

2. Carefully remove the access plug on the side of the center console.

3. Apply the brake pedal. Using a suitable tool (for example, a screwdriver), push the

brake-shift interlock override lever forward while pulling the gearshift lever out of Park

(P) and into Neutral (N).

4. Install the access plug on the side of the center console.

5. Apply the brake pedal, start the vehicle, and release the parking brake.

JACKING AND TIRE SERVICE:

This model may be equipped with an inflator kit. Lincoln requires that models without a

spare tire be towed. Do not deploy the inflator kit if equipped.

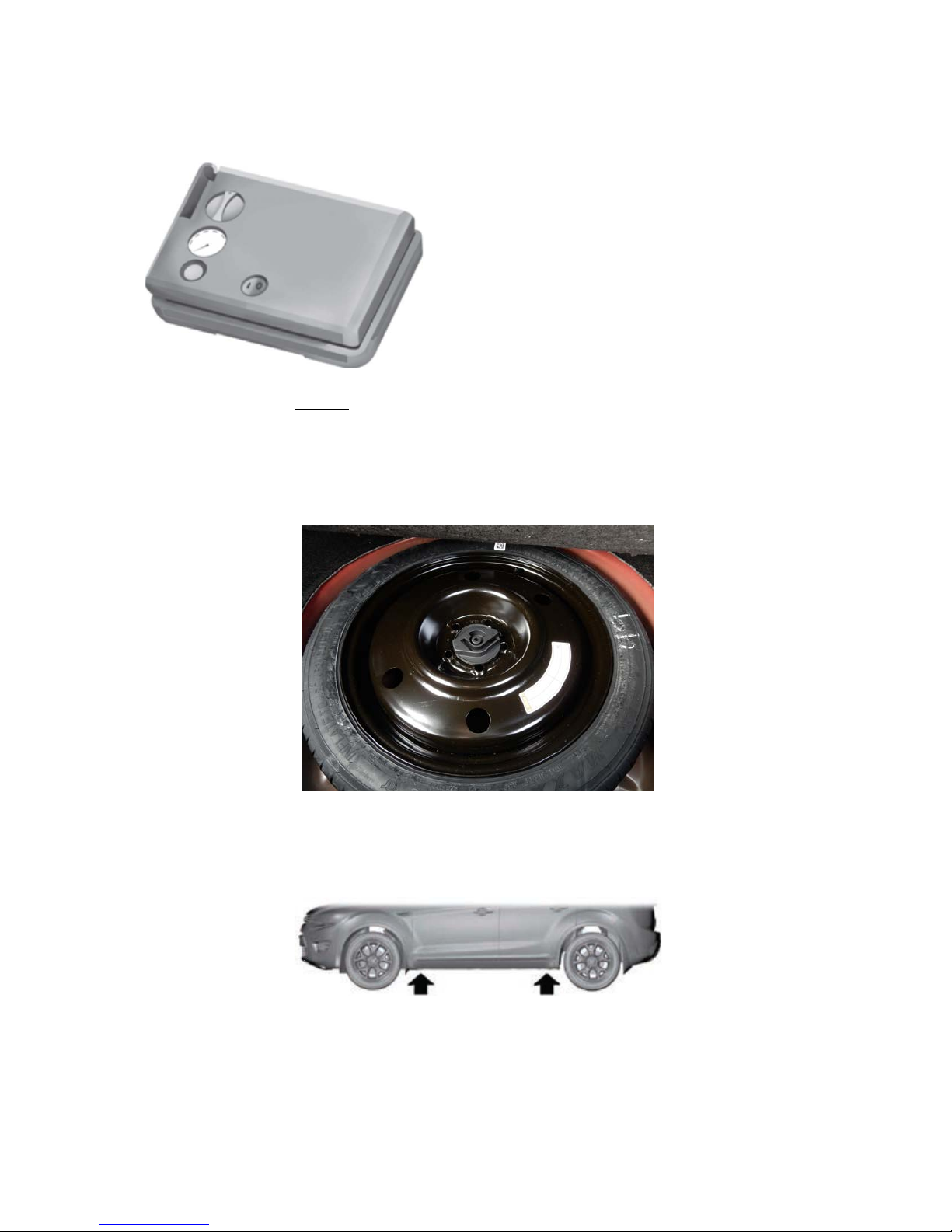

Spare Tire Change Procedure -When Equipped

Note: Chock the tires and set the parking brake to ensure the vehicle will not move.

The spare tire and factory tools are located in the rear cargo area under the package shelf,

in the wheel well.

Use the jacking points shown above. Place the jack in its proper location. Observe all

standard jacking precautions and ensure that the vehicle is on firm, level ground and that

the wheels are chocked. As the jack comes in contact with the vehicle body, ensure that

it is contacting the correct location on the vehicle.

Stowing the flat tire:

If the road wheel you removed cannot be secured in the wheel well area, remove the

L-shaped bolt from the external pocket of the felt bag. With the third row seat in the

raised position, stand the flat tire in the rear of the vehicle with the tire’s valve stem

facing the rear of the vehicle. Fasten the flat tire to the vehicle by inserting the L-shaped

bolt through one of the lug bolt holes in the wheel. Turn it clockwise into the threaded

hole in the vehicle until the tire is secured.

Tighten lugnuts in the pattern shown above

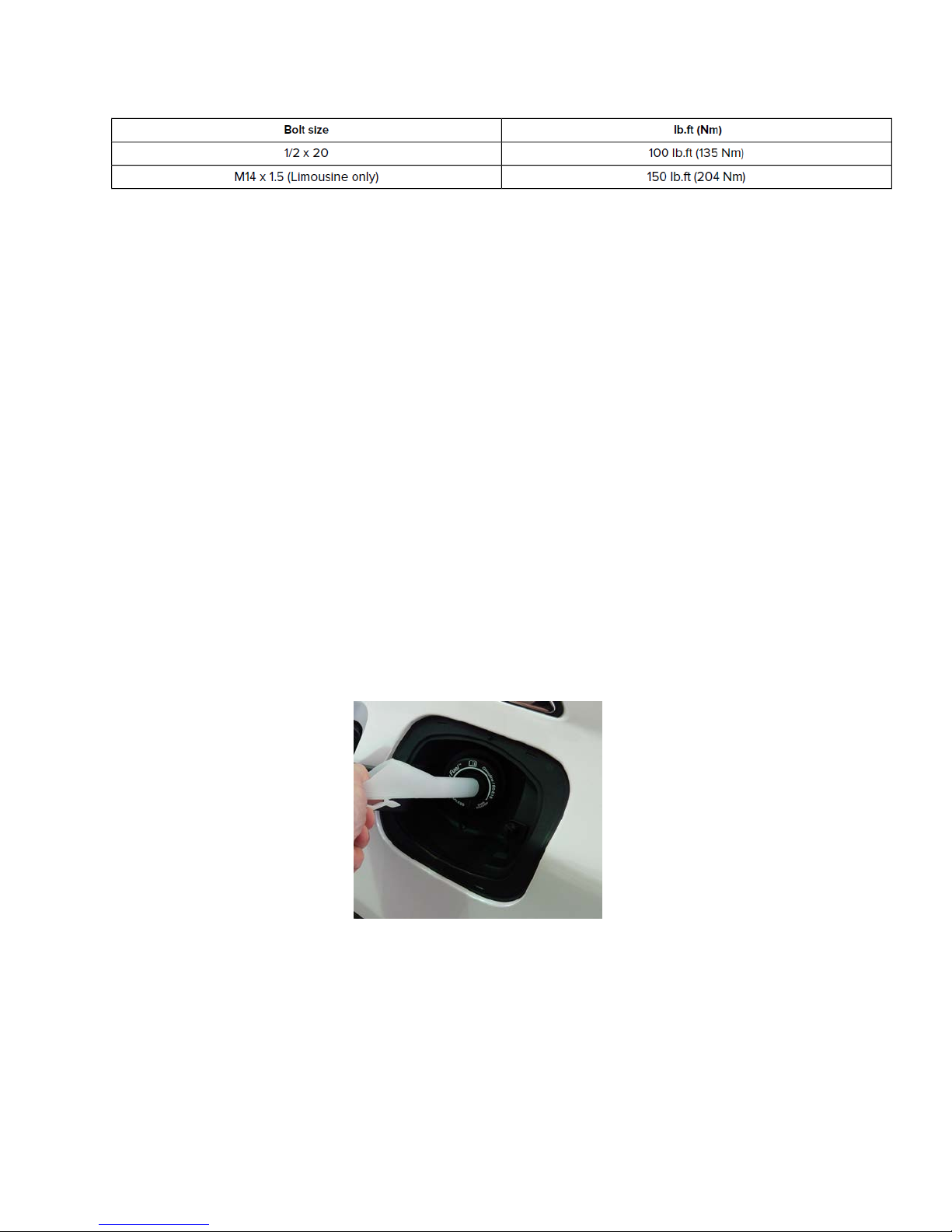

Wheel Lug Nut Torque Specifications

When a wheel is installed, always remove any corrosion, dirt or foreign materials present

on the mounting surfaces of the wheel or the surface of the wheel hub, brake drum or

brake disc that contacts the wheel. Make sure that any fasteners that attach the rotor to

the hub are secured so they do not interfere with the mounting surfaces of the wheel.

Installing wheels without correct metal-to-metal contact at the wheel mounting surfaces

can cause the wheel nuts to loosen and the wheel to come off while the vehicle is in

motion, resulting in loss of control.

*Torque specifications are for nut and bolt threads free of dirt and rust. Retighten the lug

nuts to the specified torque as soon as possible and no more than 100 miles (160

kilometers) after changing a flat tire.

WARNING: Failure to follow these precautions could cause the wheel nuts to loosen

and the tire to fall off, resulting in death or serious injury.

• Never use oil or grease on the wheel bolts or wheel nuts. Oil and grease may cause the

wheel nuts to be excessively tightened, leading to bolt or disc wheel damage. In addition,

the oil or grease can cause the wheel nuts to loosen and the wheel may fall off, causing a

serious accident. Remove any oil or grease from the wheel bolts or wheel nuts.

• When installing a tire, only use wheel nuts that have been specifically designed for that

wheel.

•Check for any cracks or deformations in the bolt screws, nut threads or bolt holes

of the wheel.

• Never install a wheel with excessive rust. Light surface rust should be cleaned off of

the wheel and mounting surface.

• Never install a tire with excessive tread wear.

FUEL SERVICE:

Locate the portable funnel that comes with the vehicle. The fuel filler funnel is located in

the spare wheel storage tray. Carefully insert the funnel into the capless fuel system to

add fuel.

Note: Lincoln recommends adding a minimum of 1.3 gal of fuel to restart the engine. If

the vehicle is out of fuel and on a steep slope, more fuel may be required.

FUEL SHUTOFF:

In the event of a moderate to severe collision, this vehicle includes a fuel pump shutoff

feature that stops the flow of fuel to the engine. Not every impact will cause a shutoff.

Should the vehicle shut off after a collision, you may restart the vehicle. For vehicles

equipped with a key system:

1. Switch off the ignition.

2. Switch on the ignition.

3. Repeat steps 1 and 2 to re-enable the fuel pump.

For vehicles equipped with a push button start system:

1. Press the START/STOP button to switch off the ignition.

2. Press the brake pedal and press the START/STOP button to switch on the ignition.

3. Remove your foot from the brake pedal and press the START/STOP button to switch

off the ignition.

4. You can either attempt to start the engine by pressing the brake pedal and the

START/STOP button, or switch on the ignition only by pressing the START/STOP

button without pressing the brake pedal. Both ways re-enable the fuel system.

JUMP-STARTING:

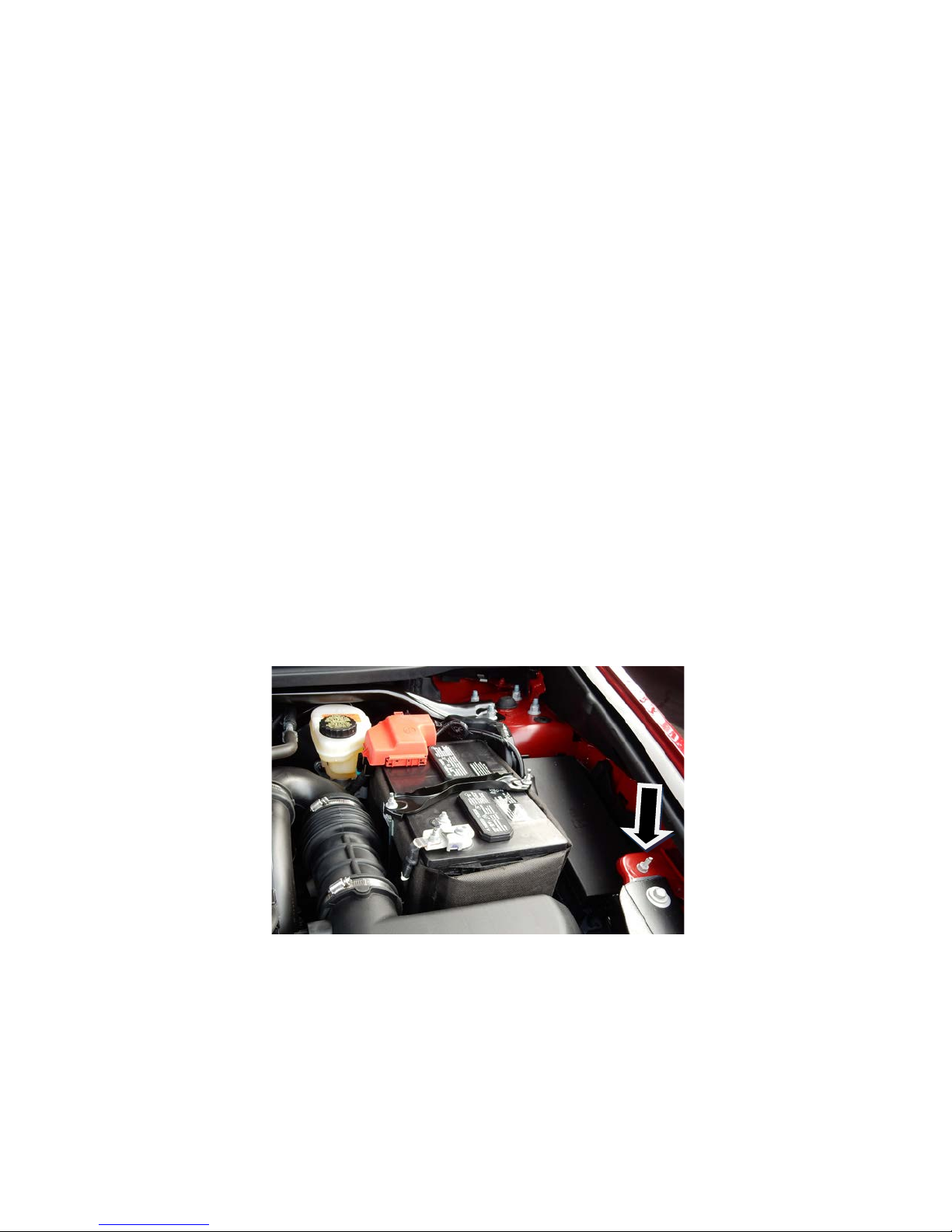

The battery is located on the driver’s side of the engine compartment.

Ground Location

•Follow all normal jump-starting precautions as outlined in other AAA/CAA

publications and those provided by the manufacturer.

•Ensure that all electrical accessories and the ignition switch are turned OFF and

the ignition key is removed from the ignition before connecting jumper cables or

a jumper box to the discharged vehicle

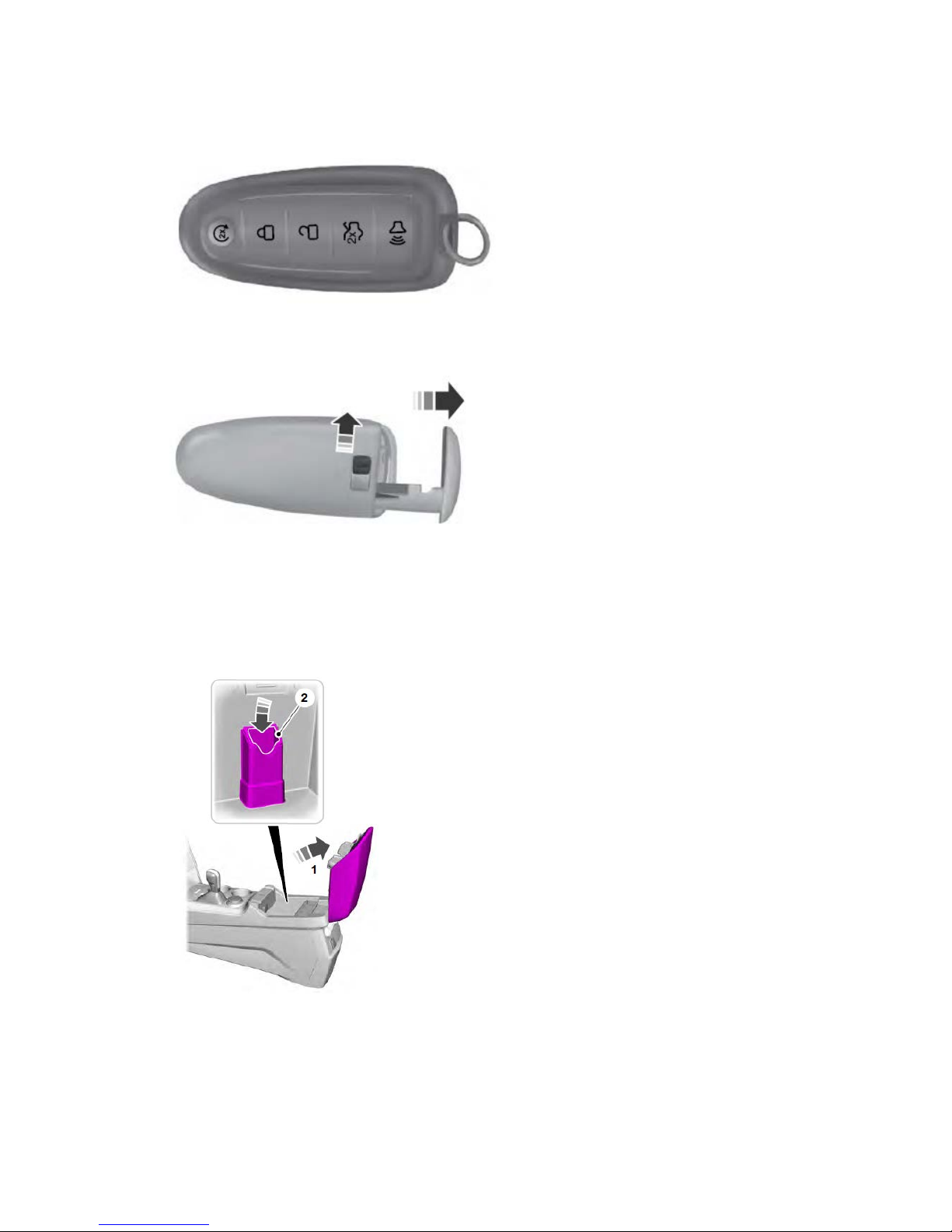

ELECTRONIC KEY:

The intelligent access keys operate the power locks and the remote start system.

The key must be in the vehicle to activate the push-button start system.

Removable Key Blade: The intelligent access key also contains a removable mechanical

key blade that you can use to lock or unlock the driver door.

If the key is not detected try the following:

1. Open the floor console storage compartment lid.

2. Insert the passive key into the backup slot.

3. With the passive key in this position, you can use the push button ignition switch to

switch the ignition on and start the vehicle.
