Lincoln Electric HELIX T55 Manuel utilisateur

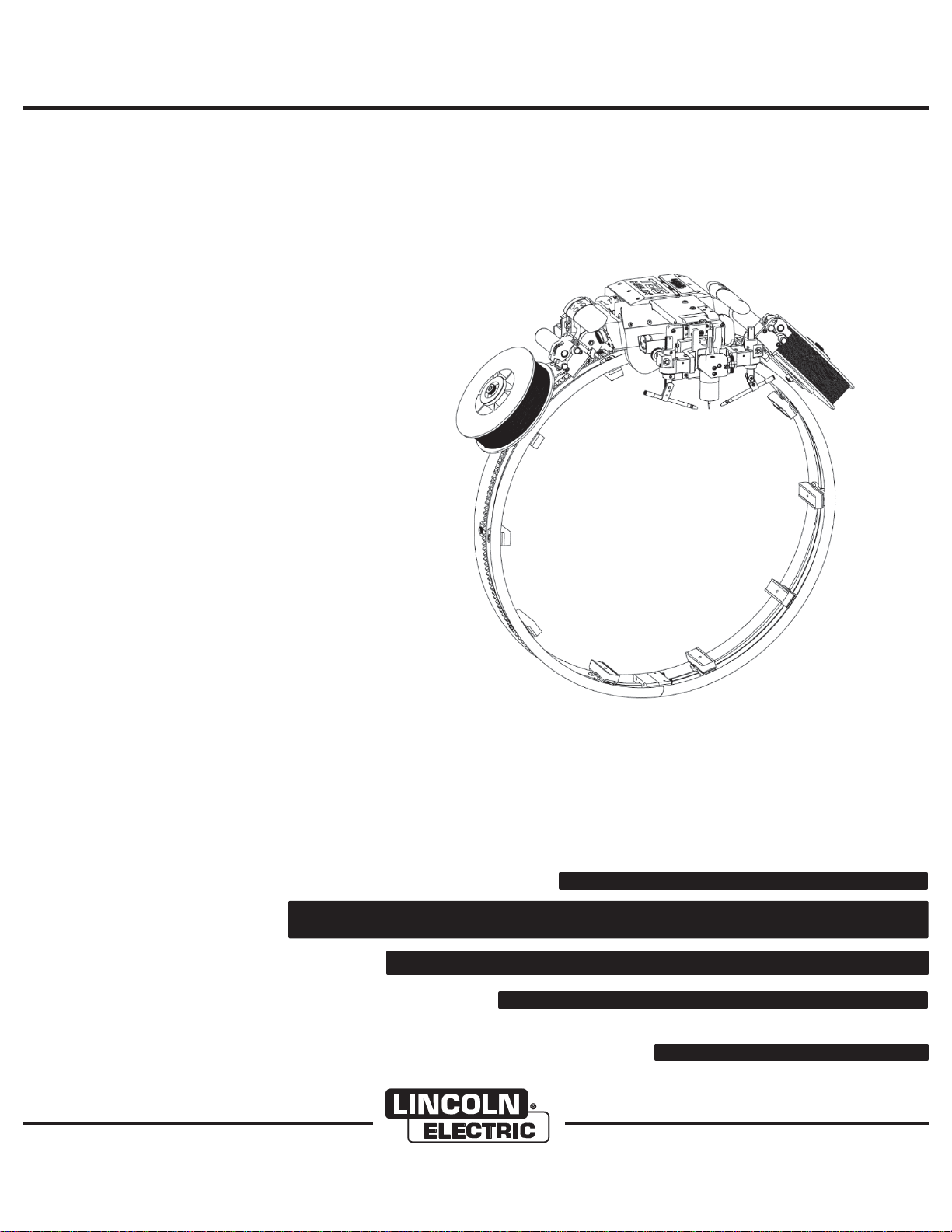

HELIX™ T55 WELD HEAD

For use with machines having code Numbers: 70301 & 70300

World’s Leader in Welding and Cutting Products

Sales and Service through Subsidiaries and Distributors Worldwide

Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.418.8100 FAX:216.486.1751 WEB Site: www.lincolnelectric.com

OPERATOR’S MANUAL

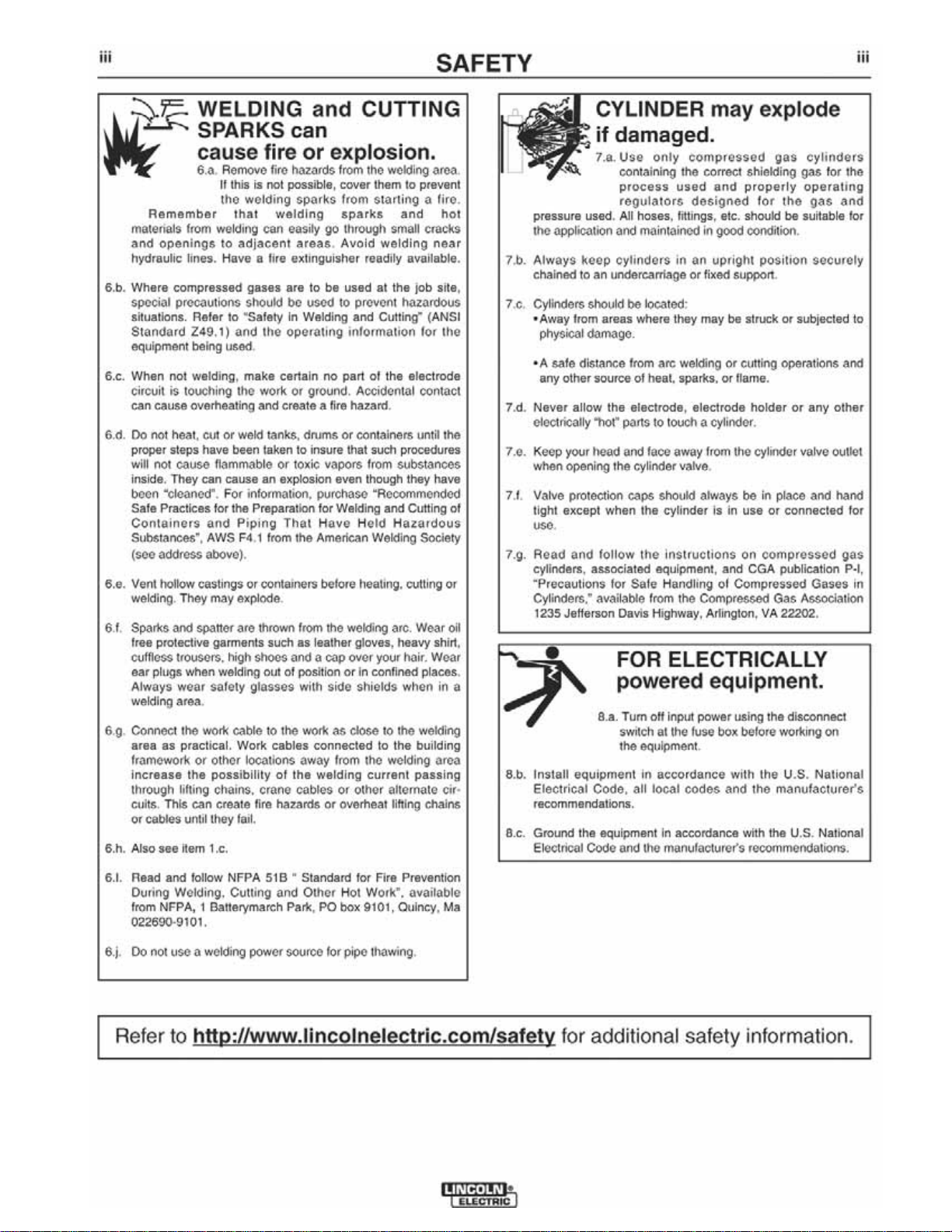

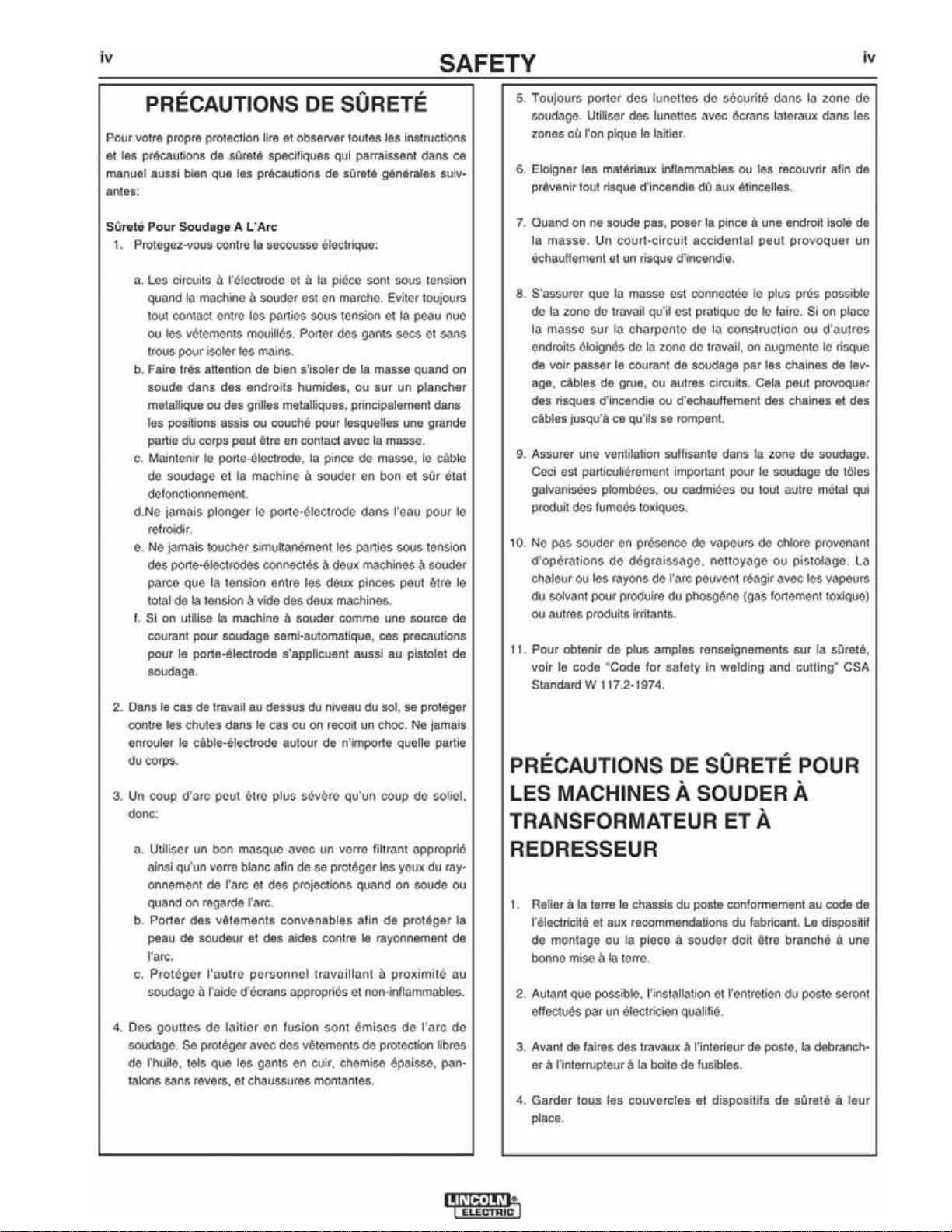

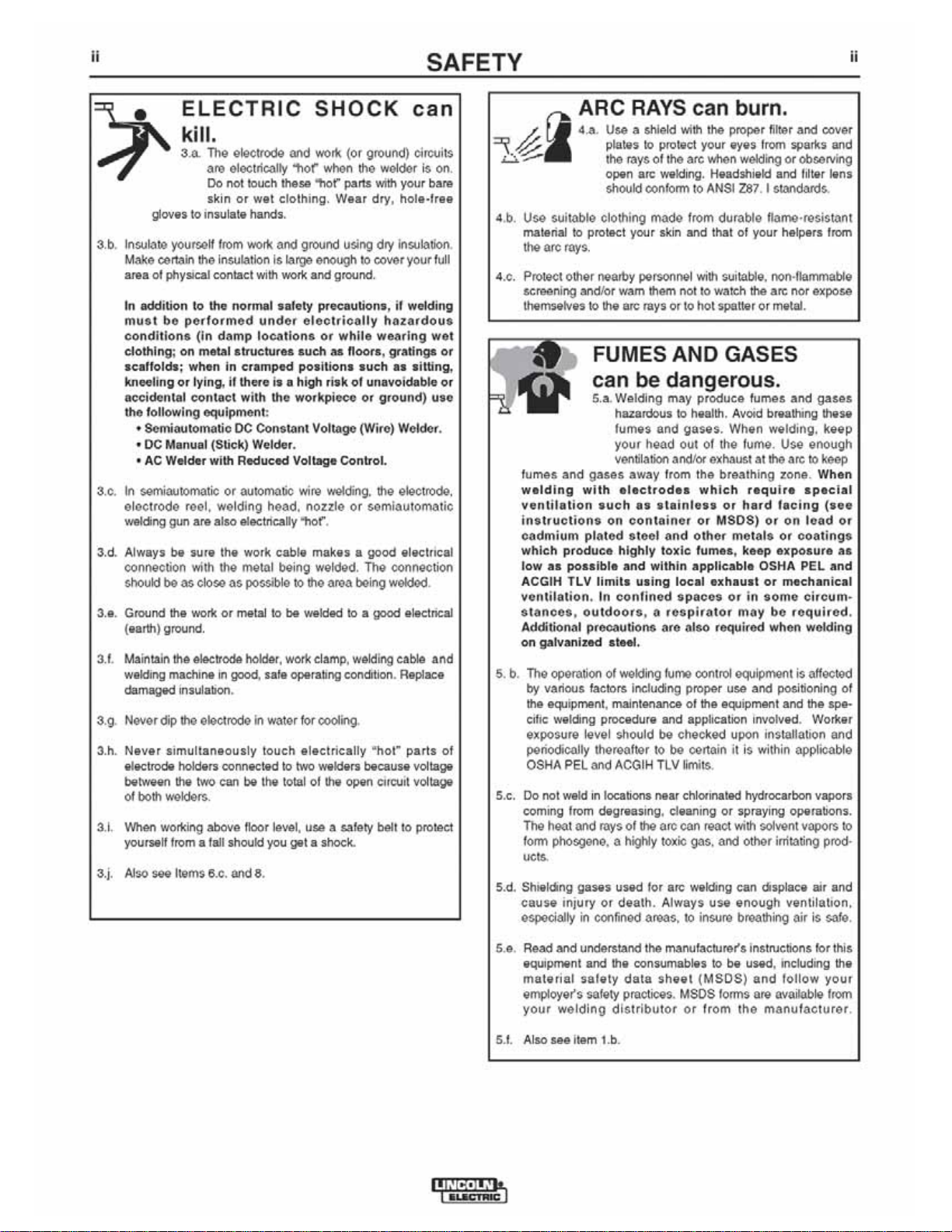

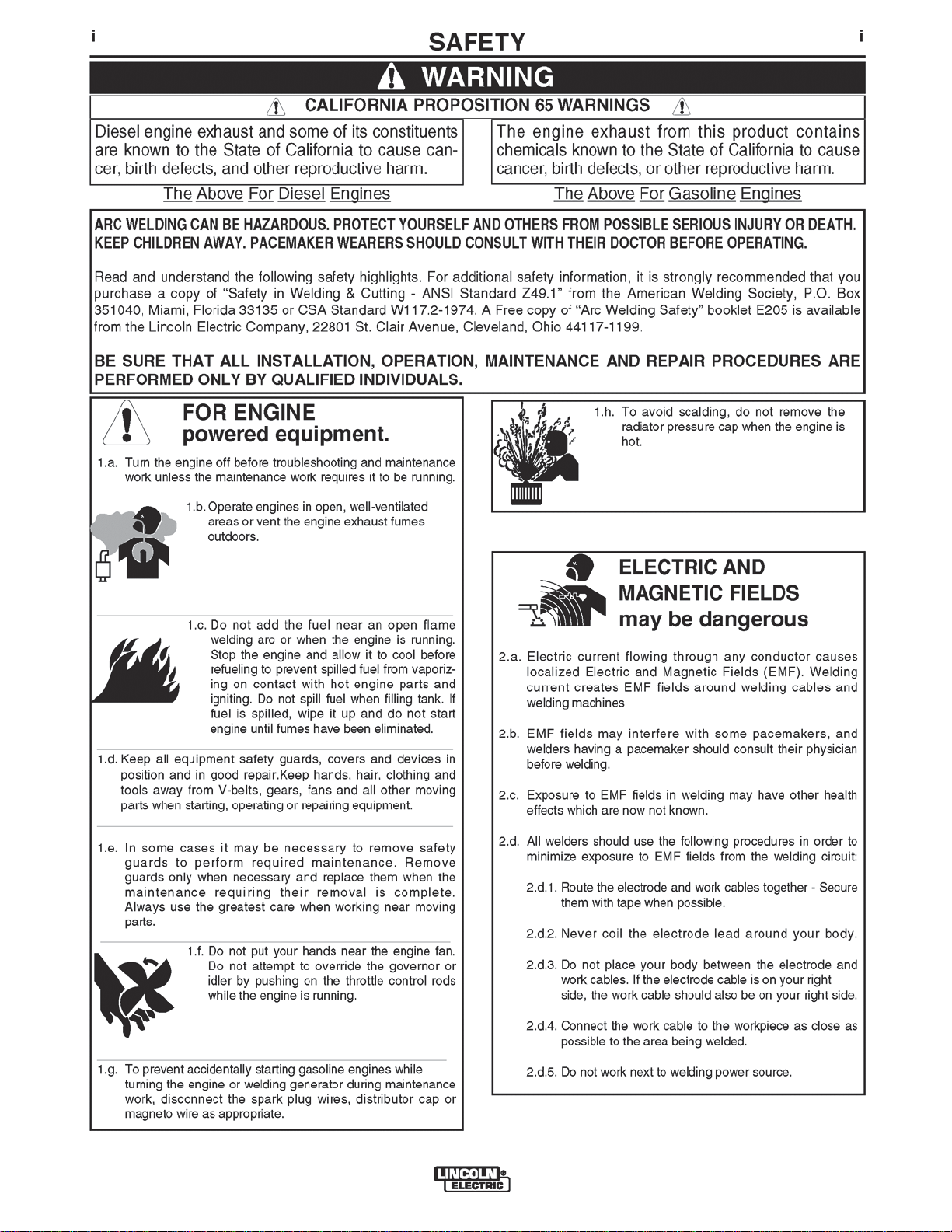

Safety Depends on You

Lincoln arc welding and cutting

equipment is designed and built

with safety in mind. However,

your overall safety can be

increased by proper installation

… and thoughtful operation on

your part.

DO NOT INSTALL,

OPERATE OR REPAIR THIS

EQUIPMENT WITHOUT READ-

ING THIS MANUAL,

AND

THE

SAETY PRECAUTIONS CON-

TAINED THROUGHOUT.

And,

most importantly, think before

you act and be careful.

IM6112

October, 2012

•••

•

TABLE OF CONTENTS

TABLE OF CONTENTS ................................. i

TABLE OF FIGURES.....................................ii

BASIC INFORMATION................................. 1

Toolbox........................................................ 1

Technical Specifications.............................. 2

Track Ring ................................................... 3

Shoe Placement........................................ 4

Shoe Extension ........................................ 4

Track Ring Installation ............................ 5

Weld Head................................................... 8

Weld Head Installation ............................ 8

Torch Setup.................................................. 9

Fillet Weld Angle .................................... 9

Lead Lag Angle ....................................... 9

Torch Stick Out........................................ 9

Tungsten Stick Out................................ 10

Torch Height.......................................... 10

Wire Feeder Angle................................. 11

Verify Drive Rolls ..................................... 12

Change Upper Drive Roll...................... 12

Change Lower Drive Roll...................... 13

Wire Feed Setup ........................................ 14

Wire Spool Installation.......................... 14

Feeding the Wire.................................... 14

Adjustments for Radial Clearance......... 15

OPERATION................................................. 16

MAINTENANCE.......................................... 17

Preventative Maintenance Schedule.......... 17

Track Ring ................................................. 17

Monthly Maintenance............................ 17

Quarterly Maintenance .......................... 17

Annual Maintenance.............................. 17

T55 Weld Head..........................................17

Daily Maintenance.................................17

Weekly Maintenance .............................17

Monthly Maintenance............................17

Quarterly Maintenance...........................17

PARTS LIST..................................................20

Index ..............................................................37

TABLE OF CONTENTS

TABLE OF FIGURES

Figure 1 –TRACK RING................................ 3

Figure 2 –SHOE PLACEMENT .................... 4

Figure 3 –SHOE EXTENSION...................... 5

Figure 4 –ASSEMBLY STEP 1..................... 5

Figure 5 –ASSEMBLY STEP 2..................... 6

Figure 6 –ASSEMBLY STEP 3..................... 6

Figure 7 –TRACK DISTANCE...................... 6

Figure 8 –TRACK PLACEMENT ................. 7

Figure 9 –WELD HEAD ................................ 8

Figure 10 –LATCH AND KNOB................... 8

Figure 11 –FILLET WELD ANGLE ............. 9

Figure 12 –FILLET WELD ANGLE 2 .......... 9

Figure 13 –TORCH LEAD/LAG ................... 9

Figure 14 –LEAD/LAG ADJUSTMENT....... 9

Figure 15 –TORCH STICK-OUT ................ 10

Figure 16 –BACK CAP................................ 10

Figure 17 –SLIDE CLAMP BOLTS............ 10

Figure 18 –TORCH HEAD REMOVAL ..... 10

Figure 19 –AVC PLATE.............................. 11

Figure 20 –WIRE GUIDE HEIGHT ............ 11

Figure 21 –WIRE GUIDE ADJUST ............ 11

Figure 22 –LOWER DRIVE ROLL............. 12

Figure 23 –TENSION KNOB ...................... 12

Figure 24 –SET SCREW.............................. 12

Figure 25 –DRIVE ROLL SHAFT............... 12

Figure 26 –ROLLER SET SCREW 2 .......... 13

Figure 27 –MOTOR KEY ............................ 13

Figure 28 –HUB NUT .................................. 14

Figure 29 –THUMB NUT ............................ 14

Figure 30 –WIRE 1 INSTALLATION......... 14

Figure 31 –WIRE 2 INSTALLATION......... 14

Figure 32 –INLET GUIDE........................... 15

Figure 33 –THUMB SCREW....................... 15

Figure 34 –WIRE ARMS ADJUSTED........ 15

Helix™T55

1BASIC INFORMATION 1

BASIC INFORMATION

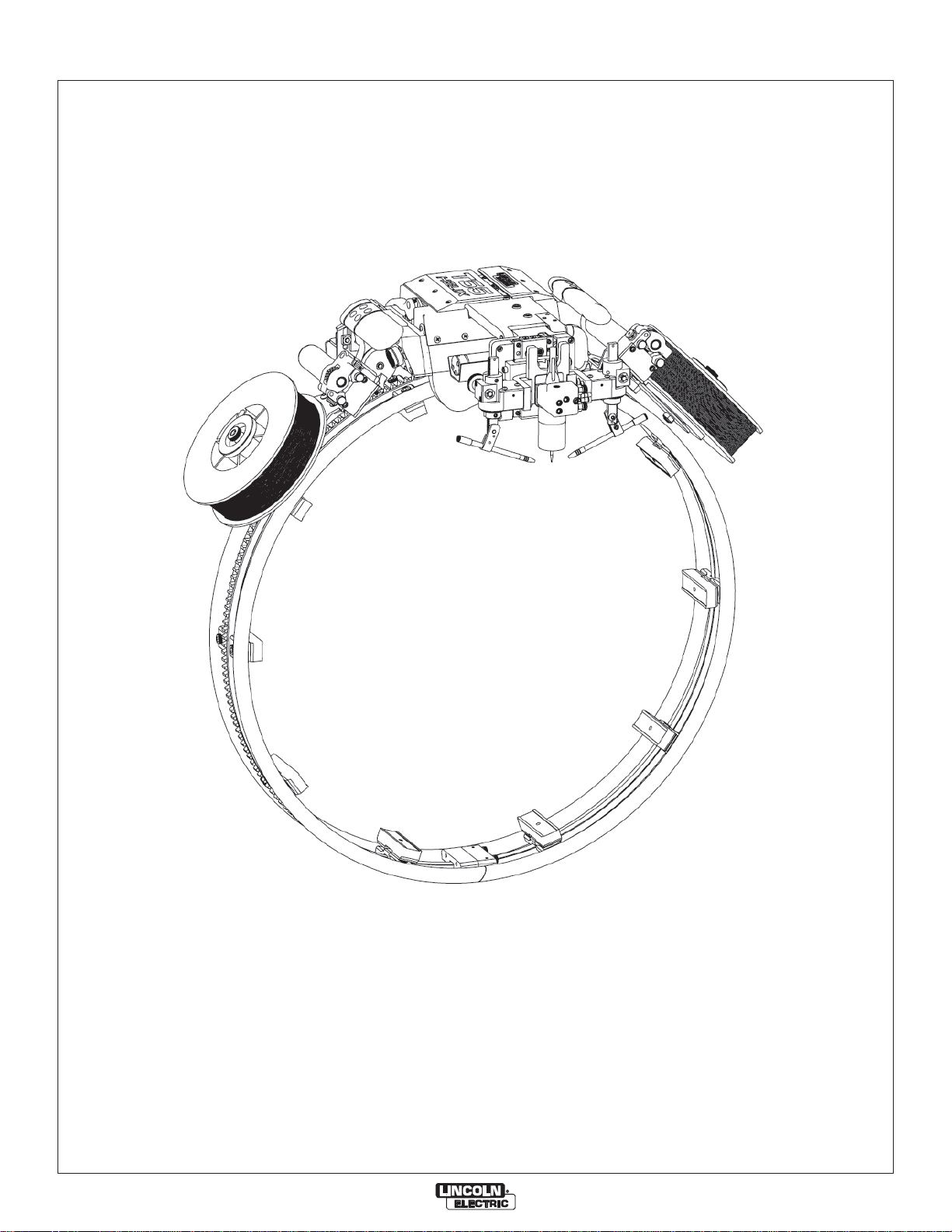

The T55 Helix™ is a precision, gear driven weld

head designed for GTAW (TIG) welding. Paired

with the specifically designed steel and chromoly

track ring, the Helix™ provides strong, reliable

welds for a rugged and stable welding solution.

The T55 Helix™ tractor is controlled by a handheld

controller and AVC. It features an easy release

clutch which disengages the drive roll allowing free

movement along the track, without removing the

unit from the track ring. A heavy duty Nylon cover-

ing protects power, control, water and gas cables

from wear and tear; and a high temperature Teflon

coated sleeve protects the area closest to the weld

head.

The standard T55 weighs in at 35 lbs., without the

wire arms, and has two handles for easy carrying.

Two wire arms come standard with the option to

remove one of the arms for added versatility. The

Weld Head has 1”of oscillation stroke allowing the

operator flexibility when installing the Weld Head

and Track Ring. 3. 5” of AVC stroke allows the op-

erator to weld in deep groove applications. Torch

and Arc orientation can be adjusted 140° to adjust

for numerous weld parameters. Precision motors

allow for travel speeds from 0.5 IPM to 20 IPM.

The track ring is a low profile heavy duty track ring

stabilized at even intervals with cross braces.

Mounting shoes, containing spring cushions rated

to 800lb, attach to the cross braces and allow for

the work surface’s heat expansion which stops

binding and ring distortion. The geared system of

the track eliminates slippage and the angled section

interface prevents tractor jump.

The T55 Helix™ comes fully assembled in a rugged

waterproof case along with a gas line, water in and

water out, power cable, control cable, and a Helix™

tool box.

Toolbox

Included with the Helix™ is a toolbox of common

tools and consumables. These tools are for general

operation and maintenance; more in-depth mainte-

nance may require additional tools.

Tools

60” Flexible cloth Measuring tape

7/64” Hex Key (wire guide clamp)

1/8” Hex Key (wire guide angle adjust)

3/16” Hex Key (Oscillation plate, Lead/Lag Angle)

1/4” Hex Key (track shoes)

5/16” Hex Key (Weld Angle)

5/32” Hex Key (track clamp bolts, barrel clamp,

torch slide)

Wire Cutters

Consumables

Pyrex Cup (2)

1/8 Tungsten adapter (2)

Collet Body

1/8 Collet (2)

1/8 Tungsten (3)

Back Cap Long

Back Cap Medium

Optional Consumables not included

5/32 Tungsten Adapter

5/32 Collet

5/32 Tungsten
