Lilliput 668GL-70NP/H/Y Manuel utilisateur

COLOR TFT LCD

MONITOR

Manual

DEAR CUSTOMERS

Thank you for purchasing the liquid crystal display monitor. This product employs

new integrate circuits and high quality TFT LCD modules. It is putting out with its

low power consumption, emits no radiation, and other advantage characteristics. This

product is shaped with modern style and is easy to be carried with. The color TFT

LCD is the most suitable display for VGA,VCD, DVD and GPS system for motorcars

and ships .It also can be used in the office ,in flat ,at home also in other suitable

position. You will certainly benefit from this monitor in lots of ways, to name some of

them: convenience, safety, space-saving.

We hope that you will have the enjoyment of your new mini color TFT LCD.

To ensure the best use of the unit, please read this handbook carefully beforehand

CAUTION

1. Please use the adapter attached in the accessory.

2. Do not expose this product to direct sunlight, heat or humid conditions.

3. Keep away from strong light while using this product so as to obtain the

clearest and the most colorful picture.

4. Please avoid heavy impact or drop onto the ground.

5. Do not use chemical solutions to clean this unit. Please simply wipe with a

clean soft cloth to keep the brightness of the surface.

6. If the product does not operate normally when the instructions are followed.

Adjust only those controls that are covered by the instructions. Improper

adjustment of other controls may result in damage and will often require

extensive work of a qualified technician.

Please unplug the power if non-use for a long-term, or a thunder and happens.

CONTENTS

1. PRODUCT DESCRIPTION --------------------

2. REMOTE CONTROL----------------------------

3. BATTERY INSTALLATION INSTRUCTION

4. MENU OPERATION ----------------------------

IN YPbPr MODE----------------------------------

IN HDMI MODE----------------------------------

IN AV MODE--------------------------------------

5. ACCESSORIES -----------------------------------

6. PARAMETER -------------------------------------

7. TROUBLESHOOTING --------------------------

8. REMARK-------------------------------------------

PRODUCT DESCRIPTION

1．Infrared receiving window

2．Battery indicator light

3．-：Volume down or to adjust the value of menu setting function

4．+：Volume up or to adjust the value of menu setting function

5．MENU：To activate OSD menu

（

（（

（PS: Long press "MENU" button to zoom in or out picture

automatically when receiving HDMI signal.)

6．<：Selection key, to select item on the OSD or push the key in PC mode

directly to adjust phase automatically

7．>：To select function on OSD or to adjust the brightness directly under 6

classes

8．A/V：HDMI、YPbPr、VIDEO1 and VIDEO2 switch

9．POWER：Power on/off

10．Sun shade

11．Mounting socket (right side)

12．Y signal input

13．Pb signal input

14．Pr signal input

15．AV1 signal input

16．AV2 signal input

17．AUDIO signal input

18．Battery control switch

19．DC input

20．HDMI signal input

21．Battery slot

22．Mounting socket (bottom)

REMOTE CONTROL

1．MUTE

2．Display Mode：HDMI、YPbPr、VIDEO1、VIDEO2 switch

3．：Left move，Volume down or to adjust the value of setting function

4．：Down move, to adjust phase automatically under PC mode

5．POWER ON/OFF

6．：UP move, to adjust the brightness directly under 6 classes

7．MENU

8．：Right move, Volume up or to adjust the value of setting function

BATTERY INSTALLATION INSTRUCTION

1．

Open battery cover

2．

Battery

3．

Please plug power line into main board’s battery socket.

ower line

4．

Put the battery into slot when check the electricity.

5．

Lock battery cover up to finish installation.

Battery control

switch

PS: please switch battery control off if non-use for a long-term.

MENU OPERATION

After connected correctly and then Power on, Press “MENU” on the unit or by remote

control to show MENU.

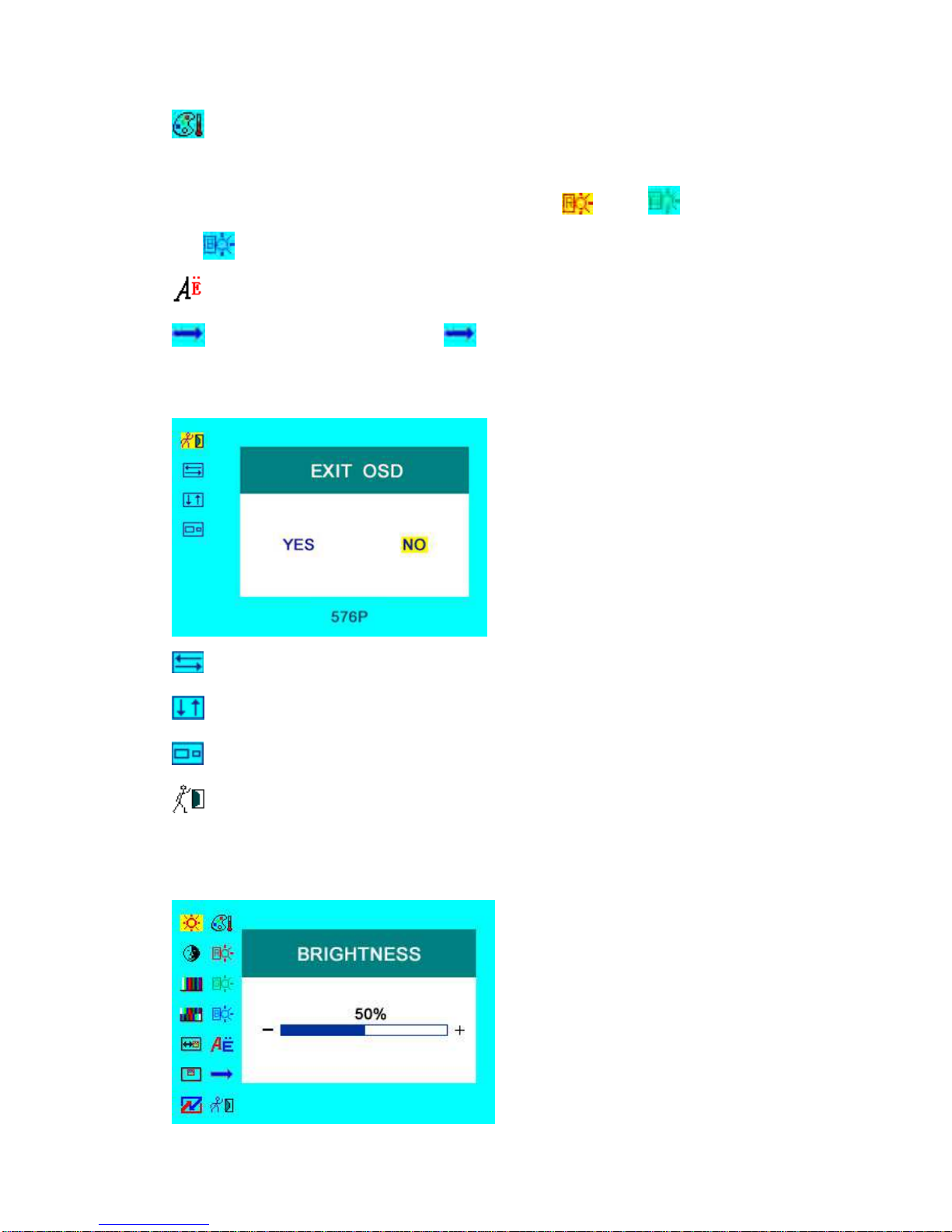

IN YPbPr MODE

Press “</>”on the unit or “ / ” on the remote control to select item, eg. ,

and it will be highlighted; and then press +/ - of the unit or / to adjust the

favorite values.

BRIGHTNESS: to adjust the luminance of brightness

CONTRAST：to adjust the level of contrast

SATURATION: to adjust the level of saturation

TINT:

to adjust the hue of image

OSD H-POSITION ADJUSTMENT: to adjust the OSD move in horizontal

direction

OSD V-POSITION ADJUSTMENT: to adjust the OSD move in vertical

direction

RESET: you can reset adjustment of the unit when click “YES”

COLOR TEMPERATURE：choose color and temperature at first, such as: 6500

K, 7500

K or 9300

Only if under “USER” mode, can adjust RED, GREEN and

BLUE to meet the color value you need.

LANGUAGE：There are 2 languages provided for choice, English and Japanese

MISCELLANEOUS：to select to enter next page

As follows:

OSD MISCELLANEOUS OFYPBPR MODE

picture over-turn to left or right

picture over-turn to up or down

mode shift between 4:3 and 16:9

EXIT OSD: select “YES” to exit

IN HDMI MODE
