Lilliput 667GL Manuel utilisateur

COLOR TFT LCD MONITOR

User Manual

General Information

Thank you for choosing our TFT LCD (liquid crystal display) monitor. This product

employs integrate circuits, low power consumption, and no radiation emission. It has

fashion designed appearance and good portability. The TFT LCD screen is the most

suitable display for VGA, VCD, DVD, and GPS on vehicles or vessels. Moreover,

this product is able to be used in office, at home, or other proper positions. Please

enjoy the benefits of convenience, safety, and space-saving from this TFT LCD

monitor in different ways.

To ensure the best use of this product, please read this manual carefully

beforehand.

CAUTIONS

1. Please use the adapter attached in the accessories.

2. Please do NOT expose this product to direct sunlight, heat, or humid

conditions.

3. Please keep away from strong light while using this product in order to obtain

the clearest and the most colorful pictures.

4. Please avoid heavy impact or drop onto the ground.

5. Please do NOT use chemical solutions to clean this product. Please wipe with a

clean soft cloth to maintain the brightness of the surface.

6. Please follow the instructions and trouble-shootings to adjust the product. Other

improper adjustment may result in damage. Any further adjustment must be

performed or conducted by a qualified technician.

7. Please unplug the power and remove the battery if long-term no-use, or thunder

weather.

YP-01110801

Table of Contents

1. PRODUCT DESCRIPTION -----------------------------------------

2. REMOTE CONTROL-------------------------------------------------

3. POWER SOURCE ----------------------------------------------------

4. BATTERY INSTRUCTION-----------------------------------------

5. SETTING MENU -------------------------------------------------

6. ACCESSORIES --------------------------------------------------------

7. PARAMETER ----------------------------------------------------------

8. TROUBLESHOOTING ----------------------------------------------

9. REMARK---------------------------------------------------------------

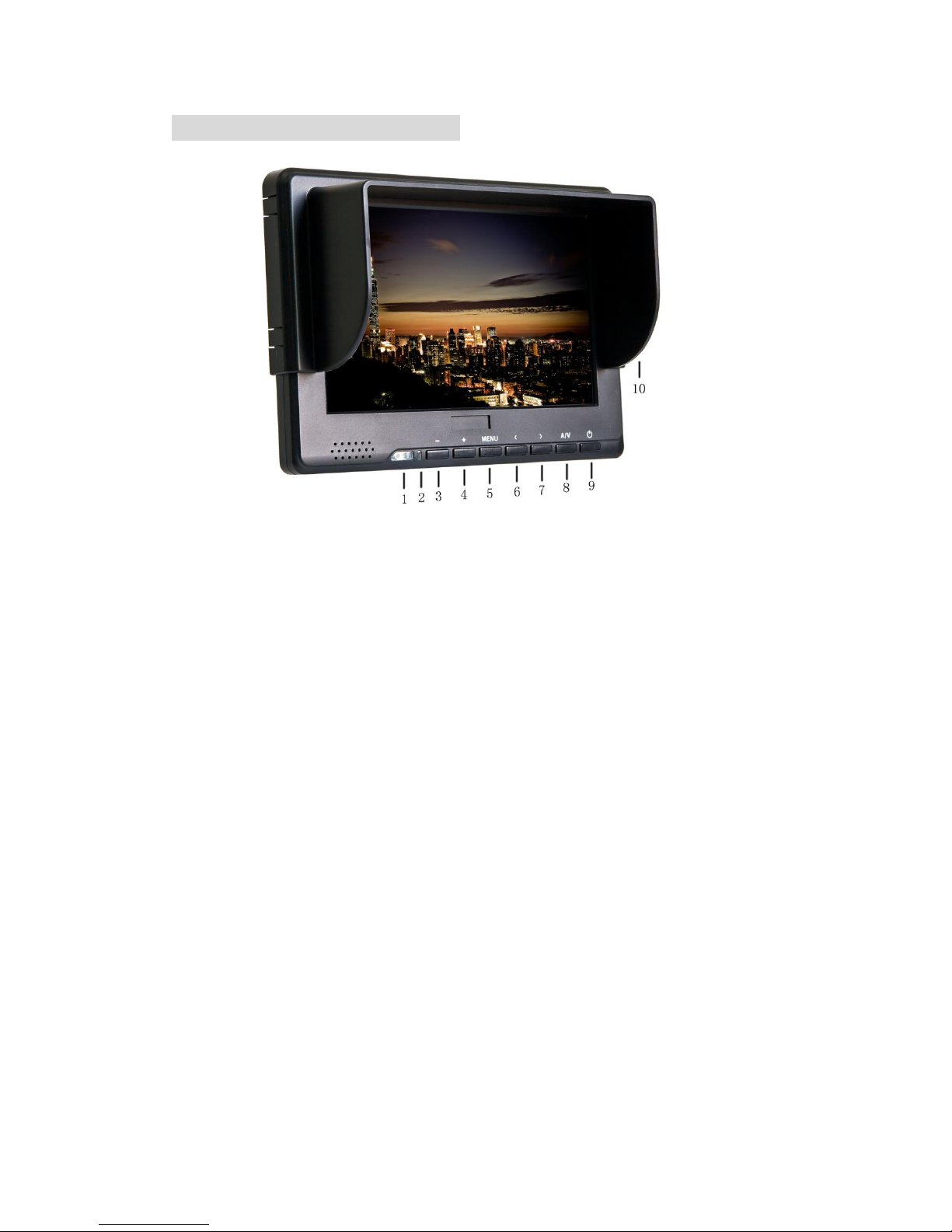

1. PRODUCT DESCRIPTION

1．Infrared signal receiver (work with remote control)

2．Battery indicator light: red while standby; green while working

3．–: Volume down, or value down while using menu setting functions

4．+: Volume up, or value up while using menu setting functions

5．MENU：To activate OSD (on-screen display) menu; Long-press to switch

overscan / underscan pictures when receiving HDMI or SDI signal.

6．<: To select items on OSD menu; Press to switch the image monochrome

(red、green、blue、monochromatic and color); Long-press to achieve

full-screen display

7．>: To select items on OSD menu; Press to adjust brightness among 6

levels .Long-press for 5-6 seconds to achieve 5D camera mode under

HDMI function.

8．A/V: circularly switch among HDMI, YPbPr, Video 1, Video 2, and SDI

(optional).

9．Power ON/OFF switch. （Reboot to restore normal screen mode）

10．Sun shade.

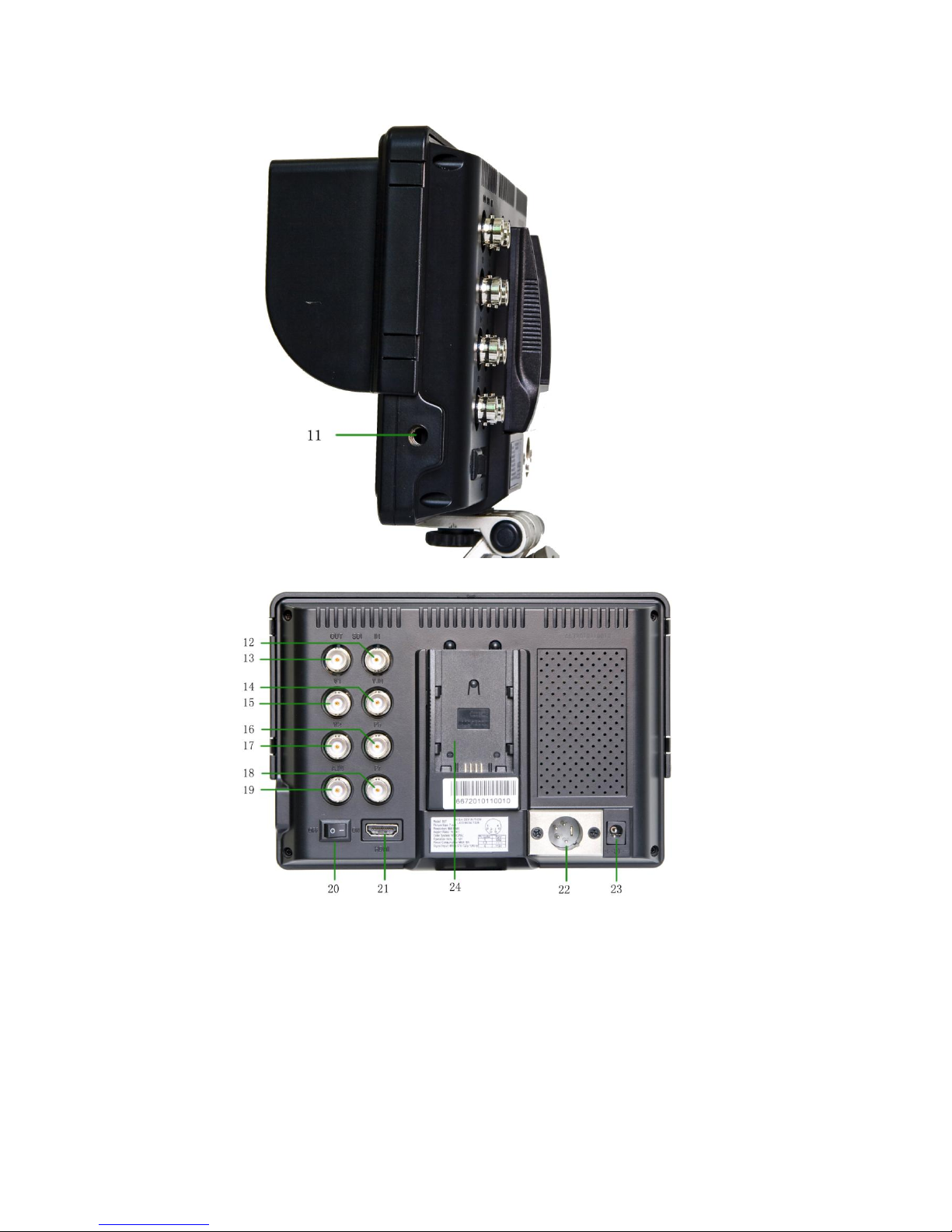

11．Mounting socket (right side)

12．SDI (Serial Digital Interface) signal input

13．SDI signal output

14．Y signal input

15．Video 1 signal input

16．Pb signal input

17．Video 2 signal inpu

18．Pr signal input

19．Audio signal input

20．Battery power on/off switch

21．HDMI (High Definition Multimedia Interface) signal input

22．4-pin XLR DC power input

23．DC power input

24．Battery slot

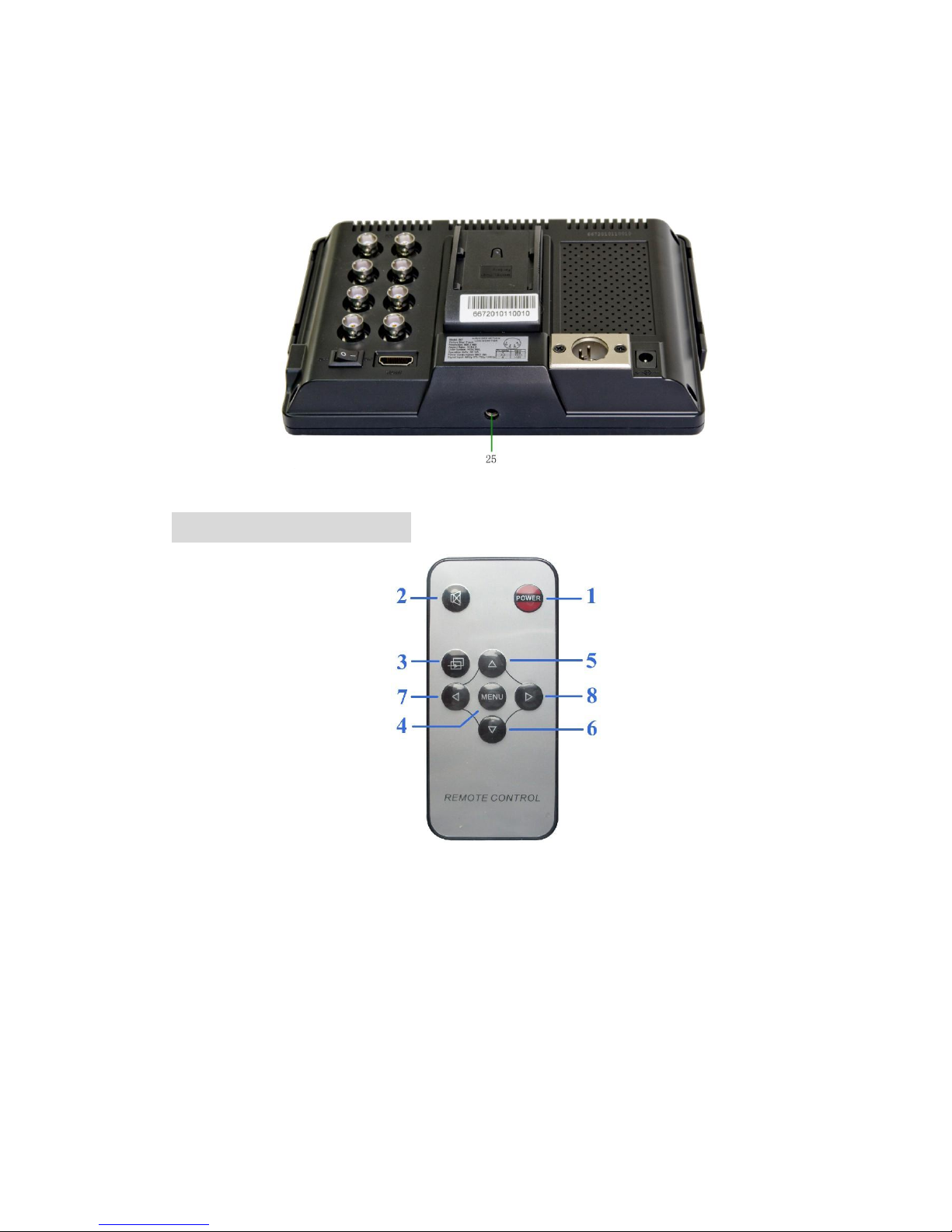

25．Mounting socket (bottom)

2. REMOTE CONTROL

1．Power

2．Mute button

3．Display switch among HDMI、YPbPr、Video 1, Video 2, and SDI

(optional, must with necessary equipment) circularly

4．MENU: enter menu function setting

5．▲: Up move; or change brightness among 6 levels

6．▼: Down move

7．◄: Left move; or volume down; or increase the function values in

menu settings

8．►: Right move; or volume up; or decrease the function values in

menu settings

3. POWER SOURCES

This product package comes with a 12V DC adapter plug in to the DC power

input (See PRODUCT DESCRIPTION 23).

Another option of power source is using batteries. The product package comes

with two types of batter slots (See BATTERY INSTRUCTION). The recommended

batteries are Panasonic DU21 and Sony QM91D.

Also, this product is capable to use the power from your camcorder via the 4-pin

XLR interface (See PRODUCT DESCRIPTION 22).

4. BATTERY INSTRUCTION

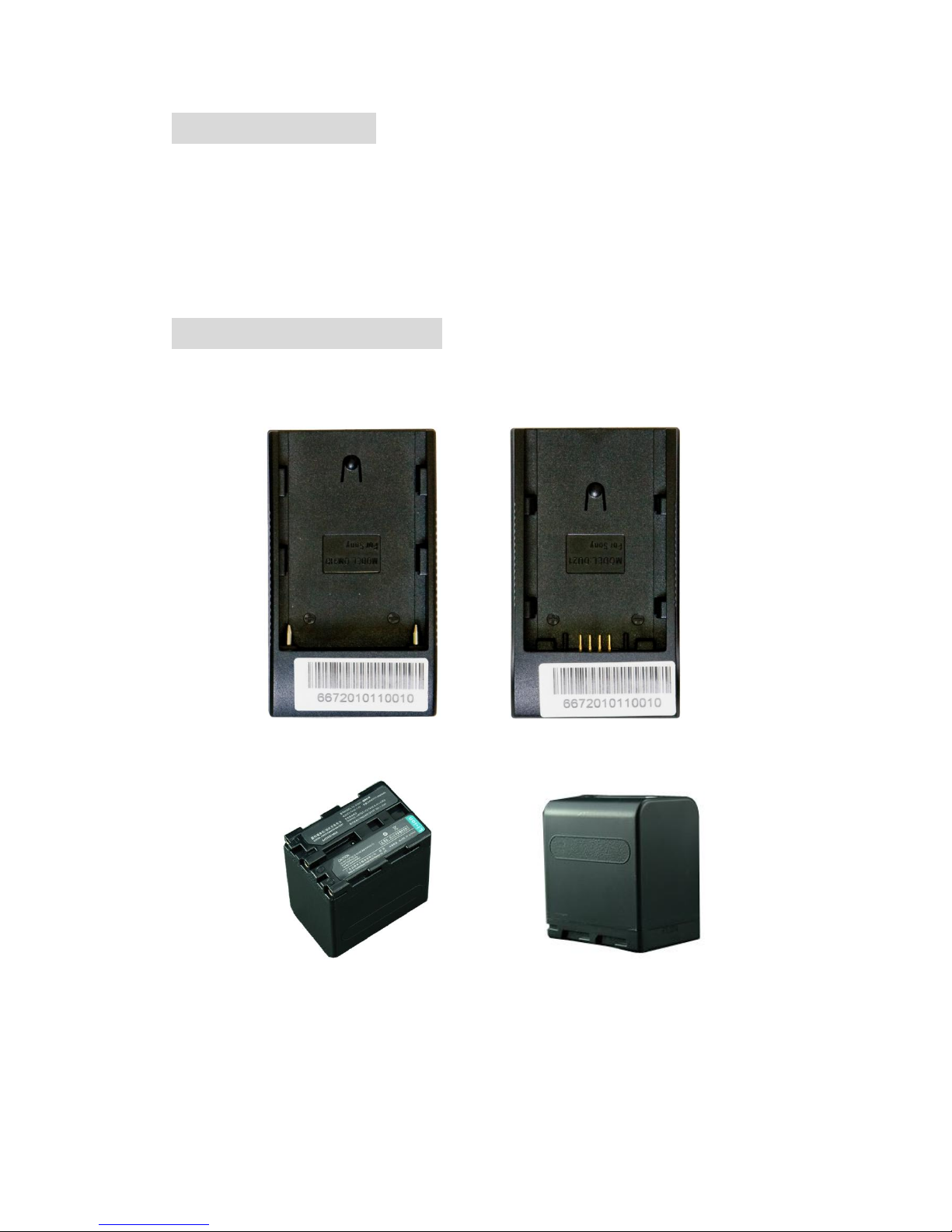

1．Battery slot and battery

The included two battery slots available for two types of batteries (See the

pictures below).

Picture: two types of battery slots

Picture: two types of batteries corresponding to the upper two slots

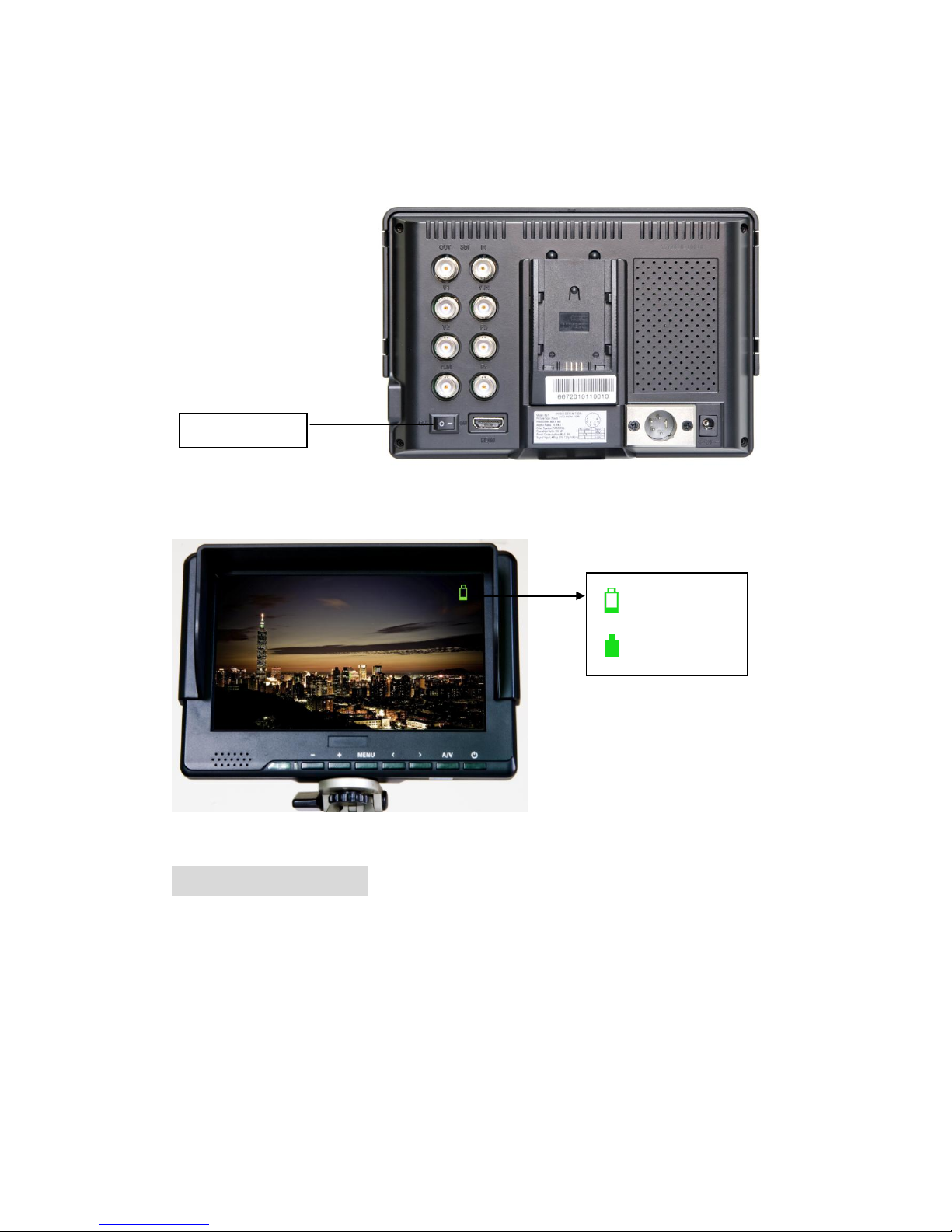

2．Battery power control

The battery switch controls whether to use battery power or not. Keep off while not

using battery.

Suggestion: Better take off the battery for long-time not using this product.

2．Battery volume

An icon of battery volume displays on the screen while using battery as power source.

5. SETTING MENU

Before setting the menu functions, please make sure the device is connected

correctly.

When power on, press MENU on the device (See PRODUCT

DESCRIPTION 5) or on the remote control (See REMOTE CONTROL 4). The

menu of function setting will display on the screen.

Press >/< buttons on the device or ▼/▲ buttons on the remote control to

select items on the left of the display. Then press + / –buttons on the device or

►/◄buttons on the remote control to change the values.

20. Battery Switch

Battery power low

Battery power full

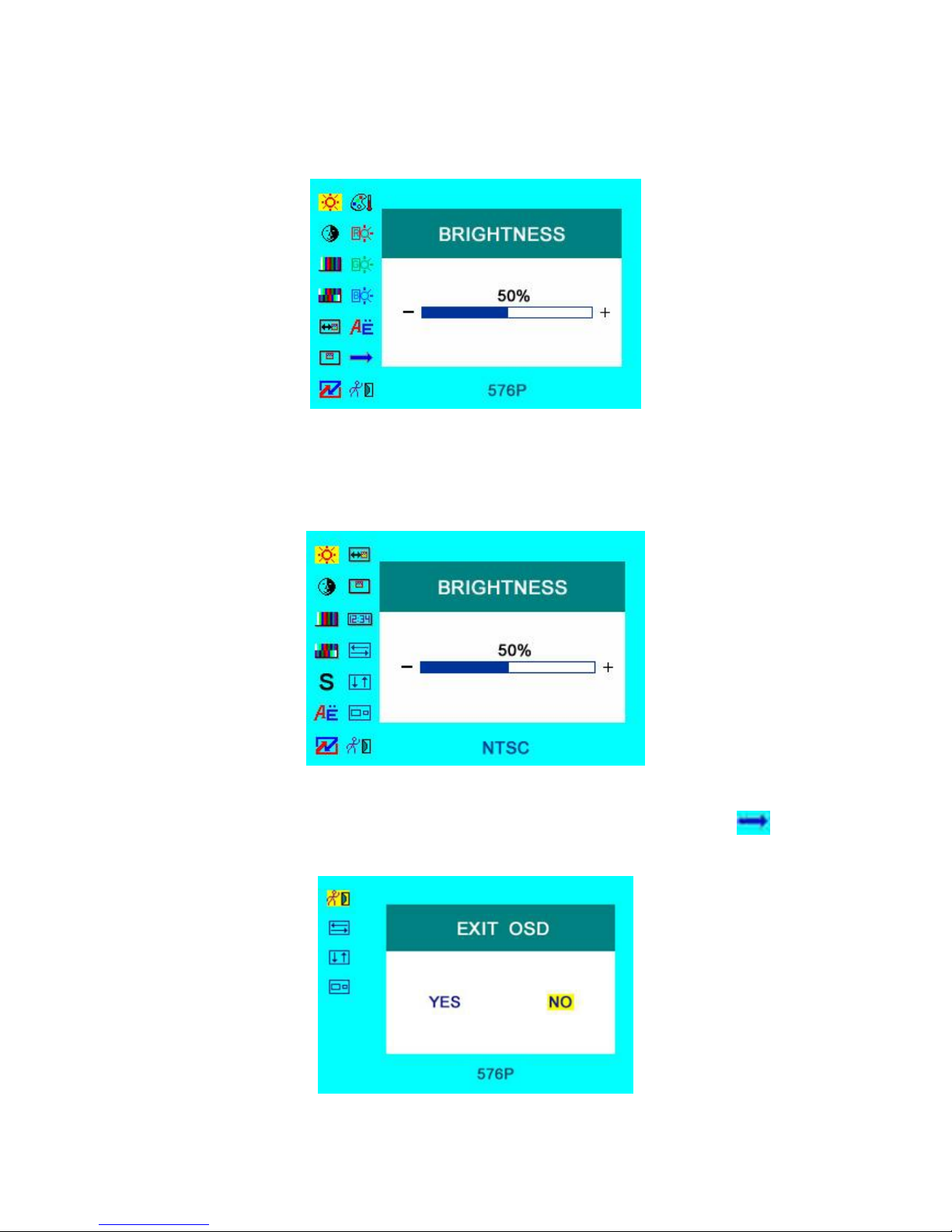

The following pictures are the setting displays of different modes.

1．OSD YPbPr/HDMI/SDI setting menu

Picture: YPbPr/HDMI/SDI setting screen

2．OSD AV setting menu (Video 1/Video 2)

The auto-detected AV format displays at the bottom of the screen.

Picture: AV setting screen

3．Miscellaneous setting menu under YPbPr/HDMI/SDI modes, enter via

item to a new page.

Picture: Miscellaneous setting screen

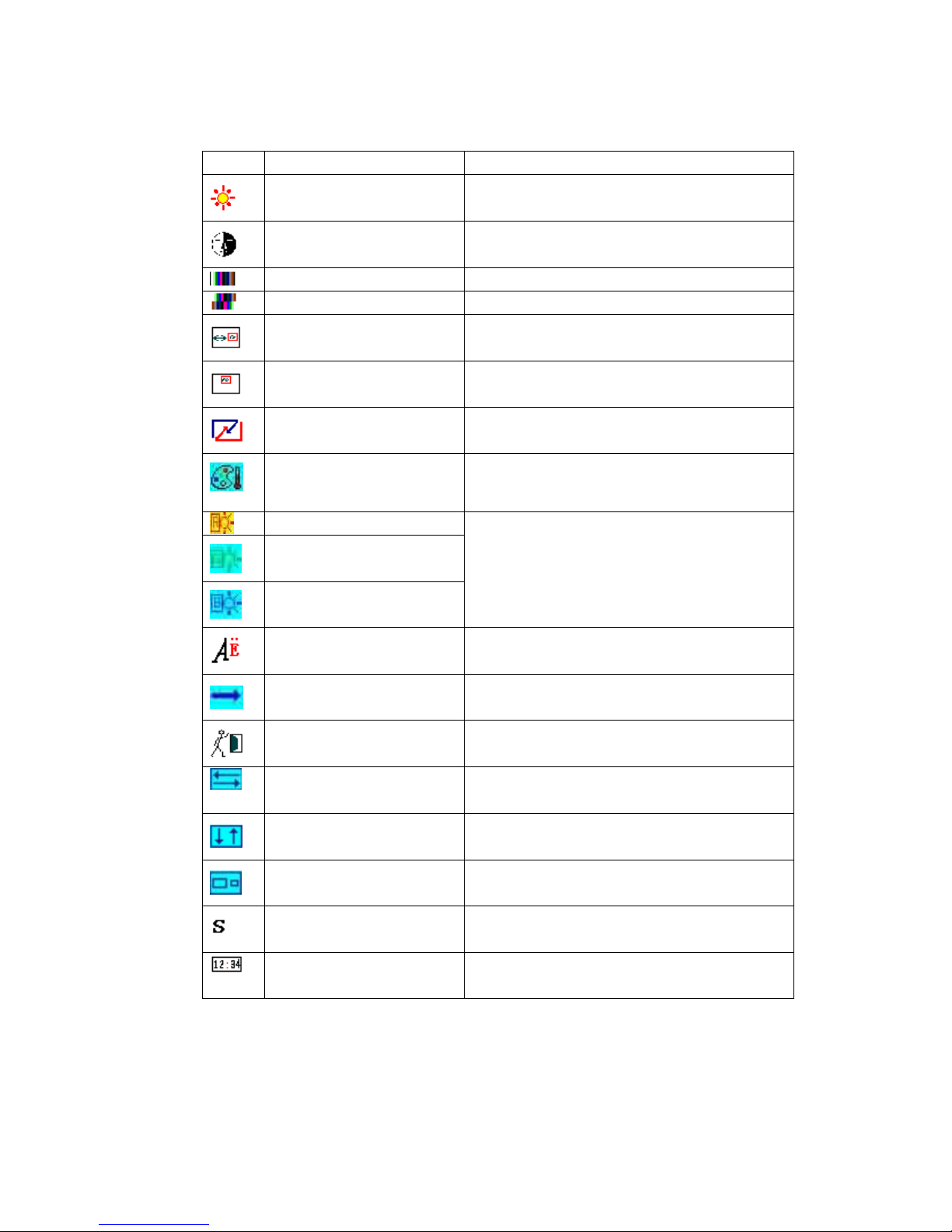

4．Icon description:

Icon

Name

Function

Brightness

Adjust the level of brightness

Contrast

Adjust the level of contrast

Saturation

Adjust the level of saturation

Tint

Adjust the tint of image

OSD H-Position

Adjust the on-screen-display horizontally

OSD V-Position

Adjust the on-screen-display vertically

Reset

Select “Yes”to reset the adjustment as

manufacture parameters.

Color temperature

Choose the color temperature. Options:

User, 6500ºK, 7500 ºK, or 9300 ºK.

Red

Note: Only can available under “User”

mode to meet the color value you need.

Green

Blue

Language

Choose language between English and

Chinese

Miscellaneous

Enter to next page (See picture below) for

miscellaneous selections

Exit OSD

Select “Exit”to quit the on-screen-display

menu.

Picture over-turn

horizontally

Horizontally over-turn picture to left or

right.

Picture over-turn

vertically

Vertically over-turn picture up or down.

Display mode

Shift display mode between 4:3 and 16:9.

Sharpness

Adjust the sharpness of picture

OSD Duration

Adjust the display duration of OSD from

5-100 seconds.
