IMPORTANT SAFETY INSTRUCTIONS:

● Please read User Guide before using this product.

● Please keep User Guide for future reference.

● Please read the cautions to prevent possible danger and loss of property.

CAUTIONS:

● Please do not place the display screen towards the ground.

● Please avoid heavy impact or drop onto the ground.

● Please do NOT use chemical solutions to clean this product. Please wipe with a clean soft cloth to

maintain the brightness of the surface.

● Please do not block any vent hole.

● Please follow the instructions and trouble-shootings to adjust the product. Other improper

adjustment may result in damage. Any further adjustment must be performed or conducted by a

qualified technician.

1. FEATURES:

● Support HDMI 2.0, 3G-SDI input and output.

● The output loop signal can support up to 4K.

● Support custom multiple waveform modes

● HDR function supports off/ST2084 300/ST 2084 1000/ST 2084 10000/HLG.

● Gamma range: 1.8-2.8.

● Support custom 3D-LUT loading.

● Support wide color gamut Native, SMPTE-C, Rec709, EBU, original.

● Comparison mode: can import color space, HDR/Gamma, camera Log to the right image.

● Support multiple color temperature modes: 6500K, 7500K, 9300K and user-defined.

● False-color (default, Spectrum, ARRI, RED).

● Aspect mark (16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG).

● Aspect Display (Full, 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG).

● Audio: Support Audio level meter, HDMI supports 8 channels.

● Time code (LTC, VITC).

● Color bar mode (100%, 75%, Off).

● Marker Color (red, green, blue, black and white).

● Peaking Color: Red, Green, Blue, White, and Black are optional.

2. PRODUCT DESCRIPTION

2-1 Front Button/ Interface

1.Earphone jack

2. Menu key: When the screen is on, press the MENU key to display the menu interface on the

screen.

Option key: In the menu interface, use the left and right keys to select the desired menu option or

option value.

Confirm key: After selecting the desired option, press the MENU key to confirm the option.

3. <: left Button.

4. >: Right Button.

5. IN/EXIT: return button for menu，long press to switch INPUT signal.

6. FN Shortcut Key.

7. SDI/HDMI input/ output interface.

8. Power Button.

2-2 Back Interface

1. Battery plate switch.

2. DC 15V power input

3. LAN interface

4. TALLY interface

5. USB interface

6. HDMI input/output interface

7. SDI input/output interface.

3. MENU SETTING

Before setting the functions, please make sure the device is connected correctly.

3-1. Key Function:

3-1-1. The Image Menu

● Turn on the power, press the Menu button to display the menu, use the < or > button to switch

between Picture, marker, function, waveform, audio, and system options in sequence.

● After selecting the option, press the Menu button to select it, use the < or > button to switch

between values and options, and press the Menu button or Exit button again to confirm the

change.

● Customizable < or > button functions, optional customization options: brightness, contrast, color,

sharpness, volume, backlight, auxiliary focus level. After turning on the power, first press the < or >

button to enter the volume customization option. At this time, press the Menu button to display

the customization function options, which can be set according to your needs. Default: volume.

3-1-2. FN Function Buttons:

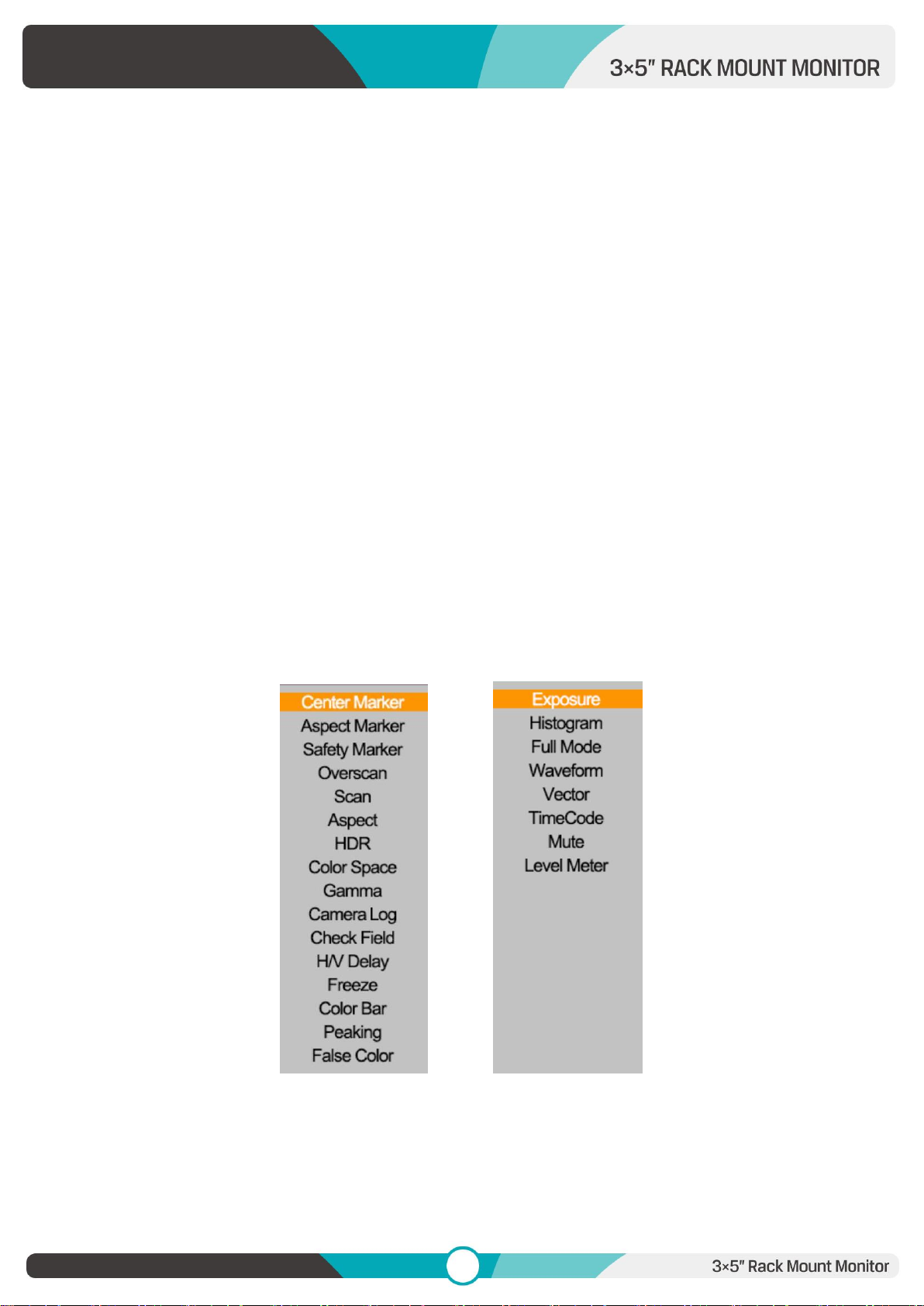

● Long press the Fn button for 3-5 seconds, the shortcut menu settings will 0pop up. The display is

shown on the right. Use the < or > button to select the option, press the Menu button to confirm

the option, and set the option as a shortcut button option. Press Exit to exit the shortcut menu

interface.

● Users can set shortcut keys according to personal needs: center marker, Aspect marker, safety

marker, Overscan, scan, Aspect, HDR, color Space, Camera, Camera Log, Check Field, H/V Delay,

Freeze, Color Bar, Peaking False Color, Exposure, Histogram, Full Mode, Waveform, Vector, Time

Code, Mute, Level Meter.

● The default shortcut function is: Peaking.

3-2. MENU Operation

● When power on, press “MENU” on the device. The menu of function setting will display on the

screen.

● Press < or > button to choose menu, and press menu button to confirm, and then press EXIT to

return.

3-2-1 Picture

ITEMS

OPTIONS

Brightness

0 –100

Contrast

0 –100

Saturation

0 –100

Sharpness

0 –100

RGB Range

Full/Limited

HDMI EDID

4K/2K

Color Space

Native, SMPTE-C，Rec709，EBU

Camera Log

Off、Default、User

Def. Log

SLog2ToLC-709,

SLog2ToLC-709TA,

SLog2ToSLog2-709,

SLog2ToCine+709,

SLog3ToLC-709,

SLog3ToLC-709TA,

SLog3ToSLog2-709,

SLog3ToCine+709,

ArriLogCTo709,

ArriLogCToP3DCI,

CLogTo709,

VLogToV709,

JLogTo709,

JLogTo709HLG,

JLogTo709PQ,

Z7 NLogTo709,

D780 NLogTo709, (Only when HDR Off)

User Log

No Data（User1~User6）

Gamma

Off, 1.8，2.0，2.2，2.35，2.4，2.6，2.8

(Only when HDR Off)

Back Light

0~100

HDR

Off, ST 2084 300, ST 2084 1000, ST 2084

10000,HLG

Color Temp

6500K/7500K/9300K/User

Red Gain

0 –128- 255

Note: Available only

under “User” mode

to choose the color

value you need.

Green Gain

0 –128- 255

Blue Gain

0 –128- 255

Red Offset

0-256-511

Green Offset

0-256-511

Blue Offset

0-256-511

● Brightness

Adjust the general brightness of the LCD from [0]-[100]. For example, if the user is outside in bright

conditions, increase the LCD brightness to make it easier to view.

● Contrast

Increases or decreases the range between the bright and dark areas of the image. High contrast

can reveal detail and depth in the image, and low contrast can make the image appear soft and flat.

It can be adjusted from [0]-[100].

●Saturation

Adjust the color intensity from [0]-[100]. Turn the knob right to increase the color intensity and

turn left to decrease it.

● Sharpness

Increase or decrease the sharpness of the image. When the image sharpness is insufficient,

increase the sharpness to make the image clearer. It can be adjusted from [0]-[100].

● Back light
