INSTRUCTION MANUAL
CMR6082X/6082MX3.6 N/P
CMR6086X/6086MX3.6 N/P
66-CMR608CSE
D/N VANDAL RESISTANT 700TVL VARI-FOCAL
IR DOME CAMERA
IMPORTANT SAFEGUARDS
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
thatmaybeofsufficientmagnitudetoconstituteariskofelectric
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance(servicing)instructionsintheliterature
shocktopersons.
accompanying the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NOUSERSERVICEABLEPARTSINSIDE.
REFERSERVICINGTOQUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSEOFUSEDBATTERIESACCORDING
TOTHEINSTRUCTIONS
CAUTION
Do not drop or strike this equipment.
Do not install the equipment near any naked flames or heat
sources.
Do not expose this unit to rain or excessive moisture, avoid
smoke and dust.
Do not cover cloth or to install this unit in poorly ventilated
places.
Do not continue to operate if there appears to be fault.
Do not touch the power connection with wet hands.
Do not damage the power cord or leave it under pressure.
Sensitive electronics inside are vulnerable to excessive shock.
Excessive heat could damage this unit.
Please the camera in an environmental housing for protection.
If the camera gets wet, unplug it and have it checked by
qualified service personnel.
This may lead to overheating.
If the unit ceases to function, contact qualified service
personnel for help.
Risk of short circuit or electric shock.
Risk of fire or shock circuit.
CONGRATULATIONS
Thank you for purchasing this D/N Vandal Resistant 700TVL Vari-
Focal IR Dome Camera. You now own one of the many fine CCTV
products we manufactured. This product has been carefully
inspected under rigid quality control and should reach you in
perfect condition. With reasonable care, it will provide years of
reliable performance.
We recommend that you read this installation and operation
manual thoroughly before installing and operation your new
system.
Here you will find all the information you needto set up and use
the system. If any questions are not answered in the manual,
please contact your dealer.
Before proceeding, please read and observe all instructions and
warnings contained in this manual. Retain this manual with the
original bill of sale for future reference and, if necessary, warranty
service.
When unpacking your new camera, check for missing or damaged
items. If any item is missing, or if damage is evident,
I. Contact your dealer for
assistance.
DO NOT
NSTALL OR OPERATE THIS PRODUCT
WARRANTY INFORMATION
Please complete the following product purchase information. The
factory will requests this information when contacted for technical
support, or warranty repair. It is also valuable in case of loss or
theft.
Purchase Date
Serial Number
Model Number
：
：
：

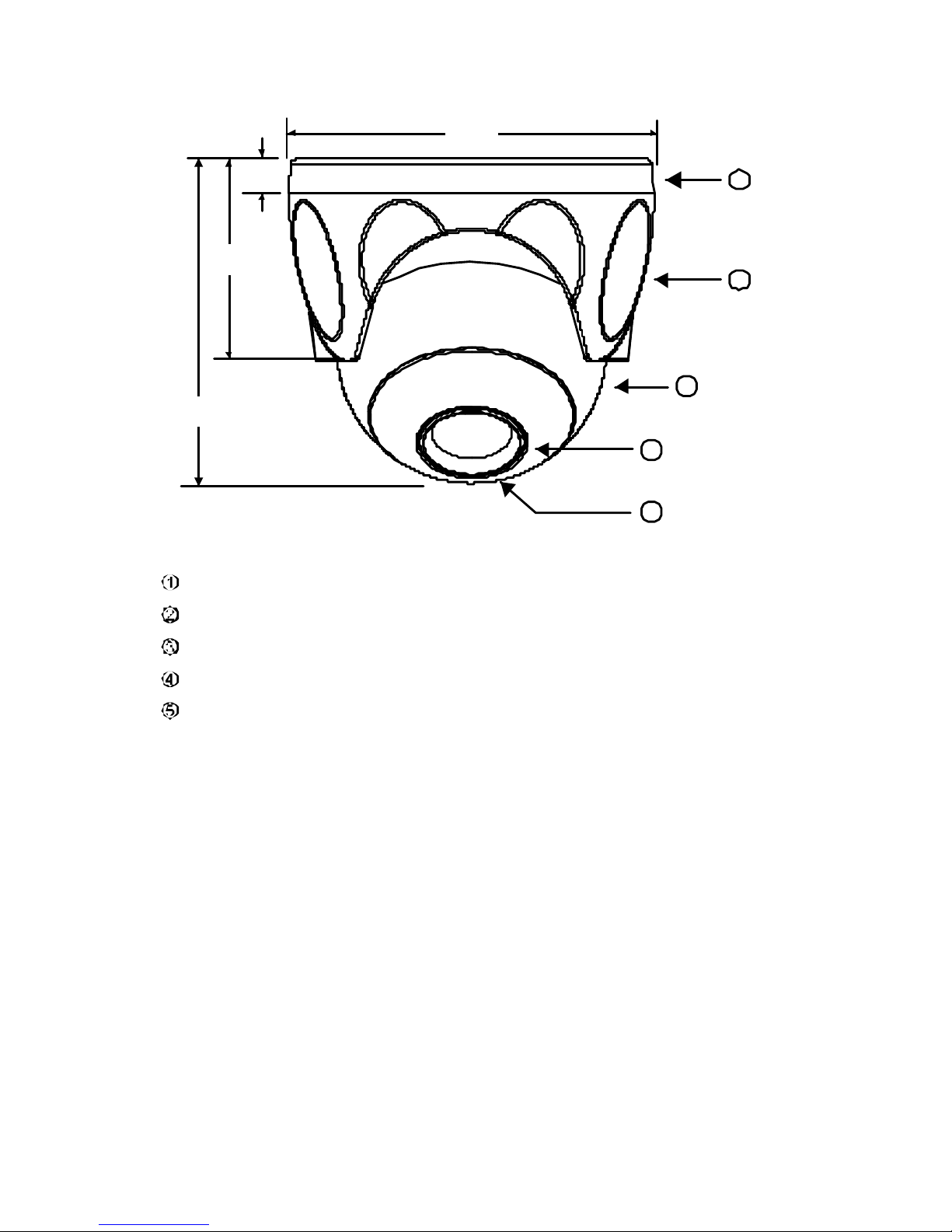

Unit: mm
BOTTOMCHASSIS
OUTERCOVER
CAMERA BODY
LENS
MASK
PART DESCRIPTION & DIMENSION
130
60
12
115
1
2
3
4
5
1. Please use the enclosed hexagon screw driver to untighten the 2 screws on the
bottom chassis (FIG.1).
FIG. 1
INSTALLATION
2. Rotate the bottom chassis and outer cover until both ""marksarealign,then
separate them (FIG.2 & FIG.3). │
FIG. 2 FIG. 3

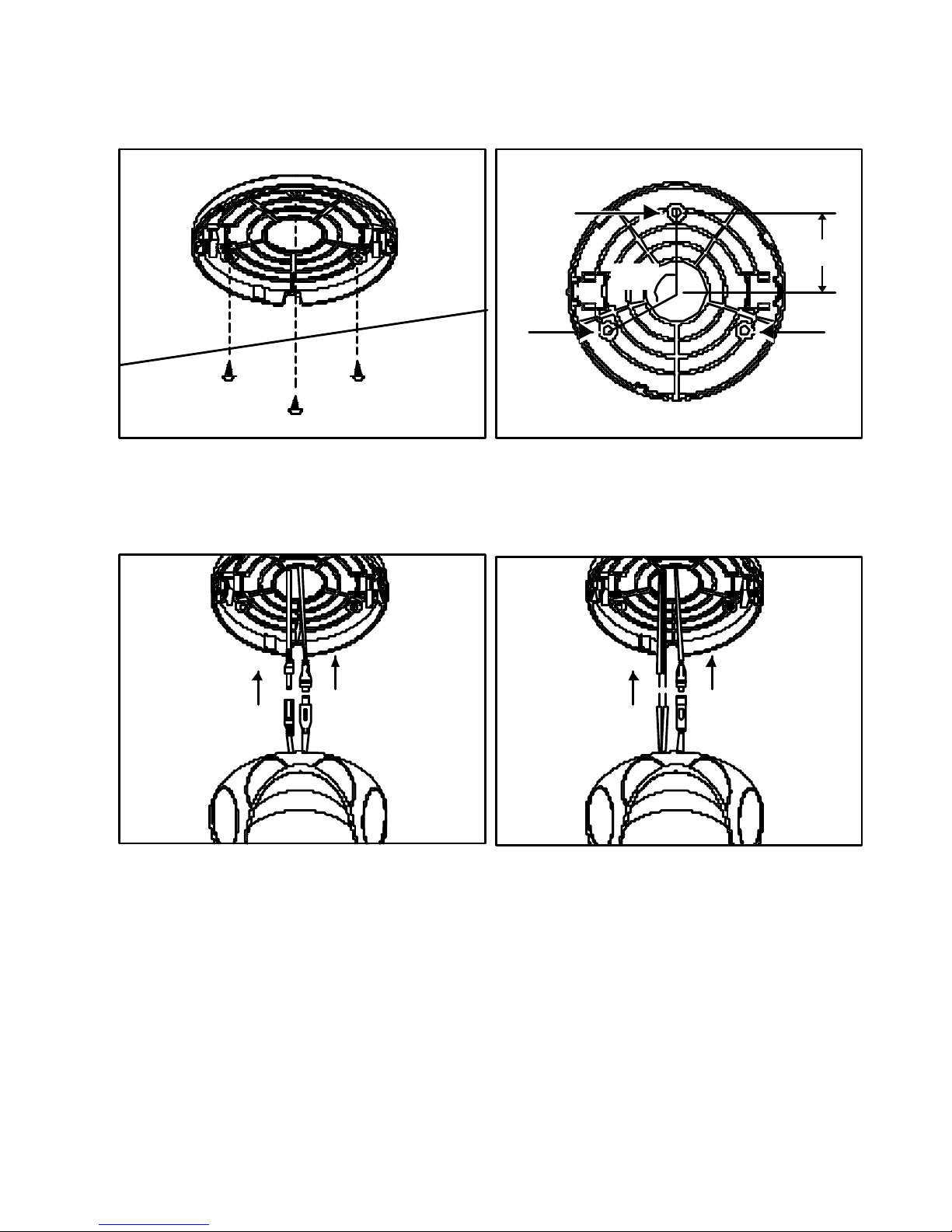

3. Put the provided screws (M3.0*25, wooden screw) through the holes marked as
"a", and fix the bottom chassis in the desired area (FIG.4 & FIG.5).
FIG. 4 FIG. 5
a
a
47
120°
a
4. Plug or connect the power cable and plug the video cable to video output of the
camera (FIG.6 & FIG.7).
FIG. 6 FIG. 7
CMR6082/6082MX3.6 N/P CMR6086/6086MX3.6 N/P
5. Align the bottom chassis and outer cover's "" marks and press them together
(FIG.8), rotate the outer cover for adjusting desired horizontal angle of camera,
afterwards, use hexagon screw driver to screw both sides of bottom chassis
tightly (FIG.9).
│
FIG. 8 FIG. 9
6. Loosen the screws on the outer cover to rotate the camera body to the desired
angle and then tighten the screws (FIG.10 & FIG.11).
FIG. 10 FIG. 11
7. Using the screw driver to adjust zoom and focus of lens for image of video (FIG.12).
FIG. 12
NWT
Zoom Focus
Lens
Pick Up Element
Sync. Mode
System
Power Input Voltage
Model No.
Effective Pixels
Chip Size
Horizontal & Vertical
Sync. Frequency
Scanning System
Resolution
Minimum Illumination
S/N Ratio
Infrared Cut Filter
Auto Gain Control
White Balance
Aperture Correction
Power Consumption
Back Light Compensation
Gamma Characteristic
Operating Temperature
Dimension
Video Output
Vandal Proof
Peak Wavelength
Beam Spread
Radiant Distance
IP Rating
Weight
Focal Length
Iris
Angle of view H
V
D
3.3 ~ 12mm
F1.4
1/3" Exview HAD CCD Sensor
5.58mm(H) x 4.67mm(V)
976(H) x 494(V) [NTSC]
976(H) x 582(V) [PAL]
Internal
2 : 1 Interlace
15.734 KHz / 59.94Hz [NTSC]
15.625 KHz / 50Hz [PAL]
Color: 700 TV Lines, Mono: 750TV Lines
Color: 0.045Lux/F1.4 , Mono: 0.009Lux/F1.4, 0Lux (IR ON)
More Than 50dB (AGC OFF)
Auto Selectable, Automatic Switch From Color Mode to Monochrome
44.8dB Variable Gain
ATW
Horizontal, Vertical
6.8W
Auto
-10 ~ +50℃℃℉℉(14 ~ 122)
ψ130 x 115mm
880g
CVBS 1.0Vp-p , 75Ohm
With stand a blow from a 10 lbs sledgehammer
850nm
30°
30M
IP66
NTSCorPAL
DC12V 10%±
CMR6082X3.6N/P
γ=0.45
89.8 ~ 23.9° °
63.6 ~ 17.9°°
125.7 ~ 29.9°°
Design and specifications are subject to change without notice.
D/N VANDAL RESISTANT 700TVL VARI-FOCAL IR DOME CAMERA
Infrared
LED
SPECIFICATIONS
CMR6082MX3.6N/P
60°
20M
