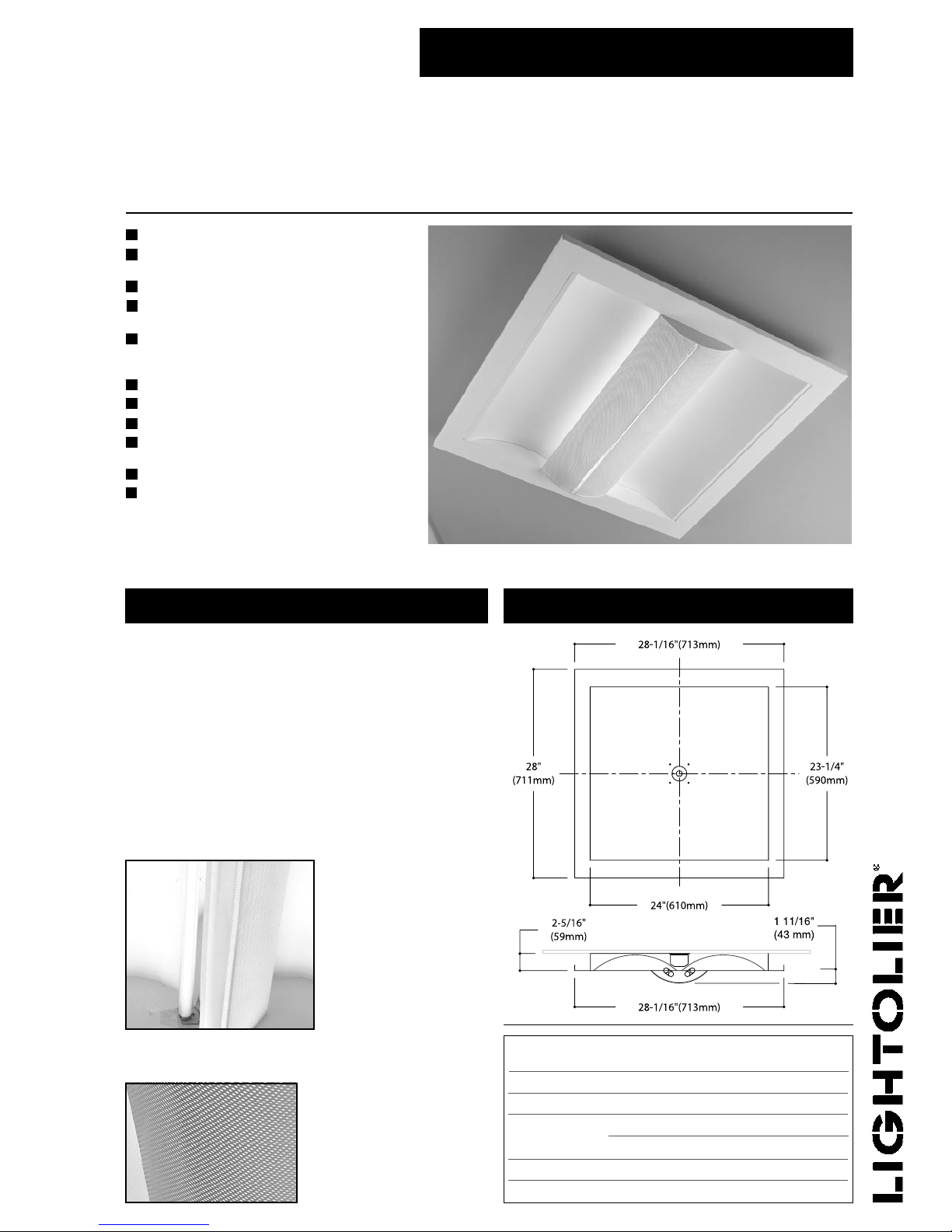

ALTER SLIM SQUARE

2’ X 2’ SURFACE FLUORESCENT

1 OR 2 TT5

MICROPERFORATED MESH LAMP SHIELD

Efficiency 50.5%.

3/4'' floating frame gives luminaire a look very

thin.

Only 2-5/16'' deep (not including lamp shields)

Swing down microperforated lamp shields for

easy relamping and maintenance.

Alter soft white film on inside of mesh

conceals lamp image and provide balance

between reflected light and direct light.

95% Reflective Alter soft white paint finish.

Specular interior reflector.

One piece body for easy installation.

Easy access to ballast through lamp

compartment.

Optional acrylic drop-down visual element.

Available in white or titanium paint finish.

MOUNTING METHODS/FEATURES DIMENSIONS

FIXTURE TYPE

JOB INFORMATION:

VOLTS

L95-20

QVB2SPGOS2FT

Swing down optical system for

easy relamping and maintenance

Microperforated mesh lamp shields

Genlyte Thomas Company

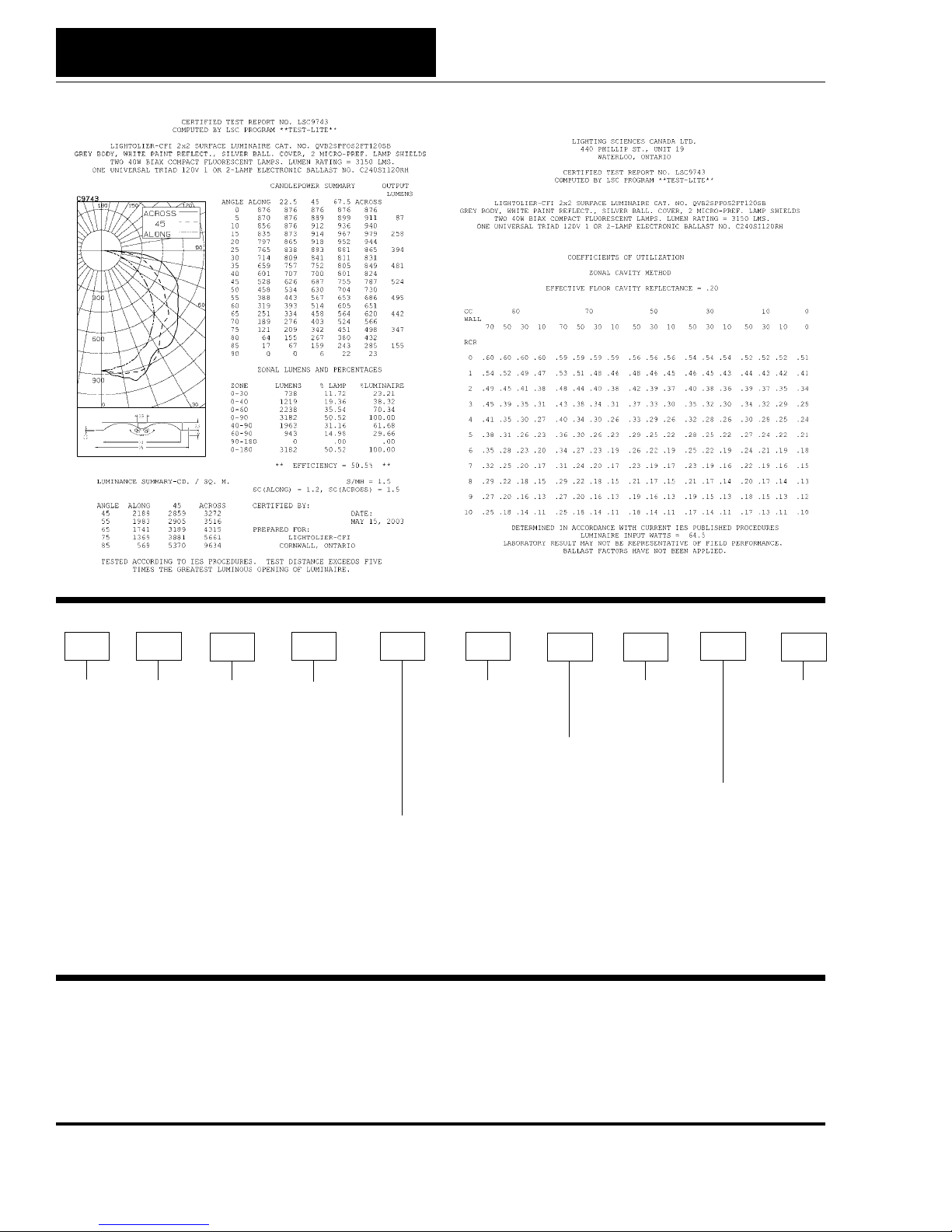

ORDERING INFORMATION Explanation of Catalogue Number Example: QVB2SPGOS2FT120SB

SPECIFICATIONS

MATERIALS: Chassis constructed from die formed

20 gauge cold rolled steel. Reflectors - 95% reflectance baked white

acrylic matte paint finish. Soft white acrylic film on inside of lamp shield

conceals lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic

matte high reflectance paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast (Bi-tube

type). If K.Os are within 3” of ballast use wire suitable for at least 90C.

LABELS: Listed by CSA, UL

QVB2SPGOS2FT

QVB

ALTER

SLIM SQUARE

Surface soft light

optical system

FIXTURE

WIDTH

CEILING

TYPE

S=Surface

LAMP SHIELD/

LUMINAIRE FINISH

PW =Microperforated

mesh lamp shield/

white border

PG = Microperforated

mesh lamp shield/

titanium body

LAMP

QUANTITY

LAMP/FIXTURE

LENGTH

(NOMINAL 24")

FT=TT5

Bi-tube

120

VOLTAGE

120,277

347

OPTIONS

R =Radio Interface Filter

O =Emergency Lighting

System (for Canada)

N= Emergency

Lighting System

(for U.S.)

BALLAST

BE = 50W Electronic TT5 RS

BR = 40W Electronic TT5 RS

BX = 40W Magnetic TT5 RS

PB = 40W TT5 PowerSpec Dimming*

PC = 50/55W TT5 PowerSpec Dimming*

SB = 40W Generic Electronic TT5

*Not available in 347V.

CLEAR POLISHED

ACRYLIC DROP

DOWN VISUAL ELEMENT

OS =Open slot (no acrylic)

GC =Clear acrylic

GG =Clear acrylic / Green projected color face

GB =Clear acrylic / Blue projected color face

GR = Clear acrylic / Red projected color face

We reserve the right to change, materials and finish in any way that will not alter installed appearance or reduce function and performance.

ALTER SLIM SQUARE

2’ X 2’ SLIM SQUARE SURFACE

OS 2 FT

Genlyte Thomas Company

631 Airport Road, Fall River, MA 02720 - Tel. (508) 679-8131

C.F.I. Division of Canlyte, Inc.

525 Education Road, Cornwall, Ontario

Canada K6H 6C7 - (613) 938-6221
