Lightolier ProSpec TRACK LIGHTING FIXTURE Manuel utilisateur

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

IS:26556MCY

0798 Page 1 of 2

INSTALLATION INSTRUCTIONS FOR ATTACHING AND OPERATING

ProSpec™TRACK LIGHTING FIXTURE. FOR JUNCTION BOX MOUNT.

LIGHTOLIER a GENLYTE company.

631 Airport Road, Fall River, MA 02720

CANOPY is designed for a 4” octagon OUTLET BOX. FIXTURE can

mount to different OUTLET BOXES as long as box mounting holes

are on 3.5” centers and FIXTURE CANOPY covers box completely.

Box mounting holes should be tapped with 8-32 thread.

1. Thread 8-32 STUDS into J-BOX. STUDS should extend from

J-BOX at least one inch.

2. WHILE SUPPORTING FIXTURE, MAKE CONNECTIONS: BLACK

FIXTURE LEAD to HOT (BLACK) SUPPLY LEAD; WHITE FIXTURE

LEAD to NEUTRAL (WHITE) SUPPLY LEAD. UNINSULATED

FIXTURE WIRE is a ground and must be connected to GROUND

TERMINAL or GROUND LEAD inside OUTLET BOX. Use WIRE

NUTS (local hardware item). Push connections back into

OUTLET BOX.

3. Push CANOPY against ceiling passing STUDS through holes

in CANOPY. Make sure wires are not pinched.

4. Thread 2 CAP SCREWS onto STUDS. Drive CAP SCREWS

until CANOPY is tight against the ceiling.

CAUTION: CAP SCREWS must be completely threaded onto

the STUDS.

NOTE: The proper LAMP should be installed into the FIXTURE

prior to energizing. See instructions below.

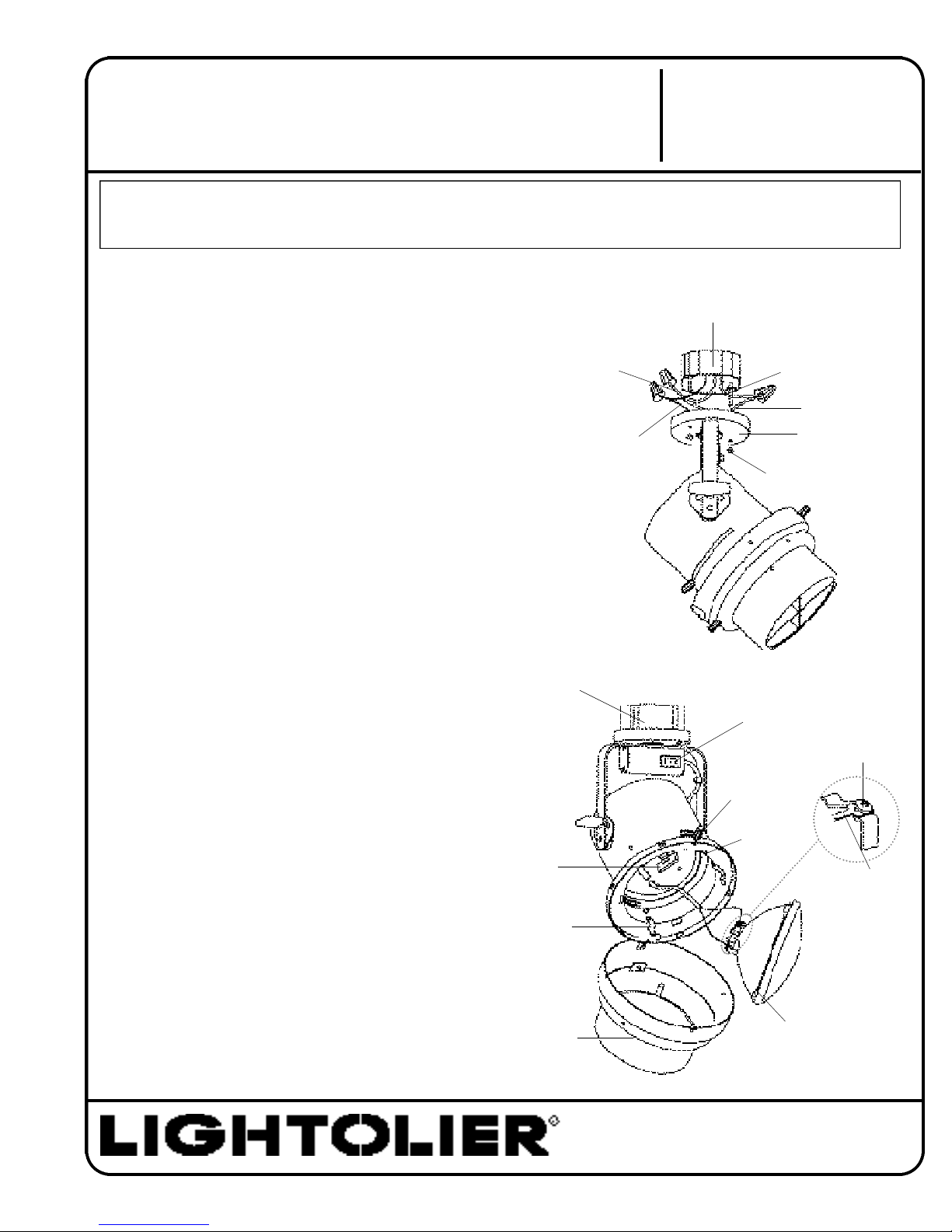

INSTRUCTIONS FOR ATTACHING FIXTURE TO J-BOX (Fig. 1)

LAMP BOSS

Fig. 1

SNOOT

ACCESS KNOB

LAMP ALIGNMENT

BRACKET

LAMP SPRING

J-BOX

SPADE TERMINAL

RING NOTCH

CAUTION:

• Turn off power at fuse box before installing fixture.

• Fixture temperature is extremely high during operation. Use heat

resident gloves or other heat resistant materials to protect hands

when adjusting or handling the fixture during operation.

• Do not install fixture near combustible materials.

• Fixture is not for residential use.

• Electrical supply to fixture must be 120 volts. Electrical supply

can be AC or DC.

• Do not mount fixture on a wall.

The following lamps may be used in the FIXTURE:

Fixture Cat. No. 26556M, WHCY, BKCY

Lamp 12 Volt PAR 56 Screw Terminal

120 to 240 Watt

1. Holding SNOOT loosen ACCESS KNOB a few turns until

SNOOT opens.

2. Screw SPADE TERMINALS into LAMP TERMINALS.

3. Align 3 LAMP BOSSES with 3 RING NOTCHES. Align LAMP

SCREW TERMINALS with LAMP ALIGNMENT BRACKET.

Push LAMP into FIXTURE until LAMP SPRINGS hold LAMP.

NOTE: The 3 LAMP BOSSES must sit in the 3 RING NOTCHES

after the LAMP is installed.

4. Removing LAMP: Snap LAMP out of LAMPSPRINGS. Unscrew

LAMP TERMINALS.

LAMPING & USING ACCESSORIES (Fig. 2)

LAMP TERMINAL

Fig. 2

J-BOX

8-32 STUD

BLACK WIRES (Hot)

CANOPY

CAP SCREW

GROUND WIRES

WHITE WIRES

(Neutral)

SWITCH

LIGHTOLIER a GENLYTE company.

631 Airport Road, Fall River, MA 02720

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

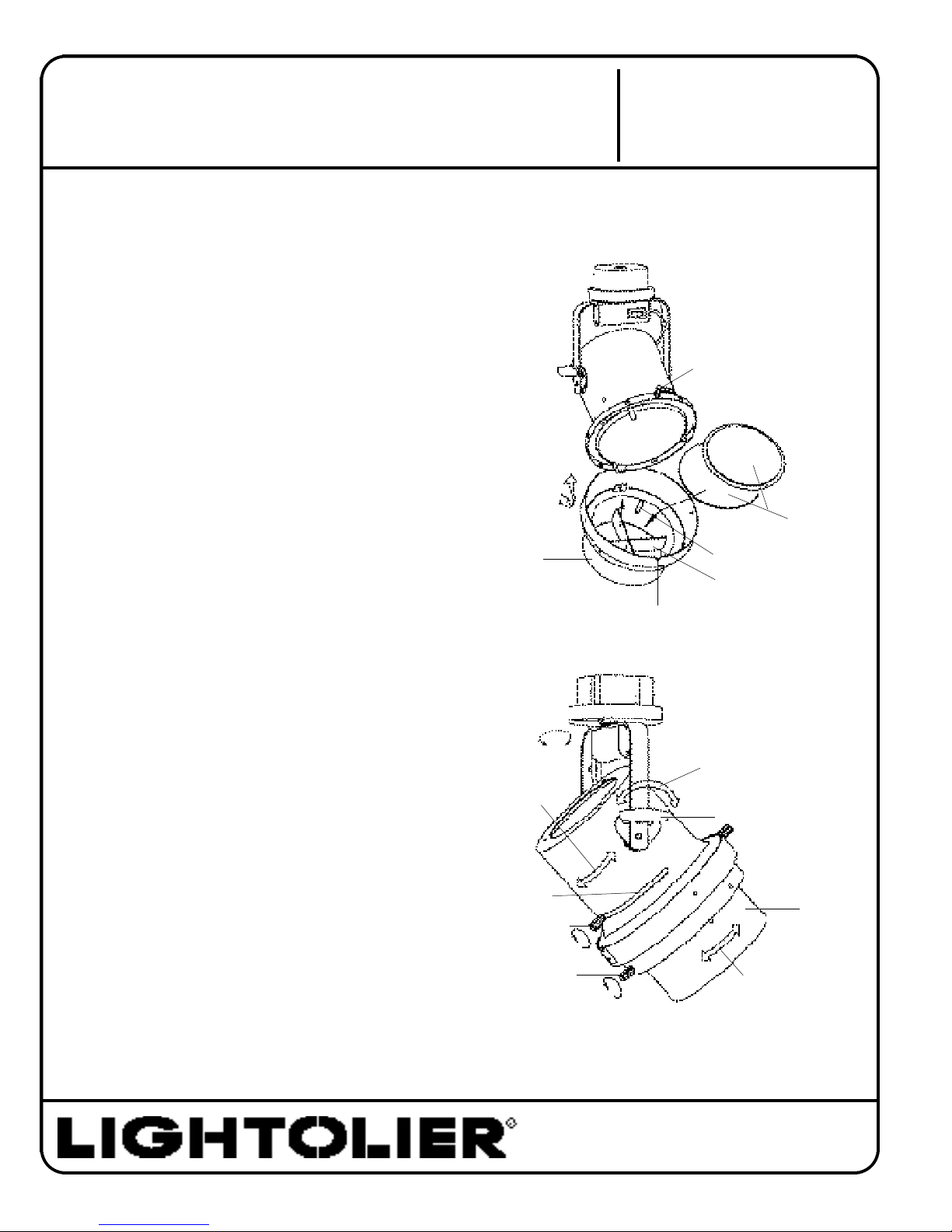

ACCESSORIES (Fig. 3)

1. With SNOOT open accessories can be installed or removed.

2. INSTALLING ACCESSORIES: Push accessory(s) into SNOOT

snapping them into ACCESSORY SPRINGS.

NOTE: There must always be (1) accessory or clear glass

installed in the SNOOT for safety reasons. This FIXTURE

takes(2) accessories maximum with or without CROSSBLADE.

3. REMOVING ACCESSORIES: Push ACCESSORIES out of

ACCESSORIES SPRING. Push one ACCESSORY SPRING

against SNOOT if accessory is difficult to remove.

CROSSBLADE may be removed. Pull CROSSBLADE out of

SNOOT.

INSTRUCTION SHEET NO.

IS:26556MCY

0798 Page 2 of 2

CLOSE SNOOT OVER LAMP (Fig. 3)

1. Rotate SNOOT until SLOT mates with ACCESS KNOB.

2. Tighten ACCESS KNOB to secure SNOOT.

FIXTURE OPERATION (Fig. 4)

Turn LAMP on or off by activating the switch. (Fig. 2)

SETTING HORIZONTAL ROTATION

1. Rotate fixture to desired horizontal position. Fixture provides

360° rotation.

CAUTION: There is a STOP that prevents the FIXTURE from

being adjusted more than 360°. Do not force FIXTUREagainst

the STOP. Rotate the FIXTURE in the opposite direction to

obtain the proper aiming location.

SETTING VERTICAL ROTATION

1. Loosen SIDE KNOB.

2. Turn FIXTURE to desired vertical position. The FIXTURE adjust

90° in the vertical direction.

Do not force past the adjustability limits.

3. Tighten SIDE KNOB.

SETTING LAMP ROTATION

1. Loosen LAMP ADJUSTMENT KNOB a few turns.

2. Drive LAMP ADJUSTMENT KNOB in 180° slot.

3. Tighten LAMP ADJUSTMENT KNOB after LAMP is in desired

position.

SETTING ACCESSORY ROTATION

1. Loosen ACCESSORY KNOB a few turns.

2. Rotate SNOOT to desired position. SNOOT rotates 360°.

3. Tighten ACCESSORY KNOB.

ACCESS KNOB

ACCESSORIES

ACCESSORY SPRING

CROSSBLADE

SLOT

SNOOT

Fig. 3

Fig. 4

HORIZONTAL ROTATION

SNOOT

VERTICAL ROTATION

SIDE KNOB

ACCESSORIES ROTATION

ACCESSORIES KNOB

LAMP ADJUSTMENT

KNOB

180° SLOT

LAMP ROTATION
