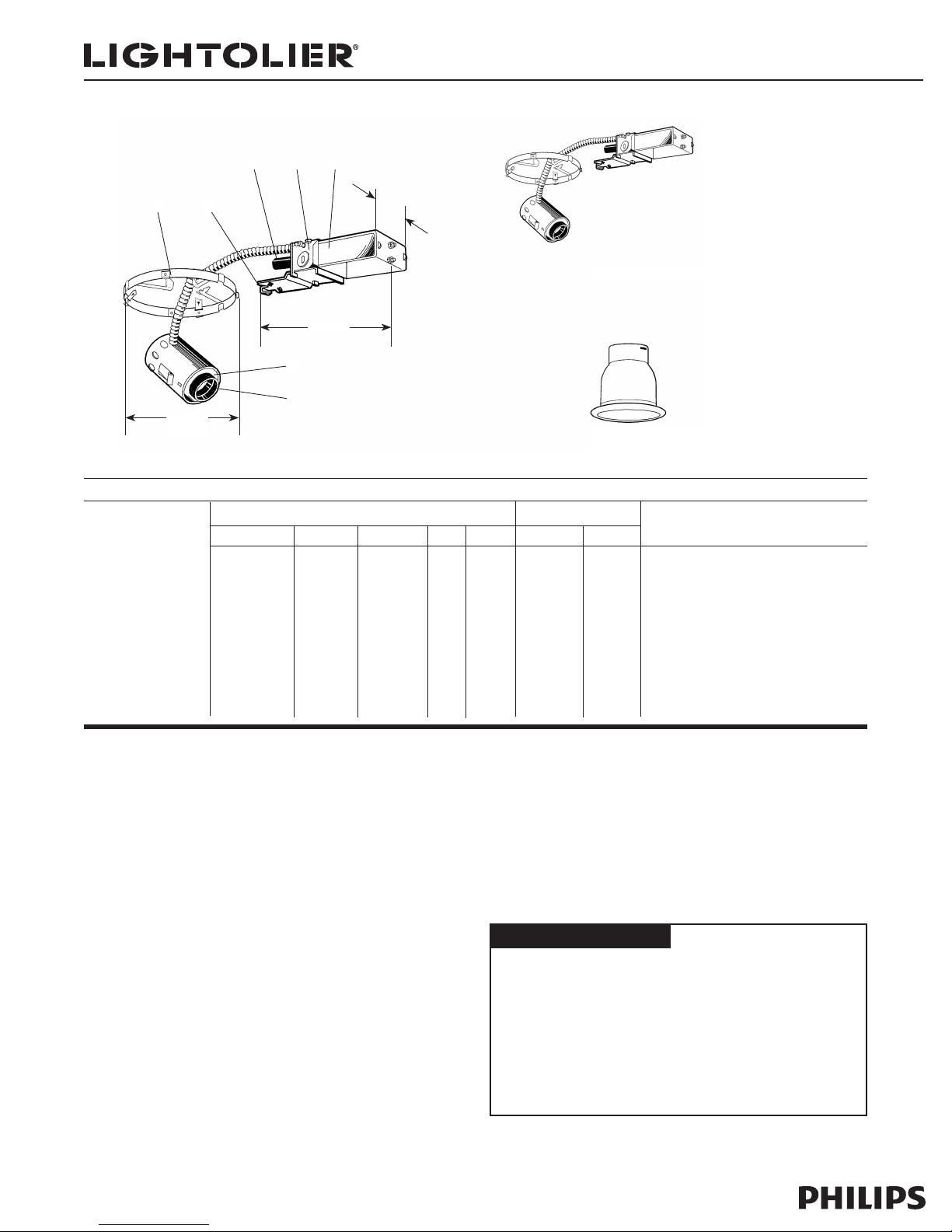

Lytecaster®Recessed Downlighting 2000LVR

Page 1 of 1 3 3/4" Aperture Standard Low Voltage MR16 Remodeler Frame-in Kit

Open Downlight Adjustable Enclosed

Aperture Cone Satin Cone Baffles Slot Pinhole Mini Swivel Eyeball Diffuser

2000LVR 2012 2008 2005 2006 2011 2025WH 2022LV 2026WH

2012NM 2008NM 2005WH 2090LV

2013BKNM 2010 2005BNM

2013CD 2010NM 2005NM

2013CDNM

2013NM

2013BK

2013WH

2013

2013WD

2013WDP

Features

1. Junction Box: 2" x 2” x 2 5 /8"; .036" (#20 ga.) galvanized steel.UL listed for

90° C supply wire. Integral cable clamps permit attachment of nonmetallic

Romex® or armored cable without need of additional connectors.

2. Socket Housing: Aluminum, with lamp adjustment assembly allows vertical

and horizontal adjustment, (see reflector trim specification sheet for specific

adjustment).

3. Socket: Field replaceable. Two pin socket, pre-wired with #18SF1 leads to

junction box.

4. Transformer: Outboard mounted, magnetic, 120V. primary, nominal 12V.

secondary. Removable from below.

5. Thermal Protector: Meets NEC and UL requirements. Insulation must be

kept 3" away from fixture sides and wiring compartments and must not be

placed above fixture in a manner which will entrap heat.

6. Mounting Ring: .048 (#18 ga.) galvanized steel. Accommodates existing

ceilings up to 2" thick. Attaches securely to any type of ceiling material

without tools using (3) mounting straps provided. Push-in/twist out clips hold

reflector flush to ceiling. Includes adhesive backed aperture template.

7. Nail Clips: Secures junction box and plate to ceiling.

Dimming

Dimming Controls: Use only dimmers specifically designed for use with

transformers, like Lightolier Onset®, Sunrise®series LV or VA dimmers, or any

Lightolier Controls dimming system. Low voltage fixtures may produce audible

sound when used with dimmers, which may be objectionable in acoustically criti-

cal areas.

Options & Accessories

MR16 Socket Replacement: 1975B

277V Remote Step 7997 - 277V down to 120V

Down Transformer: 300W max. load.

Socket for General Electric Turn and lock (TAL) MR16 Lamp: 1975TAL

Labels

UL (Suitable for Damp Locations), I.B.E.W.

4 1/8”

Ceiling Opening

8 1/8”

2 3/4”

REFLECTOR TRIM

FRAME-IN KIT

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets

Romex®is a registered trademark of General Cable Industries Inc.
