Lightolier Lytecaster 2000AICV Manuel utilisateur

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

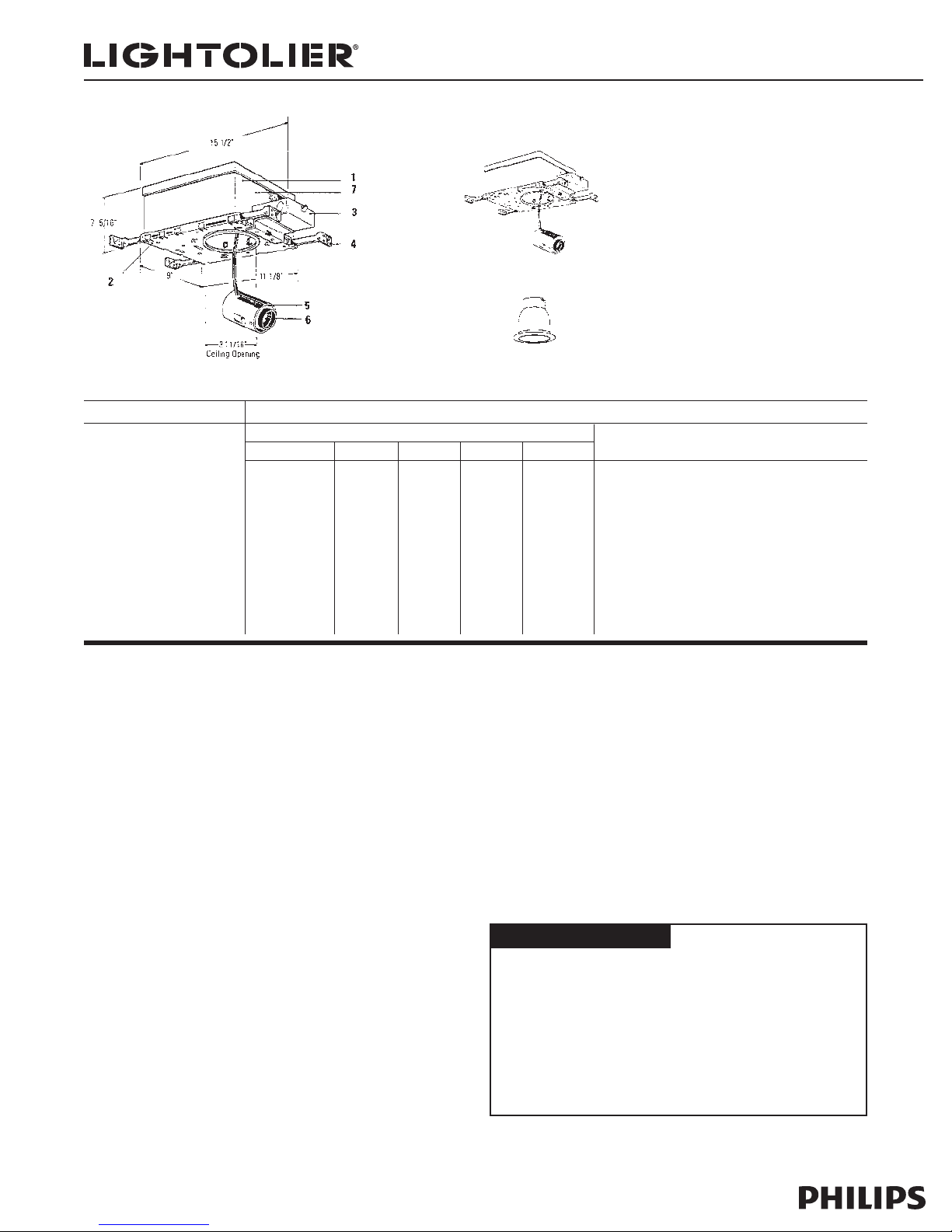

Lytecaster®Recessed Downlighting 2000AICV

Page 1 of 1 3 3/4" Aperture Low Voltage MR16 Insulated Ceiling AirSeal® Frame-In Kit

Reflector Trim

Frame-in Kit

Features

1. Housing: .026” galvanized steel. UL listed for direct contact with thermal

insulation. AirSeal® housing minimizes air leakage to less than 2 CFM at 1.57

PSF, which complies with Washington State Model Energy Code (Section

602.3.3) and reduces heat loss and condensation in ceiling. Access door for

inspection of junction box.

2. Mounting Frame: .036” (#20 ga.) galvanized steel. Accommodates ceilings

up to 1” thick. Four slots are positioned 90° apart to simplify alignment. Push-

in/twist-out rotoclips hold reflector flush to ceiling.

3. Junction Box: 2”X 4” X 4”;.063” (#16 ga.), galvanized steel. UL listed for

maximum of 6 No. 12 ga., 90° C through branch circuit conductors. Quick

release “L” shaped cover for outside access to wiring. Access door inside of

housing allows easy inspection of wiring without removal of housing. Integral

cable clamps permit attachment of nonmetallic Romex®or armored cable

without the need for additional connectors.

4. Mounting Bars: .059 (#16 ga.) galvanized steel. 13” long bars extend to 27”,

rotatable and lockable, with integral T-bar tabs. Attach to wood joist or T-bar

ceiling without need for accessories.

5. Socket Housing: Aluminum, with lamp adjustment assembly allows 35°

max. vertical, 358° horizontal adjustment.

6. Socket: Field replaceable. Two pin socket, pre-wired with #18 SF1 leads to

junction box.

7. Thermal Protector: Mounted inside housing. Meets NEC and

UL requirements.

8. Transformer: Mounted inside housing, magnetic. 120V pri-mary, nominal 12V

secondary. Removable from below.

Dimming

Dimming Controls: use only dimmers specifically designed for use with magnetic

transformers, like Lightolier Onset® Sunrise® series LV or VA, dimmers, or any

Lightolier Controls dimming systems. Low voltage fixtures may produce audible

sound when used with dimmers, which may be objectionable in acoustically criti-

cal areas.

Options and Accessories

Mounting Bars: 1976 - 13” set of (4)

Replacement Kit:

Plaster Ceiling Ring: 1959 - 7/8” depth for wet plaster ceilings.

MR 16 Socket Replacement: 1975B

Labels

UL (Type I.C., Suitable for Damp Location), I.B.E.W.

Complies with Washington State Air Leakage Requirements as stated in the

Model Energy Code and the Washington State Energy Code.

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets

Open Downlight Enclosed

Aperture Cone Satin Cone Baffles Slot Pinhole Diffuser

2000AICV 2012 2008 2005 2006 2011 2090LV

2012NM 2008NM 2005WH

2013BKNM 2010 2005BNM

2013CD 2010NM 2005NM

2013CDNM

2013NM

2013BK

2013WH

2013

2013WD

2013WDP

Romex® is a registered trademark of General Cable Industries Inc.
