Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytespan®Track Lighting 8104

Page 1 of 2 Step Spot Mini HID 20W PAR20 CMH

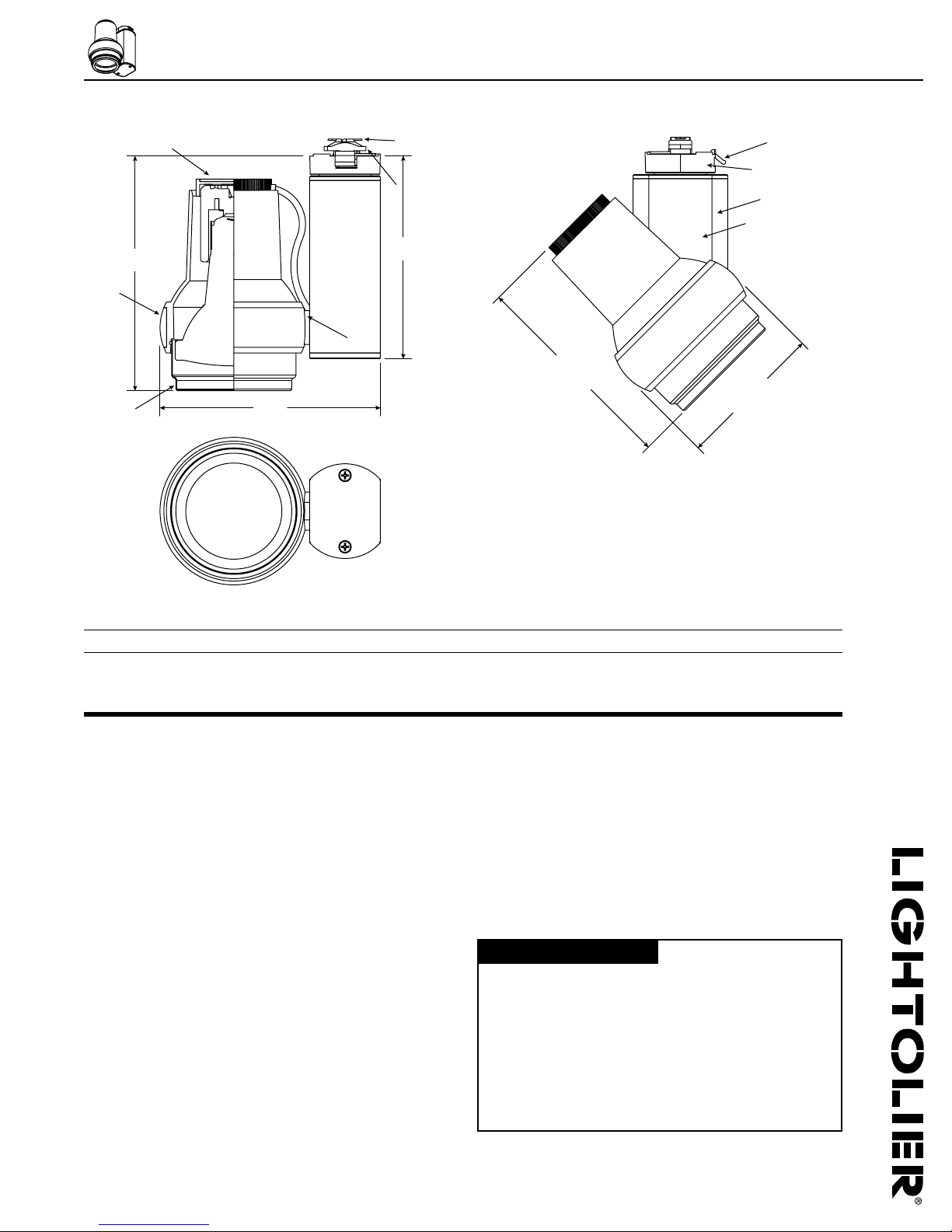

Features

1. Track Attachment Fitting: Molded polycarbonate, rotates into track.

2. Push Tab: Molded polycarbonate. Locks and detaches unit.

3. Track Adaptor Housing: Die-cast aluminum.

4. Movable Contact: Solid brass. Extends for connection to 2nd circuit in

Advent track.

5. Ballast Housing: Extruded aluminum housing with die-cast aluminum

end caps.

6. Ballast: High Power Factor metal halide electronic ballast. Thermally

protected, 0.20A maximum input current, 24.5W input power.

7. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical

rotation with tensioned mounts for controlled aim.

8. Lamp Housing: Die-cast aluminum with cool-grip®insulation band; a high

temperature silicone rubber which allows aiming adjustments while fixture

is on. Integral color.

9. Lampholder: 5kV (600V) pulse rated glazed porcelain body socket with

plated nickel screw shell and lamp contacts; 18AWG SEW-2 leads encased

in fiberglass sleeving.

10.Cowl: Painted steel; retaining ring included to hold accessory in place.

Accessories

Holder: Integral, holds one accessory

Diffusion/ Special Filters: AF25 series

Color Filters: ADF25 series

Louver (Hex Cell): AL25HC

Mounting

All Monopoint, Multipoint, recessed track, suspension track, suspension

stems, sloped ceiling adapter, Basic, Advent and Radius track systems only.

Ceiling and horizontal or vertical wall mounted. Not compatible with ProSpec

track system.

Finish

All painted finishes are baked powder or enamel.

Markings

cCSAus Certified for dry locations only.

Catalog No. Finish Lamp

8104WH White

8104BK Black 20W PAR20 CMH (M156) E26 base

8104AL Aluminum Not Included

Bottom View

4.88"

5.25"

4.5"

4.75"

3.25"

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lytespan®Track Lighting 8104

Page 2 of 2 Step Spot Mini HID 20W PAR20 CMH

13000 7500

GE CMH20PAR20/SP

8°

3750 7500

GE CMH20PAR20/FL

25°

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

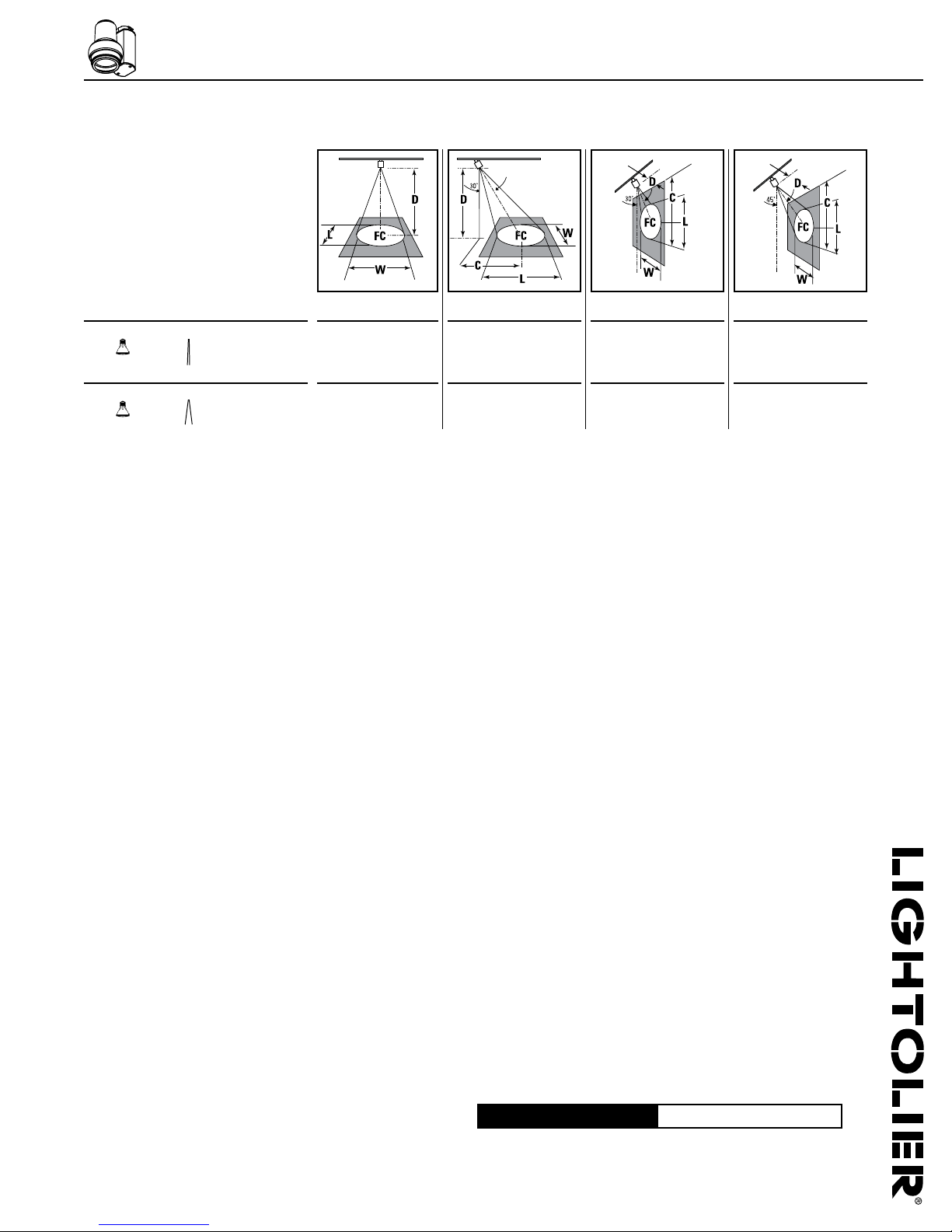

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length DDistance

WBeam Width AAiming Angle

CDistance to center beam FC Footcandles

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp manu-

facturers for availability and performance.

CBCP = Center Beam Candle Power.

D FC L W D C FC L W D C FC L W D C FC L W

8' 4.6' 132 1.5' 1.3'

10' 5.8' 84 1.9' 1.6'

12' 6.9' 59 2.2' 1.9'

14' 8.1' 43 2.6' 2.3'

3' 5.2' 181 1.7' 0.8'

4' 6.9' 102 2.3' 1.1'

5' 8.7' 65 2.8' 1.4'

6' 10.4' 45 3.4' 1.7'

4' 4.0' 287 1.1' 0.8'

5' 5.0' 184 1.4' 1.0'

6' 6.0' 128 1.7' 1.2'

7' 7.0' 94 2.0' 1.4'

8' 203 1.1' 1.1'

10' 130 1.4' 1.4'

12' 90 1.7' 1.7'

14' 66 2.0' 2.0'

6' 3.5' 68 3.6' 3.1'

8' 4.6' 38 4.8' 4.1'

10' 5.8' 24 6.0' 5.1'

12' 6.9' 17 7.2' 6.1'

2' 3.5' 117 4.2' 1.8'

3' 5.2' 52 6.2' 2.7'

4' 6.9' 29 8.3' 3.5'

5' 8.7' 19 10.4' 4.4'

3' 3.0' 147 2.8' 1.9'

4' 4.0' 83 3.7' 2.5'

5' 5.0' 53 4.7' 3.1'

6' 6.0' 37 5.6' 3.8'

6' 104 2.7' 2.7'

8' 59 3.5' 3.5'

10' 38 4.4' 4.4'

12' 26 5.3' 5.3'
