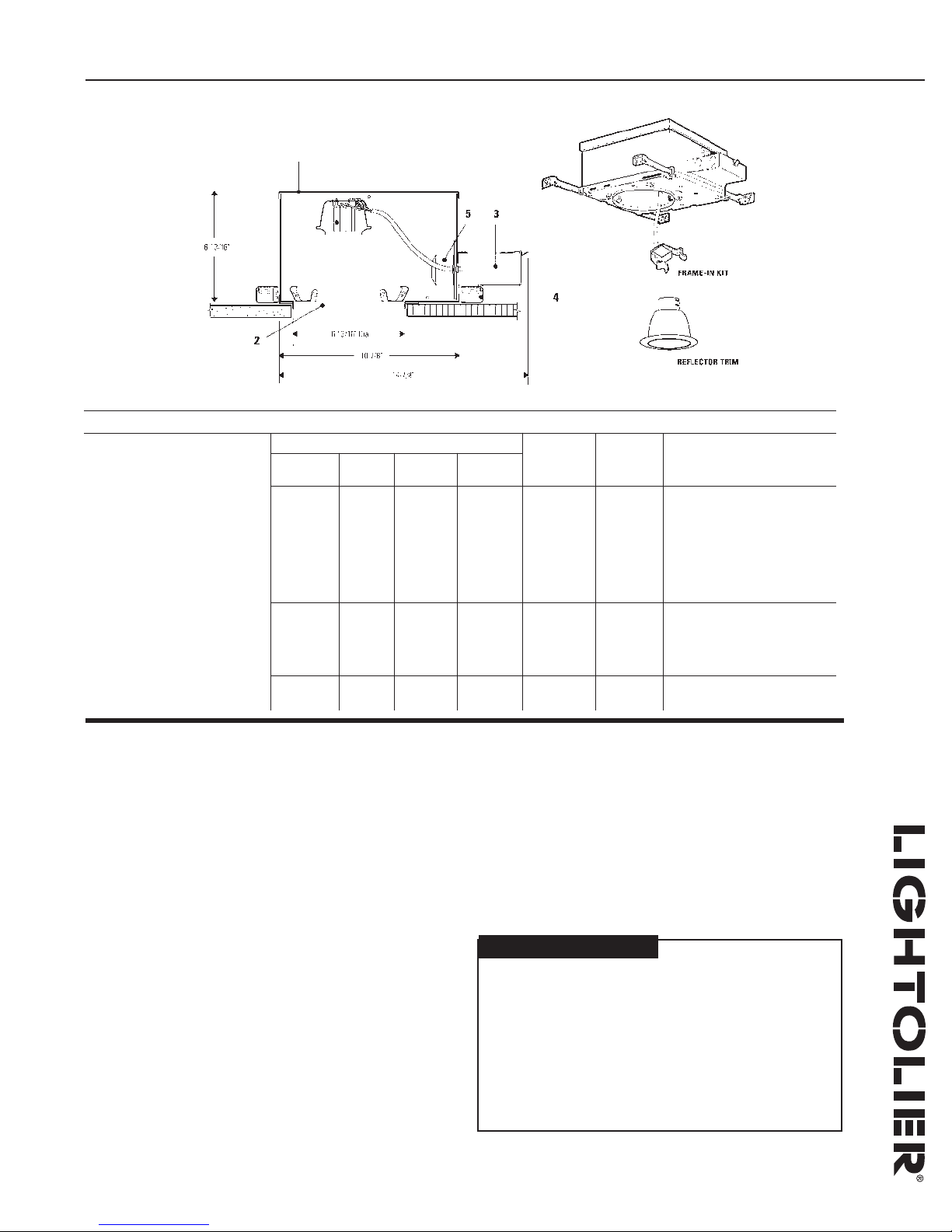

1 6 Overall width: 9”

Lytecaster®Recessed Downlighting 1100AICMFT

Page 1 of 1 6 3/4”Aperture Fluorescent 1 Lt. 26/32W Triple Tube Insulated Ceiling, AirSeal®Frame-In Kit

Features

1. Housing: .026” galvanized steel. UL listed for direct contact with thermal

insulation. AirSeal®housing minimizes air leakage to less than 2 CFM at

1.57 PSF, which complies with Model Energy Code (Section 602.3.3) and the

Washington State Energy Code (Section 502.4) and reduces heat loss and

condensation in ceiling. Access door for inspection of junction box.

2. Mounting Frame: .036 (#20 ga.) galvanized steel. Accommodates all ceil-

ings up to 1” thick. 3/8” deep integral lip. Four slots are positioned 90°

apart to simplify alignment. Push-in/twist-out rotoclips hold reflector flush

to ceiling.

3. Junction Box: 2” X 4” X 4”: .063” (#14 ga.) galvanized steel. UL listed for

maximum of 6 No. 12 ga., 90° C through branch circuit conductors. Quick

release “L” shaped cover for outside access to wiring. Access door inside

of housing allows easy inspection of wiring without removal of housing.

Integral cable clamps permit attachment of nonmetallic Romex®or armored

without the need for additional connectors.

4. Mounting Bars: .059” (#16 ga.) galvanized steel. Bars pivot for easy

attachment and wire-in below ceiling line. Bars extend to accommodate 16”

to 24” O. C. joist spacing and feature integral nail for secure attachment to

wood construction. Attaches to T-bar ceilings without the need of accesso-

ries.

5. Ballast: Electronic, encased and potted, thermally protected, Class “P”,

Normal Power Factor, 120V.

6. Socket: 4-pin Gx24q-3 base compact fluorescent. Pre-wired with #18 ga.

TFN leads to junction box.

Options & Accessories

Mounting Bars: 1976 - 13” set of (4).

Concealed Spline Ceiling Kit: 1965 - set of (4), 1 1/2“ to 2” Mtg. Ht.

Extra-Thick Ceiling Mounting Ring: 1967A - up to 2” thick ceiling.

Labels

UL Type I.C. (Suitable for Damp Locations);

Complies with Air Leakage Requirements as stated in the Model Energy Code

and the Washington State Energy Code.

AirSeal®is a registered trademark of Lightolier.

Romex®is a registered trademark of General Cable Industries Inc.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets

Open Downlight

Reflector Satin Baffles Basic Pinhole

Cone White

1100AICMFT Cone: 1108 1105 Cone: 26W - 32W

1112 1108NM 1105NM 1113WH PL-T by Philips

1112NM 1110 1105BNM Reflector: DULUX by Osram Sylvania

1113 1110NM 1176 Triple BIAX by GE

1113CD 1176WH

1113NM

1113BKNM

1113CDNM

Reflector: Reflector: 1121 26W

1143 1170M1 1124 1185 PL-T by Philips

1144 1171 1134 1186 DULUX by Osram Sylvania

1144CD 1177SH 1186WH Triple BIAX by GE

1178SH

1126 26W

1128 PL-T by Philips

Enclosed Wall Wattage

Diffusers Washer & Lamp Type
