Basic Lytespan®1 Circuit Track 6000

Page 1 of 4

Plain Track

Individual Track Joiner Track

/16"

1-5/32"

3/4"

Joiner Track Joiner Track

96"

45-1/16"

93-1/16"

141-1/16"

21-1/16"

45-1/16"

93-1/16"

23-25/32"

47-25/32"

95-25/32"

96" 96"

3/32"

7 9

Individual Track

Features

Basic Lytespan is a one circuit electrical distribution system designed to sup-

port and supply all Lytespan lighting units in a flexible manner. The track can be

installed individually in straight runs or in a variety of patterns.

1. Basic Lytespan Track: 6063-T5 structural aluminum extrusion.

2. Track Mounting Clips: 0.024 Spring steel, in black or white; order

separately.

3. Toggle Bolt & Screws: furnished with track units.

4. Conductor (2): copper 12 ga. equivalent. “U” shape provides reliable contact

with connectors.

5. Insulating Liner: 0.032" wall, high temperature thermoplastic.

6. Polarity Bead: identifies the neutral conductor.

7. Live End: molded thermoplastic. Contains contacts for power supply leads.

8. Dead End Cover: molded thermoplastic.

9. Mini Coupler: connects track units mechanically and electrically.

Mounting

The track may be surface or stem mounted (see pages 2, 3, and 4) or installed in

a recessed housing (see Specification sheet 7515). The track is not intended to

be cable mounted. All lengths can be field cut.

Finish

All painted finishes are baked enamel.

Electrical

Capacity is 20 amps. at 120 volts per branch circuit (2400 watts incandescent

load). The track units are polarized and continuously grounded throughout.

Electrical conductors are concealed in a insulating liner. Intended for wiring to

branch circuit building wire with ground. All wiring must be in accordance with

National and Local Codes.

Mechanical

Track units plug together and lock securely to prevent accidental separation.

Lytespan lighting units can be attached at any point along the track.

Labels

cUL; I.B.E.W

6000NWH

6000NBK

6000NAL

6001NWH

6001NBK

6001NAL

6002NWH

6002NBK

6002NAL

6003NWH

6003NBK

6003NAL

6004NWH

6004NBK

6004NAL

6008NWH

6008NBK

6008NAL

6046NWH

6046NBK

6048NWH

6048NBK

6049NWH

6049NBK

6050NWH

6050NBK

6051NWH

6051NBK

6052NWH

6052NBK

6053NWH

6053NBK

6054NWH

6054NBK

6060NWH

6060NBK

6061NWH

6061NBK

6062WH

6062BK

6062NAL

6063WH

6063BK

6063NAL

26082

6087

6088

6089

7480

7480AL

7481

7582

7582AL

7584

7586

Finishes Individual Track Joiner Track Plain Track

Includes Live End Feed Connector Includes Mini Coupler Includes Dead End

2' Catalog No. 4’ Catalog No. 8’ Catalog No. 8’ Catalog No. 4’ Catalog No. 8’ Catalog No. 12’ Catalog No.

Matte White 6000NWH 6001NWH 6002NWH 6003NWH 6004NWH 6008NWH 6012NWH

Matte Black 6000NBK 6001NBK 6002NBK 6003NBK 6004NBK 6008NBK 6012NBK

Met Aluminum 6000NAL 6001NAL 6002NAL 6003NAL 6004NAL 6008NAL 6012NAL

Basic Lytespan®1 Circuit Track 6000

Page 2 of 4

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

4" Octagon

Outlet Box

(by others)

T-Bar

T-Bar Mounting

Clip

Track

Track Mounting Clips

Recommended: 2 clips per 2' & 4' track, 3 clips

per 8' and 12' track units, order separately.

Attaches to track at any point. Clip is nylon

coated. Spaces track 1/16" from ceiling.

Not recommended for wall mounting.

56451WH Matte White

56451BK Matte Black

Set of 10

Direct Mounting

Toggle bolts and nylon insulators are furnished

with Track, two per 2' and 4' track, three per 8'

and 12' track. Mount through existing holes in

track. Top of track sits flush to mounting surface.

Recommended for wall and ceiling mounting.

Regressed Edge Panels and 9/16"- 15/16"

T-Bar Clip is supplied assembled. Mounts

easily onto T-Bars by rotating clips. Use two

per 2' and 4' track, three per 8', and four per

12' track.

6087 (9) Clips

Grid Ceiling Mounting Clips

Square Edge Panels and 9/16"-15/16" T-Bars

Clip is supplied assembled. Mounts onto

T-Bars by rotating clips. Use two per 2' and

4' track, three per 8', and four per 12' track.

6089 (9) Clips

9/16"-

15/16"

Regressed

Edge Panel

T-Runner

5/16" -

13/32"

9/16" - 15/16"

Square

Edge Panel

T-Runner

Slotted Grid Ceilings such as Donn Fineline

and Chicago Metallic Ultraline 3500 and

3600. Use two per 2' and 4' track, three per

8', and four per 12' track.

6088 (9) Clips

Slotted Grid

Runner

5/16"

9/16"

1/4"

6096WH Matte White

6096BK Matte Black

Toggle Bolt

Nylon Spacer

Screw

Floating Canopy Kit

Mounts to a 4" or 3" octagonal outlet box.

Canopy is positioned anywhere along track,

up to 4' from edge of track extrusion. Power

can be fed to Live End, 'L', 'T', X', In-Line and

Variable Angle Connectors. Mount track using

track mounting clips. Canopy is 3/32" thick

and 4-1/2" square.

1/8" &

3" or 4" Octagonal

Outlet Box

(by others)

Square Canopy

Saddle Canopy Kit

Mounts anywhere along track for power feed

from a 4" or 3" octagon outlet box. Use Track

Mounting Clips or direct mount track. Especially

useful with Plain Track.

Max load 20 amps @ 120V, 60Hz.

6063WH Matte White

End Feed Canopy Kit

3" or 4" Octagon

Outlet Box

(by others)

Fitting Outlet

Box

Canopy

Grid Ceiling Canopy Kit

Mounts to a 4" or 3" octagonal outlet box. Use

two per 2' or 4' track, three per 8' and 12'

track. When making a run of track do not

exceed 4' between stems. Includes a special

outlet box to fit onto runners. Power can be

fed to Feed Track, Live End, "L", "T", "X", and

In-Line connectors. Mounts along runner or at

the intersection of runners.

6060WH Matte White

6060BK Matte Black

6060NAL Aluminum

Mounts directly to Live End, 'L', 'T', X', In-Line

and Variable Angle Connectors. Mounts to a

4" or 3" octagonal outlet box. For track installed

with mounting clips or direct mounted. Canopy

is 3/32" thick and 4-1/2" square.

6061WH Matte White

6061BK Matte Black

6061NAL Aluminum

Track Mounting and Power Feed Systems

Basic Lytespan®1 Circuit Track 6000

Page 3 of 4

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Track Mounting and Power Feed Systems

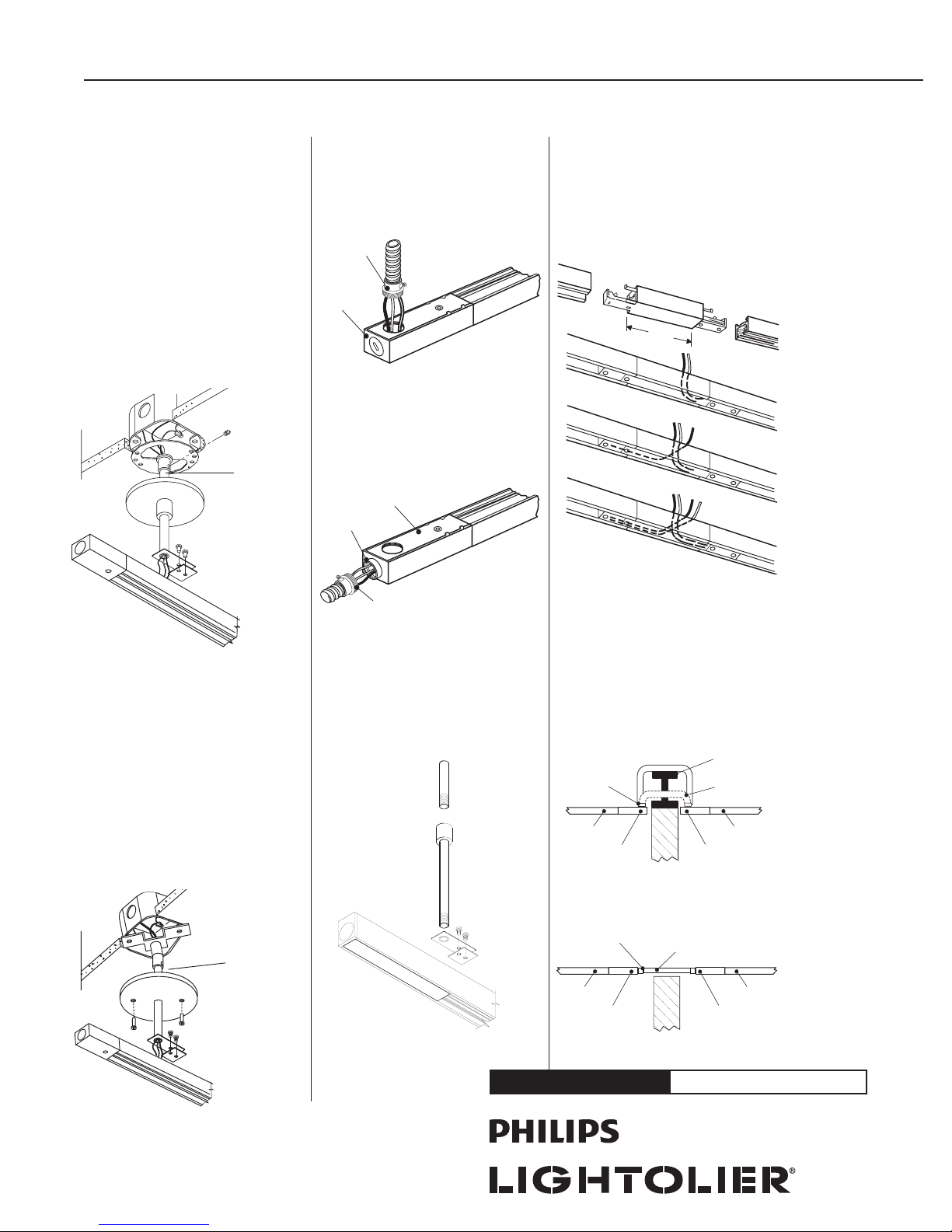

Stem Mounting Kits

Mounts to a 4" or 3" octagon outlet box. Use

two per 2' and 4' track, three per 8' and 12'

track. When making a run of track do not

exceed 4' between stems. Use additional stems

for additional support. Power is fed to the track

with the stem closest to the track feed-in point.

For power feed to Feed Track and Live End, "L",

"T", "X", In-line, and Variable Angle Connectors.

Stem can be field cut.

Not recommended for wall mounting.

18" Stem 48" Stem

Actual length from

ceiling to top of track: 17 3/8" 47 3/8"

Stem Extension Kit

Mounts to any stem kit to extend its length

by 48". Cannot be field cut.

Swivel Stem Mounting Kits

Adjusts from 0 to 90. Mounts to a 4" or 3"

octagon outlet box. Use two per 2' and 4' track,

three per 8' and 12' track. When making a run of

track do not exceed 4' between stems. Use

additional stems for additional support. Power is

fed to the track with the stem closest to the track

feed-in point. For power feed to Feed Track and

Live End, "L", "T", "X", In-line, and Variable Angle

Connectors. Can be field cut. 48" stem.

Direct Feed into Connectors

The Live End, "L", "T", "X", In-line, and

Variable Angle Connectors contain a nut with

a 1/2-14 thread to accept a 3/8" or 1/2" (trade

size) electrical connector, 3/8" connector

recommended. Does not require a separate

power feed kit.

Stem Extension

1/2" O.D. Steel

Tube

1/4-18 NPSM

Thread.

Clamp Set

Power Extension Connector

Replaces Dead End Cover at end of track to

permit power continuity around structural

obstacles to another track section.

Accepts same power feed-in kits as Live End.

Through Wall or Column

Track

Power Extention

Connector

Track

Power Extention

Connector

3/8" Connector Jump

Wall

(Conduit)

Over Beam or Through Beam

3/8"

Connector

Track

Power Extention

Connector

Beam

Jump

Track

Power Extention

Connector

Wall

In-Line Connector

Permits power feed between track units in a

straight run of track. The In-Line Connector is

polarized and pre-wired. KO permits direct

feed with electrical connector.

4-1/8"

Live End

Track Unit

3/8" Connector

(by Others)

Conduit Adaptor

For feeding power to Live End from secure

cable terminating in a 3/8" (trade size)

electrical connector. Conduit must be self

supporting. For use with 6048 and 6046.

7596 Zinc Plate

3/8" Connector (by Others)

Live End

Track Unit

Conduit

Adaptor

3" or 4" Octagon

Outlet Box

(by others)

This end may be

field cut.

Stem 1/4"-18

NPSM Thread

Clamp Set

Track

3" or 4" Octagon

Outlet Box

(by others)

0-90 Ceiling

Slope

This end may be

field cut.

Stem 1/4"-18

NPSM Thread

Clamp Set

Track

Stem mounts to track

not feed connector.

Not recommended for wall mounting.

Stem mounts to track not feed connector.

Matte White 7584 7586

Matte Black 7683 7681

7480 Matte White

7481 Matte Black

7582 Matte White

7680 Matte Black

6054NWH Matte White

6054NBK Matte Black

6054NAL Aluminum

6046NWH Matte White

6046NBK Matte Black

6046NAL Aluminum

Basic Lytespan®1 Circuit Track 6000

Page 4 of 4

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Floating Invisible Feed

Can be mounted anywhere along the track at

a maximum distance of 4' from edge of track

extrusion. Accepts conduit or cable with 3/8" or

1/2" electrical connector (by others). Can be

used with Live End, "L", "T", "X", and In-Line

and Variable Angle connectors. Use Track

Mounting Clips to mount the track.

26082 Zinc Plated

"X" Connector

The "X" connector is not pre-wired or

polarized. Used to make "X" pattern with

track. 12 ga. copper jumper wires supplied to

make all necessary connections. KO permits

direct feed with electrical connector.

3/8"

Electrical

Fitting

(by others)

Clamp Set

Track

Wire Cover

Ceiling to Wall

Wall

Inside

Corner

Wall

Outside

Corner

Live End

Energizes Track from the beginning of a run.

KO permits direct feed with electrical

connector. It is included with Individual Track

Units. Use with plain track units.

Variable Angle Connector

The Variable Angle Connector is pre-wired and

polarized. It contains a die-cast zinc nut which

accepts a standard 3/8" threaded conduit fitting.

Flexes to any angle between 0-90.

"L" Connector

The "L" connector is polarized and pre-wired.

It may be rotated for right angle or left angle

turn. KO permits direct feed with electrical

connector.

Mini-Coupler

Used to connect two pieces of track together

mechanically and electrically. Power cannot

be fed to the Mini-Coupler. It is included with

Joiner Track Units.

"T" Connector

The "T" connector is not pre-wired or

polarized. Used to make "T" pattern with

track. 12 ga. copper jumper wires supplied to

make all necessary connections. KO permits

direct feed with electrical connector.

Cord and Plug

Energizes track from a polarized 120V

receptacle. Especially useful with plain track.

Supplied with a 15' two conductor 18 ga.

cord and In-Line switch. The switch is supplied

unattached. The track is not to exceed 1200

watts. The switch is rated for 6 amps, 720 watt

with cord and plug attached.

6062WH Matte White

6062BK Matte Black

7-1/4"

0-270

2-5/8"

4-1/8"

Track Unit

Mini-Coupler

Track Unit

Coupler

Screws

Bottom Cover

Screw

Track Unit

Live End 2-3/4"

Knock Out

6053WH Matte White

6053BK Matte Black

6053NAL Aluminum

6048NWH Matte White

6048NBK Matte Black

6048NAL Aluminum

6049NWH Matte White

6049NBK Matte Black

6049NAL Aluminum

6050NWH Matte White

6050NBK Matte Black

6050NAL Aluminum

6051NWH Matte White

6051NBK Matte Black

6051NAL Aluminum

6052NWH Matte White

6052NBK Matte Black

6052NAL Aluminum

Track Mounting, Power Feed Systems and Mounting Patterns

Autres manuels Lightolier Équipement d'éclairage

Lightolier

Lightolier Lytespan 8237WH Manuel utilisateur

Lightolier

Lightolier FBP Series Fluorescent Emergency Ballast... Manuel utilisateur

Lightolier

Lightolier Calculite C7CS-P38MH Manuel utilisateur

Lightolier

Lightolier Lytecaster 2000AICV Manuel utilisateur

Lightolier

Lightolier Lytecaster 1002 Instructions d'utilisation

Lightolier

Lightolier Calculite ProSpec PA1H3070 Manuel utilisateur

Lightolier

Lightolier LR Series Manuel utilisateur

Lightolier

Lightolier Lytespan 8672WH Manuel utilisateur

Lightolier

Lightolier Lytecaster 1004ICX Manuel utilisateur

Lightolier

Lightolier LP-7 Manuel utilisateur

Lightolier

Lightolier UCS Manuel utilisateur

Lightolier

Lightolier Silhouette T5 Mode d’emploi

Lightolier

Lightolier LP-19 Manuel utilisateur

Lightolier

Lightolier Lytespan 8292WE Manuel utilisateur

Lightolier

Lightolier Lytespan LLACSW Manuel utilisateur

Lightolier

Lightolier Mini-Beam Mini-Beam Luminaires Manuel utilisateur

Lightolier

Lightolier Paralyte 2424 PLA2G9LP3FT Manuel utilisateur

Lightolier

Lightolier Lighting Systems Baselyte-BSL5 Manuel utilisateur

Lightolier

Lightolier F7000-11 Manuel utilisateur

Lightolier

Lightolier QVT1SPFOS217 Manuel utilisateur

Lightolier

Lightolier Lighting Systems Baselyte-BSL1 Manuel utilisateur

Lightolier

Lightolier CD7-4 Manuel utilisateur

Lightolier

Lightolier IS-SIL_J Manuel utilisateur

Lightolier

Lightolier Lighting Systems Baselyte-BSL30 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
