Lightolier Aleron A-8 Manuel utilisateur

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

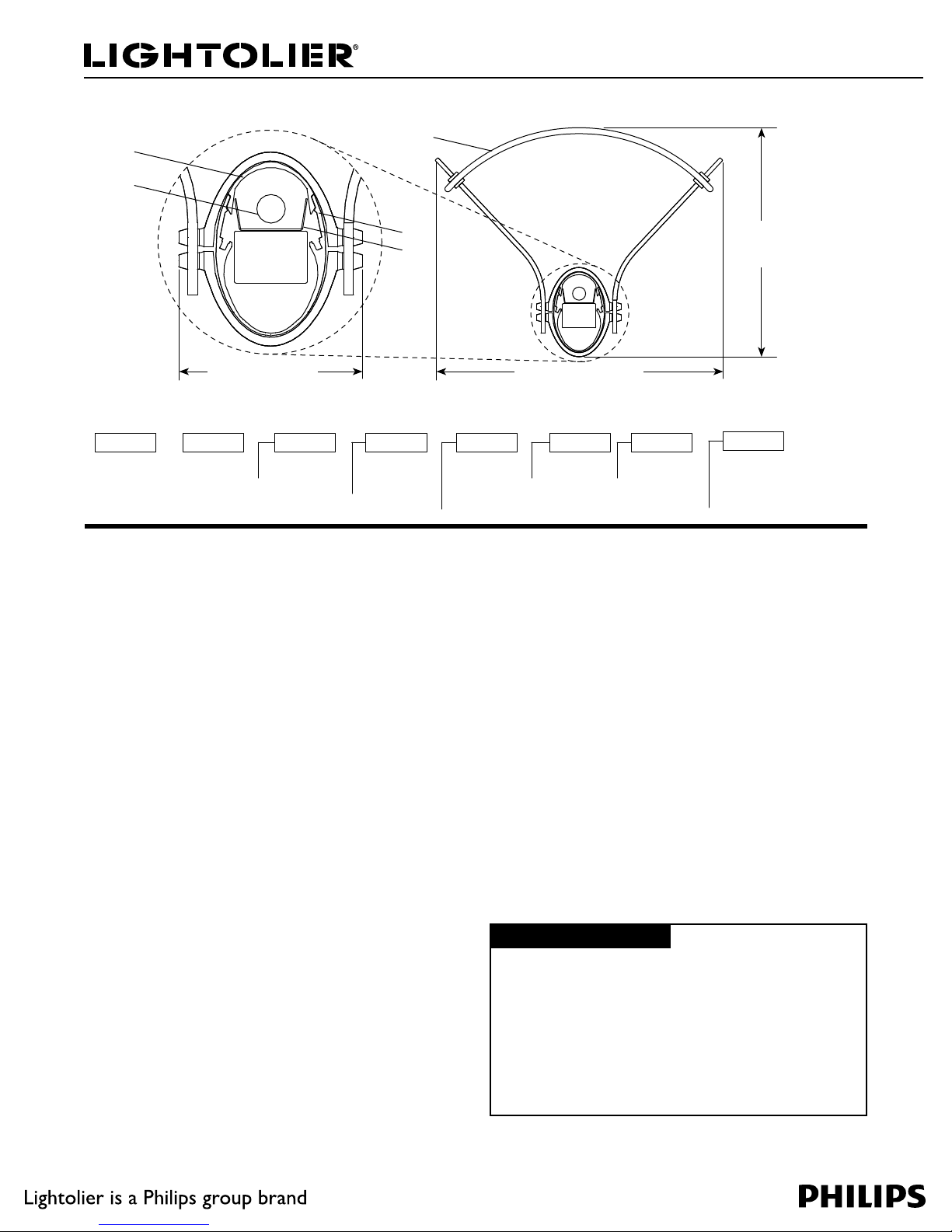

Lighting Systems A-8

1BHFPG "MFSPOÜ4FSJFT-JHIU51FShDN4FDUJPO

$

Features

1. Housing: Extruded aluminumhousing in lengths of 4’ (121.92cm), 8’ (243.84cm)

and 12’ (365.76cm). There are no exposed fasteners. The end caps are die-cast

aluminumsculpted and finished to match the housing.

2. Lens: Extruded clear acrylic linear prismatic lens.

3. Reflector: Die-formed high purity anodized specular aluminum.

4. Lamping: One T5 28W or 54W lamp per four-foot nominal length. Provided

by others.

5. Alignment Mechanism: The housing and the end cap each have a draw tight

mechanismthat creates a hairline joint along and at the ends of the run. To

operate the mechanism, the installer tightens two screws.

Labels

UL, cUL and I.B.E.W.

Finish

Powder coated baked white or silver enamel.

Customcolors available, consult factory.

Mountings

All mounting is on 48” (121.92cm), 96” (243.84cm) and 144” (365.76cm) centers.

Cable Suspension (not shown) 4-1/2" (11.43cm) diameter flat canopy finished

white enamel, 1/16" (0.16cm) diameter stainless steel aircraft cable adjustable up

to 36" (91.44cm) and adjustable cable gripper. Cable mounting at the ends of a run

is not available when track is being used. Installing stems at the ends of the run

will prevent the fixture fromhanging off center caused by the weight of the track

fixture. Cable suspension can be used in the center of runs that have track

installed. Consult factory for other options.

Stem Mounting (not shown) - 4-1/2" (11.43cm) diameter flat canopy, 1/4"

(0.64cm) IP (1/2” (1.27cm) OD) stem. The stemcan accommodate up to 2-12 gauge

and 3-18 gauge solid wires. All components have a white finish.

Electrical

Ballast is <10% THD, 1.0 ballast factor, programstart. Color-coded quick

connectors allow ease of connection for joiner modules. For special circuiting

consult factory. Factory installed ballast disconnect allows the ballast to be

disconnected fromand reconnected to incoming power under load without turning

the entire circtuit off.

Dimming: 120/277 VAC 1% dimming level, 4 or 5 wire feed required.

Emergency Battery Pack: 28 watt: 520 lumens @ 90 minutes, 54 watt: 700

lumens @ 90 minutes.

Ordering Instructions

Individual Fixtures:

1. Order number of MODULES required.

2. Order one POWER FEED END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one POWER FEED END SET per run.

4. Order one INTERMEDIATE SUSPENSION per MODULE minus one per run.

5. For runs that exceed amperage limits, order the appropriate number of

INTERMEDIATE POWER FEEDS.

Module Ordering Information

Family Series Track Length Shielding Lamps Finish Options

A 1 B D

A= Track

B= No Track

4= 4-Foot

8= 8-Foot

12 = 12-Foot

A= No Shield

B= Solid Shield

C= Perf Shield

D= Lens Shield

28 = 28w

54 = 54w

WH = White

AL = Aluminum

D1 = Dimming 120v

D2 = Dimming 277v

X5 = 5 Through Wires

Complete ordering instructions below.

6. Shielding: 3/16” (0.48cm) frosted acrylic lens with 85% transmission.

E1 = Emergency Pack, 120v

E2 = Emergency Pack, 277v

12-3/8” (31.43cm)NOT TO SCALE

3-5/8” (9.21cm)

9-15/16”

(25.24cm)

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems A-8

1BHFPG "MFSPOÜ4FSJFT-JHIU51FShDN4FDUJPO

$

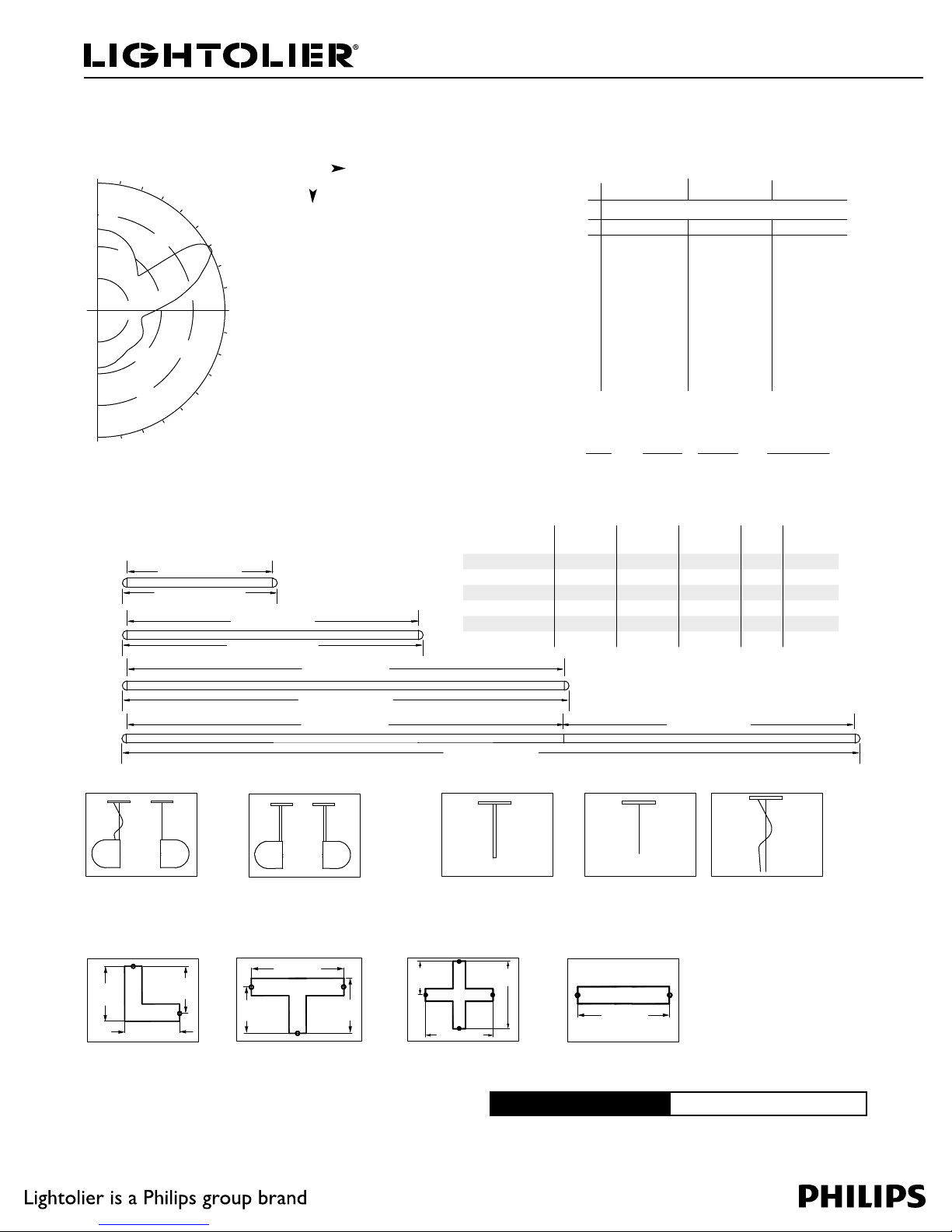

Fixture Lengths and Mounting Locations

AC36

Intermediate

36" (91.44cm) Cable Set

ALS24

Intermediate

24" (60.96cm) White StemSet

ACC36X4

Intermediate 36" (91.44cm)

Cable & 4 Wire 18 ga.

Cord Set for Fluorescent Only

A1LAL= Aluminum

A1LWH = White

"L" Joiner Block

A1TAL = Aluminum

A1TWH = White

"T" Joiner Block

A1XAL = Aluminum

A1XWH = White

"X" Joiner Block

A1ILAL = Aluminum

A1ILWH = White

Inline Joiner Block

(17.78cm)

7" (17.78cm)

(15.24cm)

12" (30.48cm)

(17.78cm)

12"

(30.48cm)

12" (30.48cm)

Mounting Accessories

(15.24cm)

96” (243.84cm)

144” (365.76cm)

20’ 7” (627.38cm)

20-Foot

12’ 7” (383.54cm)

144” (365.76cm)

12-Foot

48” (121.92cm)

4-Foot

4’ 7” (139.87cm)

8-Foot

8’ 7” (261.62cm)

96” (243.84cm)

A1EC36ALX4 = Aluminum

A1EC36WHX4 = White

4 Wire 18 ga.

Cable Power Feed

End Set 36" (91.44cm) Cables

A1ES24ALX4 = Aluminum

A1ES24WHX4 = White

4 Wire 18 ga.

Stem Power Feed

End Set 24" (60.96cm) Stems

CANDLEPOWER CURVE CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

Performance

DITRIBUTION

Zone Lumens % Lamp % Luminaire

0-90 1216 24.3 38.8

90-180 1919 38.4 61.2

0-180 3136 62.7 100.0

580

435

290

145

9090

100

110

120

130

140

150

160

170

180

ROOM CAVITY RATIO

70 50 30 70 50 30 50 30 10

066 66 66606060 484848

158 55 42535047 403836

252 47 43474339 343129

347 41 36433733 302624

443 36 31393328 252320

539 32 26352924 232017

636 28 23332621 211714

733 25 20302318 191513

831 23 18282116 171311

929 21 16261915 151210

10 27 19 14 24 17 13 14 11 9

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

WALL REFLECTANCE

20% FLOOR CAVITY REFLECTANCE

180

175

165

155

145

135

125

115

105

371

372

359

343

344

338

312

246

137

135

171

201

226

244

256

263

262

371

372

359

339

325

306

268

198

166

143

112

105

123

146

175

204

229

247

257

263

262

371

370

357

333

304

276

227

374

355

253

205

174

156

183

201

208

225

244

257

262

371

369

358

334

299

257

288

533

436

313

246

202

190

220

229

226

229

244

257

261

262

371

368

364

346

316

276

239

584

507

388

268

228

202

216

236

233

229

234

249

259

262

REPORT NO: ITL50918

CAT NO: AIX4D54

LAMPS: 1-F54T5

LUMENS: 5000

EFFICIENCY: 62.7% 4' (121.92cm)

Module

8' (243.84cm)

Module

12' (365.76cm)

Module End Set Suspension

4' (121.92cm) Run 11

8' (243.84cm) Run 11

12' (365.76cm) Run 11

16' (487.68cm) Run 211

20' (609.60cm) Run 1111

24' (731.52cm) Run 211
