Lightolier Calculite DS Manuel utilisateur

DA

EC

Frame-In Kit

Glass Disc with

Solid Center Aperture

5

6

13

4

7

2

Trimless Reflector

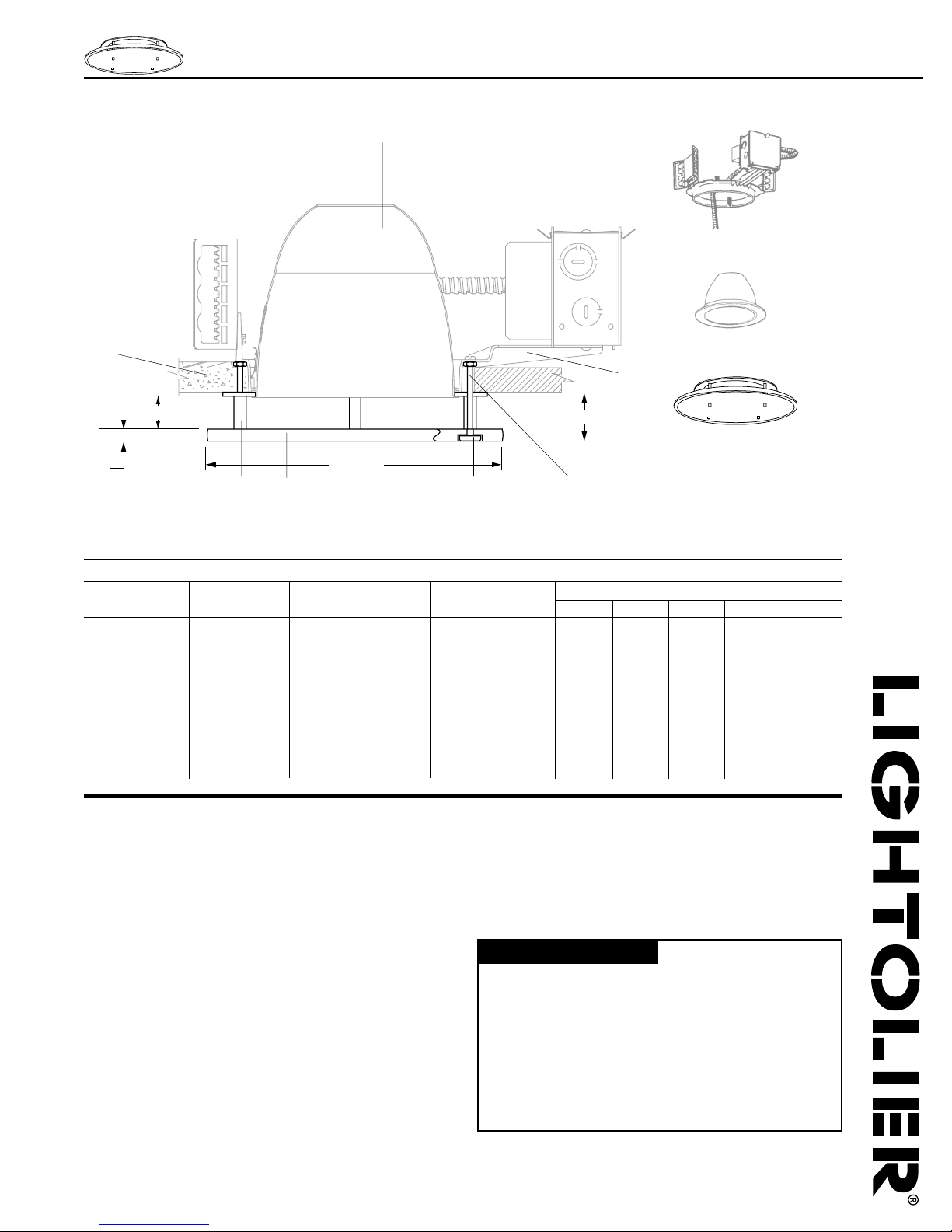

Calculite®Decorative Architectural Designs DS

Page 1 of 1 6" & 7" Aperture Decorative Solid Glass Disc

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Features

1. Decor Disc: Tempered soda lime glass 3/8” thick with sandblasted 1 1/4”

wide band and 3 1/2” diameter clear center for 7”; and 1 1/2” wide band and

4 1/4” diameter clear center for 6”.

2. Spacer: Matte white painted aluminum.

3. Decorative Fastener: Four placed 90° apart, chrome plated spanner head

screws.

4. Trim Ring: Aluminum ring with matte white finish.

5. Reflector: See Reflector Trim for Specification Sheet.

6. Frame-In Kit: See Frame-In Kit for Specification Sheet.

7. Mounting Frame Stud: Four #8-32 screws.

Lighting Data

See applicable downlight Specification Sheet for base lighting data. Multiply the

candlepower values or the coefficient of utilization by the following factors:

6” 7”

A Lamp downlights .70 .70

Compact Fluorescent lamp downlights .65 .75

PAR Lamp downlights .85 .85

Mechanical

Decorative elements securely fastened to four mounting frame studs and

spanner head screws.

Finishes/Color

Clear glass with polished pencil edge and sandblasted band.

Labels

U.L. (Damp Location)

Complete Fixture consists of decorative element, standard Frame-In Kit and Trimless Reflector. Select each separately.

Ordering Information

Decorative Element Dimensions

Catalog No. Finish/Color Trimless Reflector Frame-In Kit A B C D E

DS6 Soda lime green For use with all Calculite For use with all Calculite 9" – 1 1/2" 3/8" 1 1/16"

glass with 6" Compact Fluorescent 6" Compact Fluorescent

sandblast and a and Incandescent open and Incandescent open

solid clear aperture. trimless downlight downlight Frame-In Kits

reflectors except ProSpec.

®except ProSpec.

®

DS7 Soda lime green For use with all Calculite For use with all Calculite 10 1/2" – 1 1/2" 3/8" 1 1/16"

glass with 7" Compact Fluorescent 7" Compact Fluorescent

sandblast and a and Incandescent open and Incandescent open

solid clear aperture. trimless downlight downlight Frame-In Kits

reflectors except ProSpec.

®except ProSpec.

®
