Lightolier Lytecaster 1113T Manuel utilisateur

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytecaster®Recessed Downlighting 1113T

Page 1 of 2 6 3/4" Aperture Low Profile Open Reflector Reflector Trim

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

Fluorescent

Frame-In Kit Installation Type Lamping Height

1113TCL 1102T1 Non-IC 2 Lamp 13W Twin Tube 3 7/8”

Clear Specular 1102TH1 Non-IC Compact Fluorescent 3 7/8”

1102TH2 Non-IC (Gx23) 2 Pin Base 3 7/8”

1113TGD 1102TM1 Non-IC Emergency 3 7/8”

Gold Specular 1102TM2 Non-IC Emergency 3 7/8”

1102TH1R Non-IC 3 7/8”

1102T13U Non-IC 2 Lamp 13W Quad Tube 3 7/8”

Compact Fluorescent

(G24q-1) 4 Pin Base

1102T18U Non-IC 2 Lamp 18W Quad Tube 3 7/8”

Compact Fluorescent

(G24q-2) 4 Pin Base

1102T26U Non-IC 2 Lamp 26W Quad Tube 3 7/8”

Compact Fluorescent

(G24q-3) 4 Pin Base

1113T/1102T Series

Features

1. Reflector: Hydroformed aluminum, 18 ga.; white gloss finish on inside and

trim flange.

2. Cone: Hydroformed aluminum, specular finish.

3. Frame-In Kit: (1102T1 standard frame shown; other frames listed above.)

See Frame-In Kit specification sheet for more details.

Options & Accessories

Lytegems: See 1300 Series or 1400 Series

Specification Sheets.

Accessory Cones: 1550 - Matte Black Step Baffle

1550 - CL, GD, BK, BA, BG, WH, CD

Retaining Clips: 1955 - For installing in existing ceiling

Extra Wide Flange Trim Ring: 1954 - 8-7/8” O.D.

Plaster Ring: 1961

Labels

UL (Suitable for Damp Locations and wall), I.B.E.W.

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytecaster®Recessed Downlighting 1113T

Page 2 of 2 6 3/4" Aperture Low Profile Open Reflector Reflector Trim

Job Information Type:

CERTIFIED TEST REPORTED NO. 0149FR

COMPUTED BY LSI PROGRAM **TEST-LITE**

RECESSED LYTECASTER DOWNLIGHT

6 1/2” DIA. APERTURE, SPECULAR CLEAR CONE

TWO 26W QUAD TUBE 2 PIN LAMPS. LUMEN RATING = 1800 LMS.

TESTED ACCORDING TO IES PROCEDURES.

TEST DISTANCE EXCEEDS FIVE TIMES THE

GREATEST LUMINOUS OPENING OF

LUMINAIRE.

ZONE LUMENS % LAMP % LUMINAIRE

0–30 609 16.92 37.23

0–40 1018 28.29 63.23

0–60 1553 43.16 95.47

0–90 1610 44.73 100.00

40–90 592 16.45 36.77

60–90 56 1.58 3.53

90–180 0 0.00 0.00

0–180 1610 44.73 100.00

** EFFICIENCY = 44.7% **

ZONAL LUMENS AND PERCENTAGES

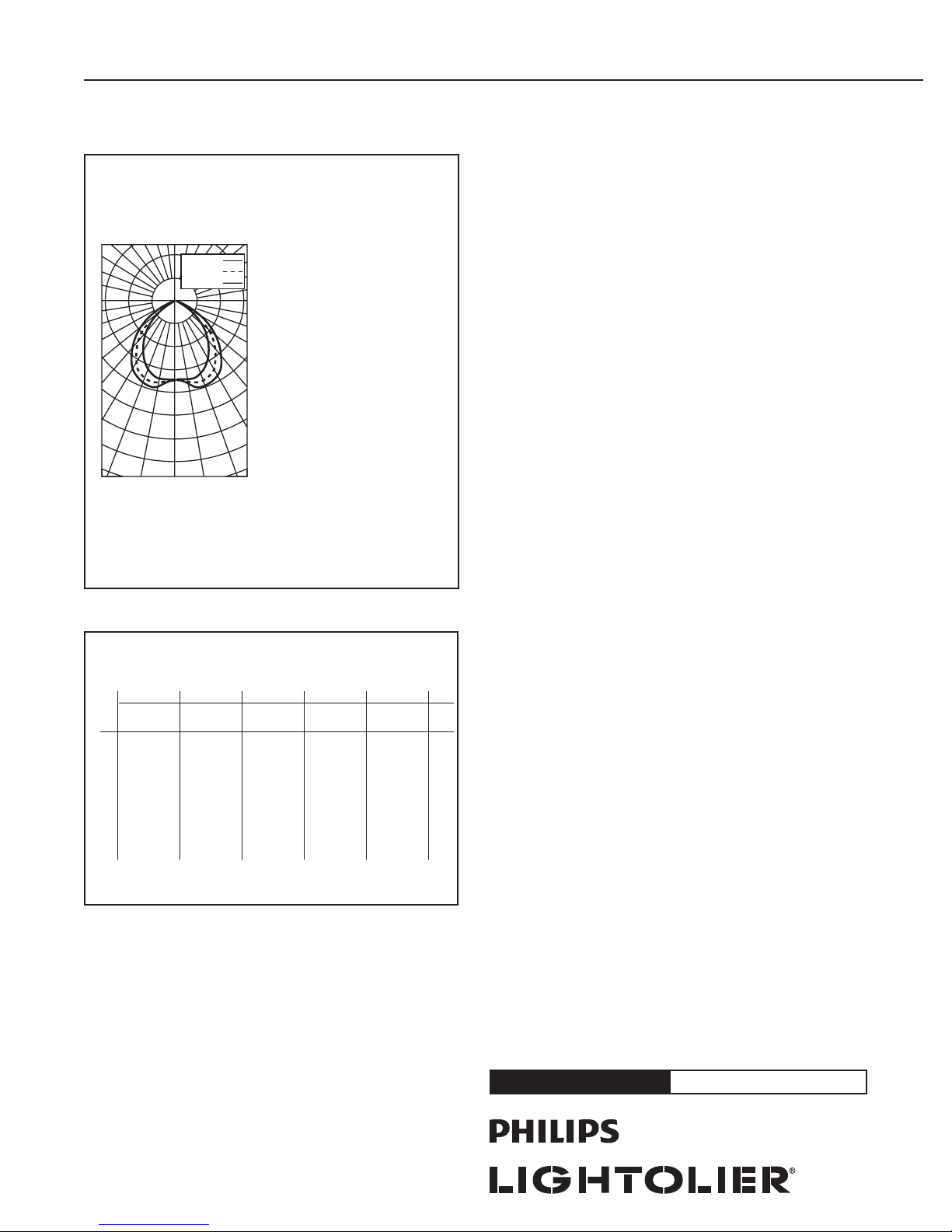

CANDLEPOWER SUMMARY

ANGLE ALONG 22.5 45 67.5 ACROSS LUMENS

0 685 685 685 685 685

5 588 685 684 690 708 33

10 690 694 702 720 742

15 689 700 730 759 789 103

20 683 704 754 774 818

25 681 710 754 759 800 171

30 677 707 726 735 757

35 626 674 695 585 697 211

40 649 602 623 623 645

45 433 488 510 522 543 191

50 301 344 363 374 390

55 168 209 216 216 209 97

60 71 93 98 94 89

65 23 36 38 36 34 21

70 8 13 10 10 10

75 6 7 7 6 5 4

80 4 6 7 7 4

85 4 4 8 8 4 3

90 4 5 7 8 4

SPACING RATIO = 1.5

ACROSS

ALONG

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

.41

.37

.33

.30

.27

.24

.21

.19

.17

.15

ROOM CAVITY RATIO

20% FLOOR CAVITY REFLECTANCE

Conversion factors: 18W Quad Tube, C.U. x 1.0

13W Twin Tube, C.U. x 1.2

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10

1 .49 .47 .46 .48 .47 .45 .46 .45 .44 .44 .43 .43 .43 .42 .41

2 .45 .43 .41 .44 .42 .40 .42 .41 .39 .41 .40 .39 .40 .39 .38

3 .42 .38 .36 .40 .38 .36 .39 .37 .35 .38 .36 .35 .37 .35 .34

4 .37 .34 .32 .37 .34 .32 .36 .33 .32 .35 .33 .31 .34 .32 .31

5 .34 .31 .29 .34 .31 .29 .33 .30 .28 .32 .30 .28 .31 .29 .28

6 .31 .28 .26 .31 .28 .25 .30 .27 .25 .29 .27 .25 .29 .27 .25

7 .28 .26 .23 .28 .25 .22 .27 .24 .22 .27 .24 .22 .26 .24 .22

8 .26 .22 .20 .25 .22 .20 .25 .22 .20 .24 .22 .20 .24 .21 .20

9 .23 .20 .18 .23 .20 .18 .23 .20 .18 .22 .19 .18 .22 .19 .17

10 .21 .18 .16 .21 .18 .16 .20 .18 .16 .20 .17 .16 .20 .17 .15

% WALL REFLECTANCE

400

800

1200
