Liesegang 283A Manuel utilisateur

USER'S MANUAL Vol.1 Basic

Please read this user's manual thoroughly to ensure correct usage through understanding.

BEDIENUNGSANLEITUNG Teil 1 Grundlagen

Bitte lessen Sie diese Benutzerhandbuch zugunsten der korrekten Bedienung aufmerksam.

MANUEL D'UTILISATION Vol.1 Fondements

Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil.

MANUALE D'ISTRUZIONI Vol.1 Informazioni di base

Vi preghiamo voler leggere attentamente il manuale d'istruzioni in modo tale da poter comprendere quanto riportato

ai fini di un corretto utilizzo del proiettore.

MANUAL DE USUARIO Vol.1 Básico

Lea cuidadosamente este manual del usuario para poder utilizar corretamente el producto.

GEBRUIKSAANWIJZING Vol.1 Basis

Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van de

uitgebreide mogelijkheden.

BRUKERHÅNDBOK Vol.1 Grunnleggende

Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk.

NSTRUÇÕES DO PROPRIETÁRIO Vol.1 Básico

Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do utilizador.

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

NEDERLANDS

NORSK

PORTGÊS

00CP-S225/X75/WBasic/再02.10.165:18PMページ2

LCD Projector

Model No.283A/284A

REGULATORY NOTICES

WARNING: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

INSTRUCTIONS TO USERS: This equipment complies with the requirements

of FCC (Federal Communication Commission) equipment provided that the

following conditions are met.

The cables may have to be used with the core set to the projector side. Use

the cables which are included with the projector or specified.

CAUTION: Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

FCC Statement Warning

For the Customers in CANADA

NOTICE: This Class B digital apparatus complies with Canadian ICES-003.

Pour les utilisateurs au Canada

AVIS: Cet appareil numérique de la Classe B est conforme àla norme NMB-003 du

Canada.

STANDBY/ON INPUT KEYSTONE RESET

LANP

TENP

POWER

Core

CP-S317/327W/最終02.9.95:37PMページ30

ENGLISH

LCD Projector

USER'S MANUAL

USER'S MANUAL Vol.1 (Basic)

Page

PROJECTOR FEATURES................2

PREPARATIONS ..............................2

PART NAMES...................................4

SETTING UP

THE PROJECTOR ............................6

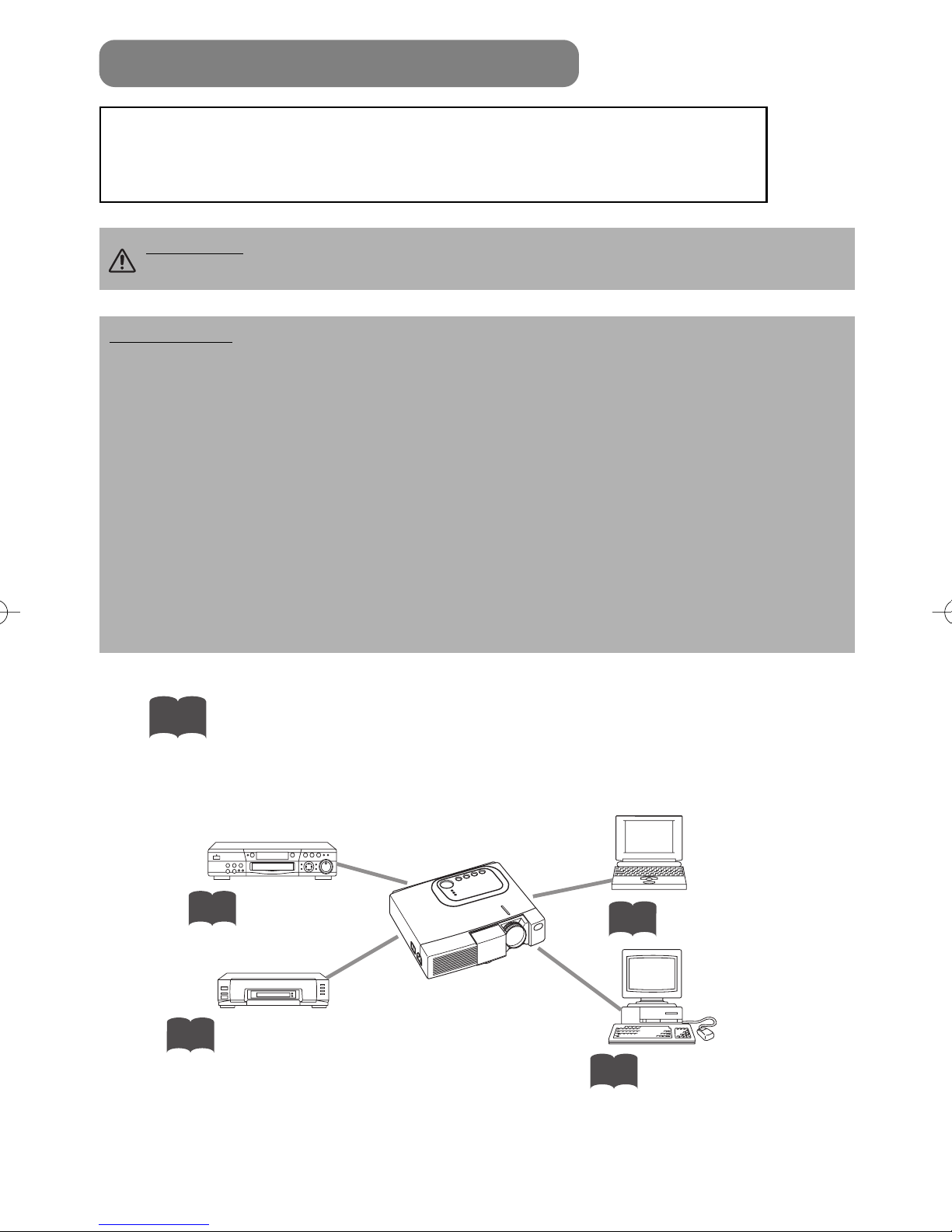

CONNECTING

YOUR DEVICES................................8

USING THE REMOTE

CONTROL.......................................12

TURNING ON THE POWER ...........14

TURNING OFF THE POWER .........16

ADJUSTING THE VOLUME ...........17

TEMPORARILY MUTING

THE SOUND....................................17

ADJUSTING THE POSITION..........18

USING THE AUTOMATIC

ADJUSTMENT FEATURE ..............19

Page

CORRECTING KEYSTONE

DISTORTIONS ................................20

USING THE MAGNIFY

FEATURE........................................21

FREEZING THE SCREEN ..............21

SIGNAL SEARCHING.....................22

SELECTING THE ASPECT

RATIO..............................................22

TEMPORARILY BLANKING

THE SCREEN..................................22

USING THE MENU

FUNCTIONS....................................23

THE LAMP ......................................24

THE AIR FILTER.............................26

OTHER CARE.................................28

REGULATORY NOTICES...............29

CONTENTS

Thank you for purchasing this projector.

• The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual

• The reproduction, transmission or use of this document or contents is not permitted without express

written authority.

TRADEMARK ACKNOWLEDGEMENT :

• PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation.

• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.

• All other trademarks are the property of their respective owners.

NOTE

WARNING • Please read the accompanying manual “SAFETY

INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct

usage through understanding. After reading, store this instruction manual in a

safe place for future reference.

01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ1

●

Ultra High Brightness

Crisp, ultra-bright presentations is achieved

by using a UHB (ultra high brightness) lamp

and a highly efficient optical system

●

Partial Magnification Function

Interesting parts of images can be magnified

for closer viewing

●

Keystone Distortion Correction

Quick correction of distorted images electrically

●

Whisper Mode Equipped

Special mode is available for reducing

projector noise to achieve quieter operation

PREPARATIONS Your projector should come with the items

shown below. Check to make sure that all the

items are included. Contact your dealer if

anything is missing.

Projector

USER'S MANUAL Vol.1 Basic

Pleaseread this user's manual thoroughly to ensure correct usage through understanding.

BEDIENUNGSANLEITUNG Teil 1 Grundlagen

Bittelessen Sie diese Benutzerhandbuch zugunsten der korrekten Bedienung aufmerksam.

MANUEL D'UTILISATION Vol.1Fondements

Nousvous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil.

MANUALE D'ISTRUZIONI Vol.1 Informazioni di base

Vipreghiamo voler leggere attentamente il manuale d'istruzioni in modo tale da poter comprendere quanto riportato

aifini di un corretto utilizzo del proiettore.

MANUAL DE USUARIO Vol.1 Básico

Leacuidadosamente este manual del usuario para poder utilizar corretamente el producto.

GEBRUIKSAANWIJZING Vol.1 Basis

Leesvoor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van de

uitgebreidemogelijkheden.

BRUKERHÅNDBOK Vol.1 Grunnleggende

Vennligstles denne bruksanvisningen grundig for å være garantert driftssikker bruk.

NSTRUÇÕES DO PROPRIETÁRIO Vol.1 Básico

Paraassegurar o uso correto do equipamento, por favor leia atentamente este manual do utilizador.

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

NEDERLANDS

NORSK

PORTGÊS

LCD Projector

Model No.283A/284A

User's Manuals

(Vol.1/Vol.2)

Safety Instructions

Soft carrying case

Power cords

UK, Europe Type

RGB cable

VIDEO

ASPECT

MUTE

KEYSTONEFREEZE

OFF

MENUPOSITION

ENTER

ESC RESET

VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

Remote control

AA batteries (2)

for the remote control

PROJECTOR

FEATURES

This liquid crystal projector is used to project

various computer signals as well as NTSC / PAL /

SECAM video signals onto a screen. Little space

is required for installation and large images can

easily be realized.

• Keep the original packing material for future reshipment.

NOTE

01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ2

Liesegang

Component

Video Cable S-Video Cable

(* for 284A only)

ENGLISH

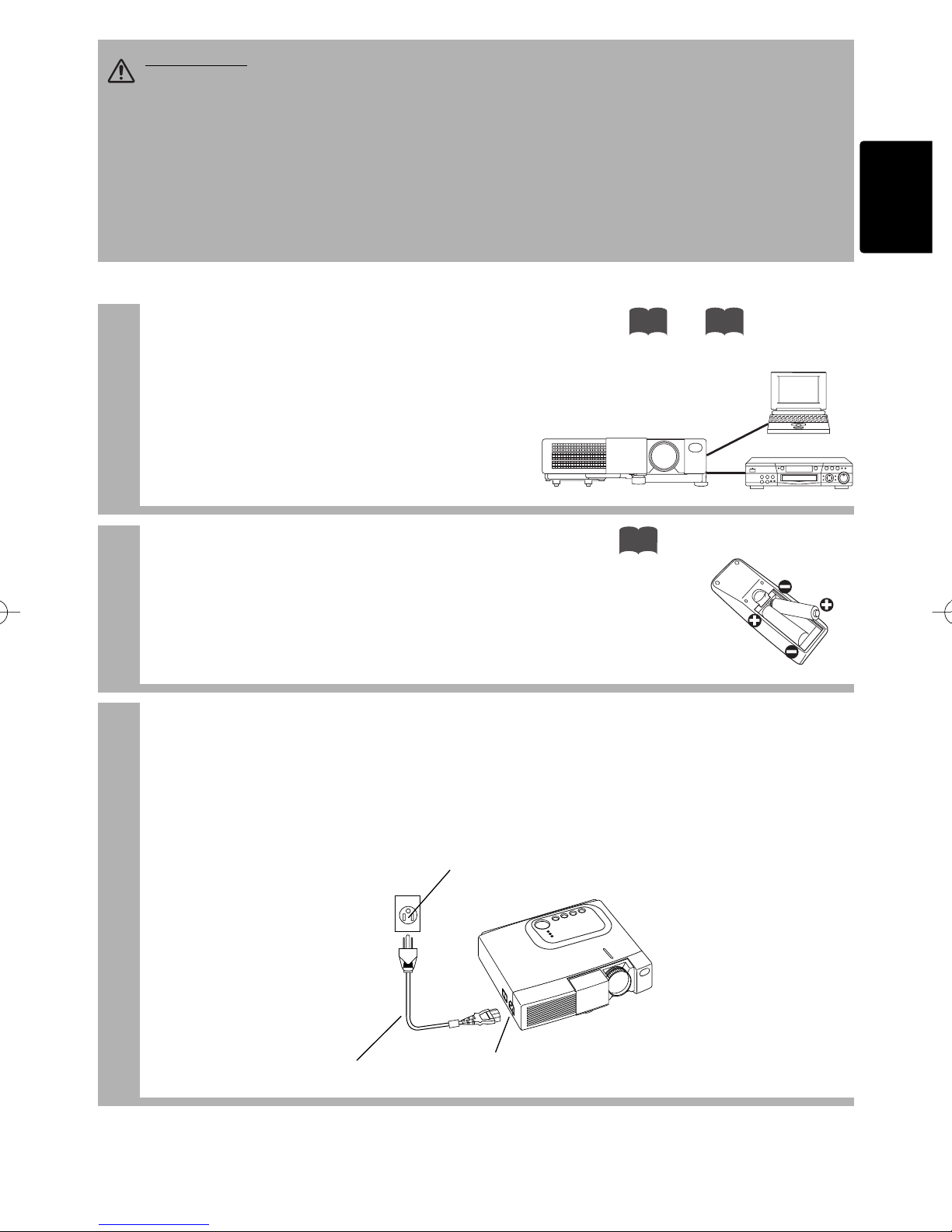

1Connect your devices to the projector

Connect your computer, VCR and/or other

devices you will be using to the projector.

Insert the batteries into the remote

control

3Connect the power cord

(1)

Connect the connector of the electrical power cord to the AC inlet of the main unit.

(2) Firmly plug the power cord's plug into the outlet

WARNING Precautions to observe in regards to the power cord: Please use extra

caution when connecting the projector's power cord as incorrect or faulty

connections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the

following safety guidelines to insure safe operation of the projector:

•

Only plug the power cord into outlets rated for use with the power cord's specified voltage range.

• Only use the power cord that came with the projector.

• NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE-

PRONGED PLUG!

• Make sure that you firmly connect the power cord to the projector and wall outlet.

〜

811

(1)

(2)

Power outlet

Power cord AC inlet

01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ3

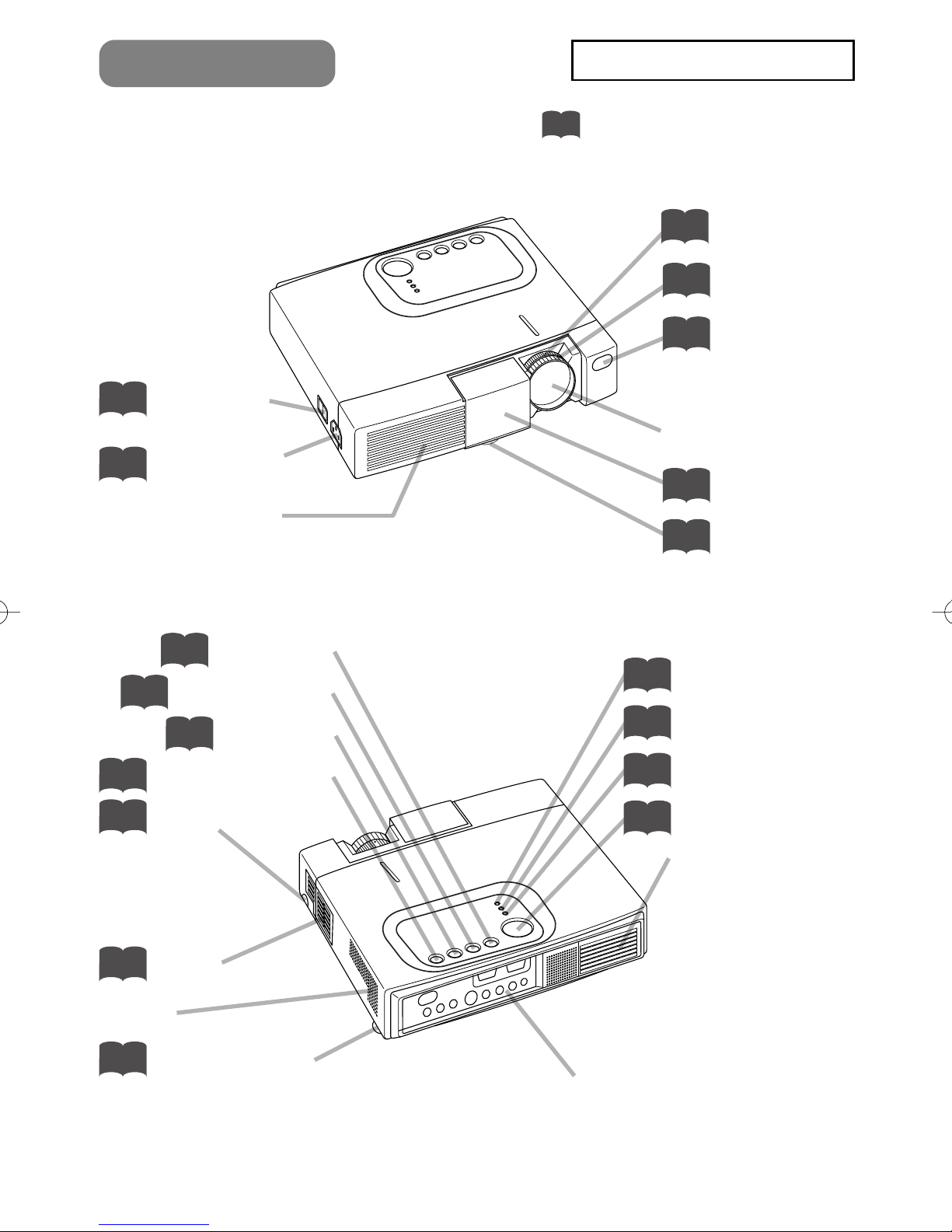

PART NAMES THE PROJECTOR

Indicates the corresponding

reference page

AC power inlet

(to the Power Cord)

Ventilation Openings

(Intake)

Power switch

Zoom ring

Focus ring

Remote sensor

Lens

Slide Lens Door

Foot Adjuster

Air filter

KEYSTONE button

STANDBY/ON button

INPUT button

RESET button

Speaker

Foot Adjuster button

Rear Foot Adjuster

LAMP indicator

TEMP indicator

POWER indicator

MENU button

Ventilation Openings

(Exhaust)

Terminal Panel

Vol.2

01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ4

ENGLISH

THE REMOTE CONTROL

THE TERMINAL PANEL

STANDBY/ON button

VIDEO button 15

MENU button

RGB button 15

BLANK button

SEARCH button

VOLUME button

MUTE button

KEYSTONE button

ASPECT button 22

AUTO button

MAGNIFY buttons 21

FREEZE button 21

POSITION button 18

ESC button 23

,,,

Cursor buttons 23

RESET button

ENTER button

VIDEO

ASPECT

MUTE

KEYSTONEFREEZE

OFF

MENUPOSITION

ENTER

ESC RESET

VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

Remote sensor

COMPONENT

Y port

CB/PBport

CR/PRport

S-VIDEO port

AUDIO

L port

R port

RGB port

CONTROL port

AUDIO port

VIDEO port

Vol.2

TECHNICAL

01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ5

Angle Adjustment

1Lift up the front side of the

projector, and pressing the foot

adjuster button, adjust the

projection angle

2Release the button to lock at the

desired angle

3Make the rear foot adjuster screw to

adjust the left-right slope

Use the foot adjusters on the bottom of the projector to adjust the projection

angle. It is variable within 0˚to 10˚approximately.

CAUTION •

Install the projector in a suitable environment according to instructions

of the accompanying manual “SAFETY INSTRUCTIONS” and this manual.

• If you press the elevator buttons without holding the projector, the projector might

crash down, overturn, smash your fingers and possibly result in malfunction. To

prevent damaging the projector and injuring yourself, ALWAYS HOLD THE

PROJECTOR whenever using the elevator buttons to adjust the elevator feet.

SETTING UP THE PROJECTOR

Press the foot adjuster button

Rear Foot Adjuster

01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ6

ENGLISH

Refer to the illustrations and tables below to determine the screen size and

projection distance.

Adjusting the Screen Size and Projection Distance

Top view

Lens center

The screen

Side view

Top view

Lens center

The screen

Side view

If 4:3 aspect ratio

If 16:9 aspect ratio

The values shown in the table are calculated for a full size screen

(283A: 800x600 pixels/284A: 1024x768 pixels).

a:Distance from the projector to the screen (±10%)

b:Distance from the lens center to the bottom of the screen (±10%)

Screen size

[inch (m)] a [inch (m)] b

[inch (cm)]

Min. Max.

40 (1.0) 37 (0.9) 46 (1.2) 3 (8.7)

60 (1.5) 57 (1.5) 69 (1.8) 5 (13.1)

80 (2.0) 77 (1.9) 93 (2.4) 7 (17.4)

100 (2.5) 96 (2.4) 116 (2.9) 9 (21.8)

120 (3.0) 116 (2.9) 139 (3.5) 10 (26.1)

150 (3.8) 145 (3.7) 174 (4.4) 13 (32.7)

200 (5.0) 194 (4.9) 233 (5.9) 17 (43.5)

Screen size

[inch (cm)] a [inch (m)] b

[inch (cm)]

Min. Max.

30 (0.8) 30 (0.8) 38 (1.0) 0 (1)

40 (1.0) 41 (1.0) 50 (1.3) 0 (1)

60 (1.5) 62 (1.6) 76 (1.9) 1 (2)

80 (2.0) 83 (2.1) 101 (2.6) 1 (2)

100 (2.5) 105 (2.7) 127 (3.2) 1 (3)

120 (3.0) 126 (3.2) 152 (3.9) 1 (4)

150 (3.8) 158 (4.0) 190 (4.8) 2 (4)

200 (5.0) 212 (5.4) 254 (6.4) 2 (6)

01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ7

DVD players

VCRs

Laptop computers

Desktop computers

Indicates the

corresponding

reference page

ATTENTION

Precautions to observe when connecting other devices to the projector

• Whenever attempting to connect other devices to the projector, please thoroughly

read the manual of each device to be connected.

• TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to

connect a live device to the projector may generate extremely loud noises or other

abnormalities that may result in malfunction and/or damage to the device and/or

projector. Refer to the “TECHNICAL” of the USER’S MANUAL (Vol.2) for the pin

assignment of connectors and RS-232C communication data.

• Make sure that you connect devices to the correct port. Incorrect connection may

result in malfunction and/or damage to the device and/or projector.

•Some cables have to be used with core set. Use the accessory cable or

a designated-type cable for the connection. For cables that have

a core only at one end, connect the core to the projector.

• Secure the screws on the connectors and tighten.

CONNECTING YOUR DEVICES

Devices You Can Connect to the Projector

(Refer to this section for planning your device

configuration to use for your presentation.)

CAUTION • Incorrect connecting could result in fire or electrical shock. Please

read this manual and the separate “SAFETY INSTRUCTIONS”.

01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ8

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Liesegang Projecteur

Liesegang

Liesegang DV 880 Manuel utilisateur

Liesegang

Liesegang ddv 3200 Manuel d'instructions

Liesegang

Liesegang ddv 2000 Manuel utilisateur

Liesegang

Liesegang DV 470 Manuel utilisateur

Liesegang

Liesegang e-motion4100 Manuel utilisateur

Liesegang

Liesegang ddv 2500 Manuel utilisateur

Liesegang

Liesegang Solid Cinema 215 Manuel utilisateur

Liesegang

Liesegang Solid Ultra Document technique

Liesegang

Liesegang DV 390 Manuel utilisateur

Liesegang

Liesegang dv 420 Manuel utilisateur

Liesegang

Liesegang dv 540 flex Manuel d'instructions

Liesegang

Liesegang ddv 1111 Manuel utilisateur

Liesegang

Liesegang ddv 2500 Manuel utilisateur

Liesegang

Liesegang ZU0214 04 4010 Document technique

Liesegang

Liesegang dv445 Manuel utilisateur

Liesegang

Liesegang ddv 1500 Manuel utilisateur

Liesegang

Liesegang dv 420 Manuel utilisateur

Liesegang

Liesegang dv350 Manuel utilisateur

Liesegang

Liesegang 278 Manuel utilisateur

Liesegang

Liesegang 251 Manuel utilisateur

Liesegang

Liesegang 266 Manuel utilisateur

Liesegang

Liesegang dv410 Manuel utilisateur

Liesegang

Liesegang Luxor plus Manuel utilisateur

Liesegang

Liesegang ddv 1800 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
