Controller accessories 363

Wireless remote controller

1. Controller accessories

1.1 Wireless remote controller

Picture:

Functions:

A Wireless remote controller allows the operation of air conditioner from any corner of the room

Applicable Models:

Ceiling cassete

Ceiling concealed duct

Accessory:

Wireless remote control ............................................................................................................................1EA

Owner's manual ........................................................................................................................................1EA

AHWRHSAHWRHDPQWRHSF0

Functions PQWRHSF0 AHWRHD AHWRHS

Air circulation / Fan operation

Room temperature checking

Sleep mode operation

Temperature settings

Operation mode selection

Air-swing & Jet cool (Cassette Only)

On/Off Timer settings

364 Controller accessories

Wireless remote controller

Installation procedure:

Mounting on the wall

1) Mount the remote control stand on the wall with the help of screw driver and screw pur-

chased locally.

2) Insert the remote control in the stand.

How to insert batteries:

1) Remove the battery cover from the remote control. Slide the cover in the direction of arrow.

2) Insert two batteries. Take care about the polarity(+/-) and batteries should be new.

3) Re-place the cover by sliding it back into position.

How to use

For ceiling cassette :

Point the signal transmitter towards the front panel of the cassette indoor unit (for C, D, E, F

Chassis models) and press any function key. For B chassis point the signal transmitter towards

the wired remote control and press any function key.

For ceiling concealed duct, ducted split & Single package :

Point the signal transmitter towards the wired remote control and press any function key.

Remarks

1. Do not use rechargeable batteries for wireless remote control .

2. Remove the batteries from the remote control if the air conditioner is not going to be used for

long time.

Controller accessories 365

Wireless remote controller

Function's detail

Models : PQWRHSF0

The remote control transmits the signals to the system.

START/STOP BUTTON

Operation starts when this button is pressed and stops

when the button is pressed again.

Operation mode selection button

Used to select the operation mode.

ROOM TEMPERATURE SETTING BUTTONS

Used to select the room temperature.

INDOOR FAN SPEED SELECTOR

Used to select fan speed in four steps

low, medium, high and CHAOS.

JET COOL

Used to start or stop the speed

cooling. (Speed cooling operates

super high fan speed in cooling mode.)

CHAOS SWING BUTTON

Used to stop or start louver movement and set the desired

up/down airflow direction.

ON/OFF TIMER BUTTONS

Used to set the time of starting and stopping operation.

TIME SETTING BUTTONS

Used to adjust the time.

TIMER SET/CANCEL BUTTON

Used to set the timer when the desired time is obtained and

to cancel the Timer operation.

SLEEP MODE AUTO BUTTON

Used to set Sleep Mode Auto operation.

AIR CIRCULATION BUTTON

Used to circulate the room air without cooling or heating.

ROOM TEMPERATURE CHECKING BUTTON

Used to check the room temperature.

PLASMA(OPTIONAL)

Used to start or stop the plasma-purification function.

HORIZONTAL AIRFLOW DIRECTION CONTROL

BUTTON (NOT ON ALL MODELS)

Used to set the desired horizontal airflow direction.

RESET BUTTON

Used prior to resetting time or after replacing batteries.

2nd F Button

Used prior to using modes printed in blue at the bottom of

buttons.

AUTO CLEAN(OPTIONAL)

Used to set Auto Clean mode.

10.

11.

12.

13.

14.

15.

16.

17.

ON OFF

CANCEL

SET

Cooling Operation

Auto Operation or Auto Changeover

Healthy Dehumidification Operation

Flip-up door

(opened)

Heating Operation

Signal transmitter

•

Cooling Model( ), Heat Pump Model( )

AUTO CLEAN

Operation Mode

366 Controller accessories

Wireless remote controller

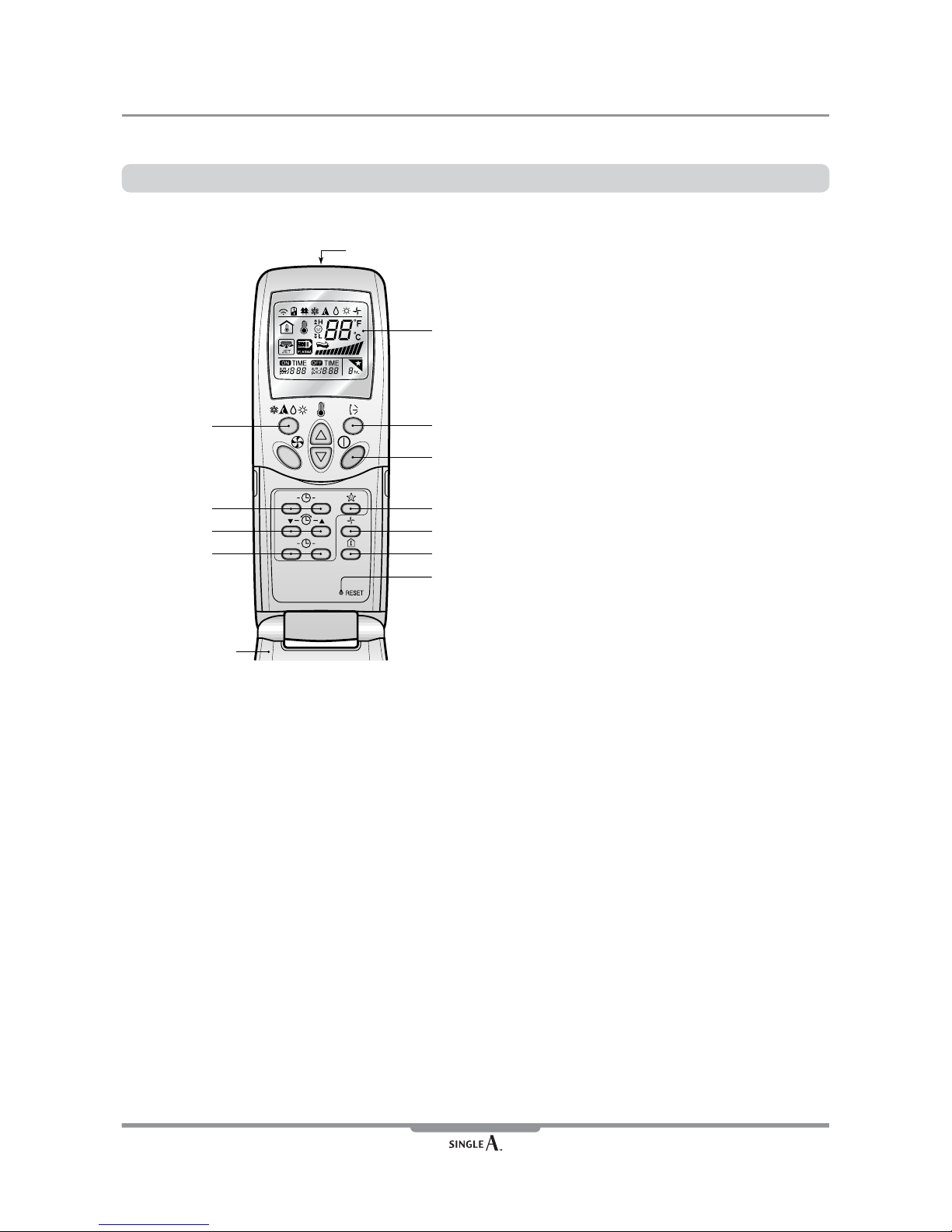

Models : AHWRHD

1. Operation display

Displays the operation conditions.

2. Start/Stop button

Operation starts when this button is pressed and stops

when the button is pressed again.

3. Operation mode selection button

Used to select the operation mode.

4. on/off timer buttons

Used to set the time of starting and stopping operation.

5. Time setting buttons

Used to adjust the time.

6. timer set/cancel buttons

Used to set the timer when the desired time is obtained

and to cancel the Timer operation.

7. Air flow direction start/stop button

Used to stop or start louver movement and set the

desired up/down airflow direction.

8. Sleep mode auto button

Used to set Sleep Mode Auto operation.

9. Air circulation button

Used to circulate the room air without cooling or heating

(turns indoor fan on/off).

10. room temperature checking button

Used to check the room temperature.

11. Reset button

Used prior to resetting time or after replacing batteries.

ON OFF

SET

CANCEL

Signal transmitter

Flip-up door(opened)

Controller accessories 367

Wireless remote controller

Models : AHWRHS

Signal transmitter

Transmits the signals to the signal receptor.

1. FAN operation button

Used to circulate room air without cooling or heating.

2. Cooling operation button

3. Soft dry operation button

Used to dehumidify without overcooling.

4. Heating operation button

(Heat pump model only)

5. Timer set button

Used to set the timer when the desired time is obtained.

Then the wired remote controller is set up to 24 hours by

an hour but the wireless remote controller is set up to 7

hours by an hour. Therefore, if you want to set over 7

hours, use the wired remote controller.

6. Fan speed button

Used to set the desired fan speed.

7. On/Off button

Operation starts when this button is pressed, and stops

when the button is pressed again.

8. Set temperature button

Used to set the temperature when the desired tempera-

ture is obtained

9. Auto operation button

A/CL

368 Controller accessories

Simple wired remote control

1.2 Simple wired remote controller

Picture:

Applicable models

Cassette, duct and ceiling and floor

Functional control

Dimension

PQRCHCS0

FAN

SPEED

MODE

Cooling Heating Auto Dry Fan

Defrost Preheat Out door

Slo

Med

Room Temp

Total on

Central Run

PQRCHCS0

FAN

SPEED

MODE

Cooling Heating Auto Dry Fan

Defrost Preheat Out door

Slo

Med

Room Temp

Total on

Central Run

120mm

70mm

13.5mm

Functional description:

1. Simple design.

2. Simple & easy use.

3. Memorize data(operation data) in case of power failure.

4. ON/OFF , Temperature setting, room temperature display,

Air flow control, lock setting, Fault diagnosis function,

operation mode setting, basic functions.

5. Easy address setting with central control.

6. Operation LED is on during operation.

1. Operation Display Panel

2. On/off Function

3. Fan Speed Button

4. Temperature Control Button

5. Mode Selection Check Button

Models : PQRCUCA0

Controller accessories 369

Simple wired remote control

Installation method:

1 Put the installation paper on the place and determine the position and height of the fixing screws of the wired remote con-

troller.

• Refer to the printed side of the installation paper.

2 Plug the connecting cable into the indoor unit.

• The product is being shipped with the cable connected only to the remote controller.

Fix the connecting cable with the cable rack.

3 Remove the installation paper before installing the remote controller so that it can fit at the right place.

* Do not embed the remote controller into the wall. (It may cause the breakdown of the temperature sensor.)

* If you want to install a number of remote controller at the same place in a vertical line, install them at regular intervals of

2cm. (It may cause the breakdown of the temperature sensor.)

* Do not install the cable with a distance of 30 m or longer. (This can cause communication error.)

* When installing the cable, check whether the connector between the remote controller and the product is installed prop-

erly. The connector will not be connected when installed in opposite sides.

o Supply the power after connecting wired remote controller.

When you need to change wired remote controller, switch off the main power and change it.

If the wired remote controller is changed before switching off the main power, the option function of the indoor unit can't

be used. (option function like "slow" fan speed selection)

The position of the fixing screws

CN-REMO

LO2K

J15

LO1K

LO1D C07D

C01K

J14

CN-DISP

CN-M CN-ZONEC

IC01A

Side of

remote Controller

Side of

Indoor Unit

Main

indoor unit

Red Yellow Brown

Main frame

Fixing the

remote controller

2CM

370 Controller accessories

Deluxe wired remote controller

1.3 Deluxe wired remote controller

Models : PQRCUDS0

Picture:

Applicable models

Cassette, duct and ceiling and floor

Functional control

Functional Description:

1. Big LCD panel which can display various information.

2. Deluxe touch panel.

3. Memorize data(operation data) in case of power failure.

4. ON/OFF,Temperature setting, room temperature display,

5. Air flow control, lock setting,reservation function,

6. Fault diagnosis function, operation mode setting, basic

functions.

7. Easy address setting with central control.

8. Deluxe with LCD back light applied

9. Vane control & child lock, optimum air control as deluxe

function

10. Back light LED is on during operation.

1. Operation Display Panel

2. Room Temperature Button

3. Fan Speed Button

4. Fan/Plasma/Swirl Swing Button

5. Automatic / Power Saving Vane Control Button

6. Timer Mode Button

7. Date Selection Button

8. Hour/Minute Button

9. Mode Selection Button

10. On/Off Button for reservation

11. Temperature Control Button

12. On/Off Button

13. Special Function Button

14. Dehumidification/ Heater/ Go-out Button

15. Sub Function Button

16. Easy Reservation Button

17. Cancel Button

18. Heating/Ventilation/Elevation Grill Button

19. Setting Button

20. Cooling / Auto Swing / Child Lock Button

Controller accessories 371

Deluxe wired remote controller

Installation method:

1 Put the installation paper on the place and determine the position and height of the fixing screws of the wired remote con-

troller.

• Refer to the printed side of the installation paper.

2 Plug the connecting cable into the indoor unit.

• The product is being shipped with the cable connected only to the remote controller. Put each cable to the remote con-

troller according to the color match

3 Remove the installation paper before installing the remote controller so that it can fit into the right place.

* When installing the wired remote controller, do not install it so that it is buried to the wall. (This can cause error in the

temperature sensor)

* When installing multiple wired remote controllers horizontally in one location, leave a minimum distance apart (2cm).

(This can cause error in the temperature sensor)

* Do not install the cable with a distance of 50 m or longer. (This can cause communication error.)

* When installing the cable, check whether the connector between the remote controller and the product is installed prop-

erly. The connector will not be connected when installed in opposite sides.

JSupply the power after connecting wired remote controller.

When you need to change wired remote controller, switch off the main power and change it Before switch off the main

power if changed the wired remote controller , you can't use the option function of the indoor unit.

The position of the fixing screws

Side of

remote Controller

Side of

Indoor Unit

Main frame

CN-REMO

LO2K

"15

LO1K

LO1D C07D

C01K

"14

CN-DISP

CN-M CN-ZONEC

IC01A

Be careful not to alter the colors

of the remote controller

connection cables.

Brown

Red YellowYellowYellow

Fixing the

remote controller

Fixing the

connecting cable

372 Controller accessories

Hotel use remote controller

1.4 Hotel use remote controller

Models : PQRCFCS0

Picture:

Applicable models

Cassette, duct and ceiling and floor

Functional control

PQRCHCS0

FAN

SPEED

MODE

Cooling Heating Auto Dry Fan

Defrost Preheat Out door

Slo

Med

Room Temp

Total on

Central Run

Functional description:

Can control one or multi indoor units which have been

installed at remote areas with same function by same con-

troller at same time

1. Simple design.

2. Simple & easy use.

3. Memorize data(operation data) in case of power failure.

4. ON/OFF , Temperature setting, room temperature display,

Air flow control, lock setting, Fault diagnosis function,

operation mode setting, basic functions.

5. Easy address setting with central control.

6. Operation LED is on during operation.

7. Operation mode setting can be done by central control

1. Operation Display Panel

2. On/off Function

3. Fan Speed Button

4. Temperature Control Button

5. Room temperature button

Autres manuels pour PQWRHSF0

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels LG Télécommande

LG Magic Remote AN-MR650 Manuel utilisateur

LG AN-MR600 Manuel d'utilisation

LG AN-MR18BA Manuel utilisateur

LG PQRCUSA0 Guide de démarrage rapide

LG MultiSITE CRC1 Series Manuel utilisateur

LG MR22GA Manuel d'utilisation

LG AN-MR300 Manuel utilisateur

LG AN-MR600 Manuel utilisateur

LG Magic Remote AN-MR19BA Manuel utilisateur

LG Magic Remote MR23GN Manuel utilisateur

LG Magic Remote Manuel utilisateur

LG PQRCFCS0C Guide de démarrage rapide

LG Magic Remote AN-MR19BA Manuel utilisateur

LG PQRCUSA1 Guide de démarrage rapide

LG AN-SP700 Manuel d'utilisation

LG MR22GN Manuel utilisateur

LG AN-MR600 Manuel utilisateur

LG PQWRCDF0 Guide de démarrage rapide

LG PREMTTB101 Guide de démarrage rapide

LG AN-MR500G Manuel utilisateur

LG AKB732955 Manuel d'utilisation

LG PREMTB001 Guide de démarrage rapide

LG Magic Remote AN-MR650 Manuel utilisateur

LG AN-MR300Q Manuel d'utilisation

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
