OWNER’S MANUAL

MAGIC MOTION REMOTE

Please read this manual carefully before operating your set and retain it

for future reference.

AN-MR200

Remote control (AKB732955)

RF Dongle (EAT614134)

ACCESSORIES

0(18

ENTER

VOL CH

MUTE

FREEZE

RATIO

L/RSELECT

ENTER

BACK EXIT

Q.MENU

INFO

CHVOL

FAV

MUTE

1 2 3

4 5 6

7 8

MARK

LIST

FLASHBK

ENERGY

SAVING

AVMODE

INPUT

Magic Motion

Remote Control

and Batteries (AA)

Owner’s manual RF Dongle RF Dongle Cable Strap Velcro

REMOTE DESCRIPTION

MUTE

VOL

ENTER

Home

MUTE

Pointer (RF transmitter)

Blinks the light when operating.

POWER

Turns the TV on or off.

ENTER/OK

Selects menus or options and

confirms your input.

Press this button to display the

pointer when it disappears from the

screen.

If you press the navigation button

while moving the pointer on the

screen, the pointer disappears, and

the Magic Motion remote control

works as a regular remote control.

To display the pointer again, shake

the Magic Motion remote control

from side to side within 2 minutes

after it disappeared. (If 2 minutes

have passed, press the Enter button

to display the pointer.)

Navigation (up/down/left/right)

Scrolls through menus or options.

Home

Accesses the Home menu.

Home

MUTE

/ VOL(+/-)

Adjusts the volume level.

P / CH(∧/∨)

Scrolls through the saved program or

channels.

MUTE

Mutes all sounds.

ꔛPlease read this manual carefully and use the TV correctly.

ꔛWhen the message “Magic motion remote control battery is low. Change the battery.”

is displayed, replace the battery.

ꔛTo replace batteries, open the battery cover, replace batteries (1.5 V AA) matching

and ends to the label inside the compartment, and close the battery cover. Be sure

to point the remote control at the remote control sensor on the TV.

ꔛTo remove the batteries, perform the installation actions in reverse. Don’t mix old or used batteries

with new ones. Close cover.

Installing Batteries

RF SPECIFICATION

The Magic Motion Remote Control

communicates with RF Dongle using a

2.4 GHz bandwidth radio frequency (RF).

ꔛ

Output: 1 dBm or lower

ꔛ

Maximum Communication Distance:

10 m (32.8 ft) in an open space

ꔛ

Bandwidth: 2.4 GHz

(2.4035 GHz - 2.4783 GHz)

ꔛ

Transfer Rate: 250 kbps

RF DONGLE

Use LED LCD TV/LCD TV Only.

PDP Model (50/60PZ95/75/57**) don’t need this

device. PDP TV is built in.

Cable IN

Lamp

*Attach the RF Dongle aligning with the upper left

corner bracket.

2 Connect the RF Dongle Cable plug on the RF

Dongle to a USB1 jack on the TV.

3 Attach the RF Dongle to the velcro as shown

below and then turn on the TV.

*If the RF Dongle for the wireless media box is

attached, attach the RF Dongle for the Magic

Motion remote control on the below right of the

back of the TV.

*To avoid wireless interference, keep the distance

between the RF Dongle and the Wi-Fi dongle at

20 cm.

INSTALLING RF DONGLE

Image shown may differ from your TV.

1 Locate the designated Velcro attachment

location on the TV. Then tear off the

protection paper and attach the Velcro. (The

attachment location is different depending

on the TV model you own)

20cm

86%

Velcro

PRECAUTIONS TO TAKE

ꔛ

Use the remote control within the

maximum communication distance (10 m,

32.8 ft). Using the remote control beyond

this distance, or with an object

obstructing it, may cause a

communication failure.

ꔛ

A communication failure may occur due to

nearby devices. Electrical devices such as

a microwave oven or wireless LAN

product may cause interference, as this

will use the same bandwidth (2.4 GHz) as

the Magic Motion Remote Control.

ꔛ

The Magic Motion Remote Control may

be damaged or may malfunction if it is

dropped or receives a heavy impact.

ꔛ

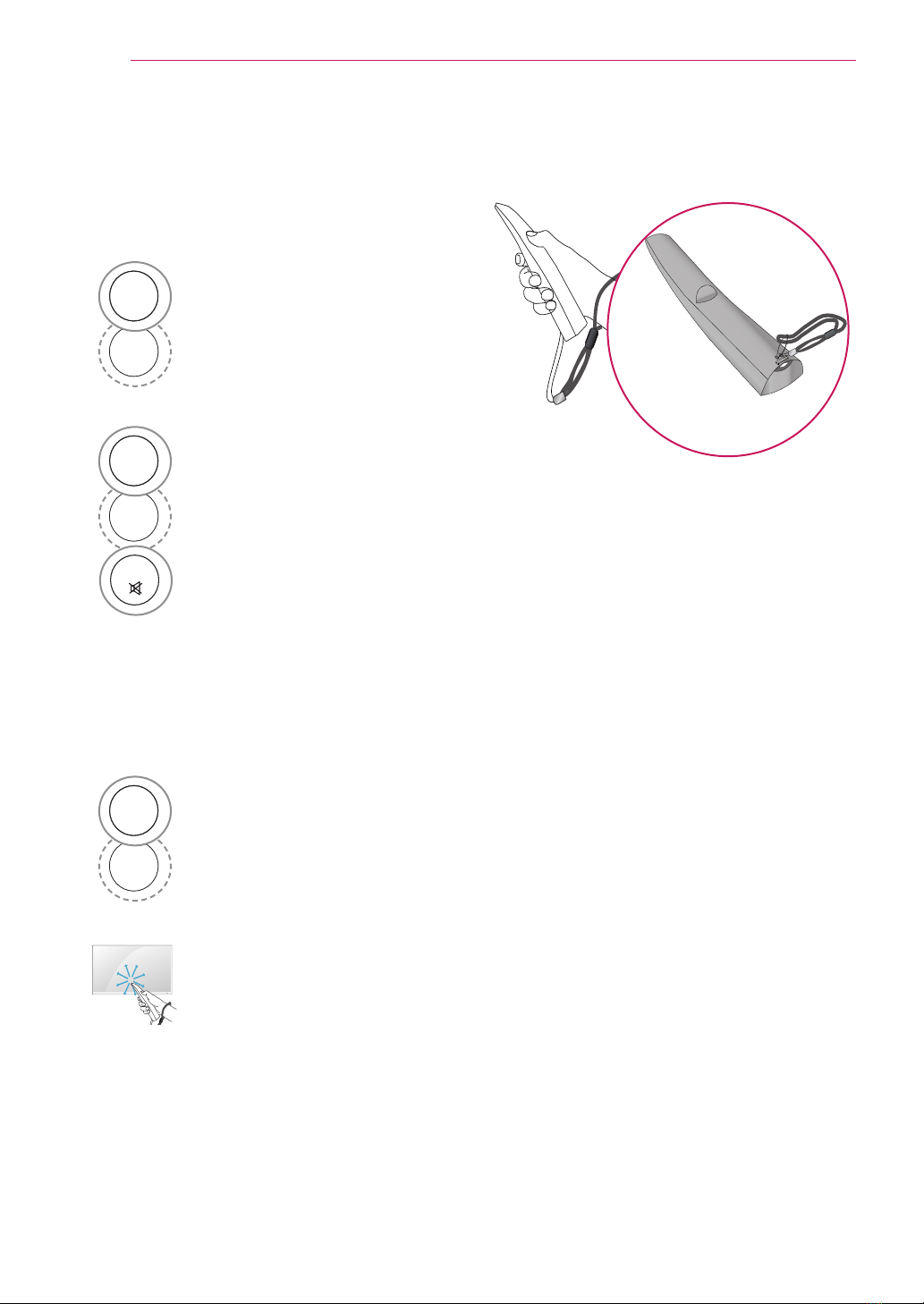

When playing a game using the Magic

Motion Remote Control, hold it securely

by wrapping its strap around your wrist

and adjusting the length with the

adjustable ring.

ꔛ

Take care not to bump into nearby

furniture or other people when using the

Magic Motion Remote Control.

ꔛ

It is recommended that your wireless

access point be located more than 1 m

(3.28 ft) away from the TV. If the AP is

installed closer than 1 m, the magic

motion remote control may not perform

as expected due to frequency

interference.

REGISTERING

The Magic Motion Remote Control

operates by pairing with your TV.

How to register the Magic Motion

Remote Control

To register the remote control,

press the ENTER (or OK) button

on the remote control while

aiming it at your TV.

How to Re-register the Magic

Motion Remote Control after

Registration Failure

Reset the remote control by

pressing and holding both the

ENTER (or OK) and MUTE

buttons for 5 seconds. (Once the

reset is complete, the light on

the Pointer blinks.) Then repeat

the above procedure to register

the remote control.

MUTE

ENTER

You can move the pointer by

aiming the front of the remote

control at your TV then move it

left, right, up or down.

If the pointer does not work

properly after clicking the ENTER

(or OK) button, wait for 10

seconds then use it again.

Press ENTER (or OK) button if

there is no pointer on your TV

screen. The pointer will appear

on the screen.

If the pointer has not been used

for a certain period of time, it will

disappear.

HOW TO USE
