LG PQWRCDF0 Guide de démarrage rapide
ENGLISH
LG
Wireless Remote Controller
LG
IMPORTANT
• Please read this installation manual completely
before installing the product.
• Installation work must be performed in
accordance with the national wiring standards
by authorized personnel only.
• Please retain this installation manual for future
reference after reading it thoroughly.
Owner's & Installation Manual
Visit us at : http://www.lgservice.com
Models: PQWRCDF0
PQWRHDF0
ITALIANO ESPAÑOL FRANÇAIS DEUTSCH
2Wireless Remote Controller
Wireless Remote Controller Owner’s & Installation Manual
TABLE OF CONTENTS
■Safety Precaution................................................................3~4
■Part Description ..................................................................5~6
■Operating Instruction..............................................................7
■Installation Instruction............................................................8
- Setting Address of Central Control...........................................8
- Checking Address of Central Control.......................................8
- How to Enter Installer Setting Mode.........................................9
- Mode Override Setting ...........................................................10
- Group Control Setting ............................................................11
■Owner's Instruction...............................................................12
- Cooling Mode .......................................................................12
- Auto Operation Mode .............................................................13
- Auto Changeover Mode .........................................................14
- Dehumidification Mode...........................................................16
- Heating Mode.........................................................................17
- Fan Mode ...............................................................................18
■Temperature Setting / Room Temperature Checking.........19
■Airflow Setting (Optional).....................................................20
■Sub Function .........................................................................21
- Plasma Purification (Optional)................................................21
- Auto Clean (Optional).............................................................22
- LCD Luminosity Control (Optional) ........................................22
- Celsius / Fahrenheit Switching (Optional) ..............................22
- Smart Clean (Optional) ..........................................................23
■Timer ......................................................................................24
- Setting the Current Time ........................................................24
- Timer Setting..........................................................................24
- To Cancel the Timer Setting...................................................24
Safety Precautions
Owner’s & Installation Manual 3
ENGLISH
■Installation
■Operation
Safety Precautions
• The installation requires expert skills, and it should be installed by the service center or other shops specialized
in the installation and recognized by our company.
• For all the problems arising after installation by someone who has no relevant qualifications, our company will
not provide free service.
• The following safety cautions are provided to prevent unexpected dangers or losses.
: If the user does not follow the mandatory items, it may result in serious injury or death.
: If the user does not follow the mandatory items, it may cause personal injury or property
damage.
: Warning and Caution are to call the user’s attention to the possible danger. Read and follow
them carefully in order to prevent a safety accident.
: Warning and Caution are indicated in this guide and the product itself to help protect the users
from danger.
WARNING
CAUTION
WARNING

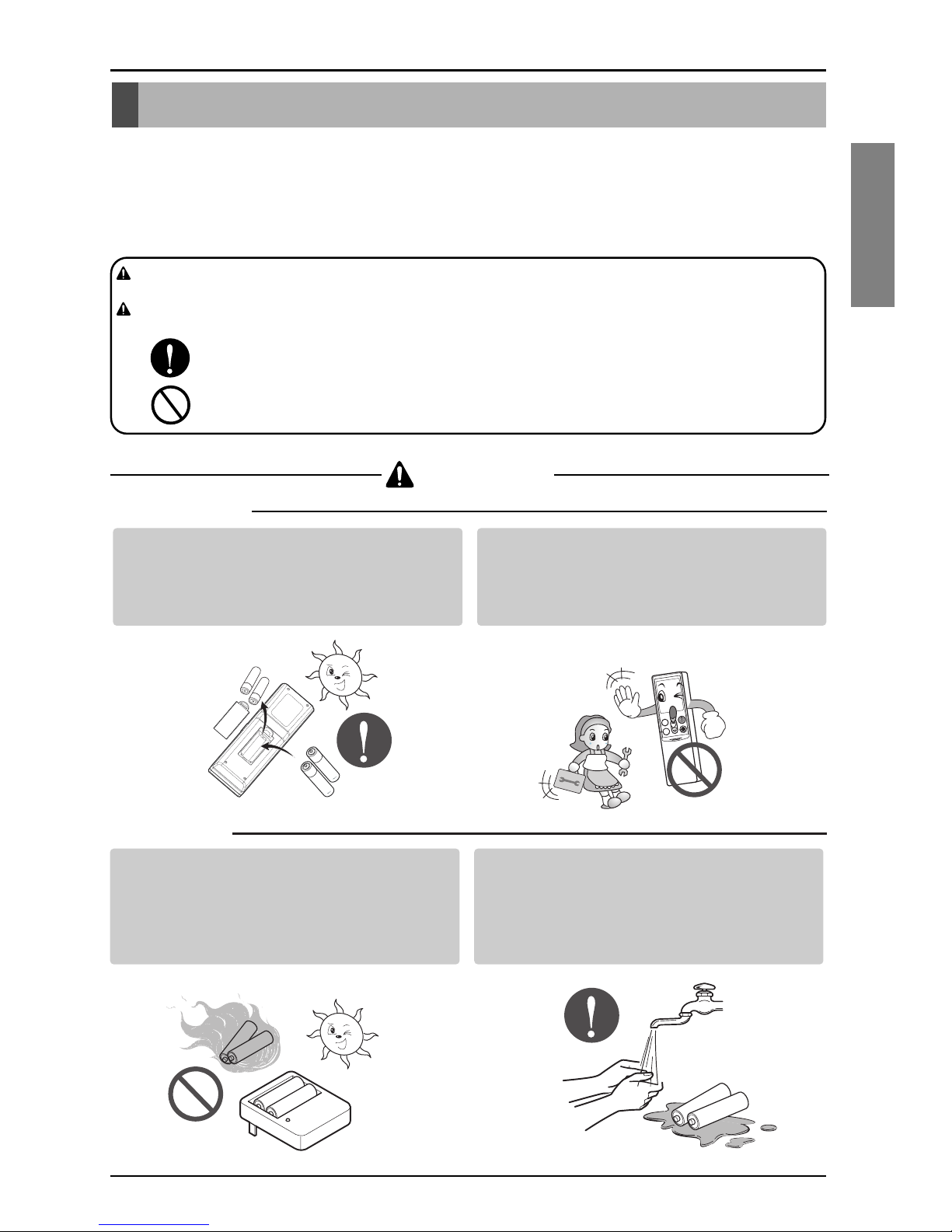

Do not recharge or disassemble the batteries. Do
not dispose of batteries in a fire.
They may burn or explode.
If the liquid from the batteries gets onto your skin
or clothes, wash it well with clean water. Do not
use the remote if the batteries have leaked.
The chemicals in batteries could cause burns or
other health hazards.
Replace the all batteries in the remote control
with new ones of the same type. Do not mix old
and new batteries or different types of batteries.
There is risk of fire or explosion
Do not disassemble, repair, or modify the product
at your discretion in order to prevent fire or an
electric shock.
Safety Precautions
4Wireless Remote Controller
Push the button at one time.
There will be no operation if
you Several buttons at one
time.
Do not drop or throw the
remote Controller. Do not give
any strong impact and Put
your foot it.
Do not use this at the moisture
and Humidity places.
Do not use this at heating and
Firing conditions.
Do not place the remote
controller in a location exposed
to direct sunlight
Aim at the signal receptor on
the wiress remote controller so
as to operate
Only
One
Signal receptor
Signal receptor
7m
Signal receptor
The remote control signal can be received at a
distance of up to about 7m
Be sure that there are no obstructions between
the remote controller and the signal receptor
Block a strong light over the signal receptor with a curtain or etc. so as to prevent the abnormal operation.
(ex:electronic quick start, ELBA, inverter type fluorescent lamp)
CAUTION
Part Description
Owner’s & Installation Manual 5
ENGLISH
Wireless Remote Controller
LCD Screen
Slide door(Closed)
Part Description
Accessory
Holder(1EA) Fixing Screw (2EA) Owner's / Installation
Manual
AAA(1.5V)
Batteries(2EA)
Part Description
6Wireless Remote Controller
Wireless Remote Controller
Cooling Mode
Auto Mode or Auto Changeover
Dehumidification mode
Heating Mode
Fan Mode
•
Cooling Model( ), Heat Pump Model( )
Operation Mode
13
14
15
16
1
8
9
10
11
12
2
3
4
5
6
7
PLASMA Button (OPTIONAL)
Used to start or stop the plasma-purification
function.
JET COOL Button
Speed cooling operates super high fan speed.
OPERATION MODE SELECTION Button
Used to select the operation mode.
FUNCTION SETTING Button
Used to set or clear Auto Clean or Amart Clean.
LCD LUMINOSITY Button (OPTIONAL)
Used to adjust LCD luminosity
SMART CLEAN Button (OPTIONAL)
Used to start or stop Smart Clean.
CLEAR ALL Button
Used to clear all timer.
ROOM TEMPERATURE SETTING Button
Used to select the room temperature.
ON/OFF Button
Used to turn on/off the unit.
INDOOR FAN SPEED SELECTION Button
Used to select fan speed in four steps low,
medium, high and chaos.
UP/DOWN AIRFLOW Button
Used to stop or start louver movement and set
the desired up/down airflow direction.
LEFT/RIGHT AIRFLOW Button (OPTIONAL)
Used to set the desired left/right(horizontal)
airflow direction.
TIMER AND TIME SETTING Button
Used to set the time of starting or stopping and
sleeping operation.
ROOM TEMPERATURE CHECKING Button
Used to check the room temperature.
°C/°F SWITCH Button
Used to switch temperature reading from
Celsius to Fahrenheit.
RESET Button
Used to reset the remote controller.
Operating Instruction
Owner’s & Installation Manual 7
ENGLISH
Operating Instruction
1. Choose a suitable place where its safe & easy
to reach.
2. Fix the holder to wall etc with the supplied
screws firmly.
3. Slide the remote controller inside the holder.
1. Remote controller should never be exposed to
direct sunlight.
2. Signal transmitter & receiver should always be
clean for proper communication. Use a soft
cloth to clean them.
3. In case some other appliances also get
operated with remote control, change their
position or consult your serviceman.
1. The signal receiver is inside the unit.
2.
Aim the remote controller towards the unit to operate it.
There should not be any blockage in between.
NOTE

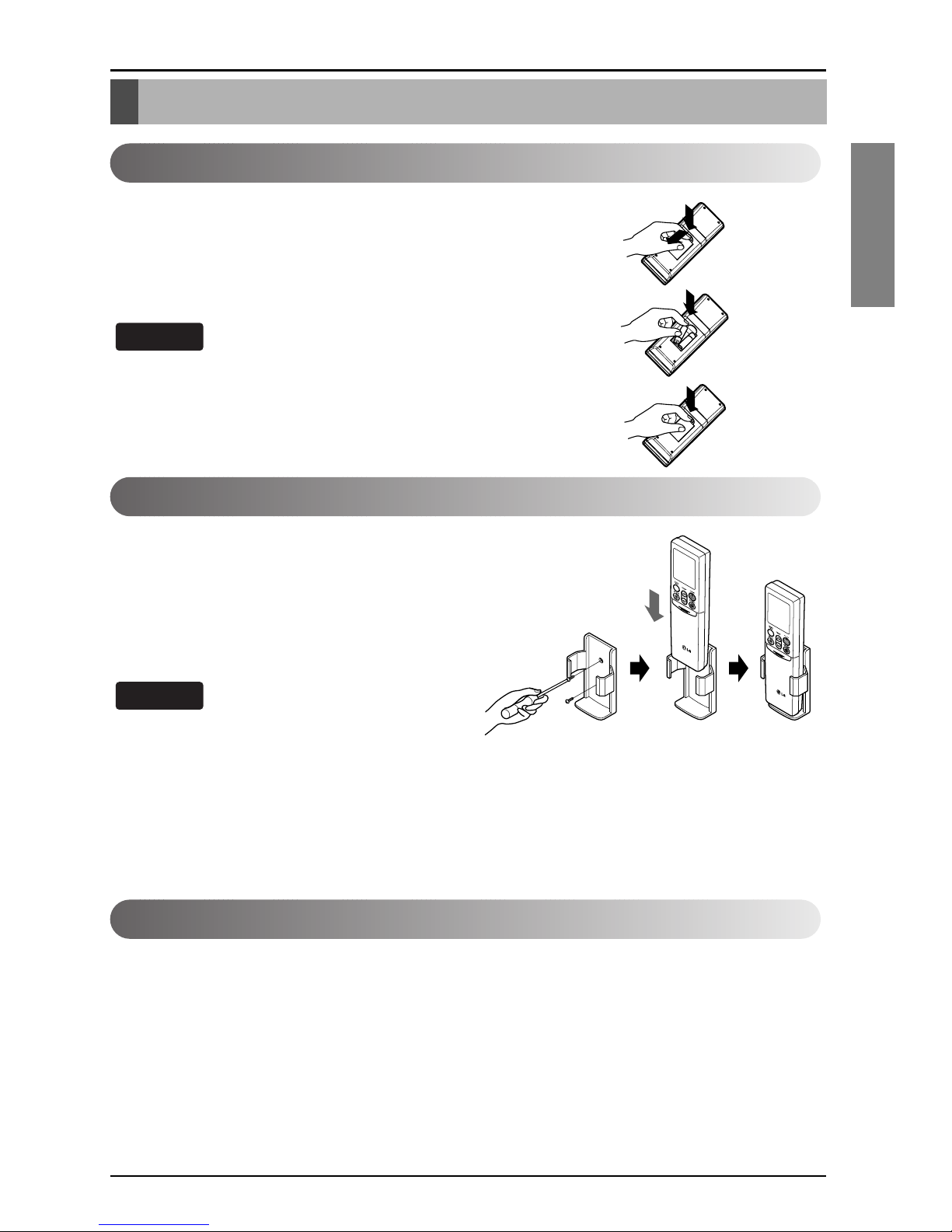

How to insert the Batteries
Wireless Remote Controller Maintenance
1. Remove the battery cover by pulling it according to the arrow
direction.
2. Insert new batteries making sure that the (+) and (-) of battery are
installed correctly.
3. Reattach the cover by sliding it back into position.
1. Always use/replace both batteries of same type.
2. If the system is not to be used for a long time, remove the
batteries to save their working life.
3. If the display screen of remote controller starts, fading replace
both of the batteries.
NOTE
Operating Method
Installation Instruction
8Wireless Remote Controller
Installation Instructions
Installer Setting - Setting Address of Central Control
Installer Setting - Checking Address of Central Control
With the MODE button pressed, press the RESET button.
1
With the PLASMA button pressed, press the RESET button.
1
Press the ON/OFF button toward the indoor unit 1 time, and the indoor unit will display the set
address in the display window.
- The address display time and method can differ by the indoor unit type.
2
Reset the remote controller to use the general operation mode.
3
By using the TEMPERATURE SETTING button, set the indoor unit address.
- Setting range : 00 ~ FF
2
After setting the address, press the ON/OFF button toward the
indoor unit 1 time.
3
The indoor unit will display the set address to complete the address setting.
- The address display time and method can differ by the indoor uint type.
Reset the remote controller to use the general operation mode.
4
5
Group No.
Indoor Unit No.
Installation Instruction
Owner’s & Installation Manual 9
ENGLISH
Installer Setting -How to enter installer setting mode

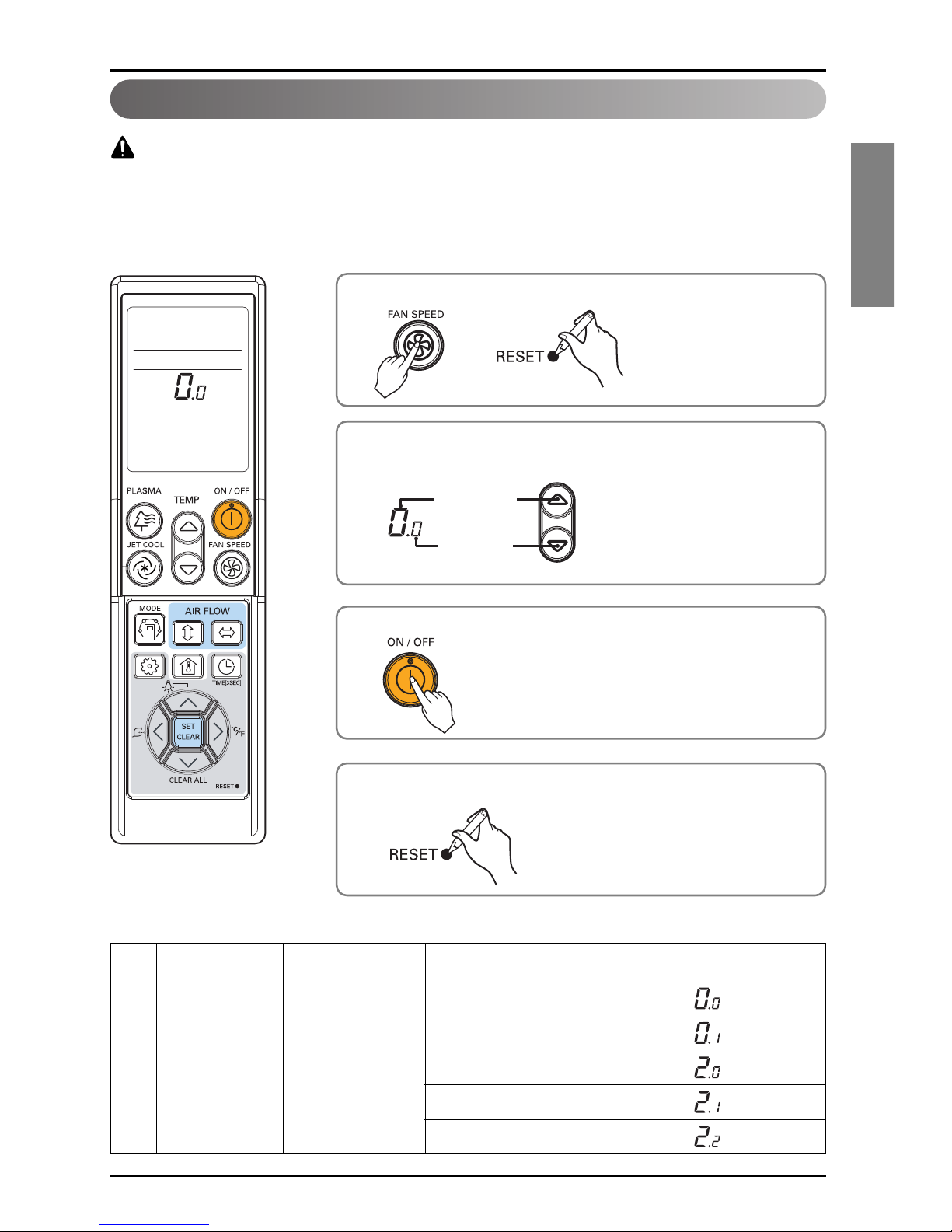

With the FAN SPEED button pressed, press the RESET button.
1
By using the TEMPERATURE SETTING button, set function code
and setting value. (Please refer the Installer Setting Code Table.)
2
Installer setting mode is to set the detail function of the remote controller.
If the installer setting mode is not set correctly, it can cause problems to the product, user injury or
property damage. This must be set by an certificated installer, and any installation or change that is
carried out by a non-certificated person should be responsible for the results. In this case, free service
cannot be provided.
CAUTION
Function Code
Setting Code
Press the ON/OFF button toward the indoor unit 1 time.
3
Reset the remote controller to use the general operation mode.
4
No. Function Function Code Setting Value Remote Controller LCD
0 Mode Override 0 : Set to Master
1 : Set to Slave
0 : Set to Master
2 Group Control 1 : Set to Slave
2 : Check Master/Slave
Installer Setting Code Table
0
2
Installation Instruction
10 Wireless Remote Controller
Installer Setting - Mode Override Setting
This Function is only for Non-Auto Changeover H/P model.
With the FAN SPEED button pressed, press the RESET button.
1
Press the ON/OFF button toward the indoor unit 1 time.
3
Reset the remote controller to use the general operation mode.
4
Function Code
Setting Code
By using the TEMPERATURE SETTING button, set function code
and setting value. (Please refer the installer setting code table.)
2
Set to Master
Set to Slave
Autres manuels pour PQWRCDF0
1
Ce manuel convient aux modèles suivants
1
Table des matières
Langues :
Autres manuels LG Télécommande
LG
LG Magic Remote Manuel d'utilisation
LG
LG MultiSITE CRC1 Series Manuel utilisateur
LG
LG Magic Remote AN-MR19BA Manuel utilisateur
LG
LG V-NET ACS PREMTA000B Mode d’emploi
LG
LG AN-MR300Q Manuel d'utilisation
LG
LG Magic Remote Manuel utilisateur
LG
LG PREMTW101 Guide de démarrage rapide
LG
LG MR20GA Manuel utilisateur
LG
LG Magic Remote Manuel utilisateur
LG
LG MAGIC REMOTE AN-MR300 Manuel utilisateur
LG
LG Magic Remote Manuel utilisateur
LG
LG V-NET ACS PREMTA000 Mode d’emploi
LG
LG AN-MR300 Manuel utilisateur
LG
LG AN-MR650A Manuel utilisateur
LG
LG MR21GA Manuel d'utilisation
LG
LG PQCSB101S0 Guide de l'utilisateur
LG
LG AN-SP700 Manuel d'utilisation
LG
LG AKB732955 Manuel d'utilisation
LG
LG PQRCUSA0 Guide de démarrage rapide
LG
LG Magic Remote MR23GN Manuel du propriétaire
Manuels Télécommande populaires d'autres marques
Panasonic
Panasonic EUR7622KB0 Manuel utilisateur
Bang & Olufsen
Bang & Olufsen Beo4 Manuel utilisateur
Sunwave Tech.
Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur
Multiplex
Multiplex PROFI TX 9 Manuel utilisateur
One Remote
One Remote RMB4 Manuel utilisateur
FUTABA
FUTABA 9ZAP - PART2 Manuel utilisateur
