LG CineBeam Laser 4K Manuel utilisateur
2
ENGLISH
CONTENTS
PREPARATION
INSTALLATION
11 Ceiling-Type Installation
12 Projection Distance per Screen Size
16 Precautions on Zoom Ring/Focus Ring Cover
17 Adjusting the Focus of the Projection Screen
18 Adjusting the Position of the Projection Screen
21 Kensington Security System
USING MAGIC LIGHTING REMOTE
22 Inserting Batteries in the Remote Control
23 Viewing the Remote Control Features
27 To Register the Magic Lighting Remote
27 To Re-register the Magic Lighting Remote
28 Using the Magic Lighting Remote
CONNECTING DEVICES
30 Connecting with a HDMI Cable
31 Connecting a Digital Amp
32 Connecting a smart device (smartphone, tablet, etc.)
SAFETY PRECAUTIONS
CHECKING BEFORE REPORTING MALFUNCTION
45 Projector Safety Check
46 Troubleshooting
CHECKING INFORMATION
48 Specifications
49 HDMI Supported mode
53 Licenses
53 Open Source Software Notice Information
54 Other specifications
55 Symbols
This manual is produced for public use and may contain images or contents
different from the product you purchased.
This manual is subject to change depending on the company’s circumstances.
3
ENGLISH
PREPARATION
The pictures may differ slightly from the actual product.

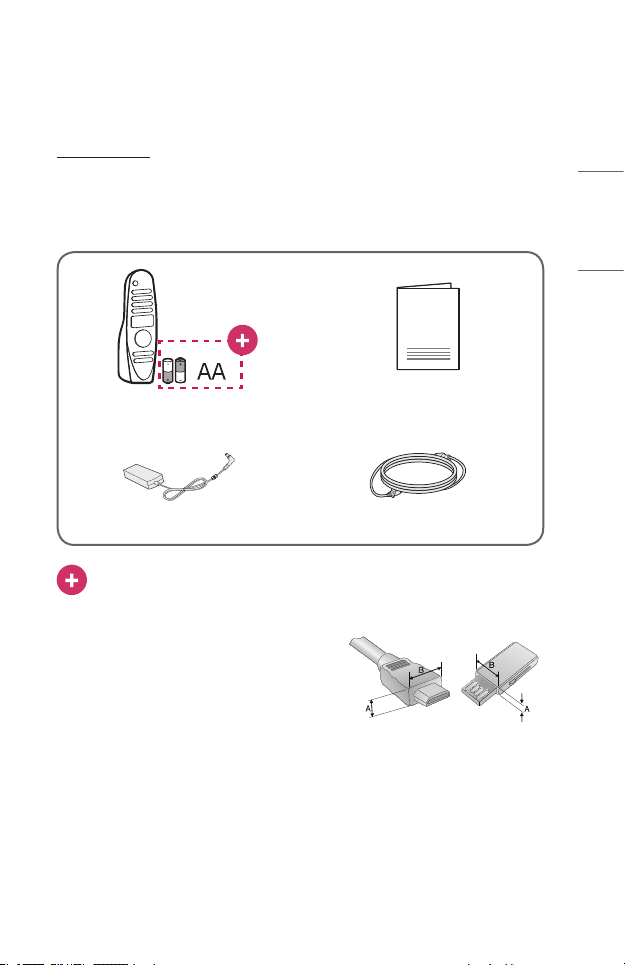

Accessories
Accessories included with the projector are shown below.
Accessories are subject to change without prior notice.
New accessories may be added or old ones removed.
Magic Lighting Remote
Two AA Batteries Owner's Manual
AC-DC Adaptor Power cord
AA: Due to the environment government regulations about import and batteries
destruction in Colombia, projectors will not bring the batteries of remote control
included.
• When connecting an HDMI or USB cable, or
connecting a USB flash drive to the HDMI or
USB port, use a product that has a width of
18mm (0.7inches) or less and a height of
10mm (0.3inches) or less. If the USB cable
or USB flash drive does not fit the USB ports
of the projector, use an extension cable that
supports USB 2.0.
A ≤ 10mm (0.3inches)
B ≤ 18mm (0.7inches)
• When connecting two USB devices at the same time, each one should have
bezels less than 8.5mm (0.3inches) thick.
• Use a certified cable with the HDMI logo attached.
• If you do not use a certified HDMI cable, the screen may not display or a
connection error may occur. (Recommended HDMI cable types)
— Ultra High Speed HDMI®/™ Cable (3m (9.8feet) or less)
4
ENGLISH
Optional Extras
To purchase optional accessories, visit an electronics store or online shopping site or
contact the retail store where you purchased the product. Optional accessories are
subject to change without prior notice.

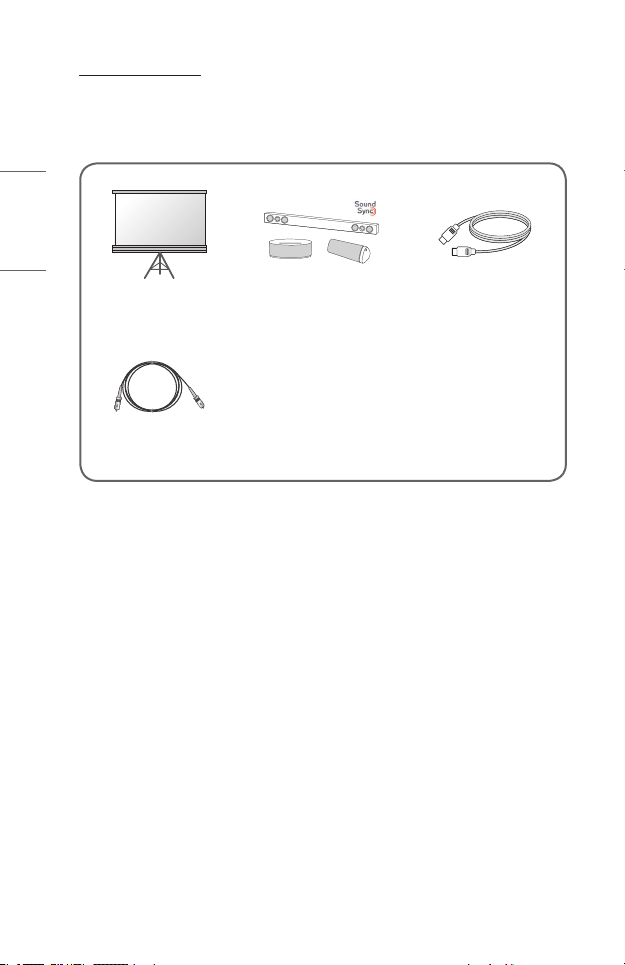

Projection Screen LG Audio Device HDMI Cable
Optical Cable
5
ENGLISH

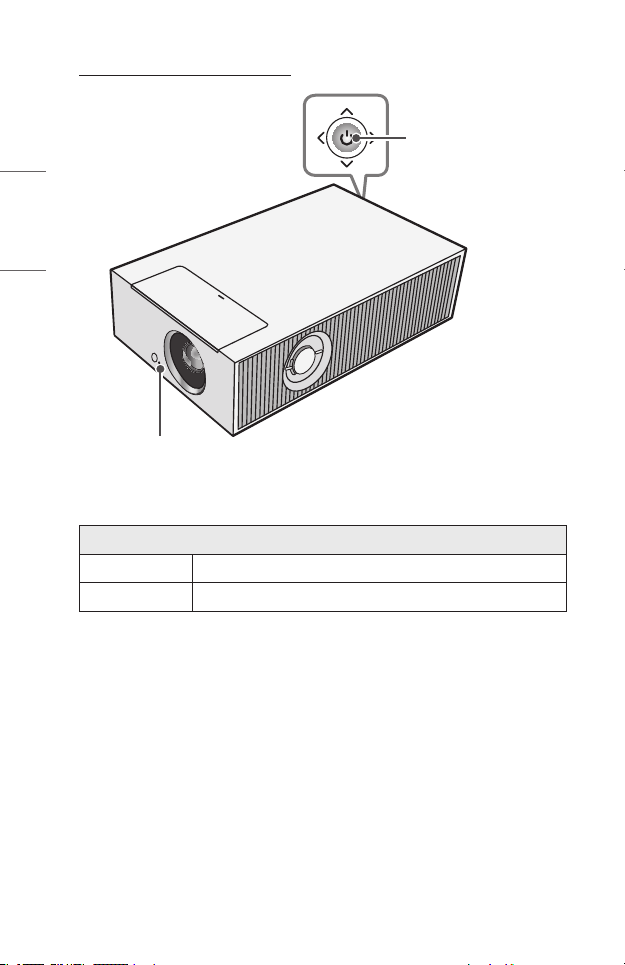

Parts and Components
Joystick Button
Inlet Vent
Lens1) Speaker
IR Receiver
Speaker
Outlet Vent2)
1) Do not touch the lens when using the projector. The lens may be damaged. (Keep
lens away from sharp objects.)
2) Due to the high temperature of vent area, do not get close to the vent area.
6
ENGLISH

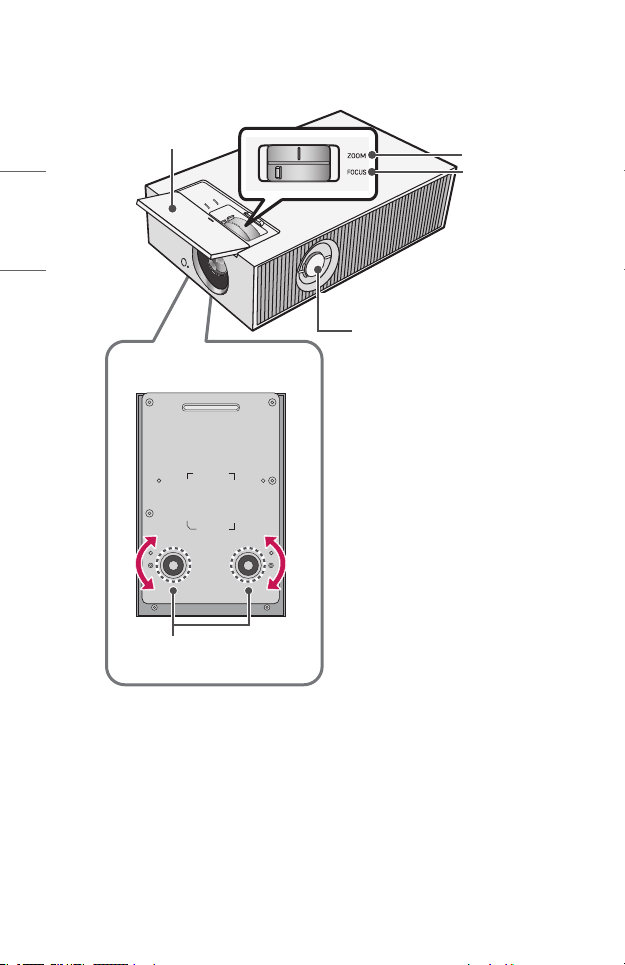

Bottom of the Projector
Focus Ring
Zoom Ring
Projection Screen Position
(Lens Shift) Adjustment Dial
Adjustable leg1)
Zoom Ring/Focus
Ring Cover2)
1) Turn the adjustable leg left or right to adjust the angle.
2) Open the zoom ring/focus ring cover to use the zoom ring/focus ring.
7
ENGLISH

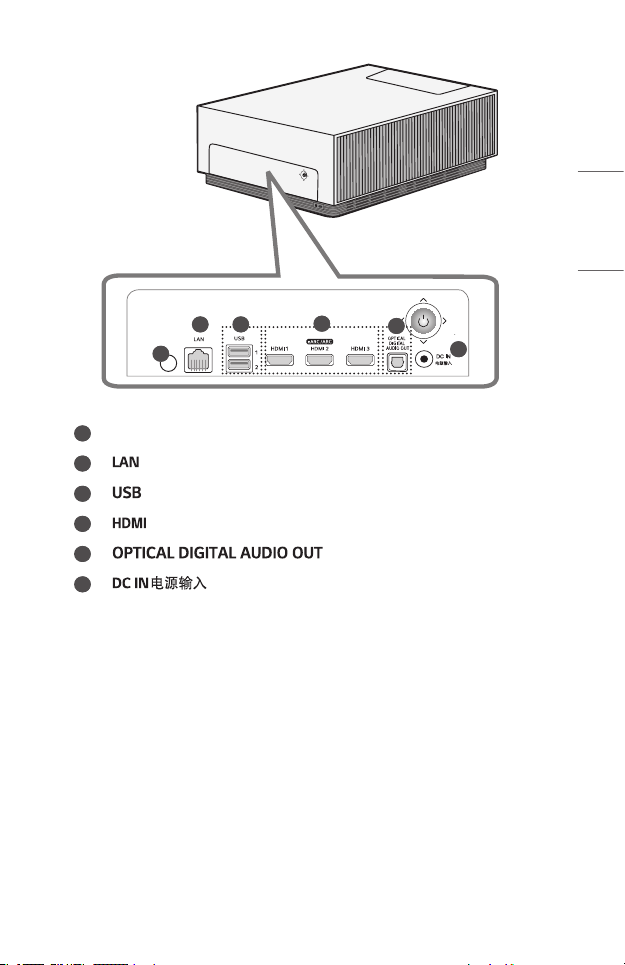

1
2 4
6
3 5
1
IR Receiver
2
Port
3
Port
4
Port
5
Port
6
(DC IN Port)
8
ENGLISH

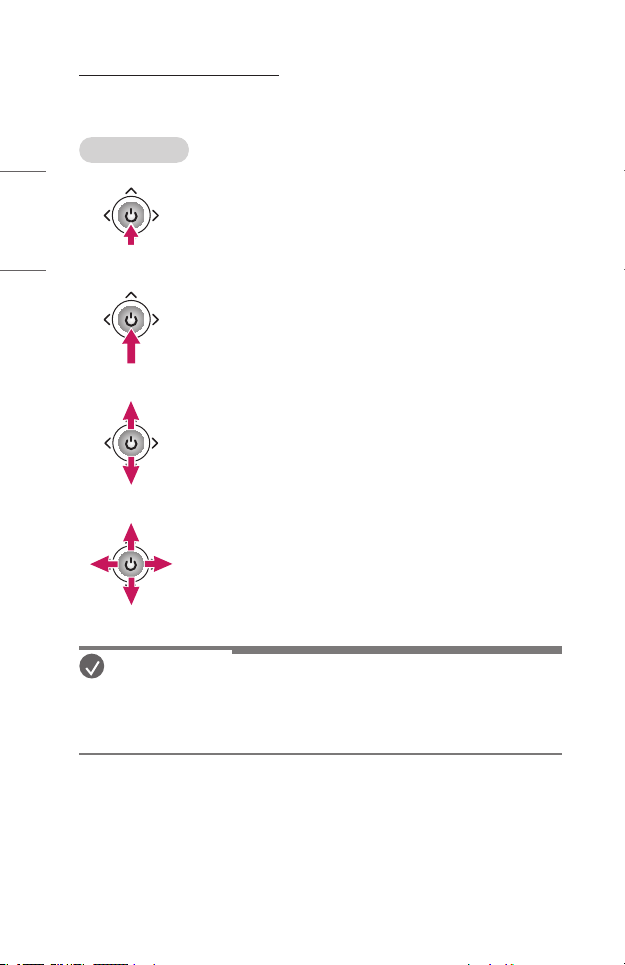

Using the Joystick Button
You can operate the projector by pressing the button or moving the joystick left, right,
up, or down.
Basic functions
Power On
When the projector is turned off, place your
nger on the joystick button, press it once, and
release it.
Power Off
(Press and
Hold)
Press and hold the joystick button for more than
3 seconds while the projector is on.
Volume
Control
Place your nger over the joystick button and
move it up or down, you can adjust the volume
level.
Up/Down/
Left/Right
If you move the joystick up, down, left, or right,
you can move the cursor to select the menu
items.
NOTE
• When moving the joystick button up, down, left or right, be careful not to move
the button while it is being pressed. The volume may not be adjusted and the
cursor may not move when the joystick button is pressed and moved.
9
ENGLISH
Adjusting the menu
When the projector is turned on, press the joystick button one time.
You can adjust the menu items moving the joystick button left, right, up, or down. Move
to the desired menu item, and then press the joystick button once to select it.
Turns the power off.
Changes the input source.
Clears on-screen displays and returns to projector viewing.
Displays the Settings menu.
10
ENGLISH
Projector Status Indicators
LED Power Indicator
LED Power Indicator
LED Power Indicator
Red
Power standby state
Off
The projector is operating with the power on.
Autres manuels pour CineBeam Laser 4K
