LIGHT OVEN “

olar DOM

”

OWNER’S MANUAL

PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE OPERATING.

MP-9482SR

P/No: 3828W5A4715

Precautions

Precautions to avoid possible exposure to excessive microwave energy.

You cannot operate your oven with the door open due to the safety interlocks

built into the door mechanism. These safety interlocks automatically switch off

any cooking activity when the door is opened; which in the operation of

microwave function could result in harmful exposure to microwave energy.

It is important not to tamper with the safety interlocks.

Do not place any object between the oven front face and the door or allow

food or cleaner residue to accumulate on sealing surfaces.

Do not operate your oven if it was damaged. It is particularly important that

the oven door closes properly and that there is no damage to the: (1)

door(bent), (2) hinges and latches (broken or loosened), (3) door seals and

sealing surfaces.

Your oven should not be adjusted or repaired by anyone except qualified

service personnel.

Warning

When heating liquids, e.g. soups, sauces and beverages in your oven with

microwave function, delayed eruptive boiling can occur without evidence of

bubbling. This could result in a sudden boil over of the hot liquid. To prevent

this possibility the following steps should be taken:

1 Avoid using straight sided containers with narrow necks.

2 Do not overheat.

3 Stir the liquid before placing the container in the oven and again halfway

through the heating time.

4 After heating, allow to stand in the oven for a short time, stir or shake

them(especially the contents of feeding bottles and baby food jars) again

carefully and check the temperature of them before consumption to avoid

burns (especially, contents of feeding bottles and baby food jars).

Be careful when handling the container.

Warning

Always allow food to stand after being cooked by

waves and check the temperature of them before

consumption. Especially contents of feeding bottles

and baby food jars.

Please ensure cooking times are correctly set as

over cooking may result in the FOOD catching fire

and subsequent damage to your oven.

Contents

How the Microwave Function Works

Microwaves are a form of energy similar to radio and television waves and

ordinary daylight. Normally, microwaves spread outwards as they travel

through the atmosphere and disappear without effect. This ovens, however,

have a magnetron which is designed to make use of the energy in

microwaves. Electricity, supplied to the magnetron tube, is used to created

microwave energy.

These microwaves enter the cooking area through openings inside the oven.

A turntable or tray is located at the bottom of the oven. Microwaves cannot

pass through metal walls of the oven, but they can penetrate such materials

as glass, porcelain and paper, the materials out of which microwave-safe

cooking dishes are constructed.

Microwaves do not heat cookware, though cooking vessels will eventually get

hot from the heat generated by the food.

A very safe appliance

Your oven,

olar

DOM, is one of the safest of all home

appliances. When the door is opened, the oven

automatically stops producing microwaves. Microwave

energy is converted completely to heat when it enters

food, leaving no “left over” energy to harm you when

you eat your food.

Precautions 2

Contents 3

Unpacking & Installing 4 ~ 5

Control Panel 6

Setting the Clock 7

Child Lock 8

Convection Cooking 9

Speed Combi Cooking 10 ~ 12

Speed Auto Cooking 13 ~ 19

Auto Defrost 20 ~ 21

Grill Cooking 22

Micro Power Cooking 23

Micro Power Level 24

Two Stage Cooking 25

Favorite Cook 26 ~ 27

Quick Start 28

More or Less Cooking 29

Rotisserie Installation & Cooking 30 ~ 33

Rotisserie Assembly 34

Important safety instructions 35 ~ 36

Microwave - safe Utensils 37

Food characteristics & Microwave cooking 38 ~ 39

Questions & Answers 40

Plug Wiring Information/Technical Specifications 41

Unpacking &

Installing

By following the basic steps on these two pages you will be able to quickly check that your oven is operating

correctly. Please pay particular attention to the guidance on where to install your oven. When unpacking your

oven make sure you remove all accessories and packing. Check to make sure that your oven has not been

damaged during delivery.

Place the oven in the level location of your choice with

more than 85cm height but make sure there is at least

20cm of space on the top and 10cm at the rear for proper

ventilation. The front of the oven should be at least min. 8cm/max.

22cm from the edge of the surface to prevent tipping.

An exhaust outlet is located on bottom or side of the oven. Blocking

the outlet can damage the oven.

Unpack your oven and place it on a flat level surface.

* THIS OVEN SHOULD NOT BE USED FOR COMMERCIAL

CATERING PURPOSES.

* THIS OVEN CAN BE USED AS BUILT-IN TYPE .

* MUST USE THE BUILT-IN KIT THAT IS MADE BY LG ELECTRONICS.

HIGH RACK

(For grill mode)

LOW RACK

(For microwave and

convection mode)

ROTISSERIE

HANDLE

METAL TRAY

(For defrost)

The DISPLAY will count down from 3 minutes. When it

reaches 0, it will sound BEEPS. Open the oven door and

test the temperature of the water. If your oven is operating, the

water should be warm. Be careful when removing the container, it

may be hot.

YOUR OVEN IS NOW INSTALLED

Fill a microwave safe container with 300 ml (1/2 pint)

of water. Place on the METAL TRAY and close the oven

door. If you have any doubts about what type of container to use

please refer to page 37.

Open your oven door by pulling the DOOR HANDLE.

Place the METAL TRAY inside the oven.

Plug your oven into a standard household socket. Make

sure your oven is the only appliance connected to the

socket. If your oven does not operate properly, unplug it from the

electrical socket and then plug it back in.

The contents of feeding bottles and baby food jars shall

be stirred or shaken and the temperature checked before

consumption, in order to avoid burns.

Press the STOP/CLEAR button, and press the

START button one time to set 30 seconds of

cooking time.

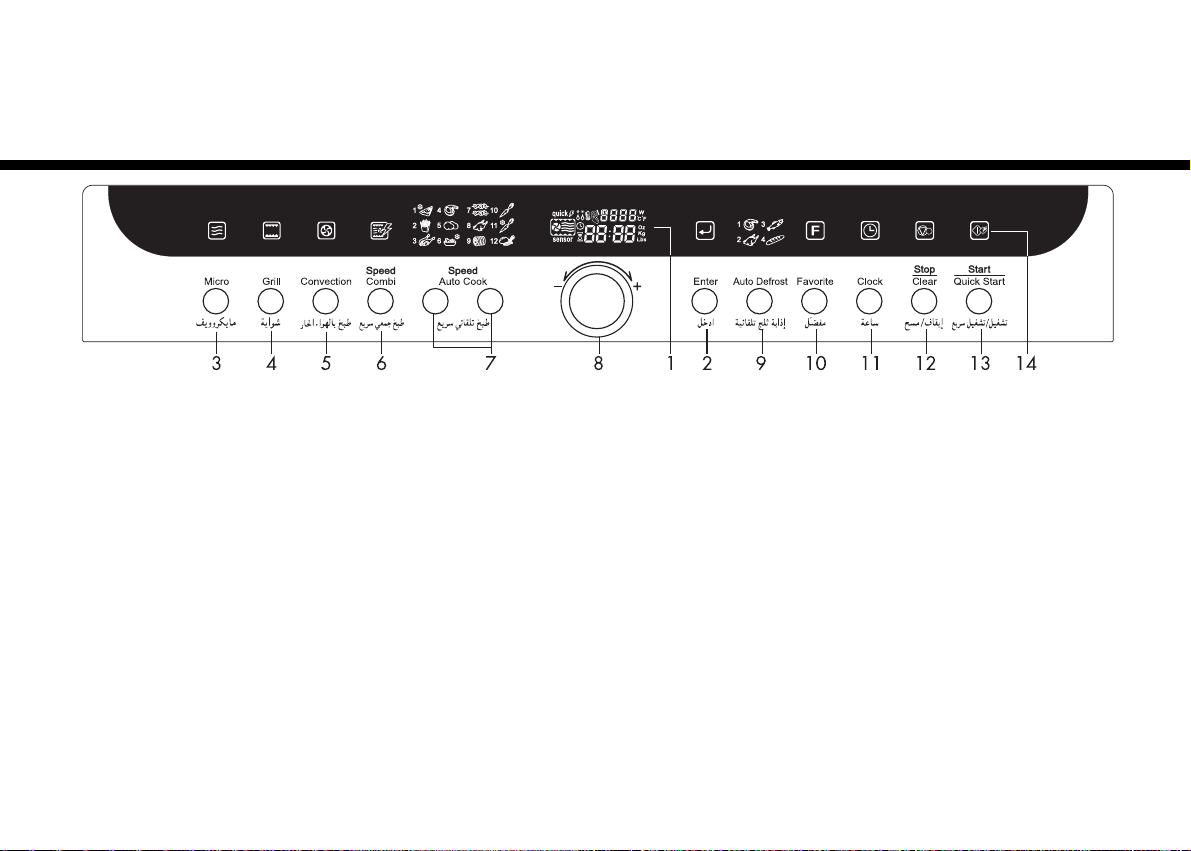

Control Panel

1. Display Window: You can show time of day, cooking time, power level

and cooking categories.

2. Enter: You can determine the selected cooking category, microwave power

level or temperature.

3. Micro: You can select five power level settings.

4. Grill: You can select the grill categories.

5. Conv.: You can select temperature and time of convection.

6. Speed Combi: You can select the combination categories.

7. Speed Auto Cook: Speed auto cook allows you to cook most of your

favorite food quickly by selecting the food type and the weight of the food.

8. Dial Knob:

• You can set cooking times, temperature, weight and cooking categories.

• While cooking with auto and manual function, you can lengthen or

shorten the cooking time at any point by turning the dial knob(except

defrost mode).

9. Defrost: You can select the food type and the weight of the food.

10. Favorite: The cooking program can be stored in the memory of your oven

up to 9 modes(FA-1~FA-9).

11. Clock: You can set the time of day.

12. Stop/Clear: You can stop over and clear all entries except time of day.

• Press Stop/Clear Button one time, all icons will be displayed on

window in time of day or clear mode.

• Press Stop/Clear Button one more time, all icons will be disappeared.

13. Start/Quick Start:

• In order to start cooking which is selected, press button one time.

• The quick start feature allows you to set 30 seconds intervals of HIGH

power cooking with a touch of the quick start button.

14. Icon: You can see all icons by pressing “Stop/Clear” button one time and

remove all icons by pressing one more time(all icons will disappear

automatically after 15 seconds).

Blink will guide to next step for setting while cooking, the icon of the

selected cooking mode will be displayed on window.

You can set either12 hour clock or 24 hour clock.

In the following example I will show you how to set the time for 14:35 when using the 24 clock.

Make sure that you have removed all packaging from your oven.

When your oven is plugged in for the

first time or when power resumes after a

power cut, a ‘0’ will be shown in the

display; you will have to reset the clock.

If the clock (or display) shows any

strange looking symbols, unplug your

oven from the electrical socket and plug

it back in and reset the clock.

NOTE: Information Blink

Make sure that you have correctly installed your oven as described earlier

in this book.

Press Stop/Clear.

Press Clock once.

(If you want to use a 12 hour clock, Press Clock once more.

If you want to change different option after setting clock,

you have to unplug and plug it back in.)

Turn Dial knob until display shows “14:00”.

Press Enter for hour confirmation

Turn Dial knob until display shows “14:35”.

Press Enter.

The clock starts counting.

For mode setting, blink will

guide to next step.

Setting the

Clock

Child

Lock

Press and hold Stop/Clear until “L” appears on the display and

BEEP sounds.

The CHILD LOCK is now set.

The time will disappear on the display but will reappear on

the display a few seconds later.

If any button is pressed, “L” will appear on the display

To cancel CHILD LOCK press and hold Stop/Clear until “L” disappears.

You will hear BEEP when it’s released.

Your oven has a safety feature that

prevents accidental running of the oven.

Once the child lock is set, you will be

unable to use any functions and no

cooking can take place.

However your child can still open the

oven door.

Press Stop/Clear.

Convection

Cooking

In the following example I will show you how to use the convection to cook some food for 50 minutes for 220˚C

temp.

Press Stop/Clear.

1. To Preheat 2. To Cook

Press Start.

Display shows “Pr-H”.

The convection oven has a temperature

range of 40°C and 100°C~250°C

The oven has a ferment function at the

oven temperature of 40°C. You should

wait until the oven is cool because you

cannot use a ferment function if the oven

temperature is over 40°C.

It is available to extend the cooking time

up to 9 hours in the condition of 40°C at

convection function for the operating

mwo.

Your oven will take a few minutes to

reach the selected temperature.

Once it has reached correct temperature,

your oven will BEEP to let you know that

it has reached the correct temperature.

Then place your food in your oven: then

tell your oven to start cooking.

The low rack must be used during

convection cooking.

Press Conv. to select convection

mode.

Turn Dial knob until display shows

“220˚C”.

Press Stop/Clear.

Turn Dial knob until display shows

“50:00”.

Press Start.

After cooking you must wear

gloves and container to take

metal tray out oven, because

metal tray is very hot.

Press Enter for temp. confirmation.

Press Conv. to select convection

mode.

Turn Dial knob until display shows

“220˚C”.

Speed combi

Cooking In the following example I will show you how to programme your oven with micro power 360W and grill for a

cooking time of 25 minutes.

Your oven has a combination cooking

feature which allows you to cook food

with heater and microwave at the same

time or alternately. This generally means

it takes less time to cook your food.

You can set three kinds of micro power

level(180W, 360W and 600W) in

speed combi mode.

Press Speed Combi to select grill combination mode(Co-1, 2, 3).

Press Stop/Clear.Speed Combi

(Co-1, 2, 3)

Turn Dial knob until display shows “Co-1”.

Press Enter for grill-1 confirmation.

Turn Dial knob until display shows “360W”.

Press Enter for power confirmation.

Turn Dial knob until display shows “25:00”.

Press Start.

After cooking you must wear gloves and container to take metal

tray out oven, because metal tray is very hot.

* Speed combi Category

* Grill mode: Refer to page 22

Co-1

Co-2

Co-3

Co-4

Co-5

Grill-1 + Microwave power

Grill-2 + Microwave power

Grill-3 + Microwave power

(Upper + Lower heater)

+ Microwave power

Convection + Microwave power

Table des matières

Autres manuels LG Four

LG LWS3081ST - 30in Single Electric Wall Oven Manuel utilisateur

LG WSED7667M Manuel utilisateur

LG LWS3081ST - 30in Single Electric Wall Oven Manuel utilisateur

LG WSEP4727F Manuel utilisateur

LG WCEP6427 Series Manuel utilisateur

LG PrintProof WCES6428 Series Manuel utilisateur

LG SolarDOM MP-9483SL Manuel utilisateur

LG EM780SP Manuel utilisateur

LG LWS3081ST - 30in Single Electric Wall Oven Manuel utilisateur

LG MP9289JSCS Manuel utilisateur

LG SolarDOM MP-9406SR Manuel utilisateur

LG LWS3081ST - 30in Single Electric Wall Oven Guide de démarrage rapide

LG SolarDOM MP9488SCR Manuel utilisateur

LG LDE3019ST Manuel utilisateur

LG LWD3010ST Manuel utilisateur

LG intellocook ML-3483FRR Manuel utilisateur

LG MP-9482SCR Manuel utilisateur

LG WS9D76 Series Manuel utilisateur

LG LWS3081ST - 30in Single Electric Wall Oven Manuel utilisateur

LG WDES9428F Manuel utilisateur

LG SolarDOM MP-9483SL Manuel utilisateur

LG LB645479T Manuel utilisateur

LG LWS3081ST Manuel utilisateur

LG EA550SP Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur
