Easy Setup Guide

MONITOR SIGNAGE

55WV70MS

Please read this manual carefully before operating your set and retain

it for future reference.

MONITOR SIGNAGE MODEL

ENG

ENGLISH

P/NO : MFL67476901 (1204-REV00)

Printed in Korea

ENG

ENGLISH

ASSEMBLING AND PREPARING

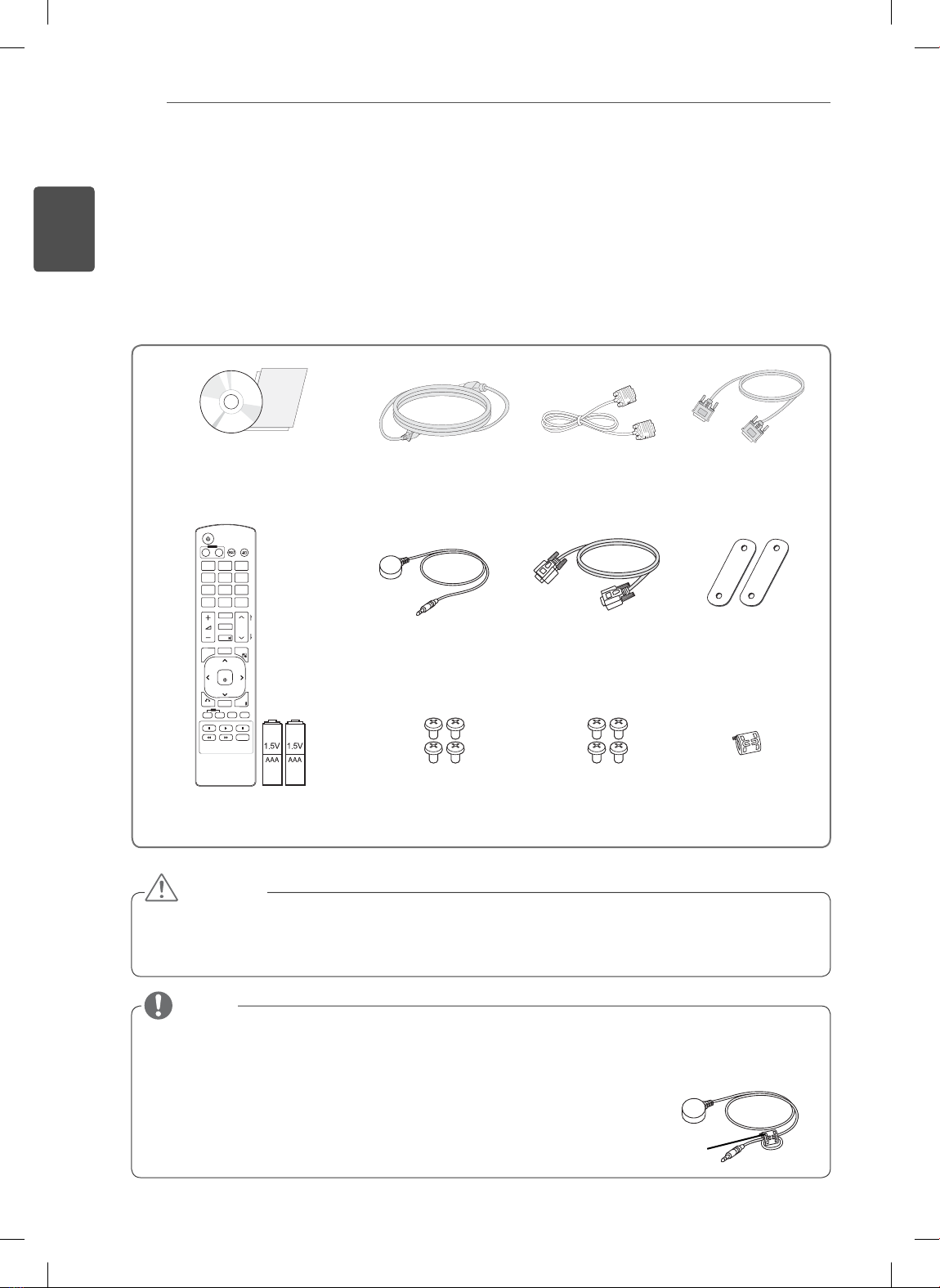

Accessories

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

INPUT

ENERGY

SAVING

MARK

ARC

OFF



. , !



ABC



DEF



GHI



JKL



MNO



PQRS



TUV



1/a/A



- * #

WXYZ

CLEAR

MONITOR

PSM

AUTO

MUTE

BRIGHT

NESS

POWER

S.MENU

BACK TILE

ON OFF

EXIT

Remote control and Batteries

Power Cord DVI Cable

IR Receiver

M4 x 6L

Screw (4ea) M6

Screw (4ea) Ring Core

CD (Owner's Manual,

SuperSign Elite-w Program/

SuperSign Manual) /Card

RGB Cable

RS-232C Cable Tiling Guide

(2ea)

 The accessories supplied with your product may vary depending on the model.

 Product specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

 How to Use a Ring Core

A ring core reduces electromagnetic waves emitted from the IR receiver.

Loop the cable through the core once, before using it as illustrated.

 Do not use any pirated items to ensure the safety and product life span.

 Any damages or injuries by using pirated items are not covered by the warranty.

CAUTION

NOTE

Ring Core

ENG

ENGLISH

ASSEMBLING AND PREPARING

Dimensions (Width x Height x Depth) / Weight

To view the User’s guide

“Insert CD ROM” in Computer

CD-ROM will open automatically.(for Window only)

My computer ➙Digital_LG(CD-ROM) ➙Index.htm Open

My computer ➙Digital_LG(CD-ROM) ➙Manual folder ➙User's Guide Open

1215.2 mm x 686 mm x 99 mm / 33.4 Kg

ENG

ENGLISH

Safety Precautions

Do not Clamp

Do not drop from clamping.

2 Persons needed for transport

Load with care.

PRECAUTION IN MOVEMENT

Adhere to the warning signs printed on the Box.

Do not drop from stacking.

4 Persons needed for transport

Do not transport horizontally.

Do not drop from carrying.

This way up/ Fragile/ Keep away from rain/ Stacking limit 4.

Don’t tumble the Set box sideward down.

Don't lie on or lean on the Set box.

ENG

ENGLISH

Safety Precautions

Move the Set as a team of 2 persons. When you move

the bare Set, please use one hand on grabbing the

handle and the other support under the Set.

PRECAUTION IN HANDLING Precaution

10 cm

10 cm10 cm

20 cm

1Remove the L-bracket on the corner of the Set be-

fore installation. When moving the Set, re-assemble

the L-bracket.

2Be careful not to collide the sets with the floor or with

each other. Install in the space with enough airflow.

ENG

ENGLISH

Safety Precautions

Causes & Phenomena of the

Line Defect

The line defect would occur on your Set if you strike on

the edge of the Set.

LOG (LINE ON GLASS) DEFECT

COF (CHIP ON FILM) DEFECT

COF Cable

Source PCB

COF Cable

Source PCB

1 Shock on Module Top Side b Top COF Crack b

Vertical Line Defect

2Shock on Module Left Side b Left COF Crack b Hori-

zontal Line Defect

1Shock on Module Left/Top Corner b Left/Top LOG

Crack b Horizontal Line Defect

ENG

ENGLISH

Installing the Product

1 Cut Packing Strap of the Box.

3Open the Box and remove the top packing.

5Open the Poly Bag.

4Remove the Upper Box.

6Undress the Poly Bag.

2Cut Tape on the Box.

ENG

ENGLISH

Installing the Product

7Lift up the Set using the SIDE/BACK Handle.

9With one hand under the set and the other hand grabbing the set, move the set.

10 Lay the back of the Set down on the table.

8Remove Bottom packing when lifting up the Set.

ENG

ENGLISH

Installing the Product

11 Use the cushion or Pad when you lay the face of the Set downward.

12 Connect IR receiver to use remocon. And then, connect power code.

ENG

ENGLISH

Tiling Displays

How to Mount the Set

Tiling Displays

*Example of 2 x 2 tiling

Screws for ﬁxing the

VESA wall mount

How to Join Sets

 The load applied to each set should be

supported by the wall mount plate or the wall

using a VESA wall mount (600 x 400).

 The load applied to each set should be

supported by the wall mount plate using a VESA

wall mount. (Each set must be firmly mounted to

the wall mount plate or the wall.)

 You may mount the set without using the tiling

guide; this does not affect the performance of

the device.

NOTE

Set 4 joined to the rest of the sets

(2 x 2 tiling)

1Join other sets using screws for ﬁxing the VESA wall

mount in the same way as above.

2After joining the sets, use the tiling guide to adjust the

gap between the sets.

3Now the 2 x 2 tiling is complete.

You can tile in various combinations, such as

3 x 3.

 When you connect Monitor sets for multivision,

you may find that the screen color is not the same

across all the Monitor sets. If you want to adjust

the screen color manually, please refer to the

Installation Manual.

 When you install multiple Monitor sets onto a wall,

attach the IR Receiver to all the sets, or use an

RS-232C cable to connect them and then attach

the IR Receiver to the first set.

CAUTION
