LG L224WS Manuel utilisateur
Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
See the label attached on the product and give the information to your
dealer when you ask for service.
L224WS
User’s Guide
A1
This unit has been engineered and manufactured to ensure your personal
safety, however improper use may result in potential electrical shock or fire
hazards. In order to allow the proper operation of all safeguards
incorporated in this display, observe the following basic rules for its
installation, use, and servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of
this manual or listed on the display. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Do not Open the Display:
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
Do not drop an object on or apply impact to the product. Do not throw any toys
or objects on the product screen.
It can cause injury to human, problem to product and damage the display.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
When the display is to be left unattended for an extended period of time, unplug
it from the wall outlet.
In the presence of thunder and lightning, never touch the power cord and signal
cable because it can be very dangerous. It can cause electric shock.
Important Precautions
A2
Important Precautions
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the display where the power cord is subject to damage.
Do not use this display near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
Leaving a fixed image on the screen for a long time may cause damage to the
screen and cause image burn-in. Make sure to use a screen saver on the monitor.
This phenomenon occurs to products by other manufacturers as well, and this
occurrence is not subject to warranty.
On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
On Disposal
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of
your local authority.
A3
Connecting the Display
Important
This illustration depicts the general model of connection. Your monitor may differ from
the items shown in the picture.
Do not carry the product upside down holding only the stand base. The product may
fall and get damaged or injure your foot.
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
Connecting the stand
1.Place the monitor with its front facing downwardon a soft cloth.
2.Check the direction of the Stand Body, and connect it into the Hinge Body as shown in the
picture.
3.Check the direction of the Stand Base, and connect it into the Stand Body.
4.Once assembled take the monitor up carefully and face the front side
Stand Body Stand Base
Stand Body
Hinge Body
A4
Connecting the Display
Disassembling the stand
1. Put a cushion or soft cloth on aflat
surface. 2. Place the monitor face Down on
the cushion or soft cloth.
3.
Hold the Head Part with one hand and
hold the Stand Base Part with the other
as shown in the picture and pull the
Stand Base Part lightly upward
5.
Please pull the stand body lightly to separate it from the hinge body.
Stand Base
Part
Head Part
4. Pushing Latch inside, Take the
stand base from stand body.
A5
Connecting the Display
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
Positioning your display
1. Adjust the position of the panel in various ways for maximum comfort.
Tilt Range : -5˚~20˚
Ergonomic
It is recommended that in order to maintain an ergonomic and comfortable viewing
position, the forward tilt angle of the monitor should not exceed 5 degrees.
Swivel Range : 355˚
A6
2. Press button on the front switch panel to turn the
power on. When monitor power is turned on, the
'Self Image Setting Function' is executed automatically.
Connecting the Display
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display settings.When
the user connects the monitor for the first time, this function automatically adjusts the display to
optimal settings for individual input signals.
‘AUTO/SET’ Function? When you encounter problems such as blurry screen, blurred letters, screen
flicker or tilted screen while using the device or after changing screen resolution, press the
AUTO/SET function button to improve resolution.
Power Cord
1
2
Varies according to model.
Signal Cable
Wall-outlet type
MAC
PC
Mac adapter
For Apple Macintosh use, a separate plug adapter is needed
to change the 15 pin high density (3 row) D-sub VGA
connector on the supplied cable to a 15 pin 2 row connector.
Using the Computer
1. Make sure to turn off the computer and product.
Connect Signal cable and Power cord in order, then tighten the screw of the
signal cable.
12
A
B
Connect Dsub Cable (PC).
Connect Dsub Cable (Mac)
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.
User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite cores to maintain standard
compliance for the product.
A7
Control Panel Functions
Front Panel Controls
4 : 3 in Wide
Button
MENU Button
Use this button to enter or exit the On Screen Display.
OSD LOCKED/UNLOCKED
This function allows you to lock the current control
settings, so that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OSD LOCKED" should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message
"OSD UNLOCKED" should appear.
WIDE mode 4 : 3 display mode
It allows you to adjust the size of screen you are watching now.
• WIDE : The video source is displayed in full screen size.
• 4 : 3 :
Depending on the input video signal ratio, it is automatically
changed to an optimized screen ratio. (The 1280X1024
input signal is changed to 5:4 ratio and 1024X768 to 4:3.)
4 : 3 IN WIDE
WIDE
4 : 3 IN WIDE
4 : 3
Resolution Screen ratio
1280x1024
1152x864
1024x768
800x600
640x480
720x480
5 : 4
4 : 3
4 : 3
4 : 3
4 : 3
3 : 2
❈ The input signal which the 4:3 IN WIDE does not support the '4:3'
is the following.
-
720 x400, 1280 x768, 1360 x768, 1440 x 900, 1680 x1050
A8
Control Panel Functions

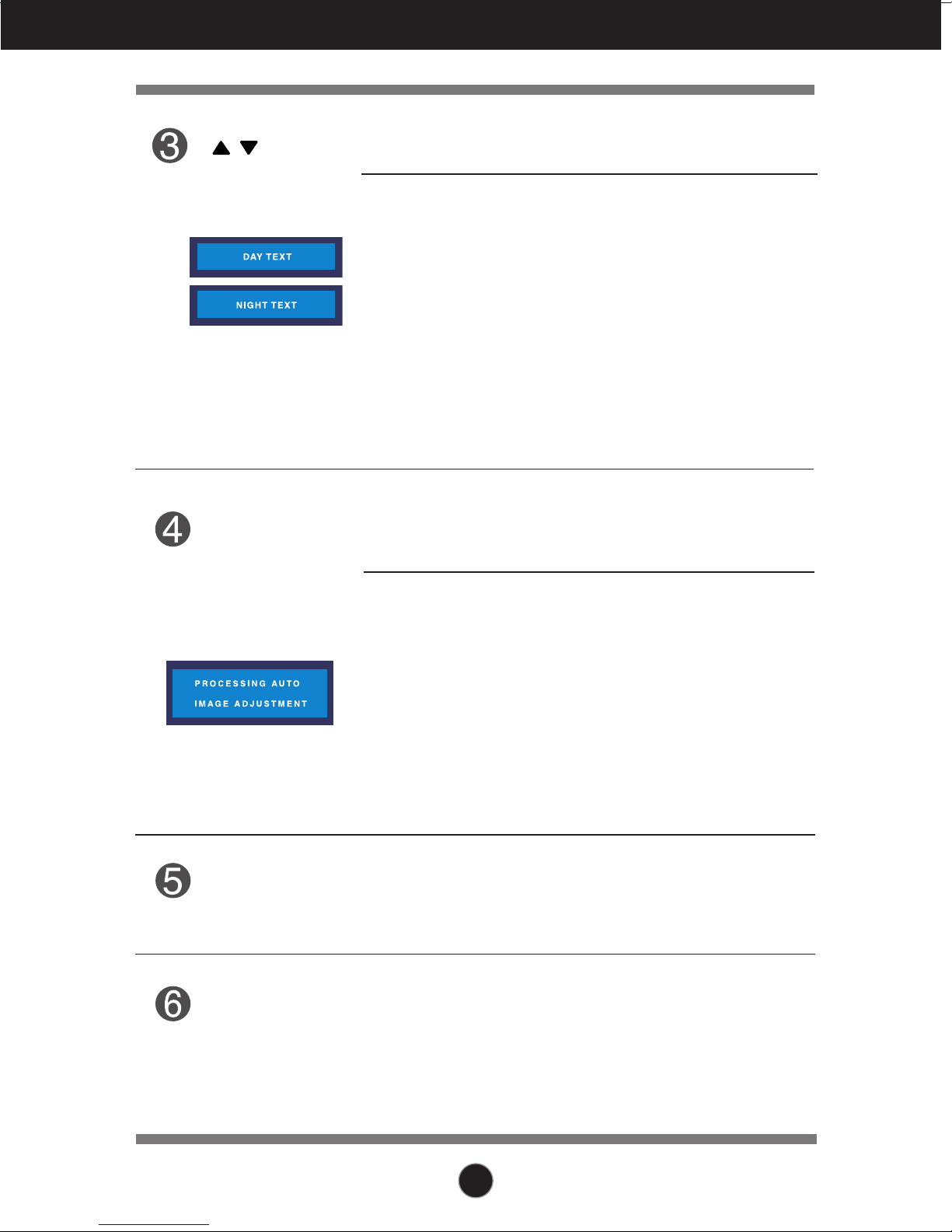

This Indicator lights up blue when the display operates
normally(On Mode). If the display is in Sleep Mode
(Energy Saving), this indicator color changes
to amber.
Use this button to turn the display on or off.
Power Button
Power Indicator
Use this button to enter a selection in the On Screen
Display.
AUTO/SET
Button
AUTO IMAGE ADJUSTMENT
When adjusting your display settings, always press
the AUTO/SET button before entering the On Screen
Display(OSD). This will automatically adjust your
display image to the ideal settings for the current
screen resolution size (display mode).
The best display mode is
1680 x 1050
Buttons
Use these buttons to select or adjust functions in the On
Screen Display.
LightView hot key
DAY
NIGHT
This feature lets you easily select the best desired
image condition optimized to the environment
(ambient illumination, image types etc).
• DAY : Bright ambient illumination
• NIGHT : Dark ambient illumination
• TEXT : For text images (Word processing etc.)
• MOVIE : For animation images in videos
or movies
• PHOTO : For pictures or drawings
•
NORMAL
: This is under normal operating
conditions
A9
On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating parameters of
the display is quick and easy with the On Screen Display Control system.
A short example is given below to familiarize you with the use of the controls.
The following section is an outline of the available adjustments and selections
you can make using the OSD.
To make adjustments in the On Screen Display, follow these steps:
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the or Buttons. When the icon you want
becomes highlighted, press the AUTO/SET Button.
Use the / Buttons to adjust the image to the desired level. Use the
AUTO/SET Button toselect other sub-menu items.
Push the MENU Buttononce to return to the main menu to select another
function. Push the MENU Buttontwice to exit from the OSD.
NOTE
Allow the display to stabilize for at least 30 minutes before making image adjustments.
Table des matières
Autres manuels LG Moniteur
LG
LG 29WP60G Manuel utilisateur
LG
LG Flatron L1753S Manuel utilisateur
LG
LG 34WK500-P.AAU Manuel utilisateur
LG
LG 27BL65U Manuel utilisateur
LG
LG L1982U Manuel utilisateur
LG
LG M5201CE Manuel utilisateur
LG
LG L1742TE Manuel utilisateur
LG
LG T710MH Manuel utilisateur
LG
LG E2260V-PN Manuel utilisateur
LG
LG 34WN750-B.AUS Manuel utilisateur
LG
LG FLATRON L1750S Manuel utilisateur
LG
LG Flatron W1954TQ Manuel utilisateur
LG
LG W2486LV Manuel utilisateur
LG
LG L226WTQ---PF Manuel utilisateur
LG
LG UltraGear 45GR95QE Manuel utilisateur
LG
LG 23ET83V-W Manuel utilisateur
LG
LG 35WN75C-W Manuel utilisateur
LG
LG One:Quick Flex 43HT3WJ Manuel utilisateur
LG
LG Flatron L2010P Manuel utilisateur
LG
LG W2452T Manuel utilisateur
