OWNER’S MANUAL

MONITOR SIGNAGE

42VS20

47VS20

55VS20

Please read this manual carefully before operating the your set and

retain it for future reference.

MONITOR SIGNAGE MODELS

ENG

ENGLISH

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

4LICENSES

5ASSEMBLING AND

PREPARING

5 Accessories

6 Optional Accessories

7 Parts and buttons

8 Connecting the stand (42VS20)

8 Connecting the stand (47VS20)

9 Connecting the stand (55VS20)

9 Connecting the Speakers

(42VS20,47VS20)

10 Connecting the Speakers

(55VS20)

10 Portrait Layout

11 Mounting on a wall

12 REMOTE CONTROL

14 USING THE MONITOR SET

14 Connecting to a PC

14 - RGB connection

15 - DVI connection

15 - HDMI connection

16 - DP connection

17 Adjusting the screen

17 - Selecting an image mode

17 - Customizing image options

18 - Customizing PC display options

18 Adjusting the sound

18 - Selecting an sound mode

19 - Customizing sound options

19 Using additional options

19 - Adjusting aspect ratio

21 - Using the input list

22 ENTERTAINMENT

22 - Connecting to a wired network

23 - Network Status

24 - Connecting USB storage devices

25 - Browsing files

27 - Viewing movies

30 - Viewing photos

33 - Listening to music

35 - Viewing the Contents List

36 - DivX® VOD Guide

37 - Using PIP/PBP

38 CUSTOMIZING SETTINGS

38 Accessing main menus

39 - PICTURE settings

42 - AUDIO settings

43 - TIME settings

44 - OPTION settings

48 - Picture ID

49 - NETWORK settings

50 MAKING CONNECTIONS

51 Connecting to a HD receiver, DVD,

Camcorder, Camera, Gaming Device or

VCR player

51 - DVI connection

51 - HDMI connection

52 - Component connection

52 - AV(CVBS) connection

53 Connecting to the LAN

53 - LAN connection

53 Connecting to a USB

54 Daisy Chain Monitors

54 - RGB Cable

54 - DVI Cable

ENGLISH

LICENSES

55 TROUBLESHOOTING

58 SPECIFICATIONS

65 IR CODES

66 CONTROLLING THE MULTIPLE

PRODUCT

66 Connecting the cable

66 RS-232C Configurations

66 Communication Parameter

67 Command reference list

69 Transmission / Receiving protocol

ENGLISH

4LICENSES

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks

or registered trademarks of HDMI Licensing LLC.

ABOUT DIVX VIDEO: DivX is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified device that

plays DivX video. Visit divx.com for more information and software tools to

convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX

Certified device must be registered in order to play purchased DivX Video-

on-Demand (VOD) movies. To obtain your registration code, locate the

DivX VOD section in your device setup menu. Go to vod.divx.com for more

information on how to complete your registration.

DivX Certified to play DivX video up to HD 1080p, including premium

content.

DivX , DivX Certified and associated logos are trademarks of Rovi

Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274

Manufactured under license from Dolby Laboratories. “Dolby” and the

double-D symbol are trademarks of Dolby Laboratories.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Accessories

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any pirated items to ensure the safety and product life span.

yAny damages or injuries by using pirated items are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

Remote control and Batteries Power Cord

DVD (Owner's Manual) / Card D-sub 15 pin signal cable

CAUTION

NOTE

INPUT

ENERGY

SAVING

MARK

ARC

OFF



. , !



ABC



DEF



GHI



JKL



MNO



PQRS



TUV



1/a/A



- * #

WXYZ

CLEAR

MONITOR

PSM

AUTO

MUTE

BRIGHT

NESS

POWER

S.MENU

BACK TILE

ON OFF

EXIT

ENG

ENGLISH

ASSEMBLING AND PREPARING

Optional Accessories

Without prior notice, optional accessories are subject to change to improve the performance of the product,

and new accessories may be added. The illustrations in this manual may differ from the actual product and

accessories.

yCable holder/Cable tie may not be available in some areas or for some models.

yOptional accessories are not included for all models.

NOTE

Stand kit

Speaker kit

Cable holder/

Cable Tie

Screws/CableSpeaker

42VS20 47VS20 55VS20

Stand Stand Stand

Screws Screws Screws

ENG

ENGLISH

ASSEMBLING AND PREPARING

USB DP LANAUDIO

DVI IN DVI OUT

IN SPEAKER

RGB/AV

/COMPONENT OUT

RGB/AV

/COMPONENT IN

yYou can set the Power indicator to on or off by selecting OPTION in the main menu.

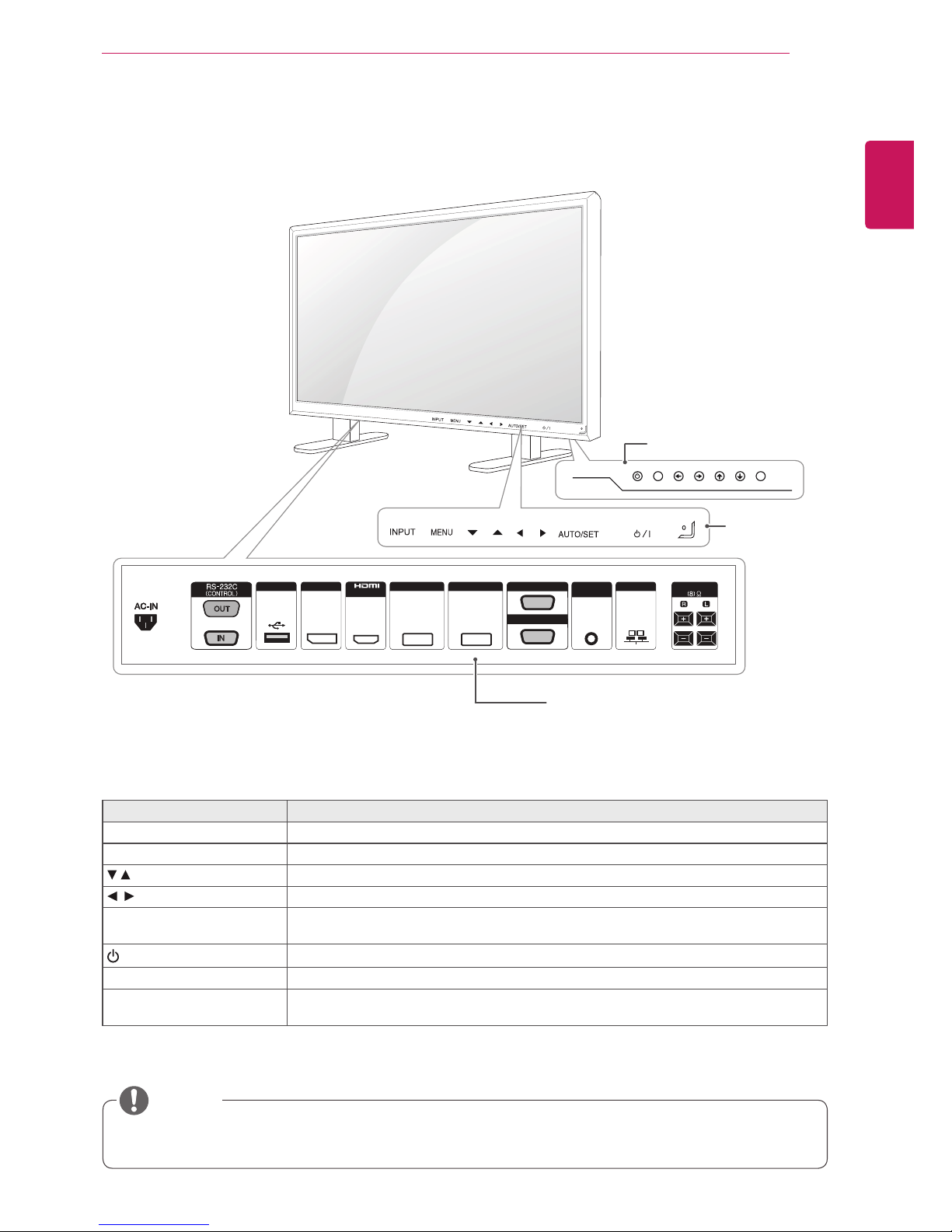

Parts and buttons

Screen Marks Description

INPUT Changes the input source.

MENU Accesses the main menus, or saves your input and exits the menus.

Adjust the up and down.

Adjusts the volume level.

AUTO/SET Displays the current signal and mode.

Press this button to adjust the screen automatically (available only in RGB mode)

/ITurns the power on or off.

IR Receiver This is where the unit receives signals from the remote control.

Power Indicator This Indicator lights up blue when the display operates normally(on mode). If the display

is in sleep (Energy Saving) mode, this indicator color changes to amber.

Connection panel (See p.51 to p.53)

Screen Buttons

Screen Marks

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

2Use the screws to secure the stand on the rear

side of the product as shown in the diagram.

2Use the screws to secure the stand on the rear

side of the product as shown in the diagram.

Connecting the stand

(42VS20)

- Only on some models.

1Place a soft cloth on the table and put the

product with the screen facing downward.

Connecting the stand

(47VS20)

- Only on some models.

1Place a soft cloth on the table and put the

product with the screen facing downward.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Connecting the Speakers

(42VS20,47VS20)

- Only on some models.

1Connect the input signal cable to the Monitor

before installing the speakers. Use a cable tie

to organize the cables.

3After installing your speakers, use holders and

cable ties to organize the speaker cables.

2Use the screws to secure the stand on the rear

side of the product as shown in the diagram.

yConnect the speaker terminals noting the

correct polarity.

Connecting the stand

(55VS20)

- Only on some models.

1Place a soft cloth on the table and put the

product with the screen facing downward.

NOTE

2Mount the speaker by using a screw as shown

in the following. Then connect the speaker

cable.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Portrait Layout

- Only on some models.

When installing in a Portrait Layout, rotate the

monitor clockwise 90 degrees (when facing the

screen).

Using the Kensington security system

The Kensington security system connector is

located at the back of the Monitor set. For more

information of installation and using, refer to the

manual supplied with the Kensington security

system or visit

http://www.kensington.com

Connect the Kensington security system cable

between the Monitor set and a table.

yThe Kensington security system is optional.

You can obtain additional accessories from

most electronics stores.

NOTE

Connecting the Speakers

(55VS20)

- Only on some models.

1Connect the input signal cable to the Monitor

before installing the speakers. Use a cable tie

to organize the cables.

3After installing your speakers, use holders and

cable ties to organize the speaker cables.

yConnect the speaker terminals noting the

correct polarity.

NOTE

2Mount the speaker by using a screw as shown

in the following. Then connect the speaker

cable.
