LG 22MP55VQ Manuel utilisateur

www.lg.com

OWNER’S MANUAL

IPS LED MONITOR

22MP55VQ

23MP55VQ

24MP55VQ

27MP55VQ

Please read this manual carefully before operating

your set and retain it for future reference.

IPS LED MONITOR MODEL

ENGLISH

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3LICENSE

4ASSEMBLING AND PREPAR-

ING

4 Unpacking

5 Parts and buttons

6 Moving and Lifting the Monitor

7 Setting up the Monitor set

7 - Attaching the Stand Base

8 - Detaching the Stand Base

9 - Mounting on a table

9 - Using the cable holder

11 - Mounting on a wall

12 USING THE MONITOR SET

12 Connecting to a PC

12 - D-SUB connection

12 - DVI-D connection

12 - HDMI connection

13 Connecting to AV Devices

13 - HDMI connection

13 Connecting to External Devices

13 - Peripheral device connection

15 CUSTOMIZING SETTINGS

16 Customizing Settings

16 - Menu Settings

17 -Picture

18 -Color

19 -Display

19 -Audio

20 -Others

21 READER Setting

22 FUNC. Setting

22 -SUPER ENERGY SAVING

23 -Picture Mode

24 -SUPER RESOLUTION +

25 -DUAL DISPLAY

25 -DUAL WEB

26 TROUBLESHOOTING

28 SPECIFICATIONS

28 22MP55VQ

29 23MP55VQ

30 24MP55VQ

31 27MP55VQ

32 Preset Modes (Resolution)

32 Indicator

33 PROPER POSTURE

33 Proper posture for using the Monitor set.

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

ENG

ENGLISH

ASSEMBLING AND PREPARING

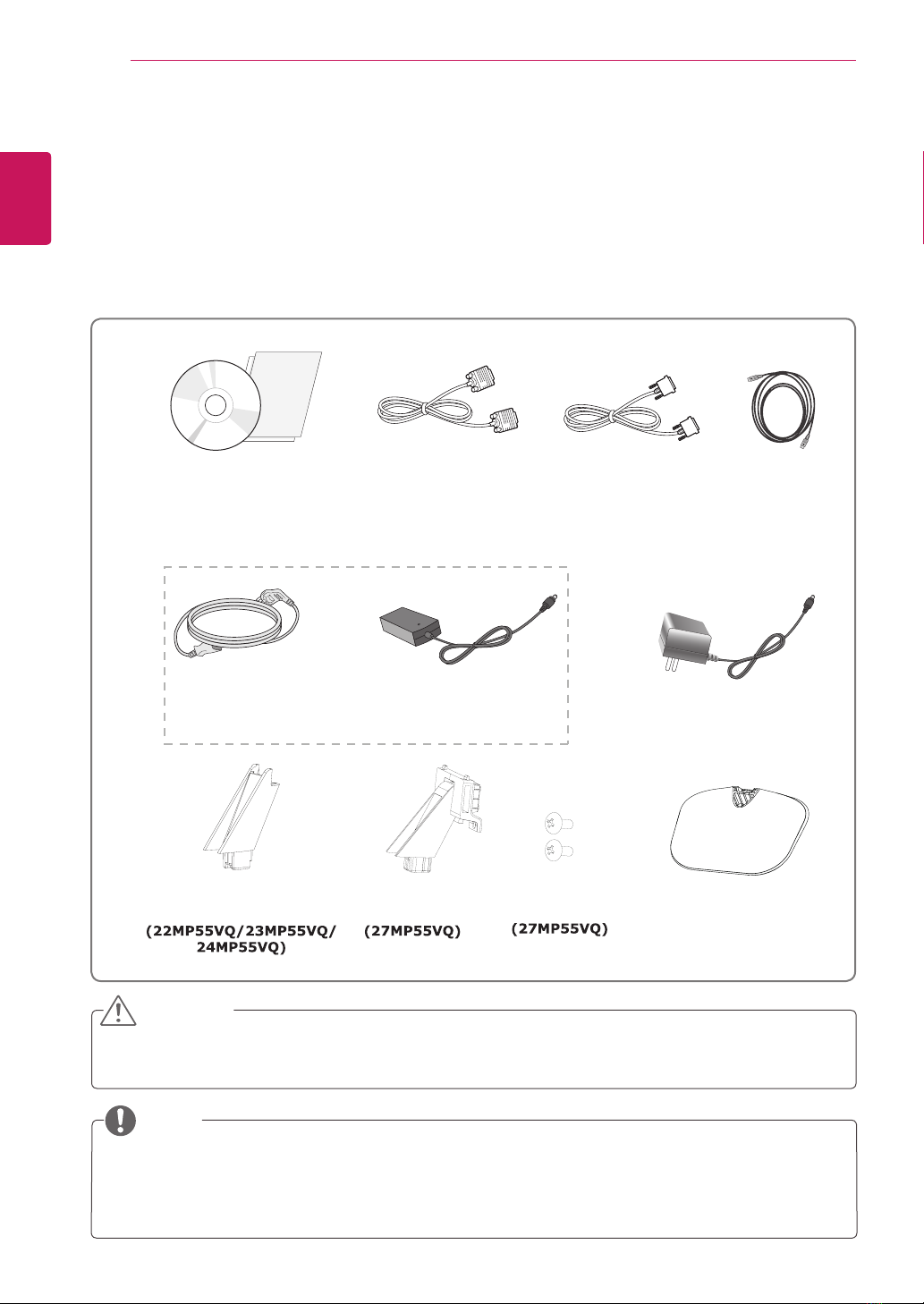

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

Stand Body Stand Base

CD(Owner's Manual) /

Card

D-SUB Cable

(This cable is not

included in all

countries.)

( Depending on the country ) ( Depending on the country )

Power Cord AC-DC Adapter AC-DC Adapter

Stand Body Two Screws

HDMI Cable

(This cable is not

included in all

countries.)

DVI-D Cable

(This cable is not

included in all

countries.)

ENG

ENGLISH

ASSEMBLING AND PREPARING

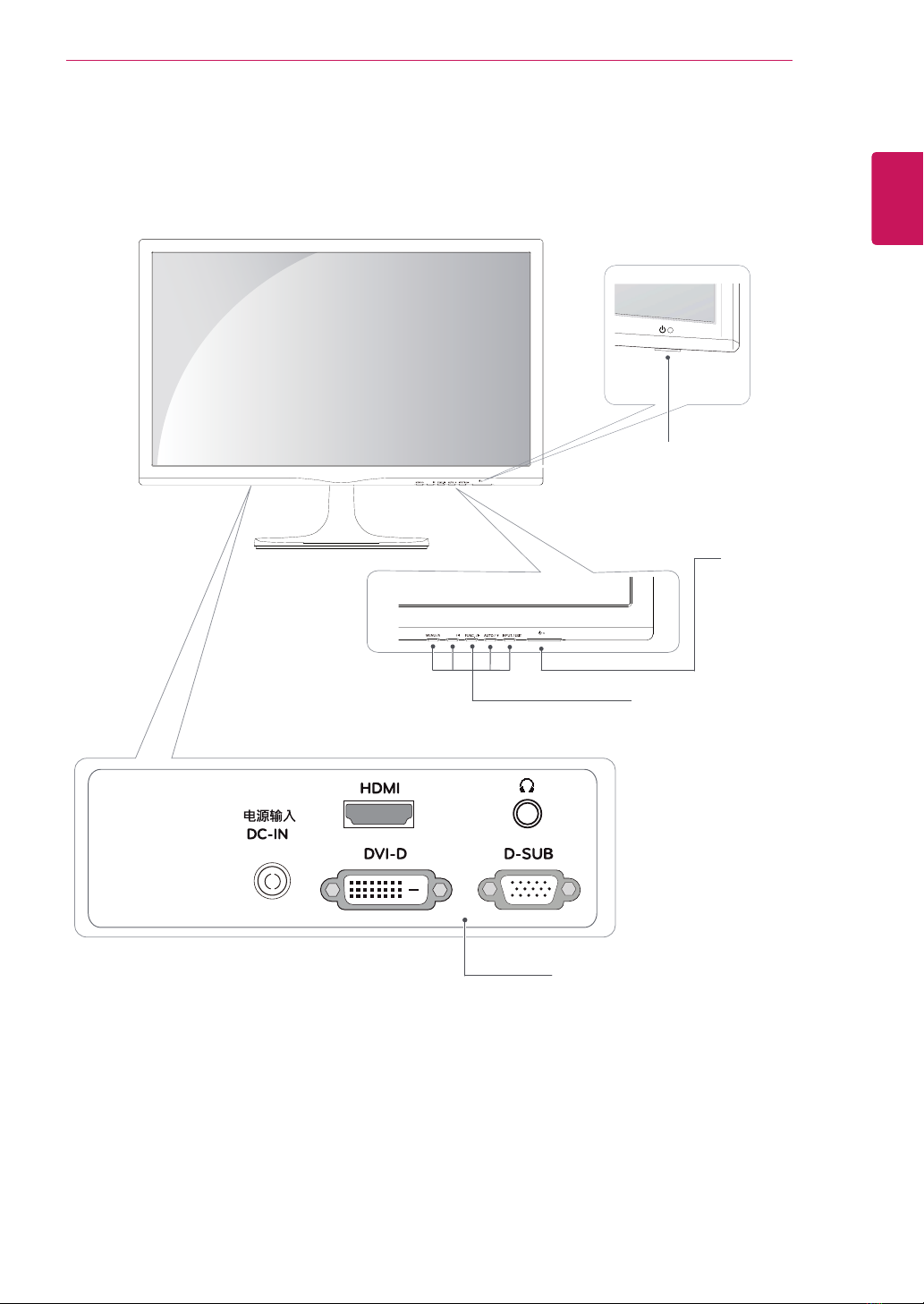

Parts and buttons

READER

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Connection panel (See p.12)

Button (See p.15)

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

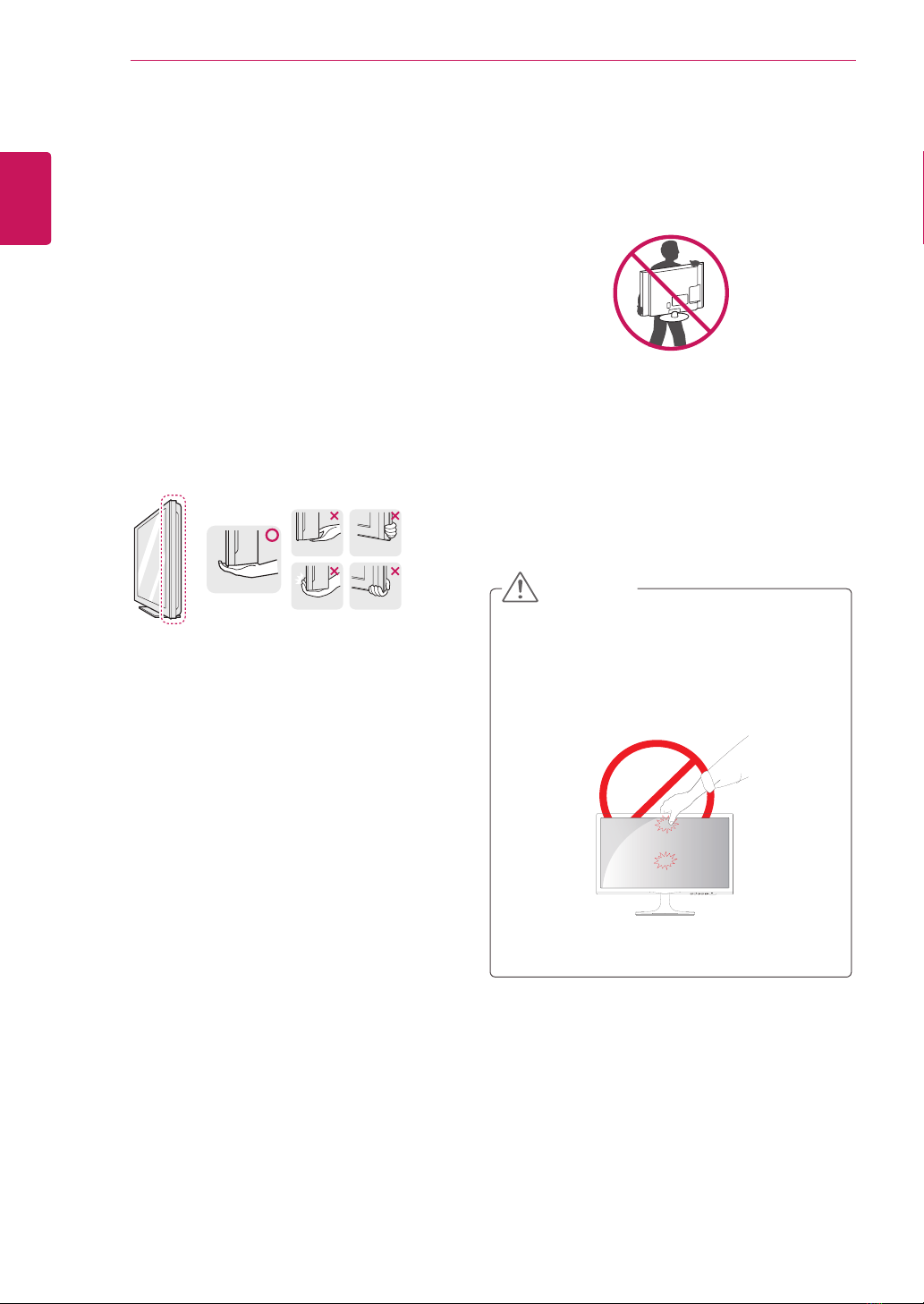

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Attach the Stand Body to the monitor set.

Attach the Stand Base.

Tighten the screw to the right.

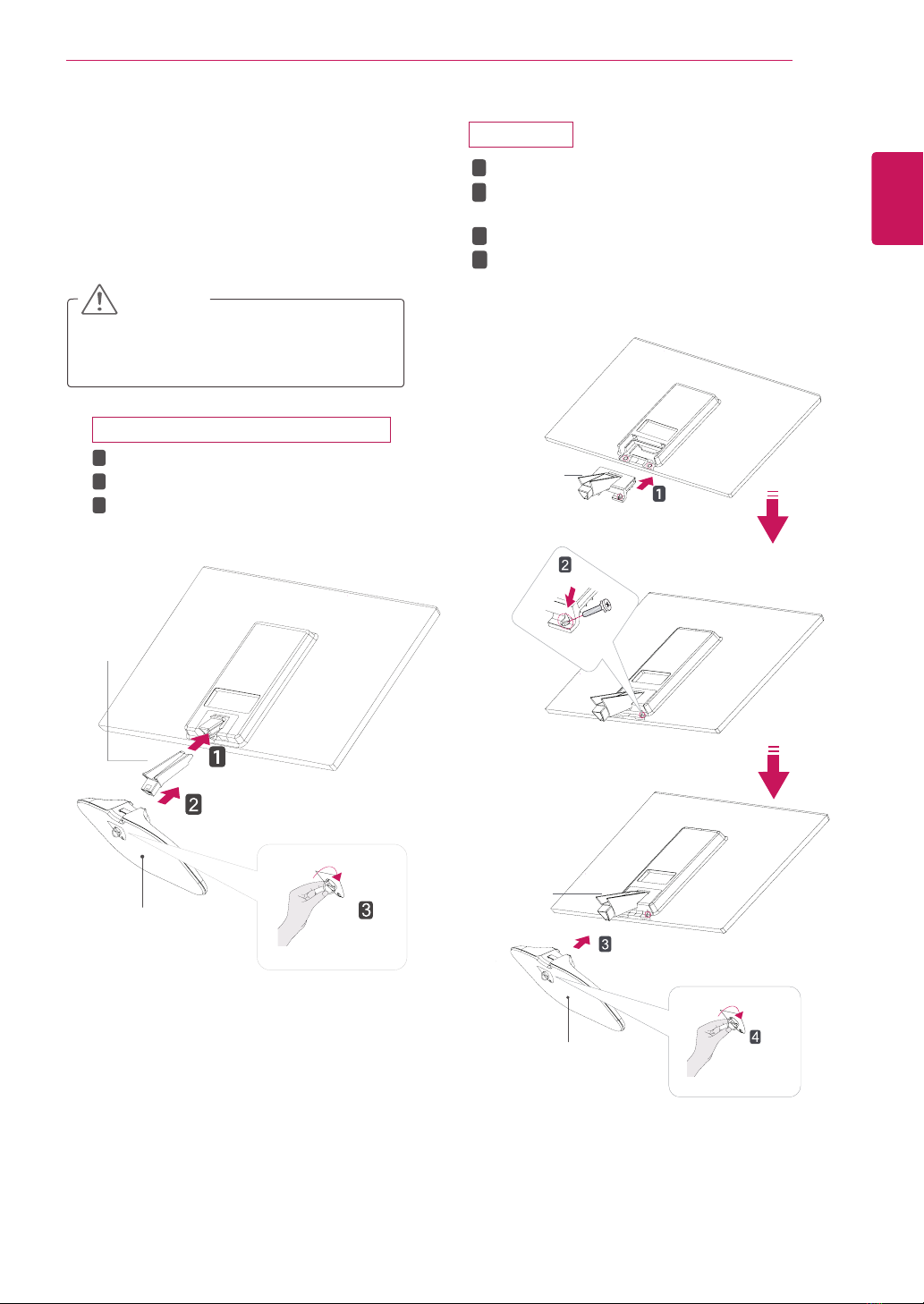

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

CAUTION

Stand Base

Stand Body

22MP55VQ/23MP55VQ/24MP55VQ

27MP55VQ

Attach the Stand Body to the monitor set.

Use two screws to fix the Stand Body and

monitor set.

Attach the Stand Base.

Tighten the screw to the right .

Stand Body

Stand Base

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Stand Base

Stand Body

Pull out the Stand Body and Stand Base

from the monitor set.

Turn the screw to the left.

Pull out the Stand Base.

yThis illustration depicts the general model of

connection. Your monitor may differ from the

items shown in the picture.

yDo not carry the product upside down holding

only the stand base. The product may fall

and get damaged or injure your foot.

CAUTION

22MP55VQ/ 23MP55VQ /24MP55VQ

27MP55VQ

Turn the screw to the left.

Pull out the Stand Base from the Stand Body.

Remove two screws and pull out the Stand

Body from the monitor set.

Stand Body

Stand Base

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mounting on a table

1Lift and tilt the Monitor set into its upright

position on a table.

Leave a 10 cm (minimum) space from the wall

for proper ventilation.

2Connect the AC-DC Adapter and Power Cord

to a wall outlet.

3Press (Power) button on the bottom switch

panel to turn the power on.

10 cm

Unplug the power cord before moving the

Monitor to another location. Otherwise electric

shock may occur.

CAUTION

Using the cable holder

Cable holder

ENG

ENGLISH

ASSEMBLING AND PREPARING

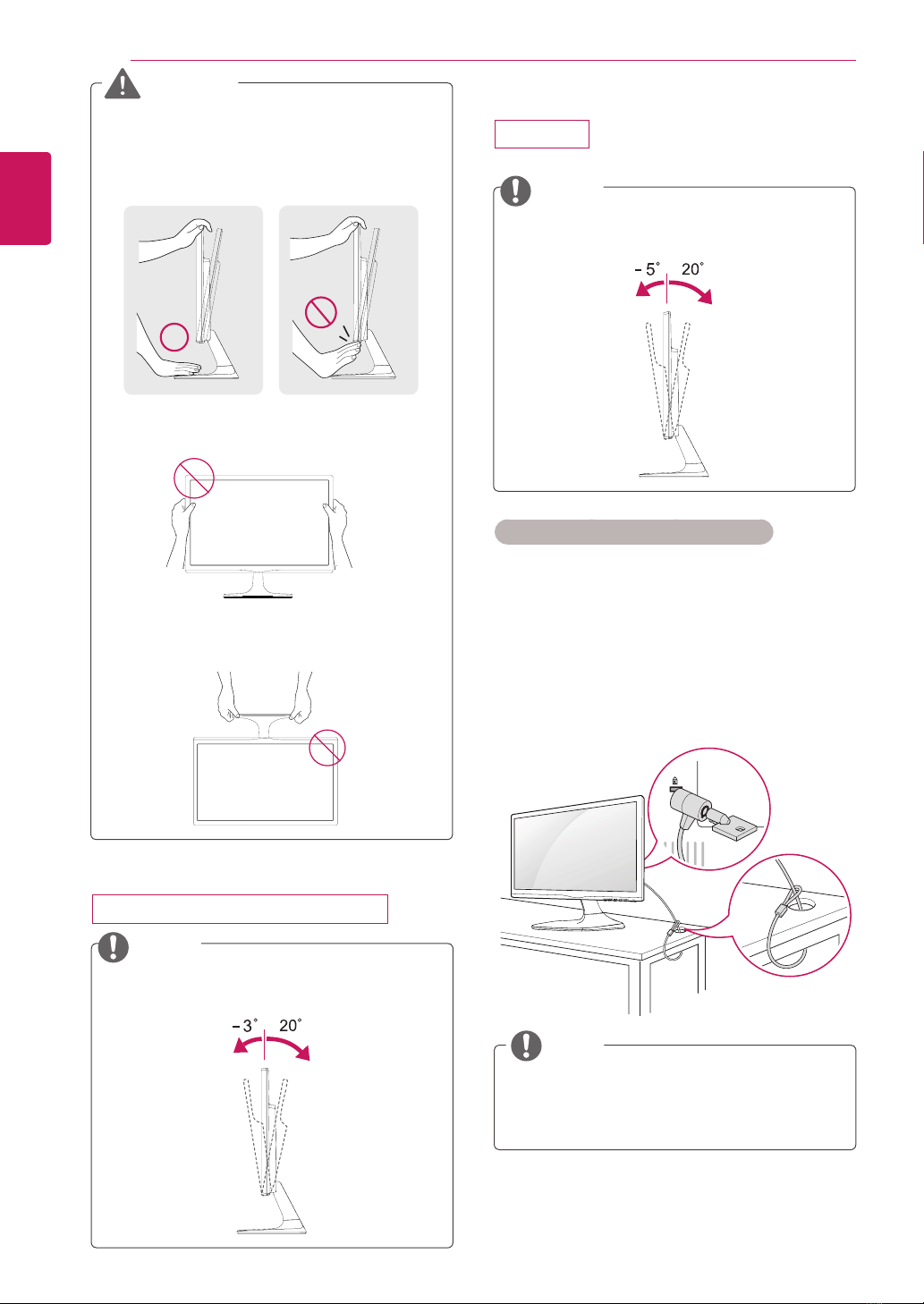

Using the Kensington security system

The Kensington security system connector is

located at the back of the Monitor set. For more

information of installation and using, refer to the

manual supplied with the Kensington security

system or visit

http://www.kensington.com

Connect the Kensington security system cable

between the Monitor set and a table.

The Kensington security system is optional.

You can obtain it from most electronics stores.

NOTE

When you adjust the angle, do not hold the

bottom of the Monitor set frame as shown on

the following illustration, as may injure your

fingers.

Do not touch or press the screen when

adjusting the angle of the monitor.

WARNING

Tilt from +20 to -3 degrees up or down to adjust

the angle of the Monitor set to suit your view.

Tilt from +20 to -5 degrees up or down to adjust

the angle of the Monitor set to suit your view.

NOTE

Front

Rear

Do not hold this set like below picture.Monitor

screen can detach from stand base and injure

your body.

22MP55VQ/23MP55VQ/24MP55VQ

27MP55VQ
