ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

CAUTION

Power Cord

Cable Tie

Audio Cable

User Manual/Card

Stand Base

Stand Body

Stand Body Screw Cover

Two Screws

AC/DC Adapter DVI-D Dual Cable

29EA73 29EB73

OPTIONAL ACCESSORIES

yThe DisplayPort cable may not

be available in some areas.

Display Port Cable

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to im-

prove the performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the

retail store where you purchased the product.

yThe DisplayPort cable may not be available in some areas.

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

/PBP

DVI-D IN

HDMI 1/

MHL

HDMI 2

AUDIO IN (PC)

5 V 0.9 A

5 V 0.5 A

5 V 0.9 A

DC-IN(19 V )

DP IN

H/P

USB IN 1 USB IN 2

USB IN 3

USB UP

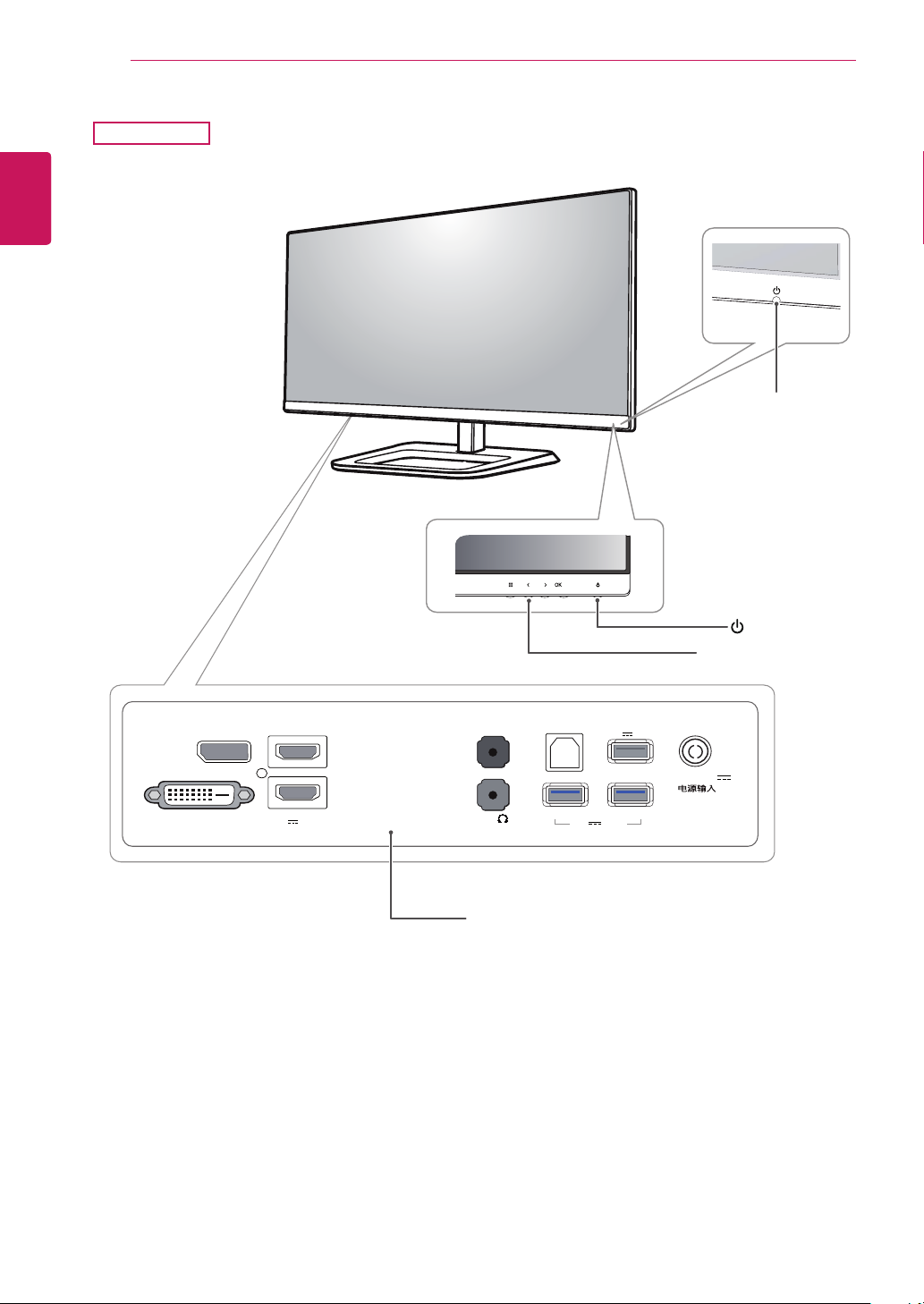

Component and Button Description

Power Indicator

yOn: power is on

yOff: power is off

Touch buttons on the bottom

of the monitor

Ports

(Power Button)

29EA73

ENG

ENGLISH

ASSEMBLING AND PREPARING

/PBP

DVI-D IN

HDMI 1/

MHL

HDMI 2

AUDIO IN (PC)

5 V 0.9 A

5 V 0.5 A

5 V 0.9 A

DC-IN(19 V )

DP IN

H/P

USB IN 1 USB IN 2

USB IN 3

USB UP

Power Indicator

yOn: power is on

yOff: power is off

Touch buttons on the bottom

of the monitor

Ports

(Power Button)

29EB73

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

29EA73

29EB73

ENG

ENGLISH

ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the stand base

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

3Tighten two screws into the back of the stand

body and close the screw covers.

2Check the direction of the stand body (front,

back) and then mount the stand body onto the

stand hinge.

1Place the screen face down.

29EA73

yApplying excessive force when tightening

the screws may cause damage to the moni-

tor. Damage caused in this way will not be

covered by the product warranty.

CAUTION

4Fix the stand base to the stand body. Using a

coin, turn the screws in the stand base clock-

wise.

Stand Body

Stand Base

Screw Cover

Stand Hinge

Stand Body

ENG

ENGLISH

ASSEMBLING AND PREPARING

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

Stand Base

1Place the screen face down.

29EB73 3Insert the stand base into the hook of the

stand body.

4Fix by turning the screw to the right with a coin.

Stand Body

2Put the stand body on the monitor aligning

with holes for fixing screws and fix two screws

to the holes to assemble the stand body and

the monitor together.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the stand base

2Using a coin, turn the screw in the stand base

counterclockwise. Remove the stand base

from the stand body.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

Stand Base

yIllustrations in this document represent typi-

cal procedures, so they may look different

from the actual product.

yDo not carry the monitor upside down by just

holding the stand base. This may cause the

monitor to fall off the stand and could result

in personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. Applying force or

pressure may damage the monitor screen.

Instead, hold the stand body or the plastic

frame of the product.

CAUTION

1Place the screen face down.

29EA73

Stand Body

3Open the screw covers on the back of the

stand body and remove the two screws with a

screwdriver.

As shown in the illustration, disconnect the

stand body from the stand hinge.

Stand Hinge

Stand Body

Screw Cover
