IPS LED Monitor (LED Monitor) Model List

OWNER'S MANUAL

IPS LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

27UK850

27BK85U

ENG

ENGLISH

CONTENTS

19 USER SETTINGS

19 Activating the Main Menu

19 - Main Menu Features

20 User Settings

20 - Menu Settings

25 TROUBLESHOOTING

27 SPECIFICATIONS

27 27UK850/27BK85U

28 Factory Support Mode (Preset Mode, PC)

28 HDMI

28 DisplayPort / USB-C

29 HDMI Timing (Video)

29 Power LED

3LICENSE

4ASSEMBLING AND PREPARING

4 Product Components

5 Supported Drivers and Software

6 Component and Button Description

6 - How to Use the Joystick Button

7 Moving and Lifting the Monitor

8 Installing the Monitor

8 - Assembling the stand base

9 - Using the cable holder

10 - Installing onto a table

11 - Adjusting the angle

11 - Adjusting the Stand Height

12 - Pivot Feature

13 - Using the Kensington lock

14 - Detaching the Stand Body

14 - Installing the wall mount plate

14 - Installing to a wall

16 USING THE MONITOR

16 Connecting to a PC

16 - HDMI connection

16 - DisplayPort connection

17 - USB-C connection

17 Connecting to AV Devices

17 - HDMI connection

18 Connecting Peripherals

18 - USB Cable connection - PC

18 Connecting to External Devices

18 - Connecting Headphones

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP

Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

VESA, VESA logo, DisplayPort compliance logo and DisplayPort compliance logo for

dual-mode source devices are all registered trademarks of the Video Electronics Stan-

dards Association.

The SuperSpeed USB Trident logo is a registered trademark of USB Implementers

Forum, Inc.

MaxxAudio and additional MAXX trademarks are trademarks and/or registered trade-

marks of Waves Audio Ltd.

USB Type-CTM and USB-CTM are trademarks of USB Implementers Forum.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are missing com-

ponents, contact the retail store where you purchased the product. Note that the product and components may look

different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yIt is recommend that use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve the

performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store

where you purchased the product.

CAUTION

NOTE

CD /Card

DisplayPort Cable USB C-C cable

Stand Body Stand Base Cable Holder

HDMI Cable

( Depending on the coun-

try )

( Depending on the country )

Power Cord AC-DC Adapter

ENG

ENGLISH

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Drivers and Software Installation Priority 27UK850/27BK85U

Monitor Driver Recommended O

OnScreen Control Recommended O

Dual Controller Optional O

True Color Pro Optional O

ENG

ENGLISH

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your

finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off the

monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

Component and Button Description

Power LED

yOn: power is on

yOff: power is off

Joystick Button

yThe joystick button is located at the bottom of the monitor.

NOTE

ENG

ENGLISH

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these in-

structions to prevent the monitor from being scratched

or damaged and to ensure safe transportation regard-

less of its shape or size.

yAs far as possible, avoid touching the monitor

screen. This may result in damage to the screen or

some of the pixels used to create images.

yIt is advisable to place the monitor in the original

box or packing material before attempting to

move it.

yBefore moving or lifting the monitor, disconnect

the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the screen itself.

yWhen holding the monitor, the screen should face

away from you to prevent it being scratched.

yWhen moving the monitor, avoid any strong shock

or vibrations to the product.

yWhen moving the monitor, keep it upright, never

turn the monitor on its side or tilt it sideways.

CAUTION

yIf you use the monitor panel without the stand

base, its joystick button may cause the monitor to

become unstable and fall, resulting in damage to

the monitor or human injury. In addition, this may

cause the joystick button to malfunction.

ENG

ENGLISH

Installing the Monitor

Assembling the stand base

yTo avoid injury to the ﬁngers and foot when

Assembly Stand Body and Base, should hold

Base when assembly stand body and base.

yPress the stand until the button reaches the top.

1Please put a soft cloth on a low table or box to

protect the screen of the monitor.

2Please put the monitor on the soft cloth with the

screen facing down.

4Turn the screw clockwise to secure the stand base.

1 2

Assemble the Head and Stand body.

2Assemble the Stand body and Stand base .

CAUTION

NOTE

Stand Body

Stand Base

Stand Body

Cable Holder

ENG

ENGLISH

yIllustrations in this document represent typical

procedures, so they may look different from the

actual product.

yDo not carry the monitor upside down by just

holding the stand base. This may cause the

monitor to fall off the stand and could result in

personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied to

the monitor screen may cause damage to it.

yDo not apply foreign substances (oils, lubricants,

etc.) to the screw parts when assembling the

product. (Doing so may damage the product.)

yApplying excessive force when tightening screws

may cause damage to the monitor. Damage

caused in this way will not be covered by the

product warranty.

CAUTION

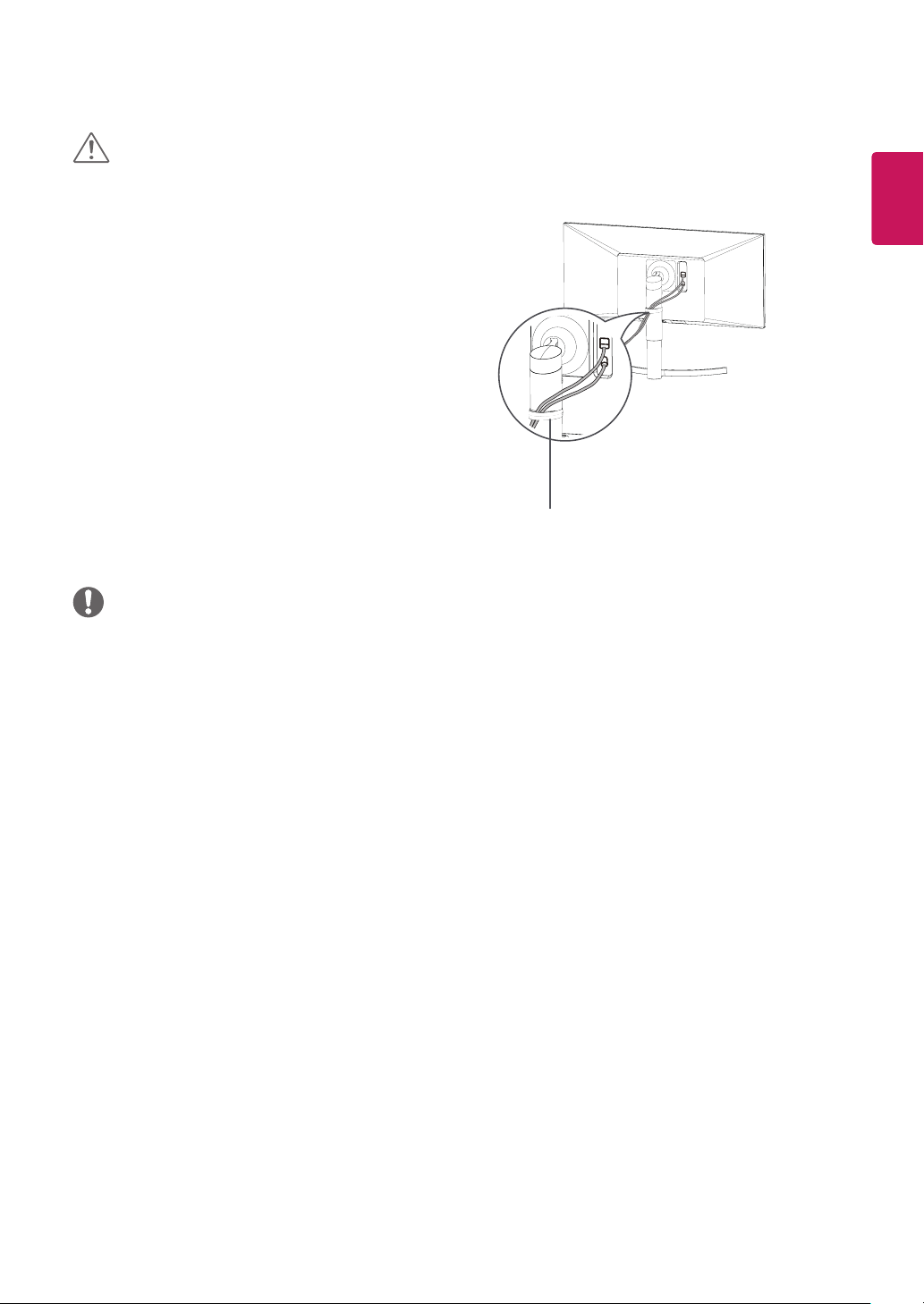

Using the cable holder

Arrange the cables using the cable holder as shown in

the illustration.

yYou can disassemble the stand in the reverse

order of the assembly.

NOTE

cable holder

ENG

ENGLISH

Installing onto a table

1Lift the monitor and place it on the table in an up-

right position.

Place at least 100 mm away from the wall to ensure

sufficient ventilation.

Cautions When Connecting Power Cord

2Connect the Power cord to the monitor, then plug

the power cord into the wall outlet.

100 mm

yUnplug the power cord prior to moving or install-

ing the monitor. There is risk of electric shock.

yMake sure to use the power cord that is pro-

vided in the product package and connect it to a

grounded power outlet.

yIf you need another power cord, please contact

your local dealer or the nearest retail store.

CAUTION

3Press the joystick button on the bottom of the

monitor to turn on the monitor.

100-240 V~
